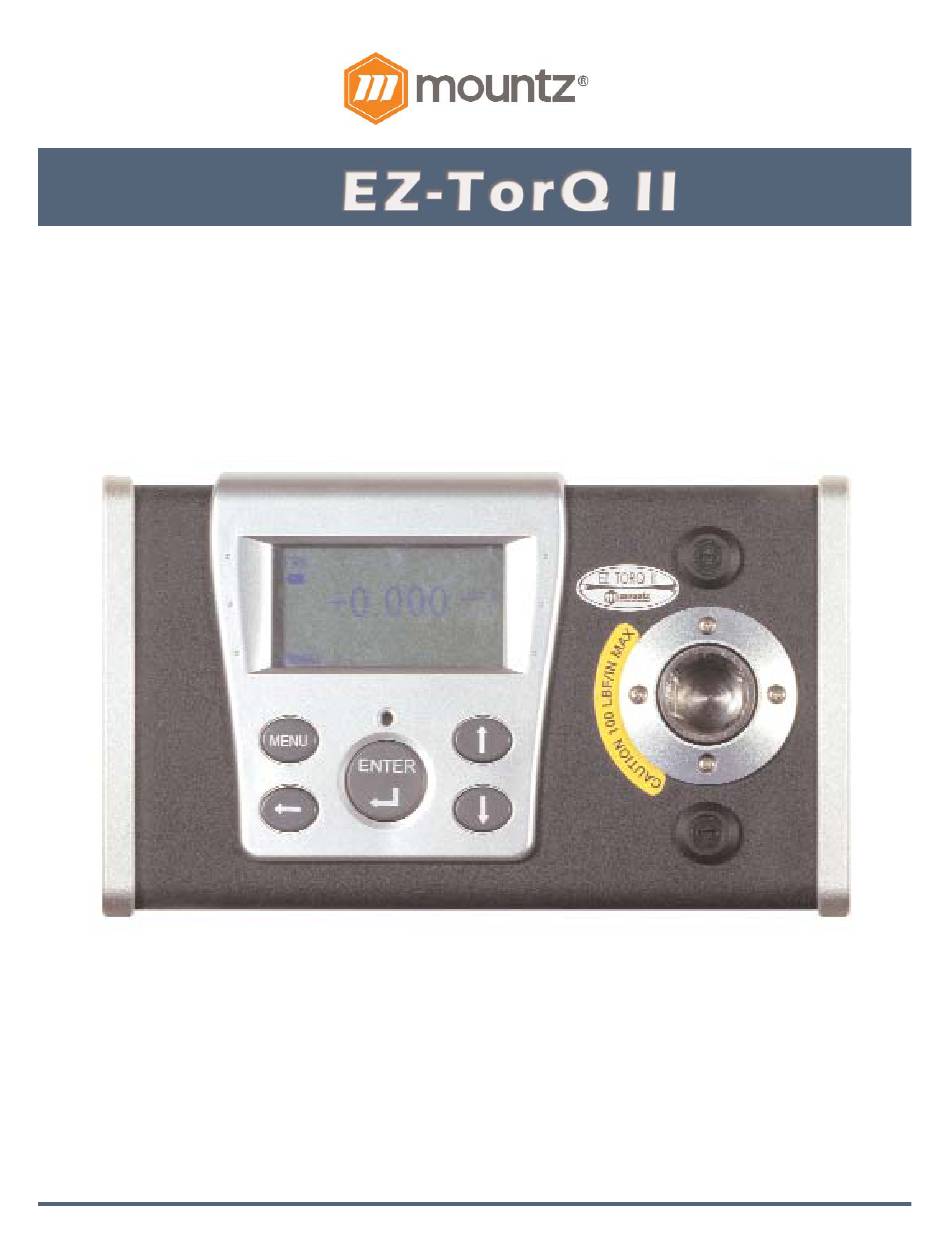

- Page 1 Operating Instructions Version 3.2 (3/22/2017) Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
-
Page 2: Table Of Contents
EZ-TorQ II models prior to seri- al # EZ1108001 do not have these features. If you would like to have your EZ-TorQ II torque tester upgraded to include the current operating system, please send it to a Mountz Service & Repair facility. - Page 3 Units Mode Setup Quick Test Filter lbf.in Track Backlight Pan-Pac (130 Hz) Data Output lbf.ft Peak First Peak Clear Memory ozf.in Mountz (170 Hz) kgf.cm Auto Clear Sub-Menu kgf.m Tolerance (500 Hz) Enter Direction Sub-Menu cN.m Contrast Sub-Menu Language Enter...
-
Page 4: Screen Display
S c r e e n D i s p l a y a n d M e n u S t r u c t u r e When the torque tester is turned on it will display a The Reading Mode Screen will appear as shown Screen similar to that below for 5 seconds and then below:... -
Page 5: Menu Selections (Units, Mode, Set-Up, Quick Test & Filter)
M e n u S e l e c t i o n s Pressing the "Menu" Key will present the following Screen: 1. Use the Scroll Up or Down key to toggle through: Quick Test, Units, Mode, Setup & Filter. 2. - Page 6 M e n u S e l e c t i o n s Selecting Units Note: 1. Select Units by highlighting and pressing Enter. cN.m is also available but you must 2. Use the Scroll Up or Down key to toggle through the Unit options. scroll down.
-
Page 7: Enter Key & Mode Selection
Quick Test Units Mode Pan-Pac (130 Hz) Setup Mountz (170 Hz) Filter ISO (500 Hz) E n t e r K e y The ENTER key function is used for two functions. C L E A R I N G D I S P L AY The first function is used to clear any torque reading on the display. -
Page 8: Set-Up Selections
M o d e S e l e c t i o n The EZ-TorQ Torque Tester offers three different modes of displaying torque information during operation (Track, Peak and First Peak). The user will determine which mode is best suited for the application. The use of the three modes is described below. - Page 9 Use the Scroll Left set up the data for each setting Units: lbf.in Press enter to save the setting. Note! The unit should never be plugged into the Mountz Interface Program with Data Output turned to "on" Data Output This function allows a user to toggle data output to On or Off. Defaults setting is Data Output Off.
- Page 10 S e t u p S e l e c t i o n s Tolerance The Tolerance parameters control the Go and No-Go multicolored Green / Red LED and In Tolerance and Out of Tolerance indication on the meter screen. The user sets a lower and upper torque threshold to get a visual warning signal when TOLERANCE SETTING these limits are reached or breached during operation.
-
Page 11: Filter Selections
130Hz, which will result in slightly lower torque values being displayed with increased RPM. 2. Mountz (170Hz): At this frequency setting, the operator will see limited or no change to the torque values being dis- played as the speed of a power tool is increased. The 170Hz frequency filter in conjunction with software averaging cuts off signals above 170Hz, which will result in little or no change to torque values being displayed with increased RPM. -
Page 12: External Connection
2. The torque tester should be properly secured on a solid surface or a test bench. 3. Before each test run, the Input drive run down adapter (RDA) should be completely backed-up. (Unless using Mountz AURA run down adapter) 4. The RDA is designed to run in clockwise direction only. -
Page 13: Ez-Torq Meter Interface Software
The interface program allows the operator to conduct Tool Tests, Data logging and Sensor Calibration. 1) Insert the CD into the PC and the EZ-TorQ II Interface Program splash screen will appear. Click on the “Install EZ- TorQ II Program”... - Page 14 3) Click Install. 4) After the installation is successful click Finish. 5) After installation of the EZ-TorQ Interface Program, turn on the unit and connect it to a PC through the RS-232 port. 6) A Green light will show on the Interface Program indicating that the software was installed and the unit is connected properly.
-
Page 15: Com Port Selection
C O M P o r t S e l e c t i o n The EZ-TorQ Interface Program contains a com port selection tab which allows for selection of a specific com port. The default setting is Com 1. Go to File Menu, select Com Port. If using a USB connection, Toggle through the com port selections and click ok on the available selections until the On-Line indicator turns Green. -
Page 16: Quick Test Downloading
QuickTest number followed by the date and the time at which the test was started. 2) Clear Data in Meter - Clears the test data for the QuickTest in the EZ-TorQ II meter. The operator will be asked for confirmation before the action takes place. -
Page 17: Data Logging
D a t a L o g g i n g The Data Logging tab of the EZ-TorQ Meter Interface software provides a feature to graph torque vs time in real time. The Data Logging tab also provides a "Real-time" feature that allows the capture of meter readings into an Excel Spreadsheet. -
Page 18: Bootloader
The EZ-TorQ II is supplied with RS-232 cable adapter and USB serial converter adapter. Connect the RS-232 cable to the torque tester and the computer. Turn on the EZ-TorQ II unit. Click the button "Start boot loader on device" and the EZ-TorQ II screen will indicate the EZ-TorQ II is in bootloader mode. -
Page 19: Battery Operation/Universal Charger
B AT T E R Y O P E R AT I O N The EZ-TorQ II Meter is powered using Li-Ion batteries for long battery life. The battery pack should last up to 40 hours with normal use and maximum charge. The battery icon is always on the display. It is filled in completely when fully charged and shows white space as the battery depletes. -
Page 20: Accessories
Mountz Inc. features an experienced calibration and repair staff. Our trained technicians can calibrate and repair most any tool. Mountz provides rapid service with quality that you can trust as we offer two state-of-the-art calibration lab and repair facilities that can calibrate up to 20,000 lbf.ft.
