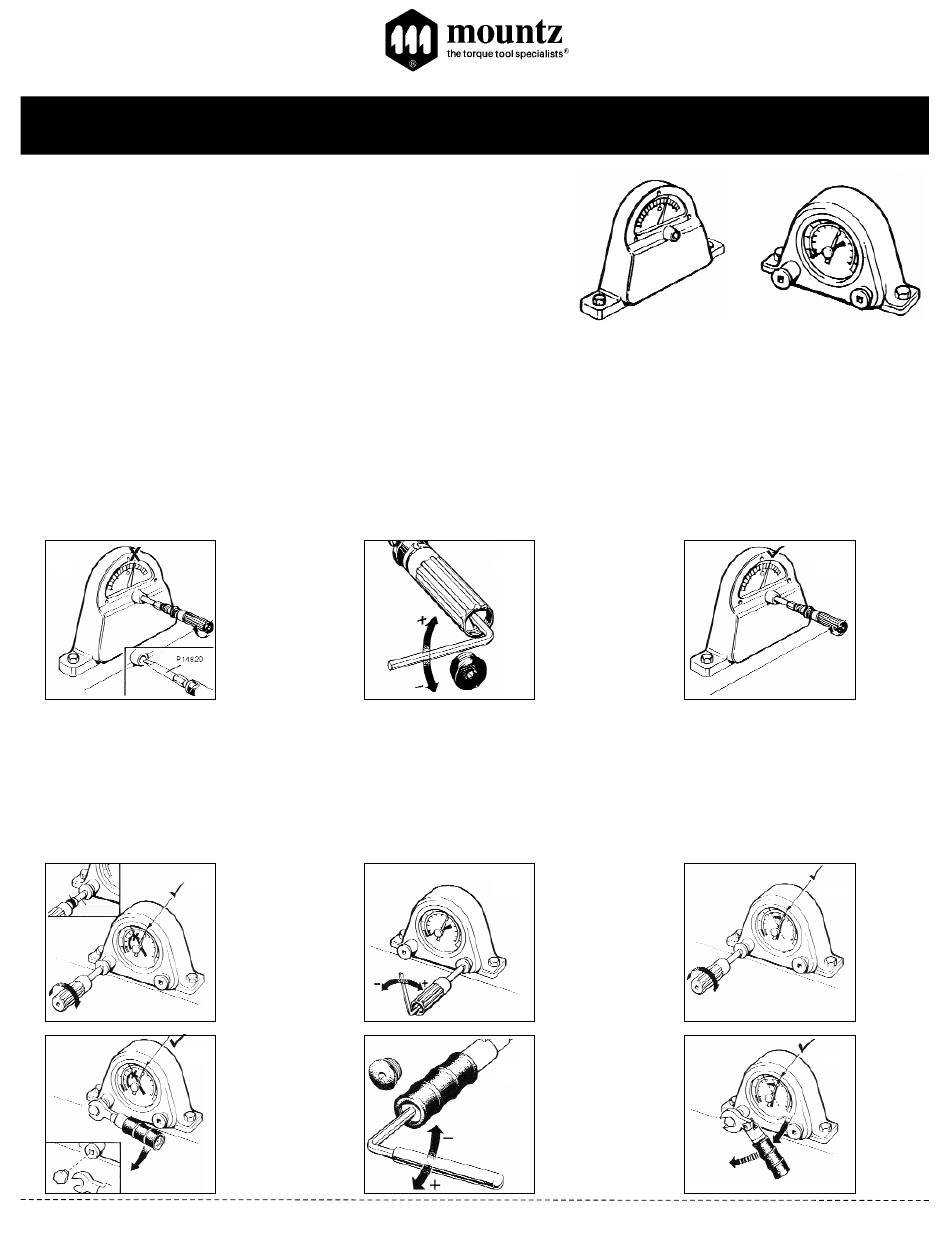

Mountz TCA Operation & Calibration Instructions

Dial Torque Analyzer Operation & Calibration Instructions

Dial Torque Analyzer

There are two different style Dial Torque Analyzers (TCA & DM). These
torque analyzers are designed only for hand torque wrenches and
screwdrivers. These torque testers are not suitable for power tools.

Mounting Dial Torque Analyzer

The Dial Torque Analyzer needs to be mounted securely on a level surface
before operating. Immobilizing the torque tester is critical for the safety of
the operator as well as for the accuracy of torque measurements during
operation. A loose torque tester during utilization can impact the validity of
torque readings.

Operating DM Style Torque Analyzer

1. The DM style features 1/4" male hex drive. Attach an adapter into the drive (if needed).
2. Insert hand tool onto the drive and slowly apply torque clockwise or counterclockwise and note reading when screwdriver
reaches maximum torque.
3. Adjust the torque setting of the hand tool (if needed).
4. Re-check torque setting of the hand tool.
2

Operating TCA Style Torque Analyzer

1. Attach any adapter into the drive of the TCA (if needed).
2. Insert hand tool onto the drive and slowly apply torque clockwise and note reading when screwdriver reaches maximum
torque. (Note - TCA model can only be used in clockwise direction. A counterclockwise conversion kit is available please
contact Mountz Customer Service).
3. Adjust the torque setting of the hand tool (if needed).
4. Re-check torque setting of the hand tool.
2
2
Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112
Rev 1.0
3
3
3
Phone: (408) 292-2214 Fax: (408) 292-2733
www.etorque.com
DM Model
TCA Model
