WARNING! INSTALLATION OF THIS UNIT REQUIRES DIRECT CONNECTION TO THE AC POWER WIRING AND MUST
BE PERFORMED BY QUALIFIED PERSONNEL ONLY.
NOTE: PLEASE LEAVE THIS INSTRUCTION / SCHEMATIC SET IN ORGAN
®
The Trek II

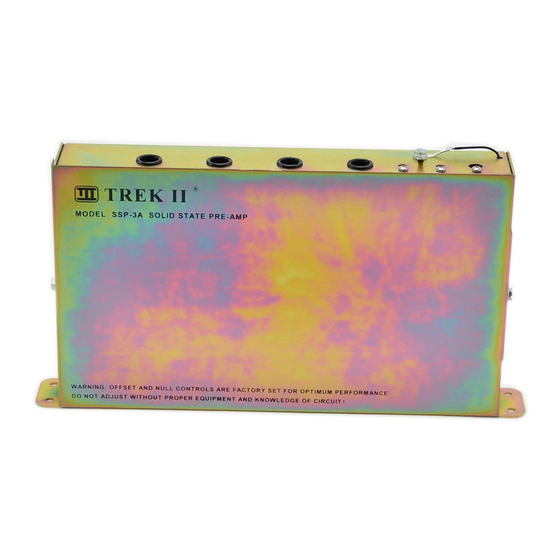

SSP-3A solid state pre-amp is designed to replace the original tube pre-amps in standard Hammond
In addition to basic pre-amp replacement, all units feature built in percussion circuitry, reverberation, auto power on
circuitry for 11 pin Leslie
22H, 22R, 31H above serial #5200, 122, 122A, 122R, 122RV, 122V, 142, 222, 222RV, and 242). Although not used in
normal installations, all units also have provisions for using a floor type (remote) swell control. The SSP-3A may also be
ordered with optional features including Auxiliary amplifiers, Effects loop, Remote tone and percussion controls. These
items, as well as hook up details for many other Leslie models are covered after the normal installation instructions.
Because of both electrical and mechanical variations in different vintage Hammond organs, the SSP-3A is available in a
number of different versions. The SSP-3A-1 version is specifically designed to replace the AO-28 pre-amp used in B-3, C-3,
D-152, and RT-3 model organs ONLY.
WARNING!
BEFORE PROCEEDING WITH INSTALLATION,
INSPECT THE CONSOLE POWER WIRING FOR BRITTLE OR ROTTING INSULATION.
1. Remove original pre-amp, Leslie 8000 kit, if present, and reverb, if present.

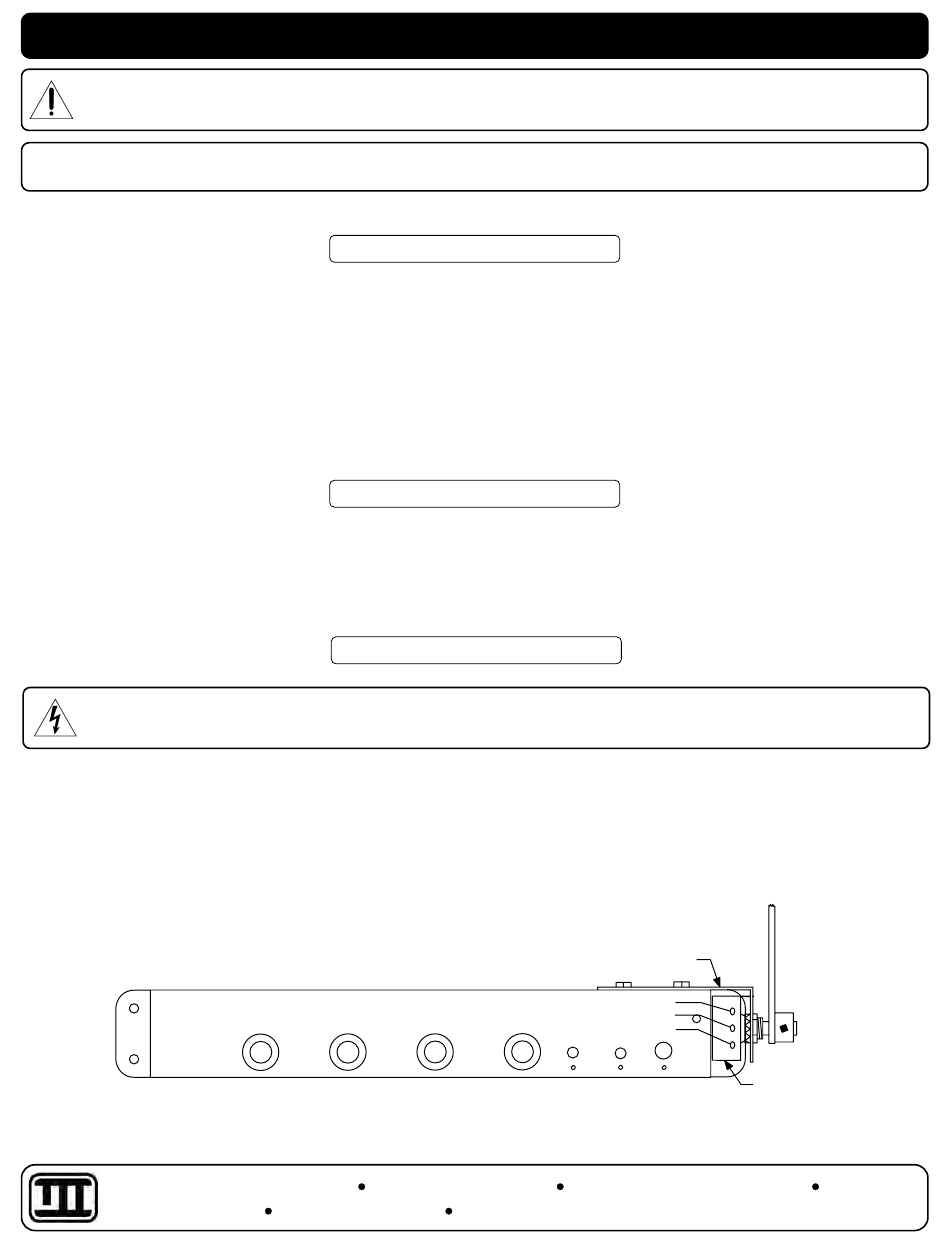

2. Place the 3/8" lockwasher on the swell pot. Install the pot on the L bracket so that the locating tab engages the index
hole. Secure using 3/8" nut. Mount the bracket to the back of the pre-amp chassis, using 2) #6 x 1/4" screws.
TREK II PRODUCTS
TEL: 732-214-9200
SSP-3A-1 SOLID STATE PRE-AMP
GENERAL INFORMATION
®
speakers and built in tremolo control circuitry for Leslie speakers in the 122 family (models 21H,
1
2
570 JERSEY AVENUE
FAX: 732-214-9257
COMPATIBILITY
INSTALLATION
DISCONNECT AC POWER FROM THE ORGAN AND
3
4
NEW BRUNSWICK, NJ 08901
www.TrekII.com
L B R A C K E T
W H I T E
V I O L E T
O R A N G E
S W E L L P O T
Rev. 06/06/05 © 2004 Trek II Products
®
consoles.
USA
Advertisement
Table of Contents
Related Manuals for Trek II SSP-3A-1
Summary of Contents for Trek II SSP-3A-1
- Page 1 Because of both electrical and mechanical variations in different vintage Hammond organs, the SSP-3A is available in a number of different versions. The SSP-3A-1 version is specifically designed to replace the AO-28 pre-amp used in B-3, C-3, D-152, and RT-3 model organs ONLY.
- Page 2 3. Mate the 4 pin connector at the end of the white, violet, and orange swell harness with P-4 NOTE: The four grommets in the top of the SSP-3A chassis will be called #1, #2, #3 and #4 (from left to right). 4.
- Page 3 18. Mount the reverb control bracket under the left side of the front rail using 2) #6 x 1/2" screws. NOTE: Later organs had notched front rails. To allow the control bracket to mount properly on the uneven surface of this type front rail, use the enclosed aluminum spacer between the control bracket and front rail.
- Page 4 The Ernie Ball model 6166 pedal works very well in this application, but must first have its pot changed to 100K. The special long shaft pot, as well as complete ready to use pedals are available from Trek II Products.
- Page 5 ADDITIONAL OUTPUT CONFIGURATIONS Although standard Hammond tone cabinets or Leslie model 122s are recommended, many other successful output configurations are possible. When using one of the Leslies listed below, mount the appropriate receptacle in the organ outlet box and wire as shown. ____________________________________________________________________________________________________ R E D G 4 ( S I G N A L )
- Page 6 ____________________________________________________________________________________________________ P R E - A M P T E R M I N A L S R E D 7 8 S 6 S O C K E T G 4 ( S I G N A L ) ( R E A R V I E W ) B R O W N G R O U N D...
