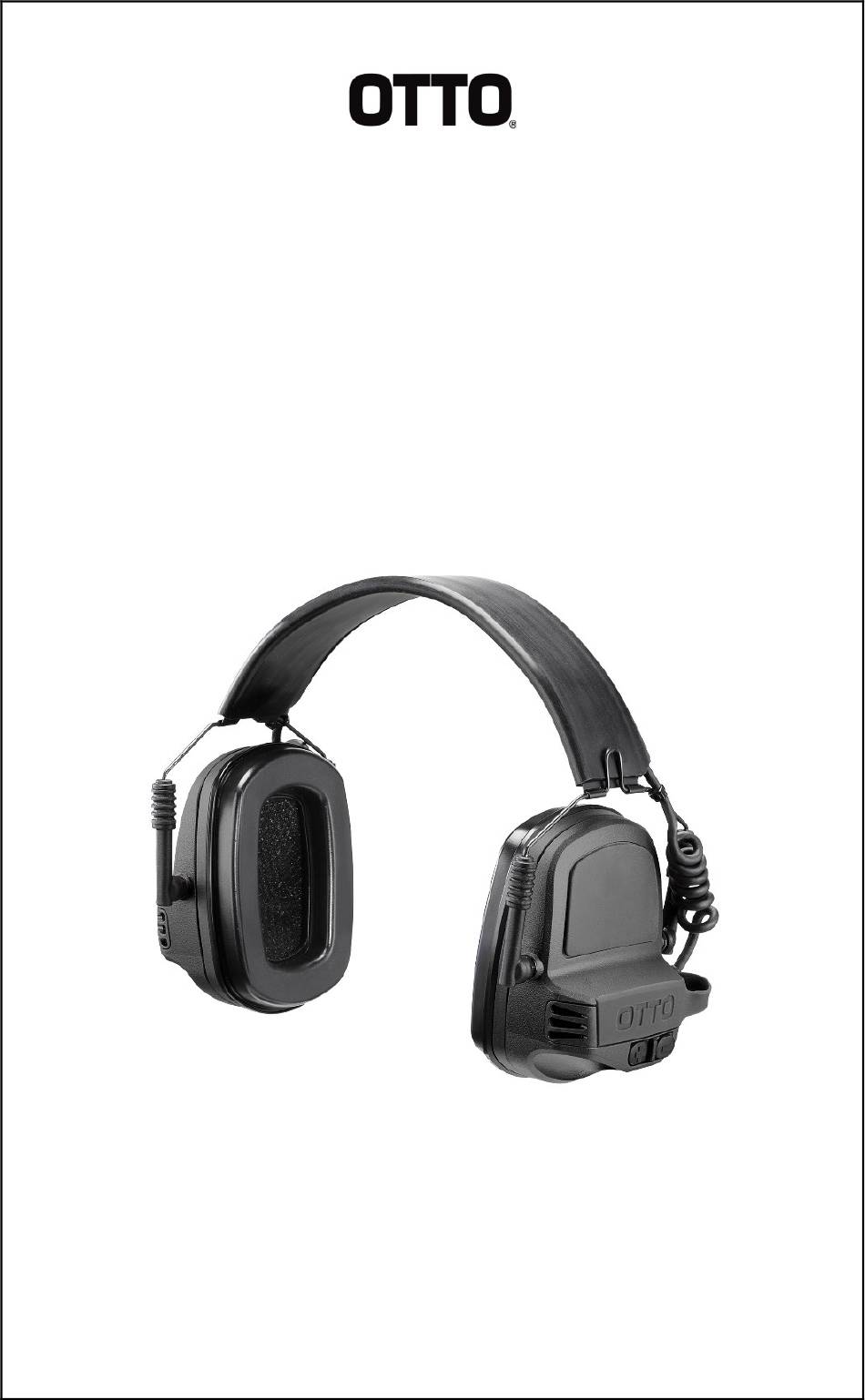

  • Page 1 NoizeBarrier Range SA ™ Circumaural Headset Technical Manual and Instructions for Use...
  • Page 2 OTTO NoizeBarrier™ Range SA Instructions for Use Introduction The OTTO NoizeBarrier Range SA headset provides industry-leading hearing protection and excellent situational awareness/talk-through capability for training operations and other tactical environments where hearing protection is critical. Advanced sound suppression circuitry enhances the ability to hear low-level sounds while protecting hearing.
  • Page 3 Features of the OTTO NoizeBarrier™ Range SA Headset • Circumaural headset compatible with major helmet systems • Talk-through electronics for situational awareness (SA) Limits volume to safe level without clipping • Passive Attenuation: Min. 23 dB NRR • • Amplifies nearby sounds for excellent situational awareness Easy-to-access + and - buttons on left earcup control the volume of the •...

  • Page 4: Supplied Equipment

    Supplied Equipment Figure 1 OTTO NoizeBarrier™ Range SA Headset (Figure 1) Headband Situational awareness (talk- Adjustment frames through) microphones Audio cross-over cable Battery compartment & cover Earcups Power/Volume controls Comply™ foam ear seals Optional Helmet Mounting System for Helmets with Rails (Figure 2) •...

  • Page 5: Operation

    Operation Install the Batteries to Power the Talk-Through Functionality The OTTO NoizeBarrier Range SA headset uses battery power to operate the situational awareness/talk-through functions. (Figures 3-6) Identify the rubberized battery covers on the earcups. With finger pressure, pry off the battery cover on one earcup (Figure 3).
  • Page 6 Situational Awareness Talk-Through Operations The talk-through technology of the OTTO NoizeBarrier Range SA Headset allows users to hear normal sounds around them and maintain complete situational awareness (SA). At the same time, sound suppression circuitry reduces dangerously loud noises over 85dB to safe levels.
  • Page 7 Cleaning the Ear Seals Use a soft cloth to remove debris from the headset. Use a soft damp cloth to wipe down the ear seals. DO NOT immerse the OTTO NoizeBarrier Range SA headset in liquid for cleaning. Replacing the Ear Seals (Figures 8-10) The ear seals are mounted in a removable frame for easy replacement.
  • Page 8 (Figures 11-15) (Parts: C102359BK, C102359FD, C102359OD; C102365BK, C102365FD, C102365OD) The OTTO NoizeBarrier Range SA headset can easily convert from over-the-head use with a headband to mount on helmet rails with the use of the optional helmet mounting kit. The helmet mount kit also includes a compartment for a spare battery on each earcup.
  • Page 9 Positioning the Headset When Helmet Mounted The rail system mount has two positions. The first position is outward. In this position the earcups sit slightly off the head for comfort. The second position is inward to provide contact with the head and a solid seal around the ears when in a noisy environment.

  • Page 10: Troubleshooting

    Troubleshooting Problem Possible Causes Suggested Action Depleted batteries Replace batteries Headset will not power on talk-through/situational Batteries improperly Check polarity of awareness installed batteries Situational awareness Press + button to volume turned all the increase volume way down Spare Parts and Accessories Description Part Number Ops-Core Helmet Mounting Kit –...
  • Page 11 For questions or more information, please contact: 10 West Main Street • Carpentersville, IL U.S.A. 60110 Toll Free Phone: 888-234-OTTO (6886) Phone: 847-428-7171 • Fax: 847-551-1343 E-mail: info@ottoexcellence.com www.ottoexcellence.com...
