Summary of Contents for Allot SG-9100

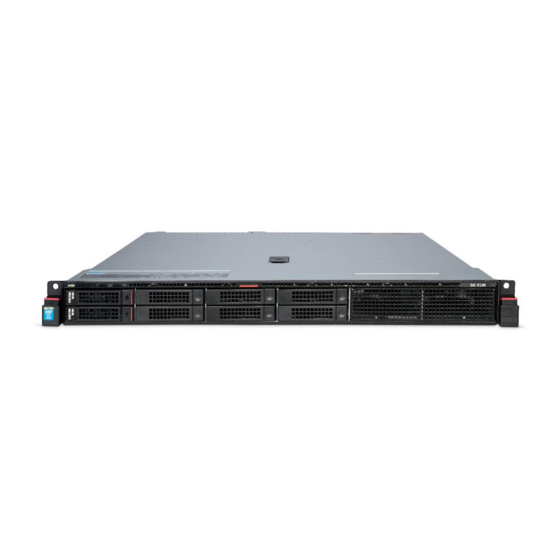

- Page 1 Service Gateway SG-9100 Hardware Guide...
- Page 3 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Allot Communication Ltd. could void the user's authority to operate the equipment.
-
Page 4: Version History
Document updates are released in electronic form from time to time and the most up to date version of this document will always be found on Allot’s online Knowledge Base. To check for more recent versions, login to the support area www.allot.com/support.html... -
Page 5: Table Of Contents
TABLE OF CONTENTS Important Notice ........................... v Version History ..........................vi TABLE OF CONTENTS ......................vii CHAPTER 1: INTRODUCING THE SG-9100 ........... 1-1 Planning Your Deployment ....................... 1-2 Packing List..........................1-2 Cabling and Transceivers ......................1-3 Cable types ..........................1-3 Transceivers .......................... - Page 6 Accessing the SG-9100 via Physical Ports ................6-6 Accessing the SG-9100 via the TSM ..................6-6 CHAPTER 7: TECHNICAL INFORMATION ............ 7-1 Technical Specifications ......................7-1 Safety Certifications ........................7-2 Environmental Certifications ....................7-2 Laser Safety Requirements ......................7-3 Laser Classification........................7-3 Laser Information ........................
- Page 7 Figure 1-1 – Full Duplex LC Connector ..................1-4 Figure 2-1 – SG-9100 ........................2-1 Figure 2-2 – SG-9100 Front Panel Buttons and LEDs ..............2-2 Figure 2-3 – SG-9100 Rear Panel ....................2-3 Figure 2-4 – NETWORK Links ....................2-3 Figure 2-4 –...
-
Page 9: Chapter 1: Introducing The Sg-9100
Its small-footprint is equipped with the same rich features and functions as our chassis- based Allot Service Gateway, enabling you to roll out Security as a Service as well as other revenue-generating services rapidly and cost-effectively, while you lower your total cost of ownership and accelerate ROI. -
Page 10: Planning Your Deployment
(Restricted Access Location). The SG-9100 complies with the requirements for operator access. Please note that the power resources used by the SG-9100 must be planned and installed by a qualified electrical engineer only. Before installing or using the SG-9100, please read all Safety Information carefully to avoid electrical hazards that can result in injury or loss of equipment. -
Page 11: Cabling And Transceivers
Chapter 1: Introducing the SG-9100 Cabling and Transceivers Cable types COPPER CABLE CONNECTIONS MM CABLE TYPE SM CABLE TYPE TYPE Ethernet (CAT 6) Ethernet (CAT 6) Ethernet (CAT 6) (Allot P/N C243010 (Allot P/N C243010 (Allot P/N C243010 included) Included) or Fiber. -
Page 12: Transceivers
SG-9100. Connectors The SG-9100’s 8-port and 16-port Fiber Bypass Units use Multi Mode fiber (MM) or Single Mode fiber (SM) dual LC Connectors. The 24-port Fiber Bypass unit uses MTP Fiber connectors. The 8-port Copper Bypass Unit uses dual RJ45 connectors. -
Page 13: Chapter 2: Connectors And Leds
Chapter 2: Connectors and LEDs Allot Service Gateway 9100 (SG-9100) provides a high performance service delivery platform with rich functionality in an efficient, small-footprint appliance. With high- density 10 Gigabit Ethernet connectivity and 140 Gbps of throughput, the platform allows enterprises, cloud data centers and ISP networks to satisfy the ever-growing demand for Internet bandwidth and network-based services in cost-efficient manner. -
Page 14: Front Panel
There are no connectors on the front panel of the SG-9100. NOTE Since the SG-9100 has only 2 USB ports on the read of the server, these ports are designated for bypass unit connectivity only. They cannot be used for anything else (such as keyboard/mouse), even if there is no bypass unit being connected to any of the ports. -
Page 15: Rear Panel
Each PCIe card has four ports which may be used for either 1G/10G fiber or 1G copper network or steering interfaces. On all ports the TX connection is on the left and the RX connection is on the right. In the NetXplorer, SG-9100 ports are labeled L1 through L12. - Page 16 M1 & M2 are two RJ-45 connectors (1G Copper) which may be used for system monitoring and maintenance. M2 acts as a redundant port for M1. Rear USB Ports should only be used to connect the SG-9100 to the Bypass unit ONLY. ...
-
Page 17: Figure 2-6 - Sg 9100 Ac Power Feed
Power Source Off = The Power Supply is disconnected from the AC Power Source Solid Green = The SG-9100 is On or the Power Supply is Power Output (DC) working Normally. Blinking Green = The Power Supply is on Redundancy Mode. -
Page 19: Chapter 3: Bypass
Bypass External Bypass Unit The SG-9100 operates with an external Bypass Unit. The Bypass Unit is a mission- critical subsystem designed to ensure network connectivity at all times. The Bypass mechanism provides "connectivity insurance" in the event of a subsystems failure. Each Allot Bypass unit features low insertion loss (<... -
Page 20: Hd 8 Fiber Or Copper Bypass Unit
CROSS with LC-LC Duplex connectors (not provided) to connect ports of the switch and the router. The HD 8 Bypass Unit includes connectors for up to 4 links on the SG-9100. In addition, the HD 8 Bypass Unit includes two D-type 9-pin connectors (DB-9) for connection to the SG-9100 via special DB-9/USB cables (available from Allot). -
Page 21: Hd 16 Fiber Bypass Unit
The HD 16 Fiber Bypass Unit is a passive optical device with no need for external power connection. It is powered by the SG-9100 as long as it is Active. It will move automatically to bypass mode when SG-9100 is powered off, or by being forced to bypass mode as protective action is taken. - Page 22 LC connector and the Rx is the right LC connector. System Ports 1-16 connect to the SG-9100. Be sure to insert the Internal and External connectors into the correct ports on the Bypass Unit. Internal is on the left of each link and External is on the right.
-
Page 23: External Bypass Control Cabling
Chapter 3: Bypass External Bypass Control Cabling The HD 8 and HD 16 External Bypass Units are connected to the SG-9100 by a Single USB Unit Cable (1:1) connected to the Primary port on the Bypass Unit and one of the two USB ports on the rear of the SG-9100. -
Page 25: Chapter 4: Power Connectivity Planning
Do not allow the overall system AC current load to exceed 80% of the branch circuit AC current rating. Do not use common power outlet strips for this equipment. Provide a separate electrical circuit for the Service Gateway. Allot SG-9100 Hardware Guide... -
Page 26: Electrical Grounding Requirements
Because of the high ground-leakage currents associated with multiple servers connected to the same power source, Allot recommends the use of a PDU that is either permanently wired to the building’s branch circuit or includes a non detachable cord that is wired to an industrial-style plug. - Page 27 Chapter 4: Power Connectivity Planning The cord must have insulation material suitable for at least 75 °C The cord must have local safety approvals, and preferable additional approvals such as UL, CSA, TUV or VDE. The flexible cord and attachment plug cap length must not exceed 4.5 m (15 ft.).
-
Page 29: Chapter 5: Preparation And Installation
Remove all items from the box. If any items listed on the purchase order are missing, notify Allot customer service immediately. Inspect the product for damage. If there is damage, notify Allot customer service immediately. Save the box and packing material for possible future shipment. -
Page 30: Mounting The Sg-9100
Leave a minimum clearance of 121.9 cm (48 in) from the back of the rack to the back of another rack or row of racks. The SG-9100 draws in cool air through the front door and expel warm air through the rear door. Therefore, the front and rear rack doors must be adequately ventilated to allow ambient room air to enter the cabinet, and the rear door must be adequately ventilated to allow the warm air to escape from the cabinet. - Page 31 Chapter 5: Preparation and Installation Only one component is extended at a time. A rack may become unstable if more than one component is extended for any reason. AVERTISSEMENT Pour limiter les risques de blessure ou de détérioration du matériel, vérifiez les points suivants : Les pieds de mise à...
- Page 32 Acheminez le cordon d'alimentation en dehors des lieux de passage et loin de tout objet pouvant le comprimer ou le pincer. Faites particulièrement attention à la fiche, à la prise secteur et au point de sortie du cordon sur le serveur. Allot SG-9100 Hardware Guide...
-
Page 33: Chapter 6: Deploying The Sg-9100
Deploying the SG-9100 Connecting Network Traffic The SG-9100 operates with an external Bypass Units. The Bypass Unit is a mission- critical subsystem designed to ensure network connectivity at all times. The Bypass mechanism provides ‘connectivity insurance’ in the event of a subsystems failure. -
Page 34: Configuring Active Redundancy
Chapter 6: Deploying the SG-9100 Configuring Active Redundancy Active redundancy is recommended for network topologies where at least two network links are active in load-balancing mode. It requires two Service Gateway installations and typically, no bypass units. In the Active Redundancy configuration, a Service Gateway duplicates each link’s traffic to the other Service Gateway. -
Page 35: Physical Connections
Cloned to Second SG-9100 To Network Figure 6-1 – Active Redundancy Links On the SG-9100, the following port configuration is used for Active Configuration: L11-L12 L9-L10 Cloned Network L3-L4... -
Page 36: Configuration
Chapter 6: Deploying the SG-9100 Configuration Active redundancy can be configured on the Service Gateway either via the NetXplorer GUI or via AOS CLI. Via NetXplorer GUI To configure Active Redundancy: Log into the NetXplorer Select the Service Gateway you wish to configure in the Navigation Pane. -
Page 37: Powering Up The Sg-9100
Chapter 6: Deploying the SG-9100 To view redundancy mode: go config view network To view NIC settings: go config view nic Powering Up the SG-9100 NOTE It is recommended to connect the two power line feeds to separate power sources to have full power redundancy. -
Page 38: Initial Configuration
Chapter 6: Deploying the SG-9100 Initial Configuration Accessing the SG-9100 via Physical Ports An external monitor may be connected to the SG-9100 via the MONITOR port on the rear of the appliance. Accessing the SG-9100 via the TSM The ThinkServer System Manager (TSM) is provided with every SG-9100 appliance that is shipped from Allot. -
Page 39: Figure 6-3 - System Information
Chapter 6: Deploying the SG-9100 Connect an external monitor via the monitor and a keyboard/mouse via the rear USB ports. Turn on the SG-9100. Press F1 as soon as you see the Lenovo logo screen. On the following screen select TSM Settings Figure 6-3 –... - Page 40 Click Add and type in the SG-9100 URL, as follows: http://<IP OF SG> Click OK to add the SG-9100 to the allowed hosts list. Open a web browser. In the address field, type, type the IP address or host name of the TSM to which you want to connect.
-
Page 41: Figure 6-5: Tsm System Status Screen
Click on the arrow on the right of the screen to access the menu options if desired. Click the Launch button to open the Remote Console opens where you can log in to the Allot CLI for device configuration. Figure 6-6: Remote Console Configuring the SG-9100... - Page 42 After entering the Remote Console, enter sysadmin for the login and sysadmin for the password. Use the go config ips command to configure the IP address, gateway IP, DNS and NTP servers for the SG-9100. Command: go config ips Usage: go config ips <-OPTION>...
- Page 43 -c enable Reboot the SG-9100 by entering the following command: ac_reboot After the SG-9100 has rebooted, configure the 1G Copper ports as auto/auto using the following command: go config nic <nic's label>:auto:auto For example, go config nic P1.L1:auto:auto...
- Page 44 IP. The IP is moved to the selected ports. Changing the AOS Passwords Allot provides end-users with CLI access to the system via a user privilege called “sysadmin”. The sysadmin user can access all of the CLI commands outlined in Chapter 6 below.
- Page 45 NetXplorer Operator wishes to add a new In-line Platform to the NetXplorer the admin password of that In-line Platform must be entered. In addition, no policy changes can be saved without the correct admin password. The default admin password is allot. NOTE Allot STRONGLY recommends that the default passwords are changed to ensure a minimum level of security.
-
Page 47: Chapter 7: Technical Information
800W Heat Dissipation 1,025 BTU/hour EMC CERTIFICATIONS EN 55022:2010+AC:2011(Class A), EN55032:2012/AC:2013 EN 55024:2015, EN 61000-3-2:2014 EN 61000-3-3:2008, FCC CFR 47 Part 15 Sub B Canada ICES-003 Issue 5 VCCI V-3/2013.04 (member ID:1798 [C3775, R-3404, T1630 ] Allot SG-9100 Hardware Guide... -
Page 48: Safety Certifications
10°C to 35°C (50°F to 95°F), Relative humidity (%RH) 8% to 80% Maximum temperature Altitude Operating relative 8% to 80% humidity Operating altitude 3,048 m Safety Certifications Normative UL 60950-1:2006+A1:2010+A11:2009+A12:2011+A2:2013 EN60950- Standards 1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Environmental Certifications Environmental RoHS/WEEE compliance China ROHS REACH EU 1907:2006 Allot SG-9100 Hardware Guide... -
Page 49: Laser Safety Requirements
As long as the Equipment is operated in accordance with the applicable safety instructions, the Hazard Level in Equipment access locations is inherently Class 1. Allot provides product and installation information in order that the products may be installed and serviced safely. - Page 50 ópticos cuando no haya ningún cable de fibra conectado. Evite la exposición y no mire fijamente a las aberturas. Varning: Osynlig laserstrålning kan spridas från öppningen på optiska portar om ingen fiberoptikkabel är ansluten. Undvik exponering och stirra inte in i öppningarna. Allot SG-9100 Hardware Guide...
- Page 51 Allot SG-9100 Hardware Guide...
