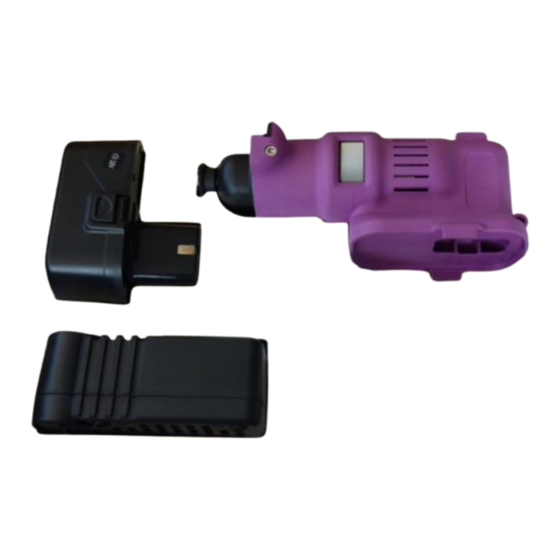

Operating Manual
Table of contents
1 Foreword .................................................................................................................................................................... 24
1.1 Appropriate usage ............................................................................................................................................ 24
2 General points ............................................................................................................................................................ 25
2.1 Safety information ............................................................................................................................................. 25
2.2 Intended use ..................................................................................................................................................... 25
3 Technical data ............................................................................................................................................................ 26
3.1 Overview .......................................................................................................................................................... 27
4 Working with the Discman ......................................................................................................................................... 28
4.1 Before commissioning ....................................................................................................................................... 28
4.1.1 Charging the battery .............................................................................................................................. 28
4.2 Grinding angle setting ....................................................................................................................................... 28
4.3 Fitting angle wheel 87°/88°(optional) ................................................................................................................ 29
4.4 Grinding disc feed ............................................................................................................................................. 29
4.5 Replacing a grinding disc .................................................................................................................................. 29
4.6 Changing the slide blocks ................................................................................................................................. 30
4.7 Base edge tuning attachment (option) ............................................................................................................... 31
4.7.1 Fitting the attachment ............................................................................................................................ 31
4.7.2 Adjusting the angle on the attachment .................................................................................................... 32
4.7.3 Removing the base edge tuning attachment ........................................................................................... 32
4.8 Clamping a ski or snowboard ............................................................................................................................ 33
4.9 Surface roughness ............................................................................................................................................ 33
4.10 Grinding process ............................................................................................................................................ 34
5 List of spare parts ...................................................................................................................................................... 37
6 Shut-down and disposal ............................................................................................................................................ 38
Discman 2 / 18 V
23
Advertisement
Table of Contents
Related Manuals for MBAS Discman 2
Summary of Contents for MBAS Discman 2
-
Page 1: Table Of Contents
4.7.3 Removing the base edge tuning attachment ................... 32 4.8 Clamping a ski or snowboard ..........................33 4.9 Surface roughness ............................33 4.10 Grinding process ............................34 5 List of spare parts ..............................37 6 Shut-down and disposal ............................38 Discman 2 / 18 V... -
Page 2: Foreword
All documents are protected under copyright. Distribution, reproduction and utilization of documents and parts thereof, as well as communication of its contents, are not permitted unless authorized expressly and in writing. Infringements are liable to prosecution and will result in damage claims. MBAS shall retain all rights to exercise industrial property rights. -
Page 3: General Points
If the device is damaged, have it repaired by an approved customer service point only! Replace damaged grinding discs immediately! The device must only be used with original MBAS spare parts/consumables. Any use of foreign material shall be at the risk of the operator and will invalidate the warranty for the device. -
Page 4: Technical Data
85° - 90° Edge angle The permanent sound pressure level is approx. 78 dB(A) for an Noise emission average grinding process. + 10 to 40 °C Permissible ambient temperature Approx. 1 hour Battery charge time Discman 2 / 18 V... -
Page 5: Overview
Angle adjuster clamping screw Angle adjuster Battery 10) Battery release spring 11) MINUS direction of rotation lift grinding disc 12) PLUS direction of rotation lower grinding disc 13) Sleeve on side edge grinding device 14) Angle wheels Discman 2 / 18 V... -
Page 6: Working With The Discman
Turn the angle adjuster [2] manually to the desired position. Turning by one number is equivalent to changing the angle by one degree. The angle adjuster latches every 0.5 degrees. Hand-tighten the screw [1] with an Allen key. 3.5 = 86.5° 0 = 90° Discman 2 / 18 V... -
Page 7: Fitting Angle Wheel 87°/88°(Optional)
4.5 Replacing a grinding disc With the device switched on, turn the knurled nut to the stop in MINUS direction. Remove the battery. Remove the angle adjuster and screw. Discman 2 / 18 V... -
Page 8: Changing The Slide Blocks
Push out the slide blocks on the left and right with a screwdriver. Push in the new slide blocks until they are flush with the housing. Whenever you change an abrasive disc, you should also replace the sliding bocks to guarantee grinding of precise edge angles. Discman 2 / 18 V... -
Page 9: Base Edge Tuning Attachment (Option)
Attach the spring clip to the first ventilation slot on one side as shown in the figure, then push the spring clip onto the other side until the spring clip latches into place on the other side. Push on the support plate as shown and fasten the screws. Discman 2 / 18 V... -
Page 10: Adjusting The Angle On The Attachment
When grinding the base edge, clamp the ski tightly and make sure that the Discman can slide freely (ski tightener, ski brake). 4.7.3 Removing the base edge tuning attachment When removing the base edge tuning attachment, only release the screws (the spring clip remains on the Discman). Discman 2 / 18 V... -
Page 11: Clamping A Ski Or Snowboard
Filed with a flat file 2 μm RZ=2.66 μm Rmax=3.20 μm 1 μm 0 μm -1 μm Processed with Discman and K150 abrasive disc (gray abrasive 2 μm disc) RZ=2.11 μm 1 μm Rmax=2.22 μm 0 μm -1 μm Discman 2 / 18 V... -
Page 12: Grinding Process
If the grinding disc is applied too heavily there is a risk of excessive heat development! Always grind side edges before waxing to avoid wax clogging the grinding disc! Before grinding use a side plane to remove protruding materials from the side edges! Discman 2 / 18 V... - Page 13 In working position the Discman is in stable state of balance; due to this ergonomic handling, no force is required to move the edge tuner; instead apply slight contact pressure and push or pull gently. Discman 2 / 18 V...
- Page 14 (in direction) so that the Discman does not grind the steel edge in an un- controlled way when switched on. For consistently good tuning quality, always remove the swarf that occurs after base edge grinding! Discman 2 / 18 V...
-
Page 15: List Of Spare Parts
Replacement battery DM 1020 Allen key DM 1059 Positioning bolt DM1052 Charger 240V/50Hz/18V DM 1024 Charger 110V/60Hz/18V DM 1027 Cleaning brush 135 mm DM 1053 Side edge grinding device DM 1054 Angle wheel 87° DM 1055 Discman 2 / 18 V... -
Page 16: Shut-Down And Disposal
Dismantle the machine properly into its individual components. Clean oily and greasy components. Dispose of components by material group (steel, plastic, electrical and electronic components, etc.). Dispose of oil and grease in an environmentally friendly manner. Discman 2 / 18 V... - Page 17 Par la présente nous certifions que le dit produit Por la presente declaramos que el producto Con la presente dichiariamo che il prodotto No.: DM1000 Discman 2 / 18 V Kantenschleifgerät Edge grinder folgender(-en) einschlägigen Bestimmung(en) entspricht: conforms to the following regulations: correspond à...
- Page 18 Hierbij verklaren wij, dat het product Härmed förklarar vi att produkten Tällä lomakkeella ilmoitamme, että tuote Herved erklærer vi, at produktet No.: DM1000 Discman 2 / 18 V Kantenschleifgerät Edge grinder folgender(-en) einschlägigen Bestimmung(en) entspricht: voldoet aan de volgende richtlijnen: uppfyller följande entydiga krav:...
- Page 19 Hiermit erklären wir, dass das Produkt Tímto prohlašujeme, že produkt Ovime izjavljujemo da proizvod Kijelentjük, hogy a termék Niniejszym oświadczamy, że produkt No.: DM1000 Discman 2 / 18 V Kantenschleifgerät Edge grinder folgender(-en) einschlägigen Bestimmung(en) entspricht: odpovídá následujícím příslušným ustanovením: odgovara sljedećim relevantnim odredbama: megfelel a következő...
- Page 20 Pareiškiame, kad gaminys Ar šo mēs deklarējam, ka izstrādājums Käesolevaga deklareerime meie, et masin Hermed erklærer vi, at produktet tilsvarer No.: DM1000 Discman 2 / 18 V Kantenschleifgerät Edge grinder folgender(-en) einschlägigen Bestimmung(en) entspricht: atitinka visas šias jam taikytinas nuostatas: atbilst šādam(-iem) attiecīgajam(-iem) noteikumam(-iem):...
- Page 21 Prin prezenta declarăm că produsul С настоящото декларираме, че продуктът AşağÕda adÕ geçen ürünün Данным подтверждаем, что нижеуказанный продукт No.: DM1000 Discman 2 / 18 V Kantenschleifgerät Edge grinder folgender(-en) einschlägigen Bestimmung(en) entspricht: corespunde următoarei (următoarelor) prevederi relevante: е в съответствие със следната (ите) разпоредба (и): geçerli hükümlere uygun olduğunu beyan ediyoruz:...
