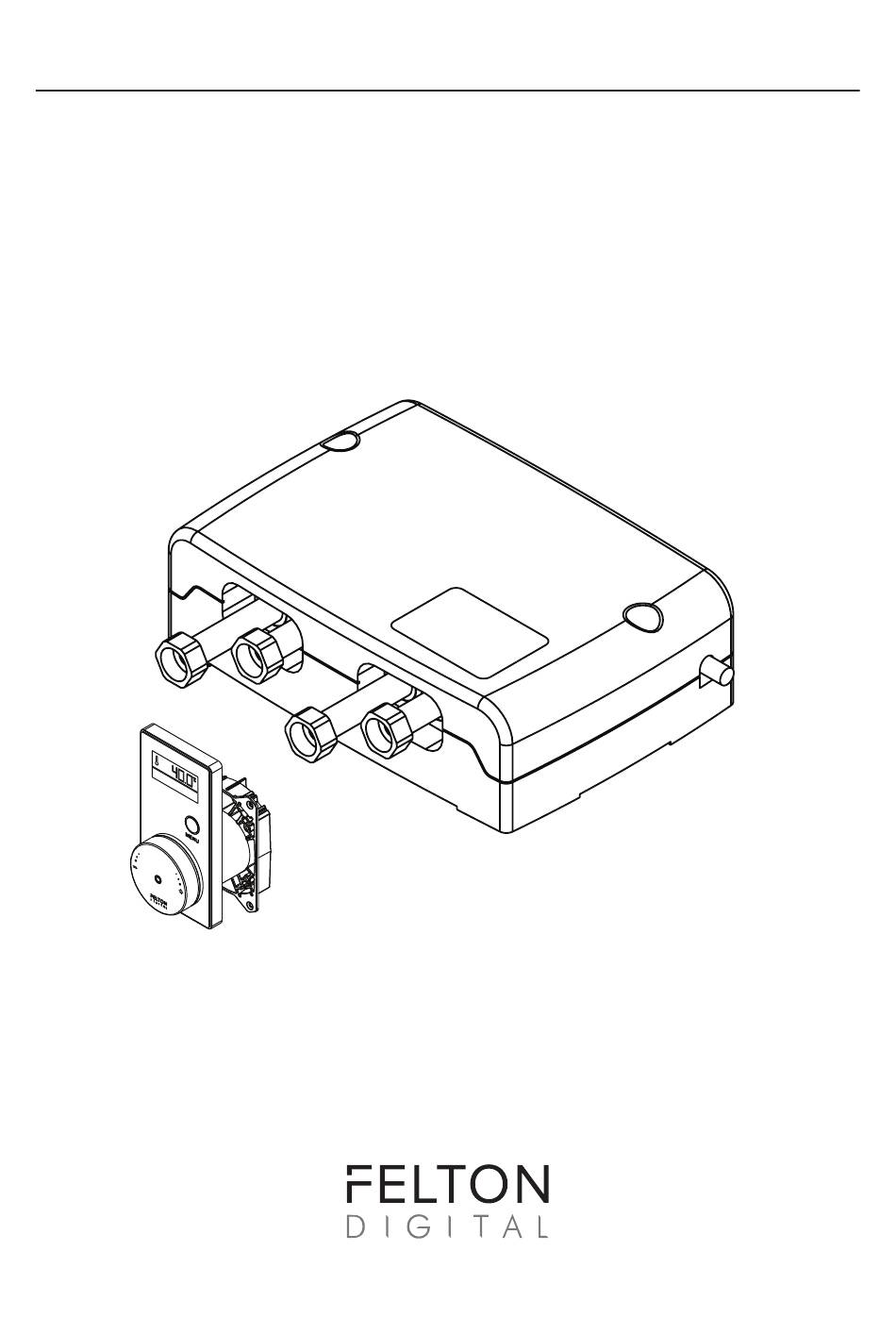

- Page 1 INSTALLATION GUIDE S M A RT V I E W ™ Digital Thermostatic Shower Mixer FD-SVCSMC FELTON DIGITAL...
- Page 2 SMARTVIEW INSTALL GUIDE...
-
Page 3: Table Of Contents
CONTENT Notice Measurements Scope of delivery Tools required Scope of application Vision wheel interface pre-line installation TLC 30 FTD installation Vision wheel interface final fit installation Operational test Troubleshooting Warranty Processor template FELTON DIGITAL... - Page 4 SMARTVIEW INSTALL GUIDE...
-
Page 5: Notice
This appliance contains battery that are only replaceable by skilled persons. An electronic copy of installation and user guides are available on Felton Digital website – please visit www.feltondigital.co.nz to view file. MAINTENANCE Felton Digital products are made of high quality materials and require only minimal maintenance. The following maintenance tips help to preserve the surface and prevent damage through incorrect cleaning. -
Page 6: Scope Of Delivery
BOX 1 TLC 30 FTD VISION SHOWER 1. TLC 30 FTD 2. Back Up Battery 3. Set of screws 2x5x50mm 4. Connecting adapter BOX 2 VISION WHEEL INTERFACE 1. TLI-W body 2. Vision wheel 3. In-wall box black/white wall plug steel clip black foam... -
Page 7: Scope Of Application
Warning Please make sure the power source is installed by a qualified electrician and TLC 30 FTD complies to Electrical standard/NZ laws. Important: The TLC 30 FTD must have an access panel. Hot in Cold in FELTON DIGITAL... -
Page 8: Vision Wheel Interface Pre-Line Installation
VISION WHEEL INTERFACE PRE-LINE INSTALLATION Cutting down the in-wall box (OPTIONAL) NOTE: We recommend the in-wall box is cut down as shown using a hacksaw Attaching the in-wall box Prepare the wall to take the in-wall box. The installation of the in-wall box will depend on each individual situation. -
Page 9: Tlc 30 Ftd Installation
NOTE: Feeding a string or wire through the in-wall box and conduit will make it easier to pull the cables through to the TLC 30 FTD. Conduit (not supplied) Wire (not supplied) TLC 30 FTD INSTALLATION Remove cover FELTON DIGITAL... - Page 10 Inside TLC 30 FTD Connector block Power supply Battery compartment Fixing holes Cover retaining holes Connects to hand shower Connects to fixed head COLD Outlet Inlets SMARTVIEW INSTALL GUIDE...
- Page 11 MOUNTING FOR CONCRETE MOUNTING FOR NOG (RECOMMENDED) 56 m m 99 m m ø 5 m m / 0 .2˝ Install TLC TLC 30 FTD Drill fixing holes Install TLC 30 FTD FELTON DIGITAL...
- Page 12 Remove inlet adapter retaining bolt Connect hot and cold water supply Fully insert the inlet adapter into the inlet valves (one long and one short adapter). Connect hot and cold water supply IMPORTANT: Flush the Insert inlet supply pipework before connection Tighten adapter retaining bolt SMARTVIEW INSTALL GUIDE...
- Page 13 Insert outlet adapters and connect outlet pipeworks If using two outlets: If only using single outlet: Connect outlet and outlet Outlet to be connected. Outlet to be plugged and sealed. Primary outlet (Hand Shower) Secondary outlet (Fixed Head) FELTON DIGITAL...
-
Page 14: Vision Wheel Interface Final Fit Installation
Tighten adapter retaining bolt VISION WHEEL INTERFACE FINAL FIT INSTALLATION Fit off after final wall lining is installed Finish the wall by tiling etc. 40mm diameter holes should be drilled in the tile etc to finish. Draw a line around the collar, flush with the wall. Cut down the collar as marked. Final wall lining Final wall lining SMARTVIEW INSTALL GUIDE... - Page 15 Remove TLI-W knob from the TLI-W body. Feed data cable through silicone seal and black foam seal Secure both cables to the previously installed draw wire and pull the cables to the TLC 30 FTD. Fit black foam seal around groove FELTON DIGITAL...
- Page 16 Position vision wheel interface and attach in screws Position TLI-W body into the vision wheel interface and lock by turning clockwise. Push and twist to lock Fit knob Fit silicone seal ADVICE: Push in firmly! inside the vision wheel interface SMARTVIEW INSTALL GUIDE...
- Page 17 Charging occurs once unit is on mains power. Connect TLI-W body to TLI port TLI-W BODY GREY CABLE Plug the TLI-W body cable to the TLI port as shown FELTON DIGITAL...
- Page 18 Connect vision wheel interface to RS-232 port RS-232 VISION WHEEL BLACK CABLE Plug the vision wheel interface to the RS-232 port as shown Re-fit cover and connect TLC 30 FTD to the mains IMPORTANT: Electrical supply must be installed by a qualified electrician. SMARTVIEW INSTALL GUIDE...
-
Page 19: Operational Test
The installed system should be operated to check for leaks. 2 Open Close Push the Smartview™ Interface once. Push the Smartview™ Interface again. The TLC 30 FTD unit opens and the LED illuminates. The TLC 30 FTD unit closes and the LED goes off. FELTON DIGITAL... -
Page 20: Troubleshooting
SMARTVIEW™ TROUBLESHOOTING ISSUE PROBLEM TROUBLESHOOT The AC adapter is not connected Connect device to the mains power to the mains Mains power failure Check household fuse box The device does not function (i.e. the LED light is not on) Back up battery not connected Follow Step 18 on Smartview Installation Guide Follow Step 19-20 on Smartview Installation Vision wheel interface is not working... -
Page 21: Warranty
WARRANTY, MAINTENANCE & CARE 5-year warranty applies to all Felton Digital branded products including the electronic hardware and its components. Where products are promoted as having a “5-year warranty”, Felton Industries Limited guarantees the electronic components of these products (excluding batteries) to be free from defects in materials and workmanship under normal installation, use and service for a period of five (5) years from the date of purchase. - Page 22 SMARTVIEW INSTALL GUIDE...
-
Page 23: Processor Template
SMARTVIEW™ PROCESSOR TEMPLATE FELTON DIGITAL... - Page 24 F E LTO N I N D U S T R I E S LT D 8 F a r m h o u s e L a n e G l e n I n n e s A u c k l a n d 1 07 2 s a l e s @ f e l t o n .
