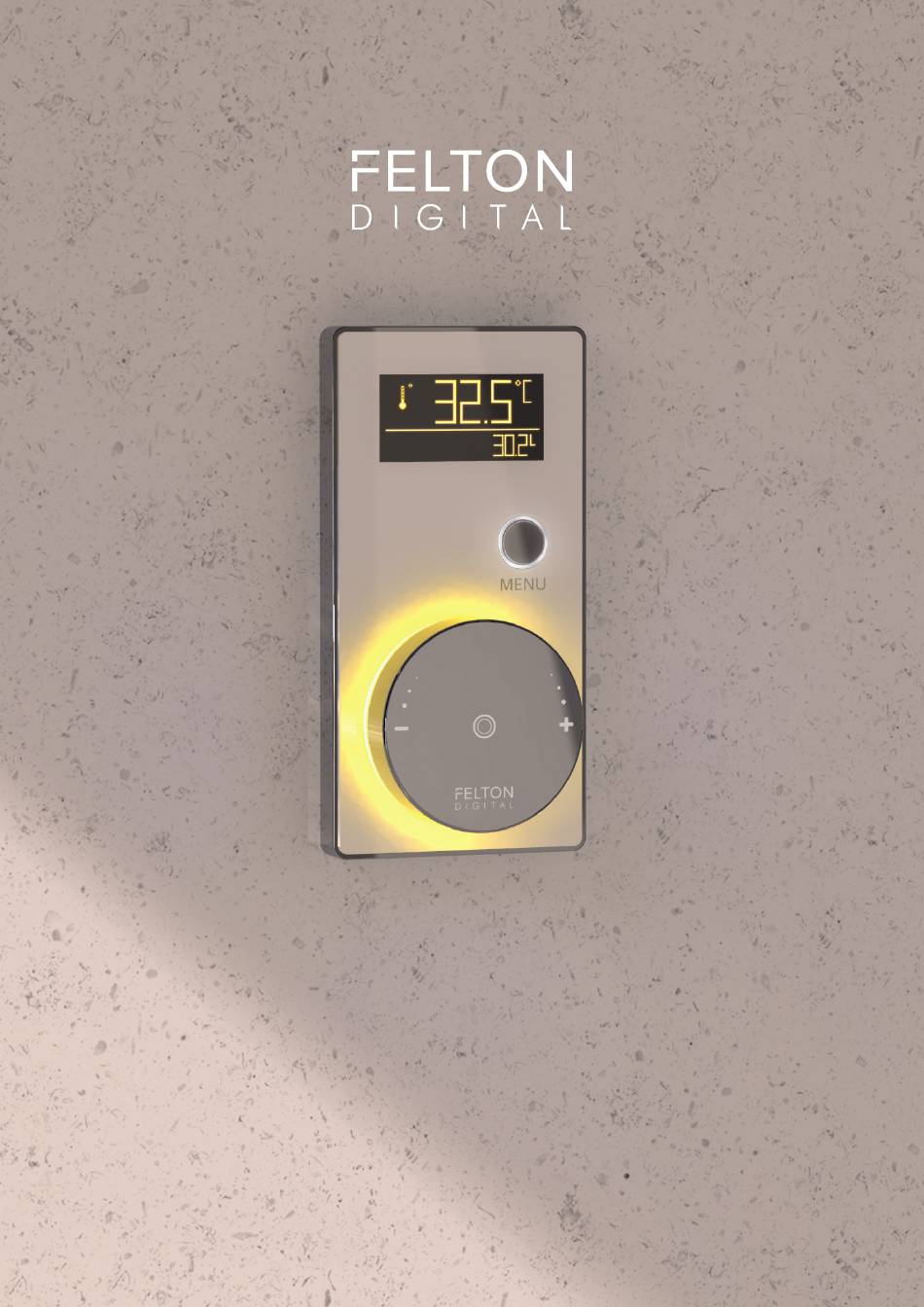

- Page 1 USER GUIDE S M A R T V I E W ™ Digital Thermostatic Shower Mixer F D - S V C S M C...
-
Page 2: Important Safety Information
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance contains battery that are only replaceable by skilled persons. An electronic copy of installation and user guides are available on Felton Digital website – please visit www.feltondigital.co.nz to view file. FELTON DIGITAL SMARTVIEW™... -
Page 3: Table Of Contents
CONTENTS Operating the water control system Display icons Operating the control system Operating the flow control Diverting the water flow Switching between temperature/flow Setting up temperature/flow memory Menu functions Accessing the extended menu display Extended menu features Troubleshooting Warranty... -
Page 5: Display Icons
DISPLAY ICONS Setting maximum run-time (until Shower Processor automatic switch-off) Flow and Setting the maximum outlet temperature temperature Save/delete current pre-sets. Self check diagnosis: Quick access to extended Inspection of control unit and water supply menu. Backwards/return Statistics Cleaning mode: disables the control Change from Celsius to Fahrenheit for 45 seconds Thermal disinfection (emergency stop... -
Page 6: Operating The Control System
OPERATING THE CONTROL SYSTEM To turn ON To turn OFF Press the wheel Press the wheel once, once, the control will the water and light will illuminate Orange and turn off. water will start to flow. SETTING TEMPERATURE Important: Risk of scalding, please read the Safety Information before using. COLD WARM Turn the wheel anti-... -
Page 7: Operating The Flow Control
OPERATING THE FLOW CONTROL At the same time, hold and turn the wheel to adjust the flow CLOCKWISE ANTI-CLOCKWISE to increase flow to decrease flow DIVERTING THE WATER FLOW To adjust and divert water flow: 1. Turn on unit then press the menu button. 2. -
Page 8: Setting Up Temperature/Flow Memory
SETTING UP THE TEMPERATURE/FLOW MEMORY Configure up to three memory settings on the controller for your desired shower temperature. You may request a Felton Recommended Installer upon installation to set temperature for you. The maximum temperature for memory settings is 40˚C. SETTING TEMPERATURE DISPLAY SETTING FLOW DISPLAY TO ACCESS MEMORY:... -
Page 9: Menu Functions
MENU FUNCTIONS CLEANING SAFE MODE This will disable the controls for 45 seconds to allow the unit to be cleaned without accidentally turning on the control. 1. Press the menu button to view main menu 2. Select the CLEANING MODE icon 3. - Page 10 Insert lifestyle image...
- Page 11 Insert lifestyle image...
-
Page 12: Accessing The Extended Menu Display
ACCESSING THE EXTENDED MENU DISPLAY The extended menu has 7 extra functions that allows you to personally adjust and configure your desired shower. You may set a pin on the extended menu to lock/unlock function. To set a new pin, follow page 16. 1. -
Page 13: Extended Menu Features
EXTENDED MENU FEATURES SETTING MAXIMUM RUN TIME (until automatic switch-off) The maximum run time function is ideal for water saving. It allows you to set a desired run time of water flow until automatic switch off of the shower. 1. Press menu button to enter extended menu 2. - Page 14 EXTENDED MENU FEATURES SELF CHECK DIAGNOSIS The system will then When the display bar is run through a series of full, diagnostic checks are Press the menu button diagnostic checks. complete. and enter the extended menu. Scroll to the ‘self check’ icon and press the menu button.
- Page 15 EXTENDED MENU FEATURES SWITCHING BETWEEN TEMPERATURE UNITS The temperature unit function allows you to switch between Celsius (°C) or Fahrenheit (°F). 1. Press menu button to enter extended menu 2. Scroll to TEMPERATURE UNIT icon 3. Press menu to change unit 4.
- Page 16 EXTENDED MENU FEATURES TO LOCK EXTENDED MENU LIST WITH A 3-DIGIT PIN CODE The lock function allows you to lock the extended menu function and revert back to basic main menu function. 1. Press menu button to enter extended menu 2.
-
Page 17: Troubleshooting
SMARTVIEW™ TROUBLESHOOTING ISSUE PROBLEM TROUBLESHOOT The AC adapter is not connected Connect device to the mains power to the mains Mains power failure Check household fuse box The device does not function (i.e. the LED light is not on) Back up battery not connected Follow Step 18 on Smartview Installation Guide Follow Step 19-20 on Smartview Installation Vision wheel interface is not working... -
Page 18: Warranty
WARRANTY, MAINTENANCE & CARE 5-year warranty applies to all Felton Digital branded products including the electronic hardware and its components. Where products are promoted as having a “5-year warranty”, Felton Industries Limited guarantees the electronic components of these products (excluding batteries) to be free from defects in materials and workmanship under normal installation, use and service for a period of five (5) years from the date of purchase. - Page 20 SERVICING AND CONTACT INFORMATION In the likely event that you are experiencing difficulties with your Felton Digital product, please contact our Felton Technical Team on 0800 743 358 or info@felton.co.nz F E LTO N I N D U S T R I E S LT D 8 F a r m h o u s e L a n e G l e n I n n e s A u c k l a n d 1 07 2 s a l e s @ f e l t o n .
