Summary of Contents for IEP Spidy ROLLER 230 V

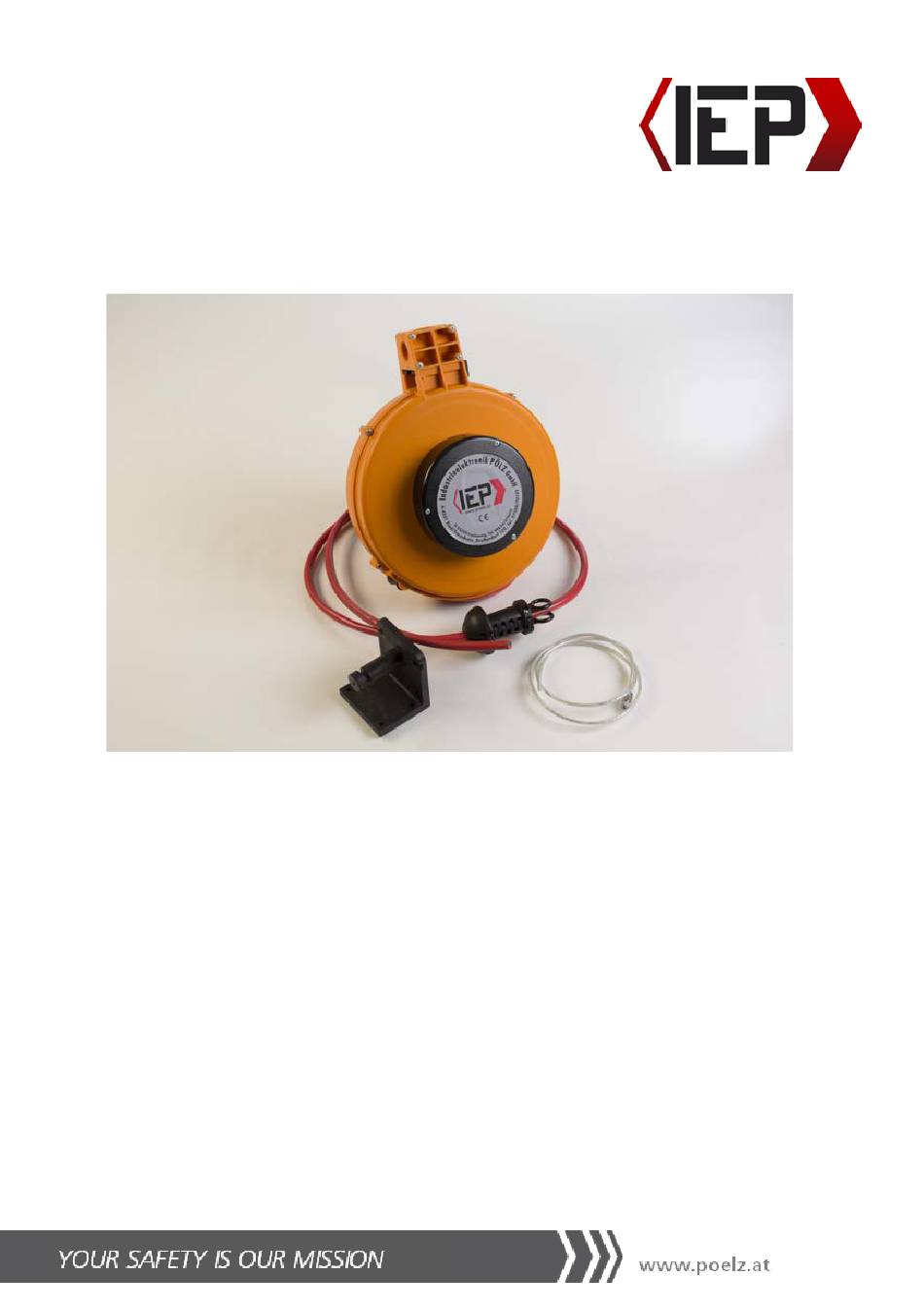

- Page 1 Operating Instructions Spidy ROLLER 230 V (30222) Spidy AIRROLLER 230 V (30226) Spidy AIRROLLER 230 V with Multifunctional Plug (30876) Spidy ROLLER 12/24 V (30569) Spidy ROLLER 12/24 V with 7-Pole Plug (30679) Spidy AIRROLLER 12/24 V (30223) Spidy AIRROLLER 12 / 24 V with Combined Air Plug...
- Page 2 Imprint: All Rights Reserved. Duplication of these instructions or parts thereof by any reproduction method whatsoever is prohibited without the prior permission of Industrieelektronik Pölz GmbH. These operating instructions do not represent a contractual relationship. We reserve the right to make changes errors and omissions excepted. ©...
-
Page 3: Table Of Contents
Connecting a Spidy ROLLER 12 V / 24 V (with Compressed Air Supply) to the Battery Testing and Charging System ..............15 4.3.3 Connecting a Spidy ROLLER 230 V (without Compressed Air Supply) to the Mains Supply ......................15 4.3.4 Connecting a Spidy ROLLER 230 V (with Compressed Air Supply) to the Mains Supply ...................... - Page 4 Spidy ROLLER 12 V / 24 V (without Compressed Air Supply) ........23 8.1.2 Spidy ROLLER 12 V / 24 V (with Compressed Air Supply) ......... 23 8.1.3 Spidy ROLLER 230 V (without Compressed Air Supply) ..........24 8.1.4 Spidy AIRROLLER 230 V (with Compressed Air Supply) ..........24 Disposal ........................25 Test Certificates ......................
-
Page 5: Introduction
OPERATING INSTRUCTIONS Spidy Cable Reel 1 Introduction 1.1 Liability and Warranty Use the cable reel only in accordance with The Industrieelektronik Pölz GmbH battery its intended use (see also Chapter 2.1 automatic cable reel that you have pur- NTENDED USE chased is a high-quality product. -
Page 6: About These Operating Instructions
OPERATING INSTRUCTIONS Spidy Cable Reel 1.3 About these Operating In- Fire hazard! structions This symbol warns you of a fire hazard. These operating instructions are a compo- nent of the scope of supply; you must always keep them at the location of the Note! cable reel. -
Page 7: Safety Information
OPERATING INSTRUCTIONS Spidy Cable Reel 2 Safety Information 2.2 General Safety Information Always comply to the letter with the safe- This cable reel is not intended for use by ty information and warnings given in anybody (including children) with physical, these operating instructions. -
Page 8: Description Of The Device
OPERATING INSTRUCTIONS Spidy Cable Reel 3 Description of the 3.2 Device Types Device Supplying with power and compressed air is conditional upon the Industrieelektronik Pölz GmbH battery testing and charging 3.1 Device Overview system (or a similar device) being installed in the vehicle hall or the vehicle. -
Page 9: Description Of Function
The cable length (a maximum of 6.30 m Without 230 V compressed air sup- and with the Spidy ROLLER 230 V up to a maximum of 8 m) adapts automatically to different workplaces. -
Page 10: Technical Description
3.4.1 Cable Stopper sired gripping height of 1 m to 6.30 m As standard, the cable reel is fitted with a (with the Spidy ROLLER 230 V, up to a cable stopper. maximum of 8 m). Using the cable stopper, you can set the... - Page 11 OPERATING INSTRUCTIONS Spidy Cable Reel Depending on the device type, one or two fuses are used. Note! Fuse-protect all the positive pole connections (e.g. between the battery testing and charg- ing system and the battery or between the main and auxiliary battery and other auxiliary equipment).
-
Page 12: Installation
30875: with combined air plug for socket Installation work may only be carried out by qualified persons Spidy ROLLER 230 V who have been assigned to Item number: 30222 carry out this work. Commercially available 230 V cable Cable length: 8 m 4.1 Unpacking the Cable Reel... -
Page 13: Mounting The Cable Reel
OPERATING INSTRUCTIONS Spidy Cable Reel 4.2 Mounting the Cable Reel You can mount the cable reel on a wall or on the ceiling. Note! If mounting the cable reel on the ceiling, it must be possible to swivel it by 360°; in the case of mounting on the wall, it must be possible to swivel it by 150°. -
Page 14: Connecting The Cable Reel
6.30 m (with nance unit (comprising an air the Spidy ROLLER 230 V, up to filter, a water separator, a a maximum of 8 m) (see also pressure reducer, a pressure Chapter 8.1 T... -
Page 15: Connecting A Spidy Roller 12 V / 24 V (With Compressed Air Supply) To The Battery Testing And Charging System
OPERATING INSTRUCTIONS Spidy Cable Reel 2. Connect the cable reel to Industrie- elektronik Pölz GmbH's battery testing and charging system (or similar devic- es) by connecting the associated wires according to the graphic below: Release the (blue) coupling ring. Press the coupling ring onto the air hose. -
Page 16: Connecting A Spidy Roller 230 V (With Compressed Air Supply) To The Mains Supply
OPERATING INSTRUCTIONS Spidy Cable Reel 4.3.4 Connecting a Spidy ROLLER 230 V (with Compressed Air Supply) to the Mains Supply 1. Screw off the cover as described in Chapter 4.3.1 C ONNECTING A PIDY ROLLER 12 V / 24 V ( WITHOUT COM- PRESSED AIR SUPPLY TO THE BATTERY TEST-... - Page 17 OPERATING INSTRUCTIONS Spidy Cable Reel Note! When connecting, make sure to connect the yellow and green cable with the earth wire to the lustre terminal marked with the earth symbol c and that strain relief is screwed tight. 4. Tighten the screws of the lustre termi- nal and strain relief.
-
Page 18: Operation
OPERATING INSTRUCTIONS Spidy Cable Reel 5 Operation After you have connected the cable reel to the battery testing and charging system or the mains supply, it is ready to supply power and (depending on the device type) compressed air. Fire hazard! When reeled-up, the cable can become very hot in the case of severe inductive loading. -
Page 19: Dismantling
OPERATING INSTRUCTIONS Spidy Cable Reel 6 Dismantling Danger, electrical hazard! Before carrying out any dis- mounting work, disconnect the cable reel from the mains supply or the battery testing and charging system. 6.1.1 Dismounting the Cable Reel Note! Ensure that all the cable has been reeled in. -
Page 20: Service
OPERATING INSTRUCTIONS Spidy Cable Reel 7 Service 7.1.1 Checking and Replacing Fuses Danger! Servicing work must only be carried out by qualified people who have been tasked with this work. Danger, electrical hazard! Before carrying out any servic- ing work, disconnect the cable reel from the mains supply or the battery testing and charg- ing system. -
Page 21: Checking And Replacing Cables
OPERATING INSTRUCTIONS Spidy Cable Reel 7.1.2 Checking and Replacing Ca- 6. Pull the slip ring off the axis. bles 7. Loosen the screws and carefully take the bottom slip ring half out of the spool. 8. Loosen the cable from the lustre ter- minal of the bottom slip ring half. -
Page 22: Replacing Springs
OPERATING INSTRUCTIONS Spidy Cable Reel spring with the necessary number of rotations of the spool body. 16. Guide the cable through the exit hole of the casing half use the cable stop- per to prevent winding in at the open- ing. -
Page 23: Appendix
OPERATING INSTRUCTIONS Spidy Cable Reel 8 Appendix 8.1 Technical Data 8.1.1 Spidy ROLLER 12 V / 24 V (without Compressed Air Supply) Rated voltage 12 V / 24 V Transition resistance 0.8 mOhm Temperature range +5 °C to +35 °C Weight 4 kg approx. -
Page 24: Spidy Roller 230 V (Without Compressed Air Supply)
OPERATING INSTRUCTIONS Spidy Cable Reel 8.1.3 Spidy ROLLER 230 V (without Compressed Air Supply) Rated voltage 230 V Transition resistance 0.8 mOhm Temperature range +5 °C to +35 °C Weight 4 kg approx. Cable diameter 6 mm to 12 mm Cable length 8 m max. -
Page 25: Disposal
OPERATING INSTRUCTIONS Spidy Cable Reel 8.2 Disposal 8.4 Declaration of Conformity (DoC) The CE mark confirms conformity of the Cable reel device with the relevant EU directives. At the end of its useful life, never throw Industrieelektronik Pölz GmbH hereby away the cable reel in domestic refuse declares that the Spidy cable reel complies under any circumstances. - Page 26 OPERATING INSTRUCTIONS Spidy Cable Reel...
- Page 27 OPERATING INSTRUCTIONS Spidy Cable Reel...
- Page 28 Central Office Office Germany Industrieelektronik Pölz GmbH IEP Pölz GmbH Großendorf 122 Laufener Straße 15a 4551 Ried im Traunkreis, Austria 83395 Freilassing, Germany Tel.: +43 (0)7588 - 70 122 Tel.: +49 (0)8654 - 478 670 Fax: +43 (0)7588 - 70 125...
