User's Guide
NPD6103-01 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP-3100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson XP-3100 Series

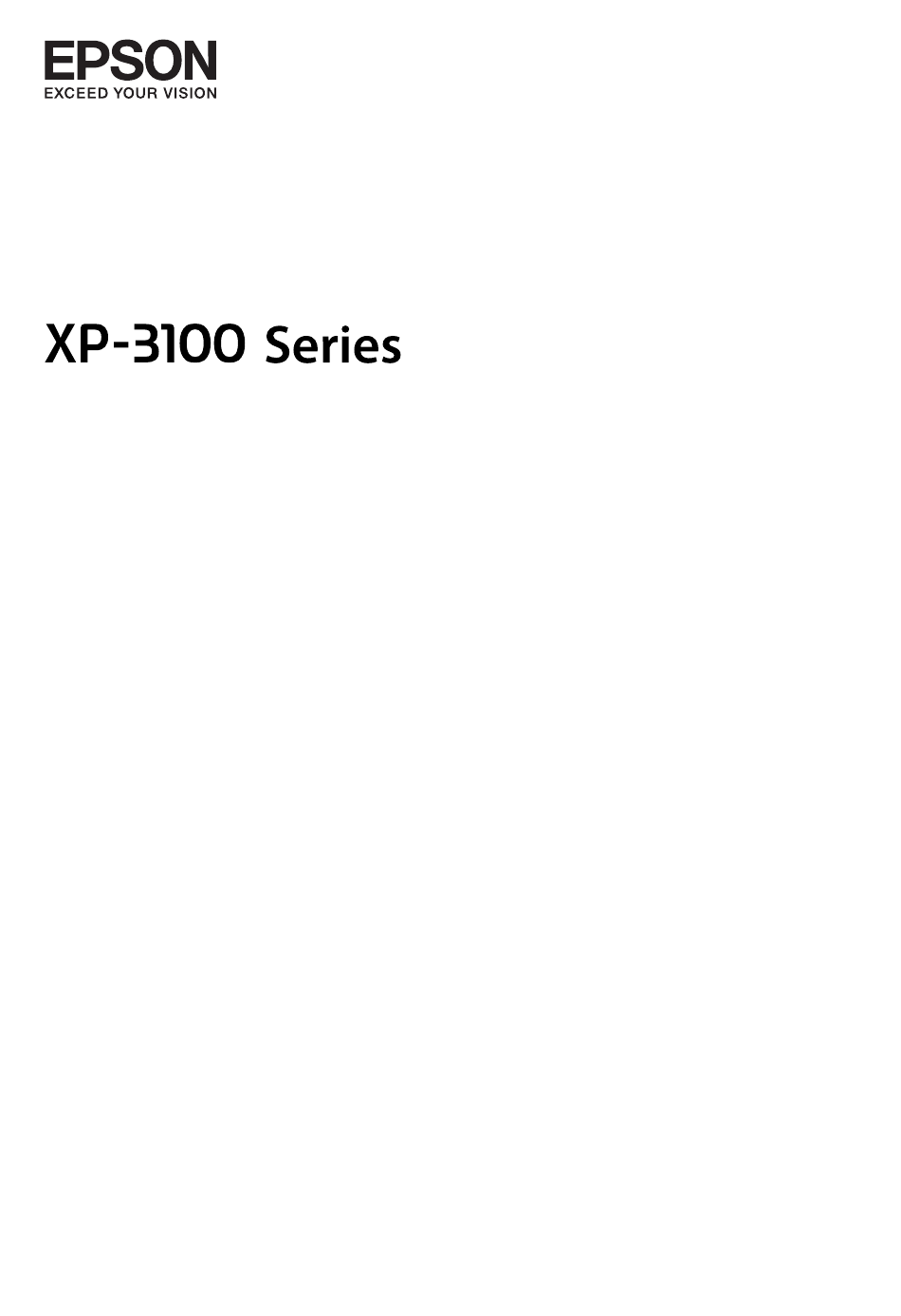

  • Page 1 User's Guide NPD6103-01 EN...
  • Page 2 User's Guide Copyright Copyright No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein.
  • Page 3 User's Guide Trademarks Trademarks ❏ EPSON ® is a registered trademark, and EPSON EXCEED YOUR VISION or EXCEED YOUR VISION is a trademark of Seiko Epson Corporation. ❏ Epson Scan 2 software is based in part on the work of the Independent JPEG Group. ❏...

  • Page 4: Table Of Contents

    User's Guide Contents Contents Connecting to an iPhone, iPad, or iPod touch Copyright using Wi-Fi Direct..... . . 22 Connecting to Android Devices using Wi-Fi Trademarks Direct.
  • Page 5 User's Guide Contents Printing Basics - Mac OS....57 Maintenance Box Handling Precautions..104 Printing on 2-Sides..... . .59 Replacing a Maintenance Box.
  • Page 6 User's Guide Contents Menu Options for Guide Functions... . 123 Removing Jammed Paper from Inside the Printer.......141 Menu Options for Customer Research.
  • Page 7 User's Guide Contents The Position, Size, or Margins of the Printout Scanner Specifications....169 Are Incorrect......158 Interface Specifications.

  • Page 8: About This Manual

    User's Guide About This Manual About This Manual Introduction to the Manuals The following manuals are supplied with your Epson printer. As well as the manuals, check the various types of help information available from the printer itself or from the Epson software applications. ❏...

  • Page 9: Marks And Symbols

    User's Guide About This Manual Jumping directly from bookmarks Click a title to jump to that page. Click + or > to view the lower level titles in that section. To return to the previous page, perform the following operation on your keyboard. ❏...

  • Page 10: Descriptions Used In This Manual

    User's Guide About This Manual Related Information & Links to related sections. Descriptions Used in this Manual ❏ Screenshots of the printer driver and the Epson Scan 2 (scanner driver) screens are from Windows 10 or macOS Mojave. The content displayed on the screens varies depending on the model and situation. ❏...

  • Page 11: Important Instructions

    User's Guide Important Instructions Important Instructions Safety Instructions Read and follow these instructions to ensure safe use of this printer. Make sure you keep this manual for future reference. Also, be sure to follow all warnings and instructions marked on the printer. ❏...

  • Page 12: Printer Advisories And Warnings

    User's Guide Important Instructions Printer Advisories and Warnings Read and follow these instructions to avoid damaging the printer or your property. Make sure you keep this manual for future reference. Advisories and Warnings for Setting Up the Printer ❏ Do not block or cover the vents and openings in the printer. ❏...

  • Page 13: Advisories And Warnings For Transporting Or Storing The Printer

    User's Guide Important Instructions ❏ Always turn the printer off using the button. Do not unplug the printer or turn off the power at the outlet until the light stops flashing. ❏ If you are not going to use the printer for a long period, be sure to unplug the power cord from the electrical outlet.

  • Page 14: Printer Basics

    User's Guide Printer Basics Printer Basics Part Names and Functions Rear paper feed Loads paper. Paper support Supports loaded paper. Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper. Feeder guard Prevents foreign substance from entering the printer. Usually keep this guard closed.
  • Page 15 User's Guide Printer Basics Scanner unit support Supports the scanner unit. Scanner unit Scans placed originals. Open when replacing ink cartridges or removing jammed paper inside the printer. Ink cartridge holder Install the ink cartridges. Ink is ejected from the print head nozzles. Maintenance box cover Remove when replacing the maintenance box.

  • Page 16: Guide To The Control Panel

    User's Guide Printer Basics Guide to the Control Panel Control Panel Turns the printer on or off. Unplug the power cord after checking that the power light is off. Displays the home screen. Displays menus and messages. Use buttons on the control panel to select a menu or to make settings. Displays the solutions when you are in trouble.

  • Page 17: Entering Characters

    User's Guide Printer Basics Icons that show the network status are displayed. Indicates that a wireless (Wi-Fi) network is disabled, or that the printer is processing a wireless network connection. Indicates a problem with the printer's wireless (Wi-Fi) network connection, or that the printer is searching for a wireless (Wi-Fi) network connection.

  • Page 18: Viewing Animations

    User's Guide Printer Basics on the keyboard, and then press the OK button. When you have finished entering characters, select OK, and then press the OK button. Function button Descriptions Moves the cursor to the left or right. A 1 # Switches the character type.
  • Page 19 User's Guide Printer Basics Press button to return to the previous step. Indicates the total number of steps and the current step number. In the example above, it shows step 2 from 3 steps. Press button to move to the next step.

  • Page 20: Network Settings

    User's Guide Network Settings Network Settings Network Connection Types You can use the following connection methods. Wi-Fi Connection Connect the printer and the computer or smart device to the wireless router. This is the typical connection method for home or office networks where computers are connected by Wi-Fi through the wireless router. Related Information “Connecting to a Computer”...

  • Page 21: Connecting To A Computer

    User's Guide Network Settings can connect the devices to the printer without having to use a standard wireless router. However, devices directly connected to the printer cannot communicate with each other through the printer. The printer can be connected by Wi-Fi and Wi-Fi Direct (Simple AP) connection simultaneously. However, if you start a network connection in Wi-Fi Direct (Simple AP) connection when the printer is connected by Wi-Fi, the Wi-Fi is temporarily disconnected.

  • Page 22: Connecting To A Smart Device

    User's Guide Network Settings Select the connection type and then click Next. Follow the on-screen instructions. Connecting to a Smart Device Connecting to a smart device over a wireless router You can use the printer from a smart device when you connect the printer to the same Wi-Fi network (SSID) as the smart device.
  • Page 23 User's Guide Network Settings conditions, you can connect by selecting Other OS Devices. See "Related Information" below for details on connecting. ❏ iOS 11 or later ❏ Using the standard camera application to scan the QR code ❏ Epson iPrint version 7.0 or later Epson iPrint is used to print from a smart device.
  • Page 24 User's Guide Network Settings 5. Check the message, and then press the OK button to proceed. The QR code is displayed on the printer's control panel. 6. On your iPhone, iPad, or iPod touch, start the standard Camera app, and then scan the QR code displayed on the printer's control panel in PHOTO mode.
  • Page 25 User's Guide Network Settings 9. On the printer's control panel, press the OK button. 10. On the iPhone, iPad, or iPod touch, start Epson printing app. Examples of Epson printing apps 11. On the Epson printing app screen, tap Printer is not selected.. 12.

  • Page 26: Connecting To Android Devices Using Wi-Fi Direct

    User's Guide Network Settings Related Information “Connecting to Devices other than iOS and Android using Wi-Fi Direct” on page 28 & “Printing from Smart Devices” on page 74 & Connecting to Android Devices using Wi-Fi Direct This method allows you to connect the printer directly to your Android device without a wireless router. The following conditions are required to use this function.
  • Page 27 User's Guide Network Settings 4. On the iPhone, iPad, or iPod touch, start Epson iPrint. 5. On the Epson iPrint screen, tap Printer is not selected.. 6. Select the printer that you want to connect to. See the information displayed on the printer's control panel to select the printer. Note: Printers may not been displayed depending on the Android device.

  • Page 28: Connecting To Devices Other Than Ios And Android Using Wi-Fi Direct

    User's Guide Network Settings “Printing from Smart Devices” on page 74 & Connecting to Devices other than iOS and Android using Wi-Fi Direct This method allows you to connect the printer directly to smart devices without a wireless router. Note: You only need to make these settings for the printer and the smart device that you want to connect to once.
  • Page 29 User's Guide Network Settings 4. On the smart device's Wi-Fi screen, select the Network Name shown on the printer's control panel, and then enter the password. The screenshot is an example on iPhone. 5. On the printer's control panel, press the OK button.
  • Page 30 User's Guide Network Settings 6. On the smart device, start Epson printing app. Examples of Epson printing apps 7. On the Epson printing app screen, tap Printer is not selected.. 8. Select the printer that you want to connect to. See the information displayed on the printer's control panel to select the printer.

  • Page 31: Making Wi-Fi Settings From The Printer

    User's Guide Network Settings Related Information “Printing from Smart Devices” on page 74 & Making Wi-Fi Settings from the Printer You can make network settings from the printer's control panel in several ways. Choose the connection method that matches the environment and conditions that you are using. If you know the information for the wireless router such as SSID and password, you can make settings manually.

  • Page 32: Making Wi-Fi Settings By Push Button Setup

    User's Guide Network Settings 5. Select the SSID for the wireless router from printer's control panel, and then press the OK button. Note: ❏ If the SSID you want to connect to is not displayed on the printer's control panel, press the button to update the list.

  • Page 33: Making Wi-Fi Settings By Pin Code Setup (Wps)

    User's Guide Network Settings 5. Hold down the [WPS] button on the wireless router until the security light flashes. If you do not know where the [WPS] button is, or there are no buttons on the wireless router, see the documentation provided with your wireless router for details.

  • Page 34: Checking The Network Connection Status

    User's Guide Network Settings 7. Press the OK button on the printer. Setup is complete when the setup completion message is displayed. Note: If connection fails, restart the wireless router, move it closer to the printer, and try again. If it still does not work, print a connection report and check the solution.
  • Page 35 User's Guide Network Settings Related Information “Messages and Solutions on the Network Connection Report” on page 35 & Messages and Solutions on the Network Connection Report Check the messages and error codes on the network connection report, and then follow the solutions. a.
  • Page 36 User's Guide Network Settings “E-13” on page 39 & “Message on the Network Environment” on page 40 & Solutions: ❏ Make sure the Ethernet cable is securely connected to your printer and to your hub or other network device. ❏ Make sure your hub or other network device is turned on. ❏...
  • Page 37 User's Guide Network Settings Solutions: Make sure the wireless router’s security type is set to one of the following. If it is not, change the security type on the wireless router, and then reset the printer’s network settings. ❏ WEP-64 bit (40 bit) ❏...
  • Page 38 User's Guide Network Settings Solutions: Check the following. ❏ Devices are turned on. ❏ You can access the Internet and other computers or network devices on the same network from the devices you want to connect to the printer. If still does not connect your printer and network devices after confirming the above, turn off the wireless router. Wait for about 10 seconds, and then turn it on.
  • Page 39 User's Guide Network Settings Related Information “Printing a Network Status Sheet” on page 40 & E-12 Solutions: Check the following. ❏ Other devices on the network are turned on. ❏ The network addresses (IP address, subnet mask, and default gateway) are correct if you are entering them manually.

  • Page 40: Printing A Network Status Sheet

    User's Guide Network Settings Related Information “Printing a Network Status Sheet” on page 40 & “Connecting to a Computer” on page 21 & Message on the Network Environment Message Solution The Wi-Fi environment needs to be After moving the printer closer to the wireless router and removing any improved.

  • Page 41: Changing The Connection Method To A Computer

    User's Guide Network Settings Related Information “Changing the Connection Method to a Computer” on page 41 & Changing the Connection Method to a Computer Using the installer and re-set up in a different connection method. ❏ Setting up from the website Access the following website, and then enter the product name.

  • Page 42: Disabling Wi-Fi From The Control Panel

    User's Guide Network Settings 1. Select Wi-Fi Setup on the home screen. u d l r To select an item, use the buttons, and then press the OK button. 2. Select Wi-Fi Direct. 3. Press the OK button to proceed. 4.

  • Page 43: Disconnecting Wi-Fi Direct (Simple Ap) Connection From The Control Panel

    User's Guide Network Settings 6. Check the message, and then press the OK button. Disconnecting Wi-Fi Direct (Simple AP) Connection from the Control Panel There are two methods available to disable a Wi-Fi Direct (Simple AP) connection; you can disable all connections by using the printer's control panel, or disable each connection from the computer or the smart device.

  • Page 44: Loading Paper

    User's Guide Loading Paper Loading Paper Paper Handling Precautions ❏ Read the instruction sheets supplied with the paper. ❏ Fan and align the edges of the paper before loading. Do not fan or curl photo paper. Doing so may damage the printable side.

  • Page 45: Available Paper And Capacities

    User's Guide Loading Paper Available Paper and Capacities Note: The paper size displayed differs depending on the driver. Genuine Epson Paper Epson recommends using genuine Epson paper to ensure high-quality printouts. Note: The availability of paper varies by location. For the latest information on paper available in your area, contact Epson support.

  • Page 46: Commercially Available Paper

    User's Guide Loading Paper Commercially Available Paper Plain papers Media Name Size Loading Capacity (Sheets) Plain paper Letter, A4, B5, 16K (195×270 mm), A5, A6, Up to the line indicated by the triangle symbol on the edge guide. Copy paper Legal, 8.5×13 in., Indian-Legal Letterhead User Defined (mm)

  • Page 47: Paper For 2-Sided Printing

    User's Guide Loading Paper Paper for 2-Sided Printing Genuine Epson Paper Epson Bright White Ink Jet Paper Commercially Available Paper Plain paper, Copy paper For automatic 2-sided printing, you can use Letter, A4, B5, 16K, and User Defined (182 x 257 to 215.9 x 297 mm) paper sizes. List of Paper Type To obtain optimum printing results, select the paper type that suits the paper.
  • Page 48 User's Guide Loading Paper 2. Slide the edge guides. 3. Load paper at the center of the paper support with the printable side facing up. Important: ❏ Do not load more than the maximum number of sheets specified for the paper. For plain paper, do not load above the line just under the symbol inside the edge guide.
  • Page 49 User's Guide Loading Paper ❏ Pre-punched paper Note: ❏ Load a single sheet of defined size plain paper with binding holes at the left or right. ❏ Adjust the print position of your file to avoid printing over the holes. ❏...
  • Page 50 User's Guide Loading Paper 6. Slide out the output tray. Note: Return the remaining paper to its package. If you leave it in the printer, the paper may curl or the print quality may decline. Related Information “Paper Handling Precautions” on page 44 &...

  • Page 51: Placing Originals

    User's Guide Placing Originals Placing Originals Placing Originals on the Scanner Glass Important: When placing bulky originals such as books, prevent exterior light from shining directly onto the scanner glass. 1. Open the document cover. 2. Remove any dust or stains on the surface of the scanner glass using a soft, dry, clean cloth. Note: If there is any trash or dirt on the scanner glass, the scanning range may expand to include it, so the image of the original may be displaced or reduced.

  • Page 52: How To Place Various Originals

    User's Guide Placing Originals 4. Close the cover gently. Important: Do not apply too much force to the scanner glass or the document cover. Otherwise, they may be damaged. 5. Remove the originals after scanning. Note: If you leave the originals on the scanner glass for a long time, they may stick to the surface of the glass. How to Place Various Originals Placing Originals for 2-Up Layout...
  • Page 53 User's Guide Placing Originals Placing a Double-Page Spread for 2-Up Layout Placing an ID Card for Copying Place an ID card 5 mm away from the corner mark of the scanner glass. Placing Multiple Photos for Scanning at the Same Time You can scan multiple photos at the same time and save each image, using Photo Mode in Epson Scan 2.
  • Page 54 User's Guide Placing Originals Note: Enable the Thumbnail check box at the top of the preview window.

  • Page 55: Printing

    User's Guide Printing Printing Printing from the Control Panel Printing Lined Paper and Calendars You can easily print lined paper and calendars using the Personal Stationery menu. 1. Load paper in the printer. 2. Select Personal Stationery on the home screen. u d l r To select an item, use the buttons, and then press the OK button.
  • Page 56 User's Guide Printing 1. Load paper in the printer. 2. Open the file you want to print. 3. Select Print or Print Setup from the File menu. 4. Select your printer. 5. Select Preferences or Properties to access the printer driver window. 6.

  • Page 57: Printing Basics - Mac Os

    User's Guide Printing “Loading Paper in the Rear Paper Feed” on page 47 & “Guide to Windows Printer Driver” on page 128 & “List of Paper Type” on page 47 & Printing Basics - Mac OS Note: Explanations in the section use TextEdit as an example. Operations and screens differ depending on the application. See the application's help for details.
  • Page 58 User's Guide Printing 5. Select Print Settings from the pop-up menu. Note: On OS X Mountain Lion or later, if the Print Settings menu is not displayed, the Epson printer driver has not been installed correctly. Select System Preferences from the menu >...

  • Page 59: Printing On 2-Sides

    User's Guide Printing “Guide to Mac OS Printer Driver” on page 131 & “List of Paper Type” on page 47 & Printing on 2-Sides You can use either of the following methods to print on both sides of the paper. ❏...
  • Page 60 User's Guide Printing 4. Select Auto (Long-edge binding), Auto (Short-edge binding), Manual (Long-edge binding), or Manual (Short-edge binding) from 2-Sided Printing on the Main tab. 5. Click Settings, make the appropriate settings, and then click OK. Note: To print a folded booklet, select Booklet. 6.

  • Page 61: Printing Several Pages On One Sheet

    User's Guide Printing Related Information “Loading Paper in the Rear Paper Feed” on page 47 & “Printing Basics - Mac OS” on page 57 & Printing Several Pages on One Sheet You can print two or four pages of data on a single sheet of paper. Printing Several Pages on One Sheet - Windows Note: This feature is not available for borderless printing.

  • Page 62: Printing To Fit The Paper Size

    User's Guide Printing Printing Several Pages on One Sheet - Mac OS 1. Load paper in the printer. 2. Open the file you want to print. 3. Access the print dialog. 4. Select Layout from the pop-up menu. 5. Set the number of pages in Pages per Sheet, the Layout Direction (page order), and Border. 6.
  • Page 63 User's Guide Printing ❏ Output Paper: Select the paper size you loaded in the printer. Fit to Page is selected automatically. Note: If you want to print a reduced image at the center of the page, select Center. 5. Set the other items on the Main and More Options tabs as necessary, and then click OK. 6.

  • Page 64: Printing Multiple Files Together (For Windows Only)

    User's Guide Printing Printing Multiple Files Together (for Windows Only) Job Arranger Lite allows you to combine several files created by different applications and print them as a single print job. You can specify the print settings for combined files, such as layout, print order, and orientation. 1.

  • Page 65: Printing One Image On Multiple Sheets To Create A Poster (For Windows Only)

    User's Guide Printing Printing One Image on Multiple Sheets to Create a Poster (for Windows Only) This feature allows you to print one image on multiple sheets of paper. You can create a larger poster by taping them together. Note: This feature is not available for borderless printing.
  • Page 66 User's Guide Printing Making Posters Using Overlapping Alignment Marks Here is an example of how to make a poster when 2x2 Poster is selected, and Overlapping Alignment Marks is selected in Print Cutting Guides. 1. Prepare Sheet 1 and Sheet 2. Cut off the margins of Sheet 1 along the vertical blue line through the center of the top and bottom cross marks.
  • Page 67 User's Guide Printing 2. Place the edge of Sheet 1 on top of Sheet 2 and align the cross marks, then temporarily tape the two sheets together from the back. 3. Cut the taped sheets in two along the vertical red line through the alignment markers (this time, the line to the left of the cross marks).
  • Page 68 User's Guide Printing 4. Tape the sheets together from the back. 5. Repeat steps 1 to 4 to tape Sheet 3 and Sheet 4 together. 6. Cut off the margins of Sheet 1 and Sheet 2 along the horizontal blue line through the center of the left and right side cross marks.
  • Page 69 User's Guide Printing 7. Place the edge of Sheet 1 and Sheet 2 on top of Sheet 3 and Sheet 4 and align the cross marks, and then temporarily tape them together from the back.
  • Page 70 User's Guide Printing 8. Cut the taped sheets in two along the horizontal red line through the alignment markers (this time, the line above the cross marks). 9. Tape the sheets together from the back.

  • Page 71: Printing Using Advanced Features

    User's Guide Printing 10. Cut off the remaining margins along the outer guide. Printing Using Advanced Features This section introduces a variety of additional layout and printing features available on the printer driver. Related Information “Windows Printer Driver” on page 127 &...
  • Page 72 User's Guide Printing Windows To add your own preset, set items such as the Document Size and Paper Type on the Main or More Options tab, and then click Add/Remove Presets in Printing Presets. Note: To delete an added preset, click Add/Remove Presets, select the preset name you want to delete from the list, and then delete Mac OS Access the print dialog.
  • Page 73 User's Guide Printing Mac OS Access the print dialog. Select Color Matching from the pop-up menu, and then select EPSON Color Controls. Select Color Options from the pop-up menu, and then select one of the available options. Click the arrow next to Advanced Settings and make the appropriate settings.

  • Page 74: Printing From Smart Devices

    User's Guide Printing Note: Deblurring may not always be possible depending on the circumstances. On the printer driver's Maintenance tab, click Extended Settings, and then select Barcode mode. Printing from Smart Devices Using Epson iPrint Epson iPrint is an application that allows you to print photos, documents, and web pages from a smart device such as a smartphone or tablet.

  • Page 75: Using Epson Print Enabler

    User's Guide Printing The following screens are subject to change without notice. The contents may vary depending on the product. Home screen displayed when the application is started. Displays information on how to setup the printer and a FAQ. Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.

  • Page 76: Using Airprint

    User's Guide Printing 2. Set up your printer for wireless printing. 3. On your Android device, install the Epson Print Enabler plug-in from Google Play. 4. Connect your Android device to the same wireless network as your printer. 5. Go to Settings on your Android device, select Connected devices > Printing, and then enable Epson Print Enabler.

  • Page 77: Canceling Printing

    User's Guide Printing Canceling Printing Note: ❏ In Windows, you cannot cancel a print job from the computer once it has been completely sent to the printer. In this case, cancel the print job by using the printer's control panel. ❏...

  • Page 78: Copying

    User's Guide Copying Copying Copying Basics 1. Load paper in the printer. 2. Place the originals. 3. Enter Copy from the home screen using the button, and then press the OK button. 4. Set the number of copies using the button.

  • Page 79: Menu Options For Copying

    User's Guide Copying 4. Select a copy menu using the button, and then press the OK button. ❏ ID Card Copy Scans both sides of an ID card and copies onto one side of A4 size paper. ❏ Book copy Copies two A4 facing pages of a book and so on onto a single sheet of paper.
  • Page 80 User's Guide Copying ❏ 1→2-Sided Copies two single-sided originals onto both sides of a single sheet of paper. Density: Increase the level of density by pressing the button when the copying results are faint. Decrease the level of density by pressing the button when ink smears.
  • Page 81 User's Guide Copying Quality: Select the print quality. Selecting Best provides higher quality printing, but the printing speed may be slower. For users in Western Europe, the draft mode is not available. Expansion: With borderless copying, the image is enlarged a little to remove borders from the edges of the paper. Select how much to enlarge the image.

  • Page 82: Scanning

    User's Guide Scanning Scanning Scanning Using the Control Panel Scanning to a Computer You can save the scanned image to a computer. Important: Make sure you have installed Epson Scan 2 and Epson Event Manager on your computer before using this feature. 1.
  • Page 83 User's Guide Scanning Making Custom Settings in Epson Event Manager You can set the scan settings for To Computer (Custom) in Epson Event Manager. See the Epson Event Manager help for details. 1. Start Epson Event Manager. 2. Make sure that your scanner is selected as the Scanner on the Button Settings tab on the main screen.
  • Page 84 User's Guide Scanning 3. Click Make Job Settings.
  • Page 85 User's Guide Scanning 4. Make scan settings on the Job Settings screen. ❏ Edit Job Settings: Select Custom Action. ❏ Setting: Scan using the best settings for the selected type of original. Click Detailed Settings for Scanning to set the items such as the resolution or the color for saving the scanned image. ❏...

  • Page 86: Scanning Using Wsd

    User's Guide Scanning 6. Make sure that the Custom Action is selected on the Custom Action list. 7. Click Close to close Epson Event Manager. Scanning Using WSD Note: ❏ This feature is only available for computers running English version of Windows 10/Windows 8.1/Windows 8/Windows 7/ Windows Vista.
  • Page 87 User's Guide Scanning Setting Up a WSD Port This section explains how to set up a WSD port for Windows 7/Windows Vista. Note: For Windows 10/Windows 8.1/Windows 8, the WSD port is set up automatically. The following is necessary to set up a WSD port. ❏...

  • Page 88: Scanning From A Computer

    User's Guide Scanning 4. Click Your device is ready to use. 5. Check the message, and then click Close. 6. Open the Devices and Printers screen. ❏ Windows 7 Click start > Control Panel > Hardware and Sound (or Hardware) > Devices and Printers. ❏...
  • Page 89 User's Guide Scanning 1. Place the originals. 2. Start Epson Scan 2. 3. Select Document Mode from the Mode list. 4. Make the following settings on the Main Settings tab. ❏ Document Size: Select the size of the original you placed. ❏...
  • Page 90 User's Guide Scanning ❏ On the Advanced Settings tab, you can make detailed image adjustment settings that are suitable for text documents, such as the following. ❏ Remove Background: Remove the background of the originals. ❏ Text Enhancement: You can make blurred letters in the original clear and sharp. ❏...
  • Page 91 User's Guide Scanning 6. Set the file saving settings. ❏ Image Format: Select the save format from the list. You can make detailed settings for each save format except BITMAP and PNG. Select Options from the list after selecting the save format. ❏...
  • Page 92 User's Guide Scanning 2. Start Epson Scan 2. 3. Select Photo Mode from the Mode list. 4. Make the following settings on the Main Settings tab. ❏ Image Type: Select the color for saving the scanned image. ❏ Resolution: Select the resolution. Note: The Document Source setting is fixed as Scanner Glass, and the Document Type setting is fixed as Reflective.
  • Page 93 User's Guide Scanning 5. Click Preview. The preview window opens, and the previewed images are displayed as thumbnails. Note: To preview the entire scanned area, clear the Thumbnail check box at the top of the preview widow. 6. Confirm the preview, and make image adjustment settings on the Advanced Settings tab if necessary.
  • Page 94 User's Guide Scanning You can adjust the scanned image using detailed settings that are suitable for photos or pictures, such as the following. ❏ Brightness: You can adjust the brightness for the scanned image. ❏ Contrast: You can adjust the contrast for the scanned image. ❏...

  • Page 95: Scanning From Smart Devices

    User's Guide Scanning ❏ Folder: Select the save folder for the scanned image from the list. You can select another folder or create a new folder by selecting Select from the list. 8. Click Scan. Related Information “Placing Originals” on page 51 &...
  • Page 96 User's Guide Scanning The following screens are subject to change without notice. Home screen displayed when the application is started. Displays information on how to setup the printer and a FAQ. Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.

  • Page 97: Replacing Ink Cartridges And Other Consumables

    User's Guide Replacing Ink Cartridges and Other Consumables Replacing Ink Cartridges and Other Consumables Checking the Status of the Remaining Ink and the Maintenance Box You can check the approximate ink levels and the approximate service life of the maintenance box from the control panel or the computer.

  • Page 98: Ink Cartridge Codes

    User's Guide Replacing Ink Cartridges and Other Consumables ❏ Mac OS X v10.5.8 Select System Preferences from the menu > Print & Fax, and then select the printer. Click Open Print Queue > Utility. 2. Click EPSON Status Monitor. Ink Cartridge Codes The following are the codes for genuine Epson ink cartridges.

  • Page 99: Ink Cartridge Handling Precautions

    User's Guide Replacing Ink Cartridges and Other Consumables Ink Cartridge Handling Precautions Read the following instructions before replacing ink cartridges. Storing precautions for ink ❏ Keep the ink cartridges out of direct sunlight. ❏ Do not store the ink cartridges in high or freezing temperatures. ❏...
  • Page 100 User's Guide Replacing Ink Cartridges and Other Consumables ❏ Do not remove the transparent seal from the bottom of the cartridge; otherwise, the cartridge may become unusable. ❏ Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing. ❏...

  • Page 101: Replacing Ink Cartridges

    User's Guide Replacing Ink Cartridges and Other Consumables ❏ Do not disassemble or remodel the ink cartridge, otherwise you may not be able to print normally. ❏ You cannot use the cartridges that came with the printer for the replacement. Ink consumption ❏...
  • Page 102 User's Guide Replacing Ink Cartridges and Other Consumables 2. When replacing the black ink cartridge, gently shake the new black ink cartridge four or five times and then remove it from its package. When replacing other color cartridges, remove the new color cartridges from their package without shaking.
  • Page 103 User's Guide Replacing Ink Cartridges and Other Consumables 4. Open the scanner unit with the document cover closed. 5. Squeeze the tab on the ink cartridge and pull it straight up. If you cannot remove the ink cartridge, pull it firmly.

  • Page 104: Maintenance Box Code

    User's Guide Replacing Ink Cartridges and Other Consumables 7. Close the scanner unit. For safety, the scanner unit is closed in two steps. Note: The scanner unit cannot be opened from the position shown below. Close it completely before opening it. 8.

  • Page 105: Replacing A Maintenance Box

    User's Guide Replacing Ink Cartridges and Other Consumables ❏ Do not touch the sections shown in the illustration. Doing so may prevent normal operation and you may get smeared with ink. ❏ Do not drop the maintenance box or subject it to strong shocks. ❏...
  • Page 106 User's Guide Replacing Ink Cartridges and Other Consumables Note: ❏ When the maintenance box is full, you cannot print and clean the print head until it is replaced to avoid ink leakage. However, you can perform operations that do not use ink such as scanning. ❏...
  • Page 107 User's Guide Replacing Ink Cartridges and Other Consumables 3. Remove the used maintenance box. Important: Do not touch the sections shown in the illustration. Doing so may prevent normal operation and you may get smeared with ink. 4. Put the used maintenance box in the transparent bag that came with the new maintenance box and seal the bag shut.

  • Page 108: Temporarily Printing With Black Ink

    User's Guide Replacing Ink Cartridges and Other Consumables 5. Insert the new maintenance box all the way into the printer. Make sure you insert the box in the correct direction. 6. Reattach the cover. 7. Check the message, and then press the OK button. Temporarily Printing with Black Ink When color ink is expended and black ink still remains, you can use the following settings to continue printing for a short time using only black ink.

  • Page 109: Temporarily Printing With Black Ink - Windows

    User's Guide Replacing Ink Cartridges and Other Consumables Temporarily Printing with Black Ink - Windows Do one of the following. ❏ When the following window is displayed, select Print in Black. ❏ When the following window is displayed, cancel printing. And then, printing again. Note: If you cannot cancel printing from the computer, cancel using the printer's control panel.

  • Page 110: Temporarily Printing With Black Ink - Mac Os

    User's Guide Replacing Ink Cartridges and Other Consumables 6. Click Print. 7. Click Print in Black in the window displayed. Temporarily Printing with Black Ink - Mac OS Note: To use this feature through a network, connect with Bonjour. 1. Click the printer icon in the Dock. 2.
  • Page 111 User's Guide Replacing Ink Cartridges and Other Consumables Note: ❏ If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and then select Enable EPSON Status Monitor 3. ❏ Composite black looks slightly different from pure black. In addition, the print speed is reduced. ❏...

  • Page 112: Maintaining The Printer

    User's Guide Maintaining the Printer Maintaining the Printer Preventing the Print Head from Drying Always use the power button when turning the printer on and off. Check that the power light is off before you disconnect the power cord. The ink itself can dry out if it is not covered. Just like placing a cap on a fountain pen or an oil pen to prevent it from drying, make sure the print head is capped properly to prevent the ink from drying.

  • Page 113: Checking And Cleaning The Print Head - Windows

    User's Guide Maintaining the Printer ❏ If there are broken lines or missing segments as shown in the "NG" pattern, the print head nozzles may be clogged. Go to the next step. 6. Select Yes, and then follow the on-screen instructions to clean the print head. 7.

  • Page 114: Aligning The Print Head

    User's Guide Maintaining the Printer Related Information “Loading Paper in the Rear Paper Feed” on page 47 & Aligning the Print Head If print results contain the following problems, align the print head to improve the printouts. ❏ Vertical lines look misaligned or the printouts look blurry ❏...

  • Page 115: Cleaning The Scanner Glass

    User's Guide Maintaining the Printer Related Information “Loading Paper in the Rear Paper Feed” on page 47 & Cleaning the Scanner Glass When the copies or scanned images are smeared, clean the scanner glass. Important: Never use alcohol or thinner to clean the printer. These chemicals can damage the printer. 1.
  • Page 116 User's Guide Maintaining the Printer Important: Do not use cleaning liquid other than water with a few drops of detergent. 1. Turn off the printer by pressing the button. 2. Open the scanner unit. 3. Check if the translucent film is smeared. Smears are easier to see if you use a light. If there are smears (such as finger marks or grease) on the translucent film (A), go to the next step.

  • Page 117: Saving Power

    User's Guide Maintaining the Printer Important: Be careful not to touch the rail (B). Otherwise, you may not be able to print. Do not wipe off the grease on the rail, because this is necessary for operations. 4. Moisten a cotton swab with the water with a few drops of detergent so that it is not dripping water, and then wipe the smeared part.

  • Page 118: Saving Power - Control Panel

    User's Guide Maintaining the Printer Saving Power - Control Panel 1. Select Settings on the home screen. u d l r To select an item, use the buttons, and then press the OK button. 2. Select Printer Setup. 3. Do one of the following. Note: Your product may have the Power Off Settings or Power Off Timer feature depending on the location of purchase.

  • Page 119: Menu Options For Settings

    User's Guide Menu Options for Settings Menu Options for Settings Select Settings on the home screen of the printer to make various settings. Menu Options for Supply Status Select the menu on the control panel as described below. Settings > Supply Status Ink Level: Displays the approximate levels of the ink cartridges.

  • Page 120: Paper Guide Cleaning

    User's Guide Menu Options for Settings Paper Guide Cleaning: Select this feature if there are ink stains on the internal rollers. The printer feeds paper to clean the internal rollers. Related Information “Checking and Cleaning the Print Head” on page 112 &...

  • Page 121: Language

    User's Guide Menu Options for Settings ❏ Power Off If Disconnected Select this setting to turn the printer off after 30 minutes when all ports including the USB port are disconnected. This feature may not be available depending on your region. Language: Select the language used on the LCD screen.

  • Page 122: Menu Options For Epson Connect Services

    User's Guide Menu Options for Settings “Wi-Fi Direct (Simple AP) Connection” on page 20 & “Printing a Network Status Sheet” on page 40 & “Checking the Network Connection Status” on page 34 & Menu Options for Epson Connect Services Select the menus on the control panel as described below. Settings >...

  • Page 123: Menu Options For Guide Functions

    User's Guide Menu Options for Settings Menu Options for Guide Functions Select the menus on the control panel as described below. Settings > Guide Functions Paper Mismatch Displays a warning if the paper settings (print settings) for the print job do not match the printer's paper settings made when you loaded the paper.
  • Page 124 User's Guide Menu Options for Settings All except Network: Resets all settings except for network settings to their defaults. All Settings: Resets all settings to their defaults.

  • Page 125: Network Service And Software Information

    User's Guide Network Service and Software Information Network Service and Software Information This section introduces the network services and software products available for your printer from the Epson website or the supplied software disc. Epson Connect Service By using Epson Connect service available on the Internet, you can print from your smartphone, tablet PC, or laptop, anytime and practically anywhere.

  • Page 126: Running Web Config On A Web Browser

    User's Guide Network Service and Software Information Running Web Config on a Web Browser 1. Check the printer's IP address. Select Settings > Network Settings > Connection Check from the control panel to start the connection check. Press the button or the OK button to print the network connection report. Check the printer's IP address on the printed network connection report.

  • Page 127: Running Web Config On Mac Os

    User's Guide Network Service and Software Information Running Web Config on Mac OS 1. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer. 2. Click Options & Supplies> Show Printer Webpage. Windows Printer Driver The printer driver controls the printer according to the commands from an application.

  • Page 128: Guide To Windows Printer Driver

    User's Guide Network Service and Software Information Note: If the printer icon is not displayed on the task bar, access the printer driver window, click Monitoring Preferences on the Maintenance tab, and then select Register the shortcut icon to the taskbar. Starting the utility Access the printer driver window.

  • Page 129: Making Operation Settings For The Windows Printer Driver

    User's Guide Network Service and Software Information More Options Tab You can select additional layout and printing options such as changing the size of a printout or making color corrections. Maintenance Tab You can run maintenance features such as nozzle check and print head cleaning, and by starting EPSON Status Monitor 3, you can check printer status and error information.

  • Page 130: Mac Os Printer Driver

    User's Guide Network Service and Software Information 1. Access the printer driver window. 2. Click Extended Settings on the Maintenance tab. 3. Make the appropriate settings, and then click OK. See the online help for explanations of the setting items. Mac OS Printer Driver The printer driver controls the printer according to the commands from an application.

  • Page 131: Guide To Mac Os Printer Driver

    User's Guide Network Service and Software Information Guide to Mac OS Printer Driver Print dialog Switch the pop-up menu on the center of the screen to show more items. Pop-up Menu Descriptions Layout You can select a layout for printing several pages on one sheet or select to print a border. Color Matching You can adjust the colors.

  • Page 132: Making Operation Settings For The Mac Os Printer Driver

    User's Guide Network Service and Software Information Epson Printer Utility You can run a maintenance feature such as nozzle check and print head cleaning, and by starting EPSON Status Monitor, you can check printer status and error information. Making Operation Settings for the Mac OS Printer Driver Accessing the Operation Settings Window of the Mac OS Printer Driver Select System Preferences from the menu >...

  • Page 133: Application For Scanning Documents And Images (Epson Scan 2)

    User's Guide Network Service and Software Information Application for Scanning Documents and Images (Epson Scan 2) Epson Scan 2 is an application for controlling scanning. You can adjust the size, resolution, brightness, contrast, and quality of the scanned image. You can also start Epson Scan 2 from a TWAIN-compliant scanning application. See the application's help for details.

  • Page 134: Application For Configuring Scanning Operations From The Control Panel (Epson Event Manager)

    User's Guide Network Service and Software Information Application for Configuring Scanning Operations from the Control Panel (Epson Event Manager) Epson Event Manager is an application that allows you to manage scanning from the control panel and save images to a computer. You can add your own settings as presets, such as the document type, the save folder location, and the image format.

  • Page 135: Software Update Tools (Epson Software Updater)

    User's Guide Network Service and Software Information Related Information “Installing Applications” on page 135 & Software Update Tools (EPSON Software Updater) EPSON Software Updater is an application that checks for new or updated software on the internet and installs it. You can also update the printer's firmware and manual.

  • Page 136: Updating Applications And Firmware

    User's Guide Network Service and Software Information 3. Access to the following website, and then enter the product name. http://epson.sn 4. Select Setup, and then click Download. 5. Click or double-click the downloaded file, and then follow the on-screen instructions. Note: If you are using a Windows computer and you cannot download applications from the website, install them from the software disc that came with the printer.

  • Page 137: Uninstalling Applications

    User's Guide Network Service and Software Information 4. If a message is displayed on the LCD screen informing you that a firmware update is available, follow the on- screen instructions to start the update. Important: ❏ Do not turn off or unplug the printer until the update is complete; otherwise, the printer may malfunction. ❏...

  • Page 138: Uninstalling Applications - Mac Os

    User's Guide Network Service and Software Information ❏ Windows XP Click Change/Remove or Remove. Note: If the User Account Control window is displayed, click Continue. 7. Follow the on-screen instructions. Uninstalling Applications - Mac OS 1. Download the Uninstaller using EPSON Software Updater. Once you have downloaded the Uninstaller, you do not need to download it again each time you uninstall the application.

  • Page 139: Solving Problems

    User's Guide Solving Problems Solving Problems Checking the Printer Status Checking Error Codes on the LCD Screen A code is displayed on the LCD screen if there is an error or information that requires your attention. If a code is displayed, follow the solutions below to solve the problem.

  • Page 140: Checking The Printer Status - Windows

    User's Guide Solving Problems Code Situation Solutions Recovery The printer has started in recovery Follow the steps below to try to update the firmware again. Mode mode because the firmware update 1. Connect the computer and the printer with a USB cable. (During failed.

  • Page 141: Checking The Software Status

    User's Guide Solving Problems Checking the Software Status You may be able to clear the problem by updating the software to the latest version. To check the software status, use the software update tool. Related Information “Software Update Tools (EPSON Software Updater)” on page 135 &...
  • Page 142 User's Guide Solving Problems 1. Open the scanner unit with the document cover closed. 2. Remove the jammed paper. Important: Do not touch the white flat cable or translucent film inside the printer. Doing so may cause a malfunction.

  • Page 143: Removing Jammed Paper From Rear Cover

    User's Guide Solving Problems 3. Close the scanner unit. For safety, the scanner unit is closed in two steps. Note: The scanner unit cannot be opened from the position shown below. Close it completely before opening it. Removing Jammed Paper from Rear Cover 1.

  • Page 144: Paper Does Not Feed Correctly

    User's Guide Solving Problems 3. Remove jammed paper from the rear cover. 4. Insert the rear cover in the printer. Paper Does Not Feed Correctly Check the following points, and then take the appropriate actions to solve the problem. ❏ Place the printer on a flat surface and operate in the recommended environmental conditions. ❏...

  • Page 145: Paper Feeds At A Slant

    User's Guide Solving Problems Paper Feeds at a Slant Load paper in the correct direction, and slide the edge guides against the edges of the paper. Related Information “Loading Paper in the Rear Paper Feed” on page 47 & Several Sheets of Paper are Fed at a Time ❏...

  • Page 146: Lcd Screen Gets Dark

    User's Guide Solving Problems Note: Your product may have the Power Off Settings or Power Off Timer feature depending on the location of purchase. LCD Screen Gets Dark The printer is in sleep mode. Press any button on the control panel to return the LCD screen to its former state. Cannot Print from a Computer Checking the Connection (USB) ❏...

  • Page 147: Checking The Software And Data

    User's Guide Solving Problems ❏ Print the network connection report. See the related information link below for details. If the report shows that the network connection failed, check the network connection report and then follow the printed solutions. ❏ If the IP address assigned to the printer is 169.254.XXX.XXX, and the subnet mask is 255.255.0.0, the IP address may not be assigned correctly.
  • Page 148 User's Guide Solving Problems Click the Driver tab. If your printer name is displayed in the list, a genuine Epson printer driver is installed on your computer. Mac OS Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer.

  • Page 149: Checking The Printer Status From The Computer (Windows)

    User's Guide Solving Problems Checking the Printer Status from the Computer (Windows) Click Print Queue on the printer driver's Maintenance tab, and then check the following. ❏ Check if there are any paused print jobs. If unnecessary data remains, select Cancel all documents from the Printer menu. ❏...

  • Page 150: When You Cannot Make Network Settings

    User's Guide Solving Problems When You Cannot Make Network Settings ❏ Turn off the devices you want to connect to the network. Wait for about 10 seconds, and then turn on the devices in the following order; wireless router, computer or smart device, and then printer. Move the printer and computer or smart device closer to the wireless router to help with radio wave communication, and then try to make network settings again.
  • Page 151 User's Guide Solving Problems ❏ You may not be able to connect to the wireless router when the wireless router has multiple SSIDs and devices are connected to different SSIDs on the same wireless router. Connect the computer or smart device to the same SSID as the printer.

  • Page 152: Checking The Ssid Connected To The Printer

    User's Guide Solving Problems Related Information “Checking the SSID Connected to the Printer” on page 152 & “Checking the SSID for the Computer” on page 152 & Checking the SSID Connected to the Printer You can check the SSID by printing a network connection report, network status sheet, or on Web Config. Related Information “Printing a Network Connection Report”...

  • Page 153: Wireless Lan (Wi-Fi) Connections Become Unstable When Using Usb 3.0 Devices On A Mac

    User's Guide Solving Problems Mac OS Click the Wi-Fi icon at the top of the computer screen. A list of SSIDs is displayed and the connected SSID is indicated with a check mark. Wireless LAN (Wi-Fi) Connections Become Unstable When Using USB 3.0 Devices on a Mac When you connect a device to the USB 3.0 port on a Mac, radio frequency interference may occur.

  • Page 154: Printout Problems

    User's Guide Solving Problems Printout Problems Printout is Scuffed or Color is Missing If you have not used the printer for a long time, the print head nozzles may be clogged and ink drops may not be discharged. Perform a nozzle check, and then clean the print head if any of the print head nozzles are clogged. Related Information “Checking and Cleaning the Print Head”...

  • Page 155: Blurry Prints, Vertical Banding, Or Misalignment

    User's Guide Solving Problems Related Information “List of Paper Type” on page 47 & “Aligning the Print Head” on page 114 & Blurry Prints, Vertical Banding, or Misalignment Align the print head using the Vertical Alignment feature. Related Information “Aligning the Print Head” on page 114 &...

  • Page 156: Paper Is Smeared Or Scuffed

    User's Guide Solving Problems ❏ If the paper is curled or the envelope is puffed up, flatten it. ❏ Do not stack the paper immediately after printing. ❏ Dry the printouts completely before filing or displaying them. When drying the printouts, avoid direct sun light, do not use a dryer, and do not touch the printed side of paper.

  • Page 157: Paper Is Smeared During Automatic 2-Sided Printing

    User's Guide Solving Problems ❏ Place the paper on a flat surface to check if it is curled. If it is, flatten it. ❏ When performing manual 2-sided printing, make sure that the ink is completely dry before reloading the paper. Related Information “Loading Paper in the Rear Paper Feed”...

  • Page 158: Cannot Print Without Margins

    User's Guide Solving Problems ❏ Colors on a display are not quite identical to those on paper because the display device and the printer have a different process of producing colors. Cannot Print Without Margins Make borderless setting in the print settings. If you select a paper type that does not support borderless printing, you cannot select Borderless.

  • Page 159: Printed Characters Are Incorrect Or Garbled

    User's Guide Solving Problems ❏ Adjust the margin setting in the application so that it falls within the printable area. Related Information “Loading Paper in the Rear Paper Feed” on page 47 & “Placing Originals on the Scanner Glass” on page 51 &...

  • Page 160: Moiré (Cross-Hatch) Patterns Appear In The Copied Image

    User's Guide Solving Problems “Cleaning the Scanner Glass” on page 115 & “Menu Options for Copying” on page 79 & Moiré (Cross-Hatch) Patterns Appear in the Copied Image Change the reduce and enlarge setting or place the original at a slightly different angle. An Image of the Reverse Side of the Original Appears in the Copied Image ❏...

  • Page 161: Printing Or Copying Slows Down Dramatically During Continuous Operation

    User's Guide Solving Problems ❏ Disable quiet mode. This feature slows down the printing speed. ❏ Control Panel Select on the home screen, and then disable Quiet Mode. ❏ Windows Select Off as the Quiet Mode setting on the printer driver's Main tab. ❏...

  • Page 162: Cannot Start Scanning When Using The Control Panel

    User's Guide Solving Problems ❏ Windows 7 Click the start button and select Control Panel, enter "Scanner and Camera" in the search charm, click View scanners and cameras, and then check if the printer is displayed. ❏ Windows Vista Click the start button, select Control Panel > Hardware and Sound > Scanners and Cameras, and then check if the printer is displayed.

  • Page 163: Offset Appears In The Background Of Images

    User's Guide Solving Problems Related Information “Scanning Using Epson Scan 2” on page 88 & Offset Appears in the Background of Images Images on the back of the original may appear in the scanned image. ❏ In Epson Scan 2, select the Advanced Settings tab, and then adjust the Brightness. This feature may not be available depending on the settings on the Main Settings tab >...

  • Page 164: Cannot Scan The Correct Area On The Scanner Glass

    User's Guide Solving Problems Related Information “Scanning Using Epson Scan 2” on page 88 & Cannot Scan the Correct Area on the Scanner Glass ❏ Make sure the original is placed correctly against the alignment marks. ❏ If the edge of the scanned image is missing, move the original slightly away from the edge of the scanner glass. ❏...

  • Page 165: Cannot Solve Problems In The Scanned Image

    User's Guide Solving Problems ❏ In Document Mode in Epson Scan 2, when Image Type on the Main Settings tab is set to Black & White, adjust Threshold on the Advanced Settings tab. When you increase the Threshold, black becomes stronger. ❏...

  • Page 166: Scanning Slows Down Dramatically During Continuous Scanning

    User's Guide Solving Problems Related Information “Scanning Using Epson Scan 2” on page 88 & Scanning Slows Down Dramatically During Continuous Scanning Scanning slows down to prevent the printer mechanism from overheating and being damaged. However, you can continue scanning. To return to normal scanning speed, leave the printer idle for at least 30 minutes. Scanning speed does not return to normal if the power is off.

  • Page 167: Application Is Blocked By A Firewall (For Windows Only)

    User's Guide Solving Problems Application Is Blocked by a Firewall (for Windows Only) Add the application to the Windows Firewall allowed program in security settings on the Control Panel.

  • Page 168: Appendix

    User's Guide Appendix Appendix Technical Specifications Printer Specifications Print Head Nozzle Placement Black ink nozzles: 180 Color ink nozzles: 59 for each color Plain Paper 64 to 90 g/m2(17 to 24lb) Weight of Paper Envelopes Envelope #10, DL, C6: 75 to 90 g/m2 (20 to 24 lb) Even when the paper thickness is within this range, the paper may not feed in the printer or the print quality may decline depending on the paper properties or quality.

  • Page 169: Scanner Specifications

    User's Guide Appendix Printable Area for Envelopes Print quality may decline in the shaded areas due to the printer's mechanism. 3.0 mm (0.12 in.) 5.0 mm (0.20 in.) 18.0 mm (0.71 in.) 41.0 mm (1.61 in.) Scanner Specifications Scanner Type Flatbed Photoelectric Device Maximum Document Size...

  • Page 170: Network Function List

    User's Guide Appendix Network Function List Network Functions and IPv4/IPv6 Functions Supported Remarks ✓ Network Printing EpsonNet Print (Windows) IPv4 ✓ Standard TCP/IP (Windows) IPv4, IPv6 ✓ WSD Printing (Windows) IPv4, IPv6 Windows Vista or later ✓ Bonjour Printing (Mac OS) IPv4, IPv6 ✓...

  • Page 171: Security Protocol

    User's Guide Appendix IEEE802.11n is only available for the HT20. Not supported for IEEE 802.11b. Simple AP mode is compatible with a Wi-Fi connection (infrastructure). Wi-Fi Direct supports WPA2-PSK (AES) only. Complies with WPA2 standards with support for WPA/WPA2 Personal. Security Protocol SSL/TLS HTTPS Server/Client, IPPS...

  • Page 172: Environmental Specifications

    User's Guide Appendix Power Consumption (with USB Con- Standalone copying: Approx. 12.0 W Standalone copying: Approx. 12.0 W nection) (ISO/IEC24712) (ISO/IEC24712) Ready mode: Approx. 5.0 W Ready mode: Approx. 5.0 W Sleep mode: Approx. 0.8 W Sleep mode: Approx. 0.8 W Power off: Approx.

  • Page 173: Regulatory Information

    User's Guide Appendix Note: ❏ Mac OS may not support some applications and features. ❏ The UNIX File System (UFS) for Mac OS is not supported. Regulatory Information Standards and Approvals Standards and Approvals for European Model For European users Hereby, Seiko Epson Corporation declares that the following radio equipment model is in compliance with Directive 2014/53/EU.

  • Page 174: Transporting And Storing The Printer

    User's Guide Appendix ❏ Government-issued revenue stamps, and securities issued according to legal procedure Exercise caution when copying the following items: ❏ Private marketable securities (stock certificates, negotiable notes, checks, etc.), monthly passes, concession tickets, etc. ❏ Passports, driver’s licenses, warrants of fitness, road passes, food stamps, tickets, etc. Note: Copying these items may also be prohibited by law.
  • Page 175 User's Guide Appendix 3. Disconnect all cables such as the power cord and USB cable. 4. Remove all of the paper from the printer. 5. Make sure there are no originals on the printer. 6. Open the scanner unit with the document cover closed. Secure the ink cartridge holder to the case with tape. 7.

  • Page 176: Where To Get Help

    User's Guide Appendix 8. Prepare to pack the printer as shown below. 9. Pack the printer in its box, using the protective materials. When you use the printer again, make sure you remove the tape securing the ink cartridge holder. If print quality has declined the next time you print, clean and align the print head.
  • Page 177 User's Guide Appendix ❏ Product serial number (The serial number label is usually on the back of the product.) ❏ Product model ❏ Product software version (Click About, Version Info, or a similar button in the product software.) ❏ Brand and model of your computer ❏...
  • Page 178 User's Guide Appendix Help for Users in New Zealand Epson New Zealand wishes to provide you with a high level of customer service. In addition to your product documentation, we provide the following sources for obtaining information: Internet URL http://www.epson.co.nz Access the Epson New Zealand World Wide Web pages.

Table of Contents
