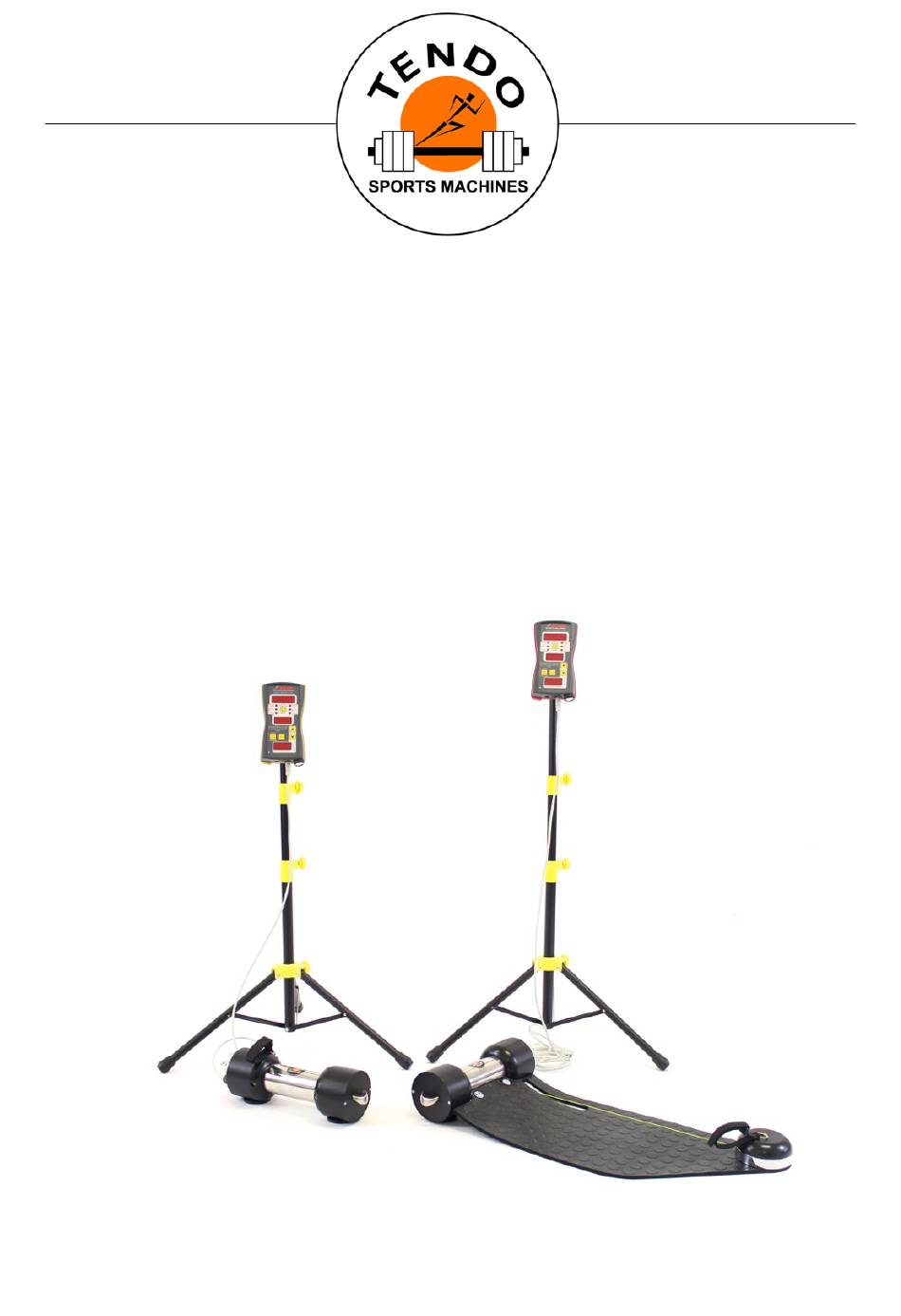

Page 1: Quick Start
TENDO Unit YOUR INTELLIGENT WEIGHT TRAINING QUICK START www.tendosport.com... -
Page 2: Table Of Contents
CONTENT 1 Battery……………….………………………………………………….…………………………………3 2 Attachement to tripod/rack………..………………………………….………………………………… 3 3 Data cable and microcomputer….…………………………………….………………………………. 4 4 Data cable and sensor unit……….…………………………………….……………………………….4 5 Where to attach sensor unit….….…………………………………….………………………………..5 6 ON/OFF……………………………………………………………….…………………………………..5 7 Enter the setup mode………….………………………………….……………………………………..6 8 Exit from setup menu……….…….……………………………………………………………………..6 9 Factory settings…………………………………………………………………………………………..7 10 Setup sequence……….…………….………………………………………………………………….7... -
Page 3: Battery
Quick Start 1. Battery New rechargeable batteries are pre-installed in the battery compartment. Before the microcomputer is operated, it is necessary to pull out a safety plastic strap from the battery compartment to release the battery contact. Afterwards, tighten the 2 battery compartment screws using a Phillips screwdriver. -
Page 4: Data Cable And Microcomputer
Attachement to a Rack Attach the microcomputer to the rack via the magnet on the back of your microcomputer unit. Place the Unit under the barbell, facing forward or sideways. 3. Data cable and microcomputer Plug the male connector of your Data Cable into the connector at the bottom of the microcomputer. -
Page 5: Where To Attach Sensor Unit
5. Where to attach Sensor Unit? Fasten the cord of the sensor unit to the bar, dumbbell or top weight of the weight stack with the Velcro strap. Position the cord so that, during the exercise, the trajectory of the cord will be as close to perpendicular to the floor as possible. -
Page 6: Enter The Setup Mode
7. Enter the setup mode Press the Mode Button for 3 seconds, until you hear a short beep. To scroll down the setup menu, press the Mode button Identifying the parameters in the Setup Mode: • Load (Weight) – microcomputer indicates on upper display „LoAd“ •... -
Page 7: Factory Settings
9. Factory settings Load: 50kg Filter: 35 cm Audio signal upper limit: 100% Audio signal lower limit: 90% Partial Average Power and Peak Force range: 50% Rest Time: OFF Eccentric Average velocity (ECS): OFF Weight setup in lbs: OFF 10. -
Page 8: Deleting Data
The battery saver is turned off automatically by pulling the Sensor Unit cable, or pressing any button. If the rest time is turned on, lower display shows rest time. After 3 minutes of microcomputer inactivity, the battery saver will turn off the lower display as well.
