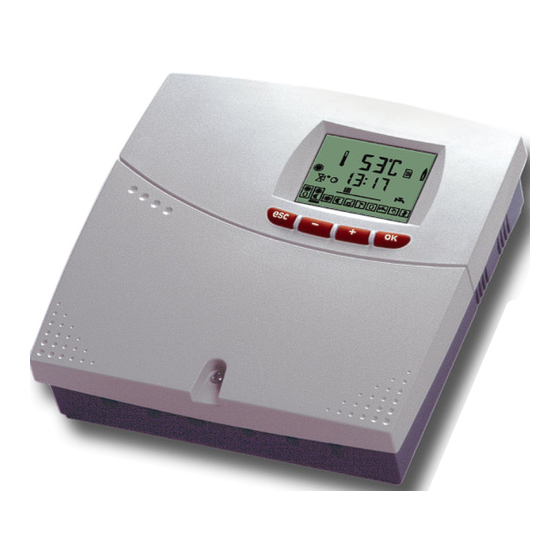

LAMBERTI ELEKTRONIK Latherm HZR Comfort Operating Manual

Heating controller, two- and three-step controller with hot water support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Two- and three-step controller
with hot water support
OPERATING
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Latherm HZR Comfort and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LAMBERTI ELEKTRONIK Latherm HZR Comfort

Summary of Contents for LAMBERTI ELEKTRONIK Latherm HZR Comfort

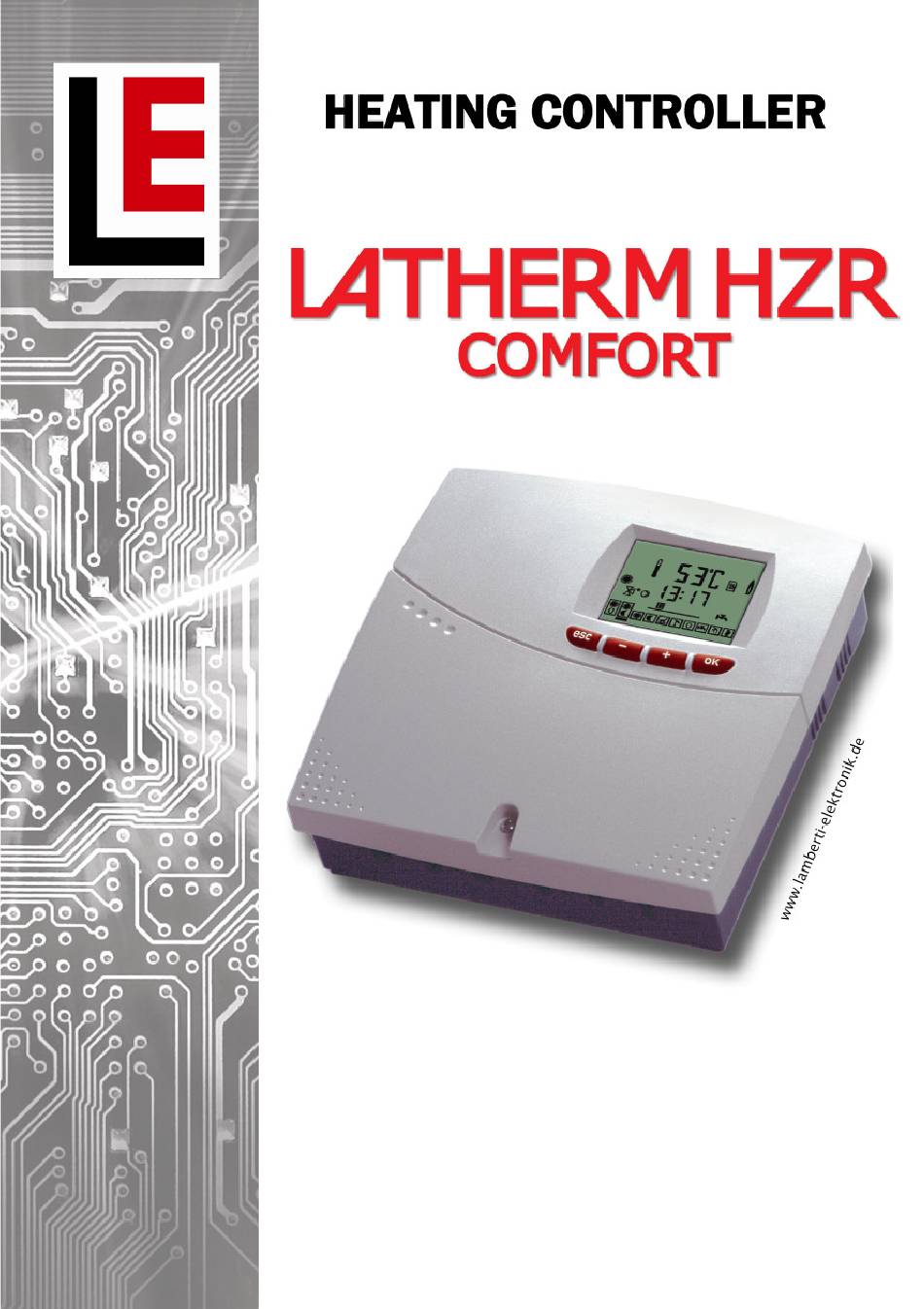

  • Page 1 Two- and three-step controller with hot water support OPERATING MANUAL...

  • Page 2: Table Of Contents

    Index of contents Attention! Only use the heating controller after you have read this operating manual! It is absolutely necessary to make yourself familiar with the complete content. If you have any queries or further questions of handling the controller, please contact the heating specialist or the expert company nearby. Index of contents What is your new heating controller able to do?..................2 1.1.

  • Page 3: Two Types Of The Heating Controller Are Available

    What is your new heating controller able to do 1.1. Two types of the heating controller are available LATHERM HZR COMFORT (HZR-C): 8 configurations and 6 relays – for maximum adjustment and regula- tion comfort. LATHERM HZR EXTENSION CON- Up to 7 extension controllers can be connected by eBus to your TROLLER (HZR-E): heating controller.

  • Page 4: The Most Important Features At A Glance

    The most important features at a glance The most important features at a glance You want: Press: On the display appears: … to change the heating temperature during … from the starting display one daytime (see submenu setpoint values, chapter time the key Adjustments see chapter 8 …...

  • Page 5: Basic Information About The Menu Navigation

    Your heating controller is structured like this 7.2. Basic information about the menu navigation With these four keys you can easily reach every menu point. With the keys you can get from the starting menu (an example is shown on the previous page) into every submenu to adjust several values.

  • Page 6: Submenu Setpoint Values

    Submenu setpoint values Submenu setpoint values In the submenu setpoint values you can individually define the below shown values. Coming from the starting display press the key . “AE“ appears on the display. Acknowledge your choice with the key . The setpoint value day is displayed now.

  • Page 7: Submenu Operating Modes

    Submenu setpoint values Setpoint Meaning On the Adjustable values Factory Your value display setting setting Steepness As steepness 1. heating circuit Min: 0,3 Max: 3,0 No 2 2. heating circuit Only adjustable in: configuration 5 or 6. P- value Proportional range: Only adjustable with Min: 1,0 Max: 6,0 1.

  • Page 8: Manual Change Temperature Level Heating

    Submenu operating modes Operating mode Symbol Meaning Vacation The heating operation and the hot water support are switched off or the heating runs at night level, depending on the last active automatic operating mode (day/OFF or day/night). When adjusting this operating mode, you are asked to enter a start date and an end date.

  • Page 9: Manual Hot Water Loading

    Manual hot water loading 11. Manual hot water loading With this function you can manually reload the hot water storage tank, that means, you get hot water in times, when your heating and your hot water support are normally switched off. You manually change the tempera- ture level of the hot water until the next switching time or until the hot water loading is finished.

  • Page 10: Submenu Switching Times

    Submenu switching times 13. Submenu switching times The following standard switching times are preset for the desired day temperatures: Standard switching time for day Standard switching times for temperatures night temperatures or OFF Monday – Thursday 6:00 to 22:00 o´clock 22:00 to 6:00 o´clock Friday 6:00 to 23:00 o´clock...

  • Page 11: Submenu Time And Calendar

    Submenu switching times Move with the keys to the desired switching time. Change time, day or level Change a (day/night) by moving with the key between the different values and change the switching values with the keys .The flashing cursor shows, which value can be time: changed currently.

  • Page 12: Analog Remote Control Fw-D (Optional)

    Analog remote control FW-D (optional) 16. Analog remote control FW-D (optional) With the FW-D you can change the setpoint values day and night and choose the operating mode (see figure below) by remote control. In addition the room temperature is registered and is analysed by the controller (room influence).

  • Page 13: Dcf Radio Clock (Optional)

    DCF radio clock (optional) 18. DCF radio clock (optional) The time signal, that is sent out from the DCF 77 sender and received by the radio clock, enables a synchroni- sation to the second of the controller integrated timer. The radio clock automatically adjusts the summer / winter time changeovers.
  • Page 14 Notes:...
  • Page 15 Notes:...
  • Page 16 Descriptions, performance information and illustrations in this operating manual are non-binding. Technical alterations reserved. Without explicit authorization of the manufacturer this operating manual is not allowed to be duplicated, distributed, altered, transferred and translated into another language or to be used otherwise. The information in this oper- ating manual has been checked carefully.
