Summary of Contents for Body Life OPT SHR IPL

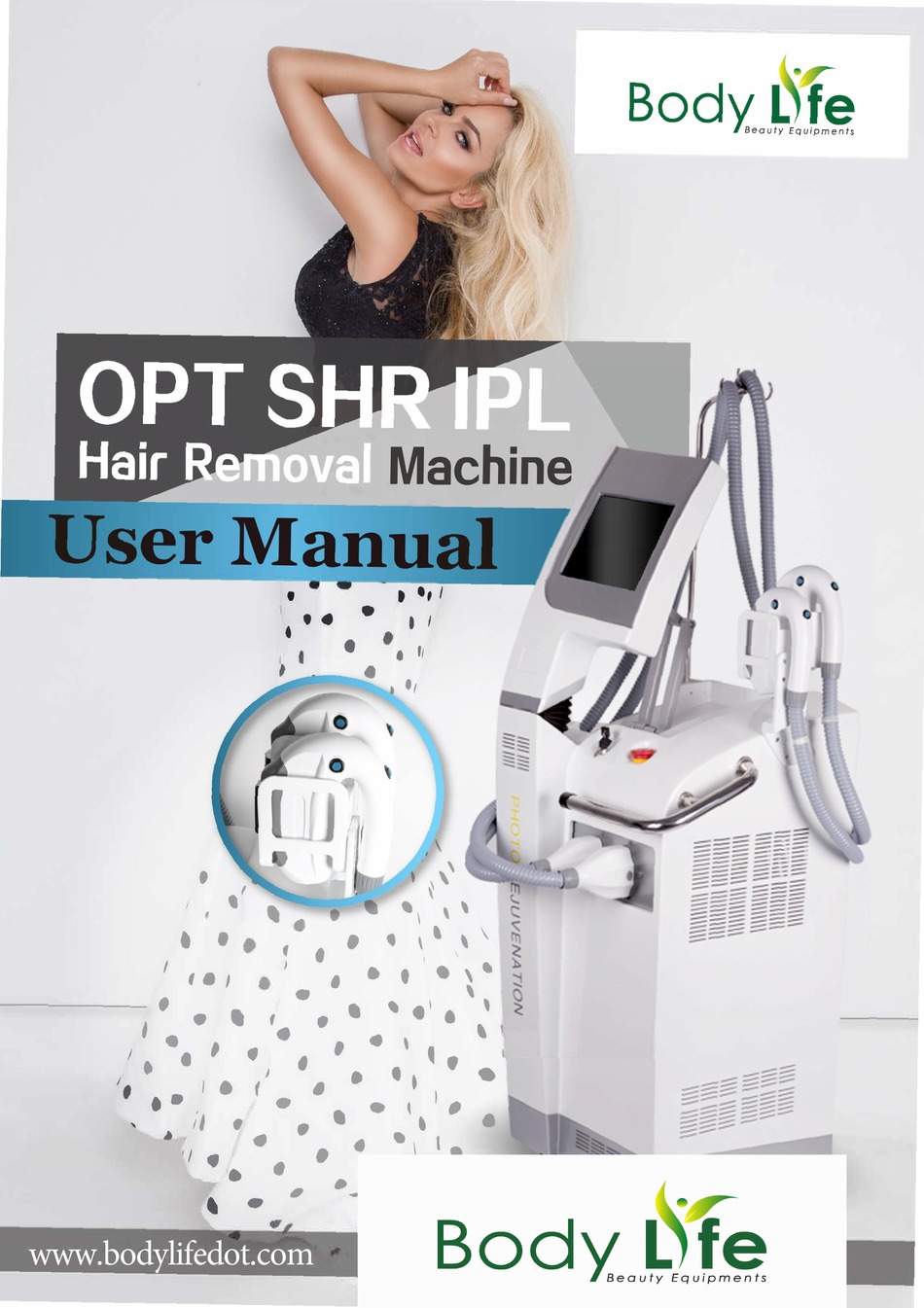

- Page 1 Machine • • • • • • • • -- -- - -· �., . ' • • '. , • I , • • • • • • • ·- . '• • • www.bodylifedot.com • •...
-
Page 2: Product Display
Product Display... - Page 3 ntents Chapter 1 Machine Introduction 1.1. Product Appearance And Part Description 1.2. Packing List 1.3. Treatment Principle 1.4. Application 1.5. Specifications Chapter 2 Using Notice 2.1. Clients Safety 2.2. Optics Safety 2.3. Electrical Safety 2.4. Fire Prevention 2.5. Safety Device Chapter 3 Machine Installation 3.1.
-
Page 4: Chapter 1. Machine Introduction
www.bodylifedot.com Chapter 1. Machine Introduction 1.1. Product Appearance And Part Description Touch screen, Easy to operate SHR IPL Handle Emergency Button Imported Plug Connector Air Fans Power Line Air Switch Fuse Add Water Hole Water Level Window Output Water Hole Overflow Hole Pedal... -
Page 5: Packing List
Key x 2 1.3. Treatment Principle OPT SHR IPL can emit high engery light, which can reach the derma layer , it can be absorbed selectively by the tissue pigmentation and hemoglobin of vascular, it can make the pigmentation and the expansion capillaries break and explode. Also, this light can break the hair follicle, and stop the hair grow , also, it can stimulate the collagen regrow and make the skin rejuvenation . -
Page 6: Specification
1.5. Specification Wavelength (Spectrum)： 640nm-950nmSHR;560nm-950nmOPT Energy Density (Fluence) ： 1-50J/cm² 15x50mm² ( SHR);12x30mm² (OPT); Spot Size ： 10×50mm（SR optional) Pulse Repetition Rate : 1-10Hz Continuous Crystal contact cooling Cooling: (-4°C-2°C ) + Air cooling + Closed water circulation cooling Stand-by Working: Continuously for 18 hours Out Put Power 3000W... -
Page 7: Electrical Safety
4). Skin might get hurt if it absorbs too much light energy; 5). Put the handpiece on the handpiece stand if you don’t use it; 6). Keep the handpiece crystal clean and do not make cooling gel leak into handpiece; 7). -
Page 8: Chapter 3. Machine Installation
Chapter 3. Machine Installation After purchasing this equipment, make installation and initial system testing. 3.1. Install Handpiece Stand 1). Install handles 2). Connect power line,foot pedal 3.2. Fill Water And Change Water 1). Insert water nozzles to overflow water hole and add water hole 2). - Page 9 Touch screen will be in ( Figure 2 ) （Figure 2） 4.3. Handpiece Selection Interface Choose Language press enter into next interface ( figure 3 ) （Figure 3） Treatment model description：SHR for hair removal ， OPT for different 5 kinds functions. Choose SHR enter into ( Figure 4 )
- Page 10 4.3.1. SHR Mode SHR hair removal operation screen. (Figure 4) （Figure 4） Choose Male or Female,Skin Type. Hair Density , Hair Color and Hair Thickness. then Enter into Next Main Operate Interface. (Figure 5) Screen description: （Figure 5） SHR power control range 1—50J/CM²,adjust according customer's physical condition ,can adjust under treatment.
- Page 11 Handle refrigeration adjust range:1—5， adjusting when you need under treatment.(PS:when you do treatment, you must set the refrigeration range) Time setting range is 1-10S, this time after the release of the pedal is not pressed emission time, the cure process can be adjusted. First column is this cure times above the display,followed by zero point reset key.
-
Page 12: Settings Interface
4.3.2. OPT Mode OPT Operate guide is same with SHR Operate If you press OPT treatment mode. it will enter into five interface as followed picture; （Figure 6） Choose for different functions Operate guide is same with SHR Operate. 4.4. Settings Interface If you would like to set Frequency or other parameters. - Page 13 Press that then into ( Figure 8 ) （Figure 8） is (Figure 6) is (Figure 9) （Figure 9） press “+” or “-” to adjust ms. shots count set water temperature alarm number...
-
Page 14: Chapter 5. Maintenance And Troubleshooting
water temperature alarm water flow alarm back to main interface Chapter 5. Maintenance And Troubleshooting In order to provide you with the best possible service we ask that you carefully Review these Pre- and Post-Treatment instructions for the SHR IPL treatments for laser hair removal and ask any questions necessary to help you fully understand them. -
Page 15: Chapter 6. Clinical Guide
5.3. Transport The Machine Preparation: (1). Unplug the power socket (2). Unplug the power cord (3). Unplug the Footswitch switch (4). Contact our company about transport matter Attention! Transportation equipment must use the original packaging materials. otherwise it will damage the warranty terms. Chapter 6. - Page 16 Skin Type II Part Times Refrigerat Frequeny Pulse Energy Underarm 4~8s 1~2Hz 3.2~3.8Ms 13~16J Face 7~10s 2~4Hz 3.6~4.2Ms 15~18J Back 9~12s 4~6Hz 4.0~4.7Ms 17~20J 10~14s 6~8Hz 4.3~5.1Ms 19~22J 13~16s 8~10Hz 5.1~5.6Ms 21~24J Skin Type III Part Times Refrigerat Frequeny Pulse Energy Underarm 4~8s...
- Page 17 Skin Type IV Part Times Refrigerat Frequeny Pulse Energy Underarm 4~8s 1~2Hz 2.3~2.9Ms 10~12J Face 7~10s 2~4Hz 2.7~3.2Ms Back 9~12s 4~6Hz 3.0~3.6Ms 10~14s 6~8Hz 3.4~3.9Ms 13~16s 8~10Hz 3.7~4.3Ms Skin Type VI Part Times Refrigerat Frequeny Pulse Energy Underarm 4~8s 1~2Hz 1.8~2.3Ms 7~10J Face...
-
Page 18: Chapter 7. Warranty
Chapter 7. Warranty 1.All products are strictly tested before sale. We can guarantee one-year free repair from the date of purchasing. During the guarantee period, we will repair the machine by free if the malfunction is caused by the quality of our product. 2.The standard of operation and environment should comply with the product specification.
