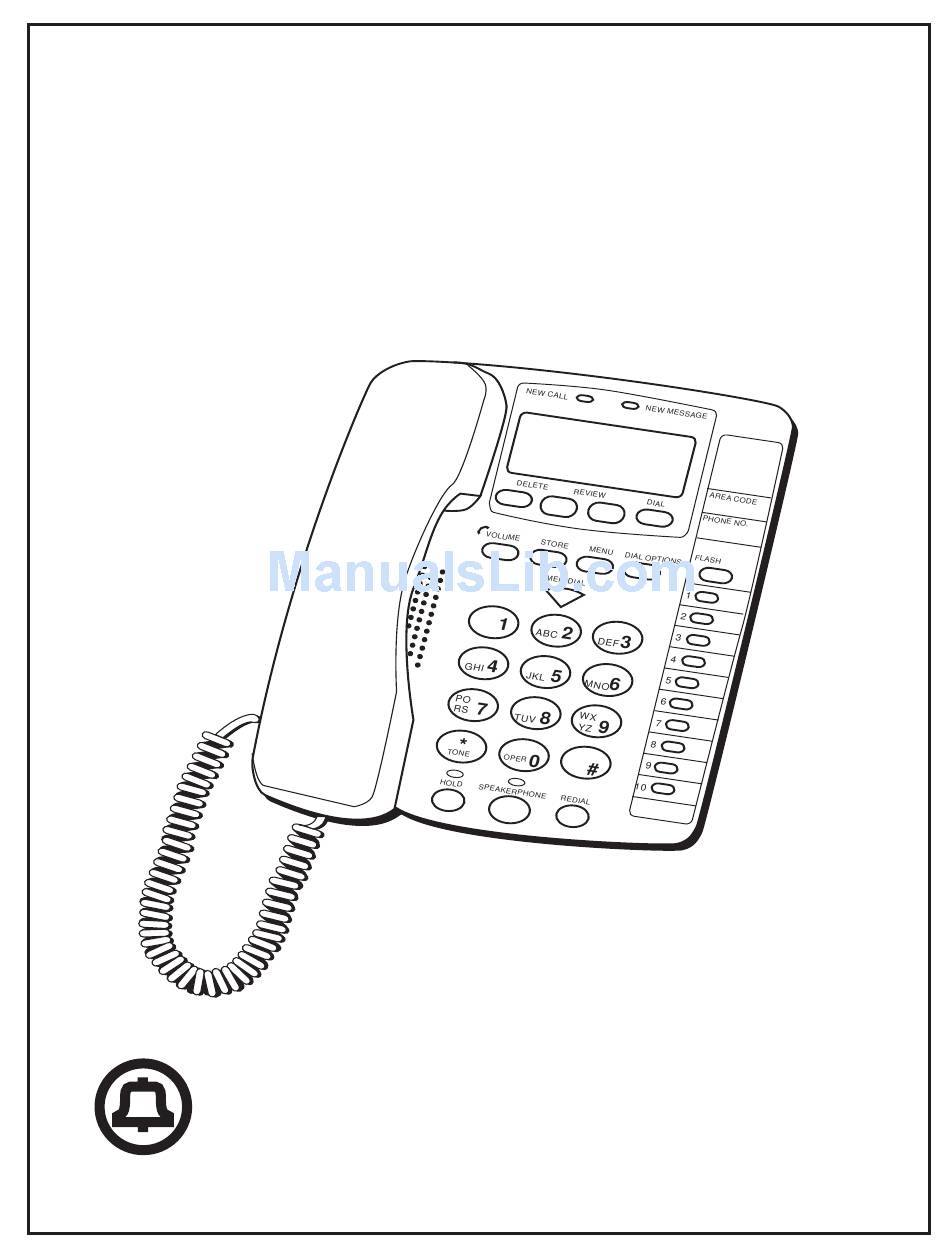

- Page 1 2-9193 ® InLine Plus Caller ID on Call Waiting Speakerphone Use and Care Guide Southwestern Bell...
-
Page 2: Safety Information
AFETY NFORMATION Read all instructions in this manual. 2. Observe all warnings and instructions marked on your product. 3. Do not use your product near water, or when your hands are wet. If the product comes into contact with any liquids, immediately unplug the power supply. -
Page 3: Table Of Contents
ABLE OF ONTENTS ... 4 ...4 NSTALLATION OUNT NSTRUCTIONS ETTING ... 6 ACTORY RESETS ... 8 EATURES ... 10 SING THE HONE ULSE AND IALING ECEIVING A HONE LACING A HONE PEAKERPHONE UTTON ... 11 URATION OUNTER ... 11 UTTON ... -
Page 4: Set Up
Connect the adapter. Plug the large part of the adapter into the wall outlet and the adapter tip to the jack at the rear side of unit. (Use only 9V DC, 300mA, Center negative Class 2 adapter.) Connect the telephone line cord. A. -
Page 5: Wall Mount Instructions
Follow the procedure "Setting Up Your Unit ” to set up your unit. Place the unit on a flat table or mount it onto a wall. If you desire to place it onto a wall, please use the wall mount bracket and short line cord supplied to accomplish the wall mounting. -
Page 6: Setting U P Your Unit
ETTING ACTORY RESETS The following table shows you the factory settings for your unit: Display Language LCD Contrast Area Code LDS Code After the adapter is connected, the display will show as indicated below for setting. “ SET LANGUAGE ” appears on the display. Press the REVIEW UP ( ) button to select the language, E - English, F - French, S - Spanish, and then press the DIAL button to confirm the selection. -
Page 7: Set Area Code
When “ SET AREA CODE ” appears, use REVIEW UP ( ) and REVIEW DOWN ( ) to set your local area code. 12:00 1/01 – – – SET AREA CODE REVIEW UP ( ) button - to change the digit from -,0,1,2~9. REVIEW DOWN ( ) button - to move to the next digit. -
Page 8: Features
EATURES HANDSET - Used for speaking and private listening during a telephone conversation. DELETE BUTTON - Erases the displayed caller ID records or erases all records. DISPLAY WINDOW - Displays the current time, the telephone numbers you dialed, and information of the caller ID. REVIEW UP AND REVIEW DOWN BUTTONS - Review the stored caller ID records. - Page 9 NEW MESSAGE NEW CALL DELETE REVIEW DIAL VOLUME STORE MENU DIAL OPTIONS MEM DIAL OPER TONE REDIAL SPEAKERPHONE HOLD AREA CODE PHONE NO. FLASH...
-
Page 10: Using The Phone
SING THE HONE ULSE AND If your home is equipped with a touch tone dialing system, set the PULSE/TONE switch to the TONE position. If your home is equipped with a rotary(pulse) dialing system, set the PULSE/TONE switch to the PULSE position. If you are unsure which system you have, set the switch to the TONE position. -
Page 11: Duration Counter
B. You can adjust the volume of the caller’s voice by sliding the VOLUME control on the right side of the phone. C. After the conversation has finished, press the SPEAKERPHONE button to hang up. To Make A Call A. Press and release the SPEAKERPHONE button. B. -
Page 12: Automatic Memory
UTOMATIC EMORY This telephone can store up to 20 telephone numbers (10 auto memory buttons and 10 keypad memory locations ). Each of the memory number locations can store up to a maximum of 15 digits. Numbers can be stored in either pulse or tone mode. -
Page 13: Redial Button
EDIAL UTTON If the number you dialed is busy, or you want to call the last number dialed again, press and release the hook switch for a new dial tone. Press REDIAL. The number will appear on the display window. The last number called will automatically be redialed. -
Page 14: Using The Caller Id Function
The Call Waiting (CW) symbol will flash for 16 seconds along with the telephone number and name of the person who is on call waiting. Press the FLASH button to put the existing call on hold and answer the new call. -
Page 15: F You Are In An Area Where An Signal Is Not Available
appear on the display for 20 seconds when a message waiting signal (on) from the Central Office is received. The NEW MESSAGE indicator will go off and “ MSG WAITING OFF” will appear for 20 seconds if the message waiting off signal is sent from the Central office. -
Page 16: Reviewing Calls
After 20 seconds with no activity, the display will default to the Stand-By screen and remain on until another call is received or a button is pressed. This will show you the total number of calls stored and how many new calls that have not been reviewed. -
Page 17: Deleting Calls
ELETING ALLS To delete an individual call: When reviewing calls, you can delete an individual call by pressing the DELETE button once. The display will be erased line by line and the rest of the records will be renumbered. To delete all calls: When reviewing calls, you can delete all calls by pressing and holdling DELETE for more than 3 seconds. -
Page 18: Dial Options Button
If “SET AREA CODE” appears prior to “PICKUP PHONE...” or dialing, it means you have not programmed the local area code. Please hang up the telephone and program the area code. If a local call (a telephone number with the same area code as you set) is reviewed and its 7-digit number displayed, press DIAL to dial the number displayed. -
Page 19: Call
• Pressing DIAL OPTIONS three times will go back to the original 7-digit telephone number. For example: your area code is 205 and you are reviewing telephone number 785-2883. When the desired format of the telephone number is reached, press DIAL to dial the displayed number. -
Page 20: Message Error
ESSAGE RROR The display indicates “ -MESSAGE • ERROR -” if your unit receives a call that has an error in the transmission or reception. “NO DATA SENT” will be displayed if there is no caller ID (CID) number sent from the telephone company while ringing. -
Page 21: Eneral Product Care
NKNOWN ALLS • When the telephone company is unable to provide information of the caller’s telephone number, “UNKNOWN NUMBER” and his name will alternately display on the screen when this information is received. • When the telephone company is unable to provide information of the caller’s name, “UNKNOWN NAME”... -
Page 22: Uestions And Troubleshooting
UESTIONS AND HONE HI/LOW/OFF ringer switch is set to OFF position. Line cord is disconnected at telephone outlet or at telephone end. Phone is OFF HOOK. Make certain the hook switch is depressed when the handset is in the cradle. SPEAKERPHONE indicator is on. - Page 23 Check if your answering machine is set to answer the call before 2 rings. ALLER NFORMATION IS AITING UDIO OUND Verify that you have subscribed to the Call Waiting Caller ID service from your telephone company. Check if the line cord from the wall is connected to the jack labeled LINE and the telephone or answering machine is connected to the jack labeled PHONE.
