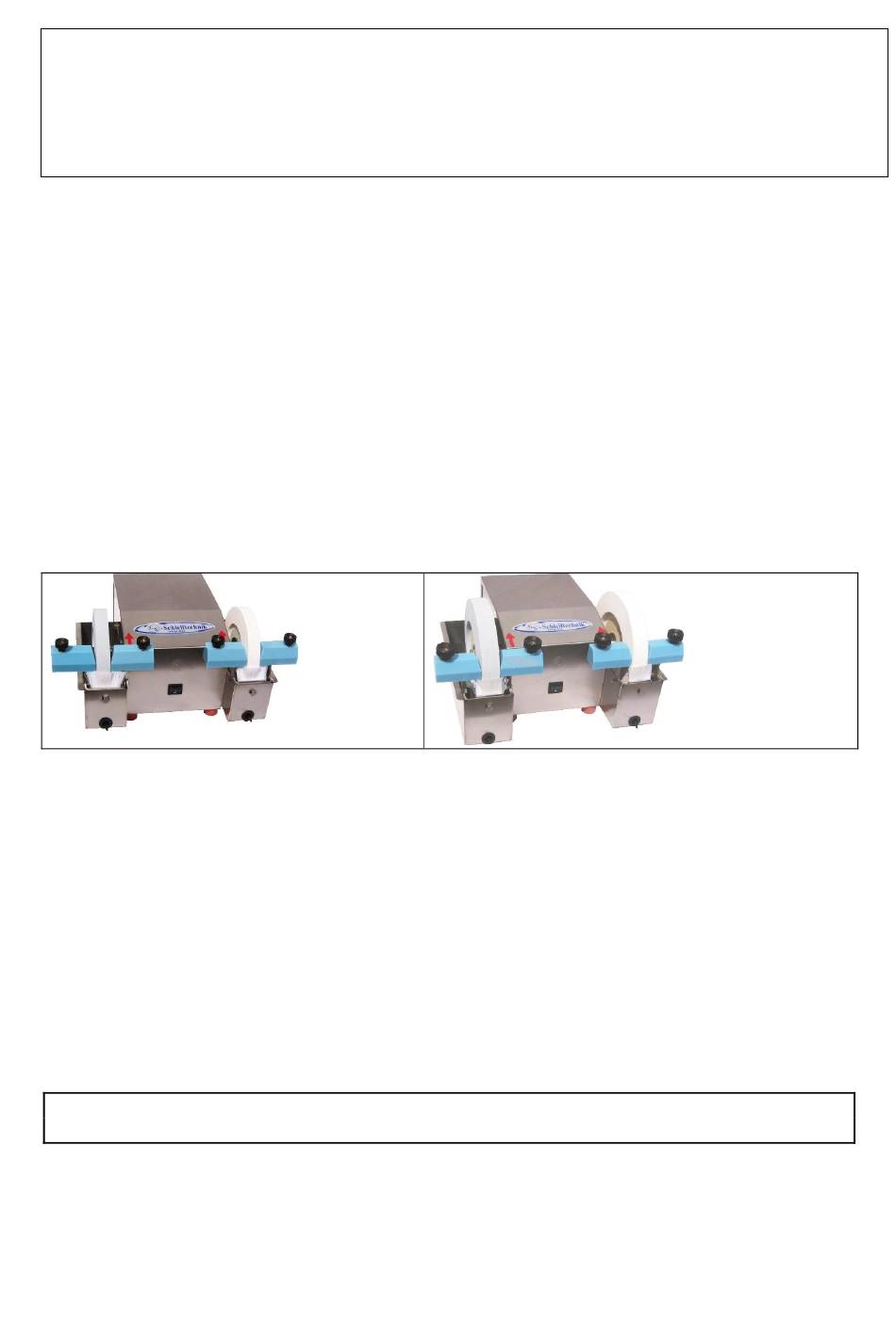

- Page 1 Knife grinding machine N-1/14/18 01/2018 Operating instructions GS-Schleiftechnik, Am Kiebitzengraben 4, D-91315 Höchstadt Telefon ++49(0)9193-5018696 Telefax ++49(0)9193-52018698...
-
Page 2: Table Of Contents
D.4 List of spare parts Statement of warranty This N-14/18 knife grinding machine carries a six month warranty from the date of delivery and is valid for single-shift operation only. The warranty covers free replacement of damaged and defective parts. -
Page 3: Dangers Associated With The Machine
Never remove safety equipment or disable it by modifying the machine. Any alterations or repairs to the electrical system must be carried out by a qualified electrician. Only use original spare parts from GS-Schleiftechnik. A.5 Workplace Workplace in front of the machine... -
Page 4: The Workplace
No special protective equipment is required. A.8 Machine safety measures on site The N-14/18 knife grinding machine must be fixed to a flat, solid worktop. It is suited to working in a humid environment. Ensure that the workplace is always kept clean and tidy by appropriate instructions and inspections. -
Page 5: Operating Elements
Never remove safety equipment or disable it by modifying the machine. Any alterations or repairs to the electrical system must be carried out by a qualified electrician. Only use original spare parts from GS-Schleiftechnik. B.3 Installing and connecting the machine... -
Page 6: Adjusting The Grinding Clearance Guides
Mount the knife grinding machine on a solid, flat surface. The ventilation ducts on the machine's underside must not be covered. Connect the machine to a 230 V AC supply protected by a 16 A fuse, and fill the water basin with about 4 cm of water. B.4 Adjusting the grinding clearance guides After releasing the clamping levers, slide the grinding clearance guides towards the grinding wheel to give a gap of... -
Page 7: Cleaning And Maintenance
Any alterations or repairs to the electrical system must be carried out by a qualified electrician. Only use original spare parts from GS-Schleiftechnik. D.2 Maintenance The knife grinding machine is completely maintenance-free. In the unlikely event of a fault occurring on your machine, please contact our customer service department. -
Page 8: List Of Spare Parts
The following harmonised norms have been applied: DIN EN ISO 12100-1:2003; DIN EN ISO12100-2:2003, Machine, Equipment and Systems Safety VDE 0100, VDE 0701/0702 In the event of unauthorised alterations to the N-14 knife grinding machine, this statement shall become invalid. - Page 9 In the event of unauthorised alterations to the N - 18 knife grinding machine, this statement shall become invalid. GS-Schleiftechnik can provide the full technical documentation for inspection. The original version of the machine operating manual is also available. The conformity of the N - 18 knife grinding machine is ensured.
- Page 10 Spareparts N-14 Stck Bezeichnung Art.Nr.: Grundgehäuse 11 140 180 001 Gehäuse-Abdeckung 11 140 180 002 Motorwinkel 11 140 180 100 Wasserbecken rechts 11 140 000 012 Wasserbecken links 11 140 000 011 Wasserabstreifbürste 12 148 000 001 Schleifwinkelhalter 11 140 000 003...
- Page 11 Spareparts N-18 Stck Bezeichnung Art.Nr.: Grundgehäuse 11 140 180 001 Gehäuse-Abdeckung 11 140 180 002 Motorwinkel 11 140 180 100 Wasserbecken rechts 11 180 000 012 Wasserbecken links 11 180 000 011 Wasserabstreifbürste 12 148 000 001 Schleifwinkelhalter 11 180 000 003 Bodenplatte 11 140 180 003 Schleifwinkelführung rechts...
