Dostmann 5020-1362 Instruction Manual

Printing humidity/temperature meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Printing
Humidity/Temperature Meter

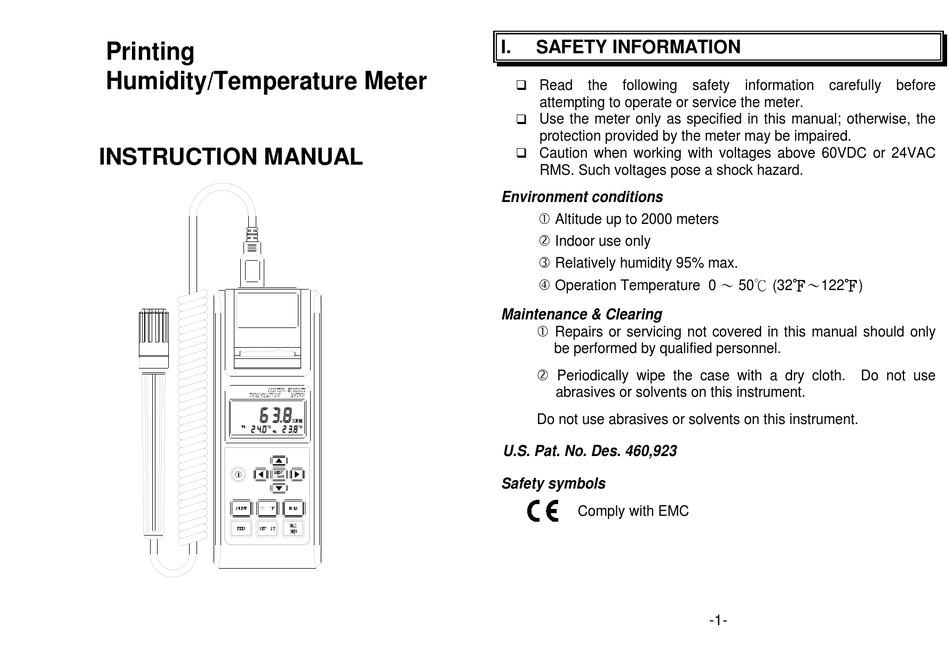

INSTRUCTION MANUAL
I.
SAFETY INFORMATION
Read the following safety information carefully before
attempting to operate or service the meter.
Use the meter only as specified in this manual; otherwise, the
protection provided by the meter may be impaired.
Caution when working with voltages above 60VDC or 24VAC
RMS. Such voltages pose a shock hazard.
Environment conditions
 Altitude up to 2000 meters
 Indoor use only
 Relatively humidity 95% max.
 Operation Temperature 0 ～ 50℃ (32℉～122℉)
Maintenance & Clearing
 Repairs or servicing not covered in this manual should only
be performed by qualified personnel.
 Periodically wipe the case with a dry cloth. Do not use
abrasives or solvents on this instrument.
Do not use abrasives or solvents on this instrument.
U.S. Pat. No. Des. 460,923
Safety symbols
Comply with EMC
-1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5020-1362 and is the answer not in the manual?

Questions and answers

Related Manuals for Dostmann 5020-1362

Summary of Contents for Dostmann 5020-1362

  • Page 1 SAFETY INFORMATION Printing Humidity/Temperature Meter  Read the following safety information carefully before attempting to operate or service the meter.  Use the meter only as specified in this manual; otherwise, the protection provided by the meter may be impaired. ...

  • Page 2: Specifications

    2-2 Electrical Specifications SPECIFICATIONS Humidity : Range : 10%RH to 95%RH 2-1 General Information Resolution : 0.1%RH Display： Triple 4 digit LCD. Accuracy : 3%RH from 30%RH to 95%RH 5%RH from 10%RH to 30%RH Over Range Indication ： - appears. shows up when the battery’s Low Battery Indication ：...

  • Page 3: Name Of Parts And Position

    Line 1 : printing time hour: minute: second, month- day. III. NAME OF PARTS AND POSITION Line 2 : printing humidity value. Line 3 : printing Dew point value. Line 4 : printing T1 temperature value. Line 5 : printing T2 temperature value (K-Type). ...

  • Page 4: Precautions And Preparations For Measurement

    DOWN ： Key for decreasing the value of parameters. Interval printing time indicator. 9. T1 measurement indicator. RIGHT ： Key for moving to the desired next parameter setting. 10. T1 measured value (NTC). UP ： Key for increasing the value of parameters setting. 11.

  • Page 5: Operating Procedure

    10 ： 55 ： 31 08-16 OPERATING PROCEDURE 62.7 %RH 19.8 ℃ 1. This meter can be supplied with batteries or DC 9V AC Adaptor. 27.6 ℃ If using batteries : 26.5 ℃ Remove the rear cover, and install batteries, pay attention to the polarity of battery socket.

  • Page 6: Setting Mode

    Printing start time “minute” parameter setting. VI. SETTING MODE MENU Press “ ” button to enter setting function, re-press this button can select setting parameters in circle (printer on or off, interval printing time, fig-7 start printing time, stop printing time and calendar setting). The modifier parameter will flicker until the setting is finished.

  • Page 7: How To Setup Interval Print

    Calendar “hour” parameter setting. VII. HOW TO SETUP INTERVAL PRINT  Setup interval print with 24 hours limitation. MENU 1. Press key to enter setting mode, setting print operation is fig -12 2. Select interval printing time setting mode, set “second”, “minute” 10.

  • Page 8: Battery Repalcement

    IX. BATTERY REPALCEMENT 1. As battery power is not sufficient, will be shown on LCD. Replace with 6 pcs new of 1.5V size AAA batteries is required. 2. After the temperature probe is disconnected and the meter is powered off, remove the battery cover. 3.
