- Page 1 Instructions for use Qanto_Id_A5_0000.50.65060_23032018 - EN Reproduction, even in excerpts, is permitted only with the written permission of Ninka.
-
Page 2: Table Of Contents
3.3 Versions (installation on left/right) ......7 4. Technical data ..............7 5. Assembly of Qanto.............8 5.1 General assembly instructions ........8 5.2 Delivery ..............8 6. Operation of Qanto ............9 6.1 Electrical system ............9 6.2 Control element ............9 6.3 Safety cut-off .............11 6.4 Lighting ..............12 6.5 Height adjustment of the middle tray ......13... - Page 3 7. Maintenance and care ............17 8. Warranty and guarantee ............17 8.1 Guarantee ..............17 8.2 Spare parts ..............17 8.3 Repair ................18 9. Disassembly/assembly ............18 9.1 Exchange of the LED lighting ........18 10. Recycling/disposal..............19 11. Troubleshooting ..............20 12. EC Declaration of Conformity ..........21 Qanto_Id_A5_0000.50.65060_23032018-EN...
-
Page 4: Explanation Of Symbols
1. Explanation of symbols Attention! Important information to warn against personal injury or property damage. Attention! Important information to warn against the risk of electric shock. Attention! Important information to warn against water damage. Note, tip or reference Optional Correct assembly Incorrect assembly Switch ON/OFF Electric light... -
Page 5: Safety Notices
People can still be injured if the safety notices in these instructions for use are not observed. Carefully store these in- structions for use for later reference. If Qanto is passed on to a third party, these instructions for use must be handed over as well. - Page 6 • Qanto may be used by children 8 years of age and older, people with limited physical, sensory or mental aptitude or lack of experience and/or knowledge only if they are super- vised or have been instructed in the safe use of Qanto and understand the resulting risks.
-
Page 7: General Information

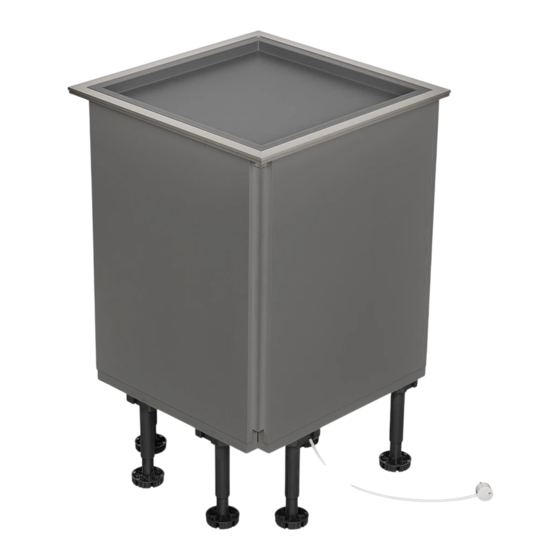

3.1 Designation of the device The kitchen cabinet is called Qanto. 3.2 Intended use Qanto is an enclosed cabinet in which trays can be lifted and lowered using a lifting system. 3.3 Versions Qanto is suitable for “left” and/or “right” installation. -
Page 8: Assembly Of Qanto
200 mm to other cabinets or shelving must be observed. A clearance of 300 mm must be observed between Qanto and a gas stove. The electrical system of Qanto must be accessible (e.g., a double socket under the cabinet near the base). -
Page 9: Operation Of Qanto
The mains voltage and permissible input voltage must be identical. If not, Qanto must not be connected. Please contact your spe- cialist dealer. 6.2 Control element... - Page 10 PRESSING and HOLDING the button moves the drive down. RELEASING the button switches the STOP drive to STOP. STOP PRESSING and HOLDING the button moves the drive up and switches to STOP in the end position. Qanto_Id_A5_0000.50.65060_23032018-EN...
-
Page 11: Safety Cut-Off
PRESSING and HOLDING the button STOP moves the drive down and switches STOP in the end position. 6.3 Safety cut-off Downward movement is possible only if the upper trays are in place. The trays can be moved only when the button is pressed. If the upper trays shift/cant or raise during the downward movement, the system stops the downward movement immediately. -
Page 12: Lighting
6.4 LED lighting The cabinet can be delivered with maintenance-free LED lighting. When the trays are raised, the LED lighting switches “ON” automatically. When the trays are lowered, the LED lighting switches “OFF” automatically If a fault occurs, please contact your specialist dealer or customer service. -
Page 13: Height Adjustment Of The Middle Tray
6.5 Height adjustment of the middle tray max. ± 50 mm 360° SW 3 Qanto_Id_A5_0000.50.65060_23032018-EN... -
Page 14: Height Adjustment Of Trays
6.6 Height adjustment of trays H = H TX20 Qanto_Id_A5_0000.50.65060_23032018-EN... -
Page 15: Gap Adjustment Of Trays
6.7 Gap adjustment of trays Qanto_Id_A5_0000.50.65060_23032018-EN... -
Page 16: Initialisation
6.8 Initialisation Before and during initialisation, check and make sure that the safety switch- es are contacted. The lifting system is initialised by pressing and holding the button. It must be kept pressed until the drive reaches the lower end position. As soon as the drive stops in the lower end position, the button must be re- leased for 2-3 seconds. -
Page 17: Maintenance And Care
Before cleaning, always disconnect Qanto by pulling the mains plug or by disconnecting the socket from the mains. At regular intervals, remove dust and dirt from Qanto trays and make sure it is not damaged or cracked. Please clean with a mild household cleaner and a soft cloth. After that, wash off the cleaner with clear water and thoroughly wipe Qanto trays dry. -
Page 18: Repair
Repairs on Qanto may be performed by authorised workshops or service personnel only as special tools must be used. Please contact your special- ist dealer. If parts on Qanto are opened, there is a subsequent risk malfunctions. Such actions void all warranty claims. 9. Disassembly/assembly Before disassembly and during assembly: •... -
Page 19: Recycling/Disposal
10. Recycling/disposal The recycling or disposal possibilities for motorised systems are regulated in the country of use. Please obtain information from your respective public authority or ask your specialist dealer. We recommend the disassembly of our product in as many parts as possible for disposal and recycling. -
Page 20: Troubleshooting
11. Troubleshooting Lifting system does not work • The lifting system does not move down. ► Check the setting of the safety switches according to the assembly instructions. • The trays do not sit in place properly. ► Check the position of the trays. •... -
Page 21: Ec Declaration Of Conformity
32108 Bad Salzuflen, Germany Designation: Kitchen cabinet with motorised lifting system Products/types: Qanto Design/function: Qanto is an enclosed kitchen cabinet in which trays can be lifted and lowered using a lifting system. Pertinent EC regulations/ Machinery Directive: Machinery Directive 2006/42/EC... - Page 22 Notes Qanto_Id_A5_0000.50.65060_23032018-EN...
- Page 23 Notes Qanto_Id_A5_0000.50.65060_23032018-EN...
- Page 24 We are gladly available in case of any questions. Service number: +49 (0) 5222 / 949494...
