Summary of Contents for BrainLight FLOAT PLUS

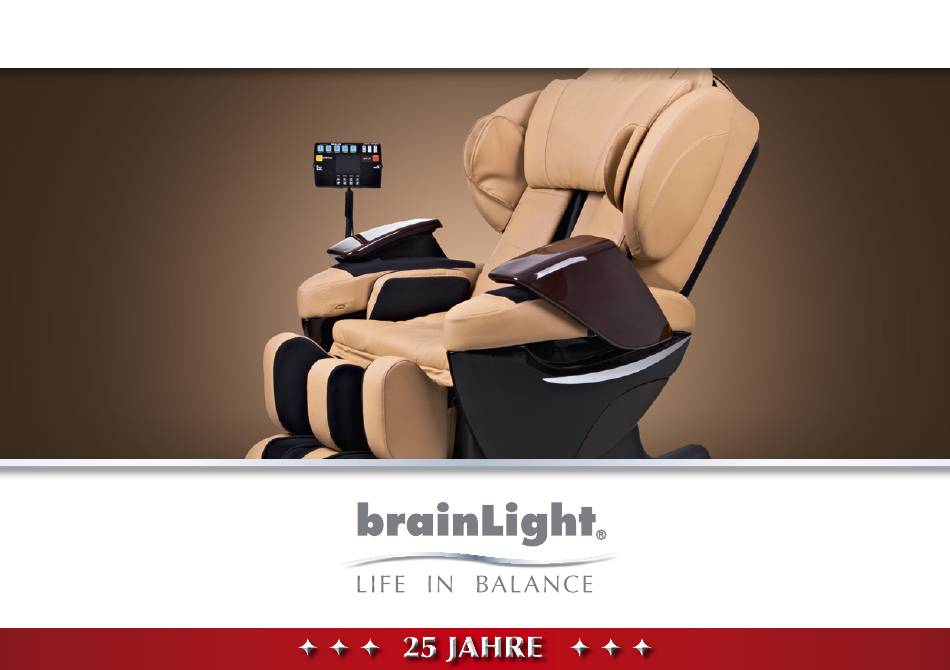

  • Page 1 -3D-Shiatsu Massage Chair FLOAT PLUS ®...
  • Page 2: Table Of Contents

    -3D-Shiatsu Massage Chair FLOAT PLUS ® Thank you very much for purchasing the -3D-Shiatsu Massage Chair FLOAT PLUS! The 3D-FLOAT PLUS brainLight ® presents an upgrade of our 3D-FLOAT with a shoulder air pressure massage, foot sole massage and improved 3D technology.
  • Page 3: Safety Instructions

    Safety Instructions To prevent any damage, accident or injury, please consider the following safety instructions: 1. People with any of the following conditions are advised to consult their physician or therapist before using the chair: • People with heart diseases •...
  • Page 4 Please unplug the power cord from the wall socket when the chair is not in use. 6. Do not take the chair apart! • Do not attempt to dismantle, repair, or modify the chair without the technical guidance of brainLight GmbH. ® •...
  • Page 5 If you feel unwell or ill when using the chair, pause your session immediately by pushing the POWER-button. • Unplug the power cord and do not use the chair if the leather or fabric cover is torn or worn-out. Contact the main - tenance department at brainLight GmbH. ® •...
  • Page 6: Massage Chair Components

    Massage Chair Components Shoulder air pressure massage Remote Control Arm air pressure massage Backrest Waist air pressure massage Seat air pressure massage Calf air pressure massage Left side panel / Armrest Foot air pressure massage Casters Foot sole massage...
  • Page 7 Massage Chair Components Power Cable Connection Cartridge with Main Fuse ON/OFF Switch Main Switch Box...
  • Page 8: Setup Instructions

    Setup Instructions If your massage chair was delivered by Step 2 brainLight ® GmbH, the following 12 steps have already been carried out for you. Step 1 Remove all packaging material. If you use sharp or poin- ted tools, make sure not to damage the chair and the ac- cessories.
  • Page 9 Setup Instructions Step 5 Step 5 Subsequently, screw the side panels to the left and right side of the chair frame. The 6 screws required for this are packed separately (3 screws for each side panel). Please make sure that the screws are sufficiently tightened. Step 6 Pull out the air hoses in the shoulder area on the backrest about 8 cm on both sides.
  • Page 10 Setup Instructions Step 9 Step 9 Install the remote control holder: loosen the 3 pre-attached screws on the outside of the right armrest with a cross-tip screwdriver, position the holder and mount it with the same 3 screws. Put the remote control in the bracket. Step 10 Pick up the backrest overlay.
  • Page 11: Acupressure Points

    Acupressure Points...
  • Page 12 29 25...
  • Page 13: Massage And Remote Control Functions

    Massage and Remote Control Functions AUTOMATIC PROGRAMS (BUTTONS 1 – 9) ENERGY Press this button for the 18-minute automatic program ENERGY. After a tiring day at work or exhaustion from the day before, this program helps to overcome fatigue and gain new strength in a short amount of time.
  • Page 14 Massage and Remote Control Functions NECK RELAX With this button you can select the automatic program NECK RELAX. You have two different program lengths to choose from: Press once for a 15- and twice for a 20-minute program duration. The combination of a neck massage and different stretching techniques releases tension in the head and limbs.
  • Page 15: Automatic Recline Positions

    Massage and Remote Control Functions WAIST PRESSURE 8-minute automatic program that primarily relaxes the waist using air pressure. The program begins with a back scan in order to adjust the massage optimally to your body and the footrest adjusts itself automati- cally according to your leg length.
  • Page 16: Basic Settings

    Massage and Remote Control Functions BASIC SETTINGS (BUTTONS 12 – 18) POWER Press this button to switch the massage chair on/off. When switched off, the massage chair and massage rolls return back to the starting position. STOP Press this button to end a massage program. The massage rolls will automatically go back to their starting position, while the massage chair maintains its current position.
  • Page 17: Air Pressure Massage

    Massage and Remote Control Functions AIR PRESSURE MASSAGE (BUTTONS 19 – 25) Automatic air pressure massage 10-minute program that massages the shoulders, arms, hands, feet, calves, waist and seat area using air pressure. Shoulder air pressure massage 7-minute program that massages the shoulders using air pressure. Arm and hand air pressure massage 7-minute program that massages the arms and hands using air pressure.
  • Page 18: Massage For The Soles Of The Feet

    Massage and Remote Control Functions All air pressure massage programs have the option of 3 intensity levels: Press once = soft, press twice = medium, press three times = hard. You can change the duration of a program by using the TIME button (button 31).
  • Page 19 Massage and Remote Control Functions Choice of massage region Press these buttons to choose from 4 different regions for the manual mas- sage functions: shoulder and neck area, middle back, lumbar region and whole back. Adjusting the massage time Press this button to adjust the massage time for the manual functions. The duration is displayed on a digital time bar.
  • Page 20 Massage and Remote Control Functions Kneading and tapping massage Press this button to turn the kneading and tapping massage on/off (press twice off). With the respective button, you can adjust the SPEED of the kneading ➔ and tapping massage to your needs (6 levels, preset on level 3). Flapping massage Press this button to turn the flapping massage on/off (press twice off).
  • Page 21: Half-Automatic Back Massage

    Massage and Remote Control Functions HALF-AUTOMATIC BACK MASSAGE (BUTTONS 40 – 42) Shoulder and neck massage 12-minute massage program, primarily for the shoulder and neck area. Massage of the middle back 12-minute massage program, primarily for the middle back. Lumbar massage 12-minute massage program, primarily for the lumbar area.
  • Page 22: Lcd Features

    LCD Features Massage Regions 3D Massage Intensity Massage Mode Kneading Speed Zeit Massage Time Countdown Tapping Air Pressure Kneading & Tapping Infrared Heating Function Flapping Foot Sole Massage Air Pressure Width of the Massage Rolls (w: wide, m: medium, n: narrow) Intensity Shiatsu...
  • Page 23: General Instructions For Use

    General Instructions for Use Plug in the power cord and then turn on the power switch on the right side of the backrest. Decide between the automatic/half-automatic massage programs and the manual massage functions. Automatic and half-automatic programs: If you choose an automatic or half-automatic program, a combination of different massage functions with a preset dura- tion begins.
  • Page 24 General Instructions for Use Manual massage functions: 1. Press the TIME button to set the desired duration for the massage. 2. Choose the desired type of massage with the respective button: KNEADING, SHIATSU, TAPPING, KNEADING & TAPPING or FLAPPING. 3. Adjust the WIDTH, SPEED, HEAT, REGION and 3D-INTENSITY according to your wish using the respective buttons. 4.
  • Page 25: Troubleshooting: No Power

    Troubleshooting: No Power Troubleshooting Problem: No power 1. Make sure the chair is switched on. The power switch is located on the right side of the backrest. The icon “–“ has to be pushed inwards. If you still have no power, continue to step 2. 2.
  • Page 26: Replacing The Main Fuse

    How to Replace the Main Fuse Picture 1: Please note: Always turn off the chair and unplug the Remove the power cord power cord from the wall socket when replacing any part/s. How to Replace the Main Fuse (near the ON/OFF switch) Unplug the power cord from the chair itself.
  • Page 27: Product Specifications

    Product Specifications Product Specifications Product name: brainLight -3D-Shiatsu Massage Chair FLOAT PLUS ® Vertical range of the massage rolls: 77 cm Position angles of the chair: 110° – 216° Operating voltage: AC 220 – 240 V; 50 Hz – 60 Hz...
  • Page 28 Has won multiple awards for: high quality, design, functionality, ergonomics and innovation. Partner der Nominated for the European HEALTH & SPA AWARD brainLight GmbH • Hauptstraße 52 • 63773 Goldbach / Germany ® Phone: +49 (0) 6021 59070 • Fax: +49 (0) 6021 540997 • E-Mail: info @ brainlight.de • www.brainlight.de...
