BrainLight Gravity PLUS Owner's Manual

Shiatsu massage chair
Hide thumbs Also See for Gravity PLUS:
Table of Contents

Advertisement

Quick Links

Download this manual
brainLight
-Shiatsu Massage Chair Gravity PLUS
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gravity PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BrainLight Gravity PLUS

Summary of Contents for BrainLight Gravity PLUS

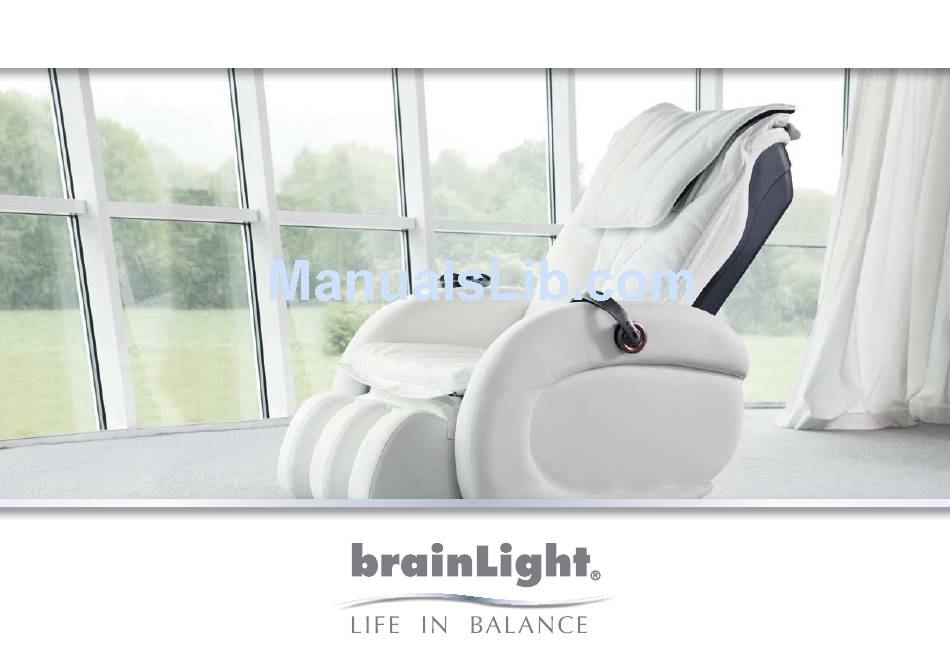

  • Page 1 -Shiatsu Massage Chair Gravity PLUS ®...

  • Page 2: Table Of Contents

    -Shiatsu Massage Chair Gravity PLUS ® thank you very much for purchasing the -Shiatsu Massage Chair Gravity PLUS! in order to enjoy brainLight ® your massage chair to its full potential, please read this users manual carefully before using it, especially for its safety instructions.

  • Page 3: General Safety Instructions

    • Do not let children play on the chair. • Do not attempt to dismantle, repair, or modify the chair without the technical guidance of brainLight GmbH. ® • if you feel unwell or ill when using the chair, pause your session immediately by pushing the StOP-button.
  • Page 4 Do not clean the chair with alcohol or evaporative solvents. • Unplug the power cord and do not use the chair if the leather or fabric cover is torn or worn-out. Contact the maintenance department at brainLight GmbH immediately. ® •...

  • Page 5: Safety Instructions Regarding The Heat Function

    Safety instructions regarding the HEat Function In order for it not to get uncomfortably warm, we recommend that you wear appropriate clothing when using the HEAT function and set it to a level that is pleasant for you when using it during a massage program. •...

  • Page 6: Massage Chair Components

    Massage Chair Components Head Cushion Left Armrest Back Cushion Remote Control Remote Control Holder Seat Right Armrest Footrest...
  • Page 7 Massage Chair Components Main Switch Box ON/OFF Button AC Power Cord with Plug Backrest Casters...

  • Page 8: Setup Instructions

    Setup instructions If your chair has been delivered by , the Step 1 brainLight ® Large Head Cushion following 12 steps are already carried out for you. Seat Cushion Step 1 Step 2 remove the packaging material. if you use sharp or poin- ted tools make sure not to damage the chair and the accessories.

  • Page 9: Setup Instructions

    Setup instructions Step 5 Step 11 Put the armrests to the left and right of the chair and connect their wires (green) with the same-coloured plugs underneath the seat. Step 6 Subsequently, screw the armrests to the left and right side of the chair frame.

  • Page 10: Step

    Setup instructions Step 11 Check again to make sure all steps are done properly. the chair is now ready for use. Step 12 Plug the power cord into the main power switch box on the chair and connect it to a wall socket. Foot Massage Options Option 1 there are two straps included with the chair to hold your legs in position.

  • Page 11: Acupressure Points

    acupressure Points...

  • Page 13: Massage And Remote Control Functions

    Massage and remote Control Functions STOP Button Push this button to stop any massage program. the chair and the massage rolls will automatically return to their starting position. AUTO Button the aUtO function consists of six different automated programs. Push this button until the program of your choice is shown on the display.
  • Page 14 Massage and remote Control Functions AUTO 1 = Full body massage AUTO 2 = Regional massage you can use the buttons UPWarD and DOWNWarD to direct the massage rolls to the region of your back that you would like the massage to be focused on. AUTO 3 = Fixed Point massage you can use the buttons UPWarD and DOWNWarD to direct the massage rolls to the specific point on your back that you would like the massage to be focused on.
  • Page 15 Massage and remote Control Functions RELAX Button the rELaX function consists of five automated full body massage programs. the massage time and chair recline angle is preset and different for each program. Push this button until the RELAX program of your choice is shown on the display: –...
  • Page 16 Massage and remote Control Functions – inversion stretch position for elevating the feet above the head in order to release any pressure from your legs and to stimulate the blood flow to your heart. – Stops E1, E2, E3 and E4. the chair returns to its starting position, while the selected massage is continued. ROCKING Button this function consists of four different, preset rOCKiNG programs.
  • Page 17 Massage and remote Control Functions RESTORE Button if you push the rEStOrE button, the chair automatically returns to its starting position. this function does not work in combination with the rELaX programs 4 (10 min.) and 5 (6 min.). LIE DOWN Button if you push the LiE DOWN button, the chair automatically reclines backwards.
  • Page 18 Massage and remote Control Functions FOOTREST Buttons By holding down the buttons UP or DOWN you can adjust the footrest of the chair to the desired angle. if you push the buttons twice quickly, the footrest automatically moves all the way up or down. this function does not work in combi- nation with the rELaX programs 4 (10 min.) and 5 (6 min.).
  • Page 19 Massage and remote Control Functions VIBRATION Button Push this button to select or deselect three different viBratiON cycles for the seat and armrests of the chair. this function can be turned on and off during all automatic and manual massage programs. KNEADING Button Push this button to select or deselect the KNEaDiNG massage in the backrest of the chair.
  • Page 20 Massage and remote Control Functions SHIATSU Button Push this button to select or deselect a SHiatSU massage for the whole back. CON. / REP. Button this function consists of six different, preset massage positions. Push this button until the position of your choice is shown on the display: FiXED POiNt, arEa, FULL BODy, HEaD tO NECK, UPPEr BaCK and LOWEr BaCK.
  • Page 21 Massage and remote Control Functions UPWARD / DOWNWARD Buttons you can use these buttons to position the massage rolls precisely if you have chosen the FiXED POiNt or arEa massa- ge position of the CON. / rEP. function. KNEADING Button (foot-kneading massage) Push this button to select or deselect the KNEaDiNG massage in the footrest of the chair.

  • Page 22: Lcd Features

    LCD Features SPEED KNEaDiNG taPPiNG SHiatSU WiDtH FOOt MaSSaGE tiMEr aUtO viBratiON HEat...

  • Page 23: General Instructions For Use

    General instructions for Use Plug in the power cord and then turn on the power switch on the right side of the backrest. Decide between the automated massage programs and the manual massage functions. Manual massage functions: Use the MaNUaL / tiME button to first set the desired massage time, then select one of the following functions: KNEaDiNG, taPPiNG, MULtiPLE or SHiatSU.

  • Page 24: Troubleshooting

    troubleshooting Problem: No power 1. Make sure the chair is switched on. the power switch is located on the right side of the backrest. the icon “–“ has to be pushed inwards. if you still have no power, continue with step 2. 2.

  • Page 25: Troubleshooting

    troubleshooting Problem: When reclining, the chair makes a squeaking noise 1. First, determine which function is making the squeaking noise by testing each of the recline motors with the corresponding UP / DOWN buttons: FOOtrESt, BaCKrESt and rOtatE. 2. Once you have determined which motor makes the squeaking noise, lubricate the point where the motor moves in and out of its housing, underneath the chair (with WD-40 or 3-iN-ONE oil).

  • Page 26: Basic Replacement Guide

    Basic replacement Guide Please note: Always turn off the chair and unplug the power cord from the wall outlet when replacing any part/s and when maintaining the chair. How to Replace the Main Fuse (near the power switch) Unplug the power cord from the chair itself. (Picture 2) Picture 1: Picture 2: right side view of the chair.

  • Page 27: Footrest

    Wheel the chair to the desired place and make Product name: sure there is enough space for the backrest to fully recline brainLight -Shiatsu Massage Chair Gravity Plus during the massage. ® Vertical range of the massage rolls: 69 cm Position angles of the chair: 116°...
  • Page 28 GmbH ® Hauptstraße 52 63773 Goldbach / Germany Phone: +49 (0) 6021 59070 Fax: +49 (0) 6021 540997 Email: info @ brainlight.de internet: www.brainlight.com...
