Summary of Contents for Trox Technik TNC-EASYCONTROL

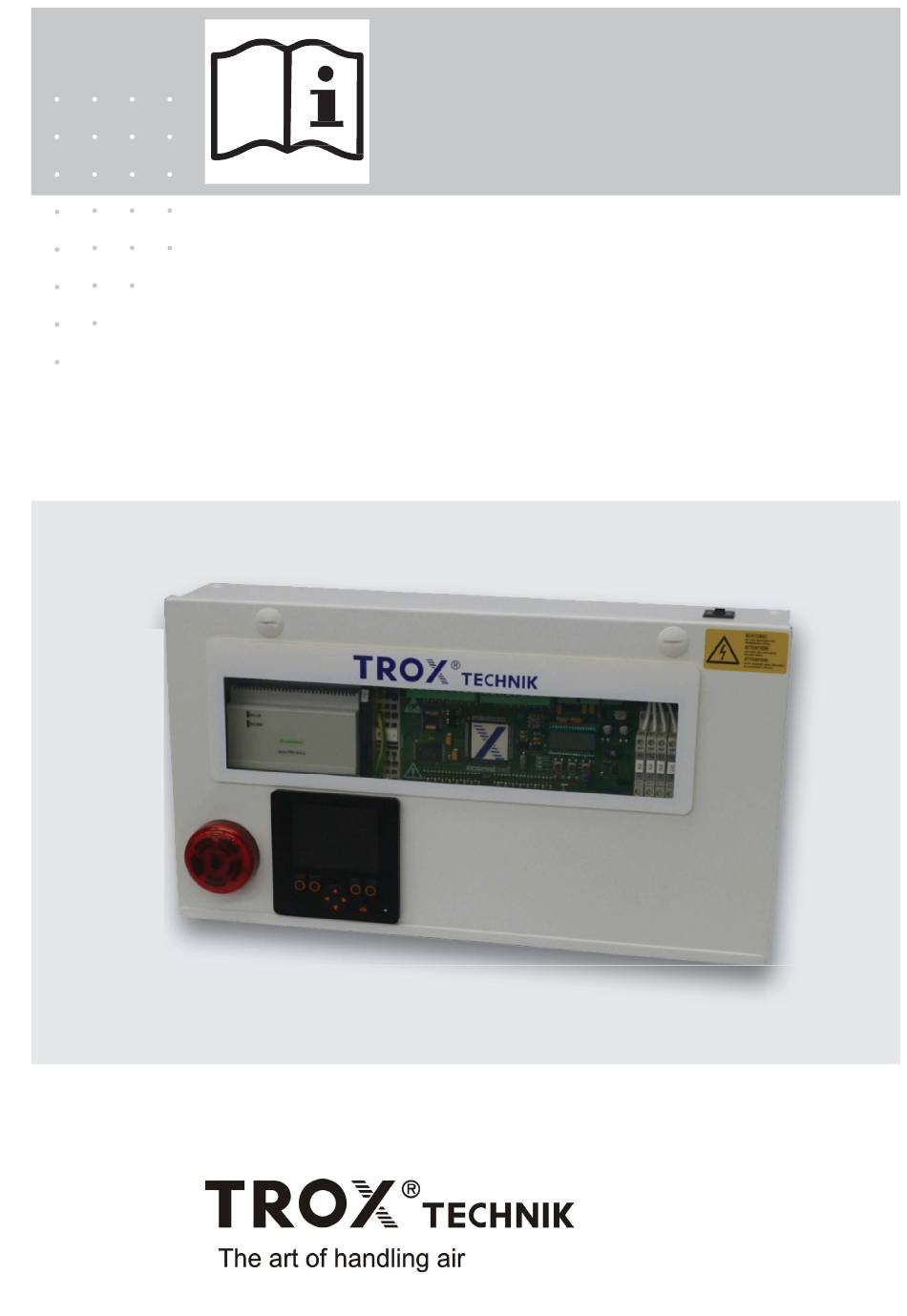

- Page 1 Operating and installation manual TNC-EASYCONTROL...
-
Page 2: Table Of Contents
Connections 5 Installation Mains connection Fire damper actuator connection TROX GmbH Heinrich-Trox-Platz D-47504 Neukirchen-Vluyn Telefon +49(0)28 45/2 02-0 Telefax +49(0)28 45/2 02-2 65 E-Mail trox@trox.de www.trox.de Subject to change / All rights reserved © TROX GmbH Operating manual TROX TNC-EASYCONTROL... -
Page 3: General Information
1 General Information General information This manual describes TNC-EASYCONTROL for fire dampers. It can be used to send control input signals to actuators for fire dampers and to capture the end positions of fire dampers. To ensure complete functioning it is essential to read the provided installation manual before starting any work, and to comply with it. -
Page 4: Safety And Correct Use
• Only then should you work on TNC-EASYCONTROL. • General regulations (VGB1) of the Accident Prevention Regulations for Electrical Installations and Equipment (Unfallverhütungsvorschriften für elektrische Anlagen und... -
Page 5: Product Description
When a TP043EC display is used for operation and as a or external control by central BMS and manual triggering communication master, two TNC-EASYCONTROL units may • Output of alarm messages: fire, smoke, fire damper closed, be used in combination. -
Page 6: Technical Data
T4 A/24 V DC (fuse holder in switch box) Ambient temperature [°C] -25…+71 IP protection level IP20 Dimensions (BxHxT) [mm] 91 x 90 x 57 Connection Screw terminals up to 2.5 mm² Installation On mounting rail TS35 Operating manual TROX TNC-EASYCONTROL... -
Page 7: Installation
For any wiring work follow the national and local regulations and guidelines for electrical installation. A complete shipment includes: • TNC-EASYCONTROL PCB and 230V/24V power supply Danger unit in a metal casing, mounted on a mouting rail Danger of electric shock! Do not touch any live •... -
Page 8: Mounting
TNC-EASYCONTROL requires 230V/AC voltage supply. any electronic components or the wiring. The GST18i3 socket is intended for mains connection. TNC-EASYCONTROL is intended for wall mounting. The wall must be strong enough to carry the unit. Use screws and wall Connection data: plugs that are suitable for the type of wall. -
Page 9: Commissioning
TNC-LINKBOX. I 1,3,5,7,9,11 / OPEN Connect the 4 wires of the cable intended to connect the TNC-LINKBOX and TNC-EASYCONTROL to the numbered Connection data terminals in the BOX. max. 10.5 mm Cable diameter at least 6.5 mm... - Page 10 If you do not use the TNC-LINKBOX for easy and quick wiring, conventional wiring with a junction box is also possible. In this case wiring should be as follows: External wiring of a fire damper (standard operation) Illustration shows fire damper 'power off to close' Operating manual TROX TNC-EASYCONTROL...
-
Page 11: Parallel Operation
TNC-EASYCONTROL and the TNC-LINKBOX. The TNC-LINKBOX acts as a distribution box when both the control cable of TNC-EASYCONTROL and the control cable of the second TNC-LINKBOX are connected to it. If a TNC-LINKBOX is used as a distribution box, jumper 2 ①... - Page 12 Insert the plugs of the control cables for the actuators into Terminals Connection the connection sockets. Box and plug Connect the actuator cable to TNC-EASYCONTROL using a GST18i5 plug. 0V / GND Q0…5 / 24V I 0,2,4,6,8,10 / Closed I 1,3,5,7,9,11 / OPEN Connection data max.
-
Page 13: Input And Output Signals
6 Commissioning Input and output signals Outputs The inputs and outputs on the PCB of TNC-EASYCONTROL The connection for the outputs is made with a GST15i5 which are required for the communication with a higher-level socket. All outputs are volt-free outputs. - Page 14 70 %. All fi re dampers remain open Connecting display TNC-SVD-EC (optional) The connection for the inputs is made with a BST14i2 plug. The terminal connections are as follows: Terminal Connection CAN1 L CAN2 H Operating manual TROX TNC-EASYCONTROL...
- Page 15 S2=0 or S2>6, SD signal noc contamination, running time and limit switch error Fire signal noc No fire damper is signal noc closed Smoke signal noc signal noc Functional test is active Functional test error signal noc Operating manual TROX TNC-EASYCONTROL...
-
Page 16: Gst Connector - Assembly Information
Never connect or disconnect a GST connection while a voltage is being supplied. Do not use any third party components. Fitting the strain relief Same procedure for 4-pole and 5-pole connectors. Ensure Done! correct poles 38. , 5 7±1 7±1 Operating manual TROX TNC-EASYCONTROL... -
Page 17: Operating Status Menu On The Pcb Display
(145 s) for the fire damper is monitored also during the functional test. If a fire damper fails to open or close during the set period of time, the fire damper is closed and displayed. Output 'Q12 No fire damper is closed' is not Operating manual TROX TNC-EASYCONTROL... -
Page 18: Controlling The Operating Menu
Here you can manually open or close any connected fire dampers (according to the I/O list). Terminal connections start with FD1! Use buttons S3↑ and S4↓ in the menu to select an item. Activate the function with S5. Operating manual TROX TNC-EASYCONTROL... -
Page 19: Operation And Display
= fire damper actuator is running red = fire damper CLOSED / error ③ Function bar ④ LED green = Display OK red = error ⑤ Function buttons ⑥ Cursor up / down left / right ⑦ Function buttons Operating manual TROX TNC-EASYCONTROL... -
Page 20: Dimensional Drawing
Plug side, display, M12 plug connection Supply, CAN RS232 CAN1 CAN2 n.c. T GND R H GND L H GND L 8 ... 32 V DC CAN_H CAN_L Resistor 120 Ω There is no resistor for preconfigured cables. Operating manual TROX TNC-EASYCONTROL... -
Page 21: Using The Colour Display
• The connected fire dampers are open (displayed in green) Menu change with with F button below • Enter the password with numbers 2-2-2 using the cursor button • Confirm with OK Language selection German - English - Finnish with with F button below Operating manual TROX TNC-EASYCONTROL... - Page 22 • Manual mode preselection using the function button below Manual control • Select fire damper with • Open fire damper with • Close fire damper with • Menu change with • using the function button below Operating manual TROX TNC-EASYCONTROL...
- Page 23 • Counter reset (set test cycle counter to 0) using the function button below • Test is active • Duration: about 170 s (displayed in yellow). • Once the test has completed successfully, change the menu using the function button below Operating manual TROX TNC-EASYCONTROL...
- Page 24 • All fire dampers close or remain closed (displayed in red) • Supply 24 V DC control voltage to I15 CAN error • Communication with control has failed (displayed in red) • Check the bus cable to the controls • Is a 120 Ω resistor connected? Operating manual TROX TNC-EASYCONTROL...
-
Page 25: Led/Buzzer With Acknowledgement Function
Noise level 80 dB Tone frequency 3 kHz Switch-on current 0.5 A Current consumption 80 mA Supply voltage 24 V DC IP protection level IP65 Service life 50,000 Connection Plug with screw terminal, max. 0.5 mm² Operating manual TROX TNC-EASYCONTROL... -
Page 26: Connecting Mechanical Dampers And Capturing Their End Positions
The duct smoke detector does not affect the fire dampers; rather, it detects smoke or contamination and signals it to the display or to the central BMS. ① ③ ② ① ③ ① Fire damper 2 ② Junction box ③ Fire damper 1 Operating manual TROX TNC-EASYCONTROL... - Page 27 Fire alarm • The contact has been interrupted – thermal release of the fire damper • Acknowledgement/reset with the function button below Smoke • Smoke detection by duct smoke detector • Acknowledgement/reset with the function button below Operating manual TROX TNC-EASYCONTROL...
- Page 28 6 Inbetriebnahme TROX GmbH Heinrich-Trox-Platz D-47504 Neukirchen-Vluyn Telefon +49(0)28 45/2 02-0 Telefax +49(0)28 45/2 02-2 65 E-Mail trox@trox.de www.trox.de Subject to change / All rights reserved © TROX GmbH Operating manual TROX TNC-EASYCONTROL...
