Summary of Contents for Acer L220R

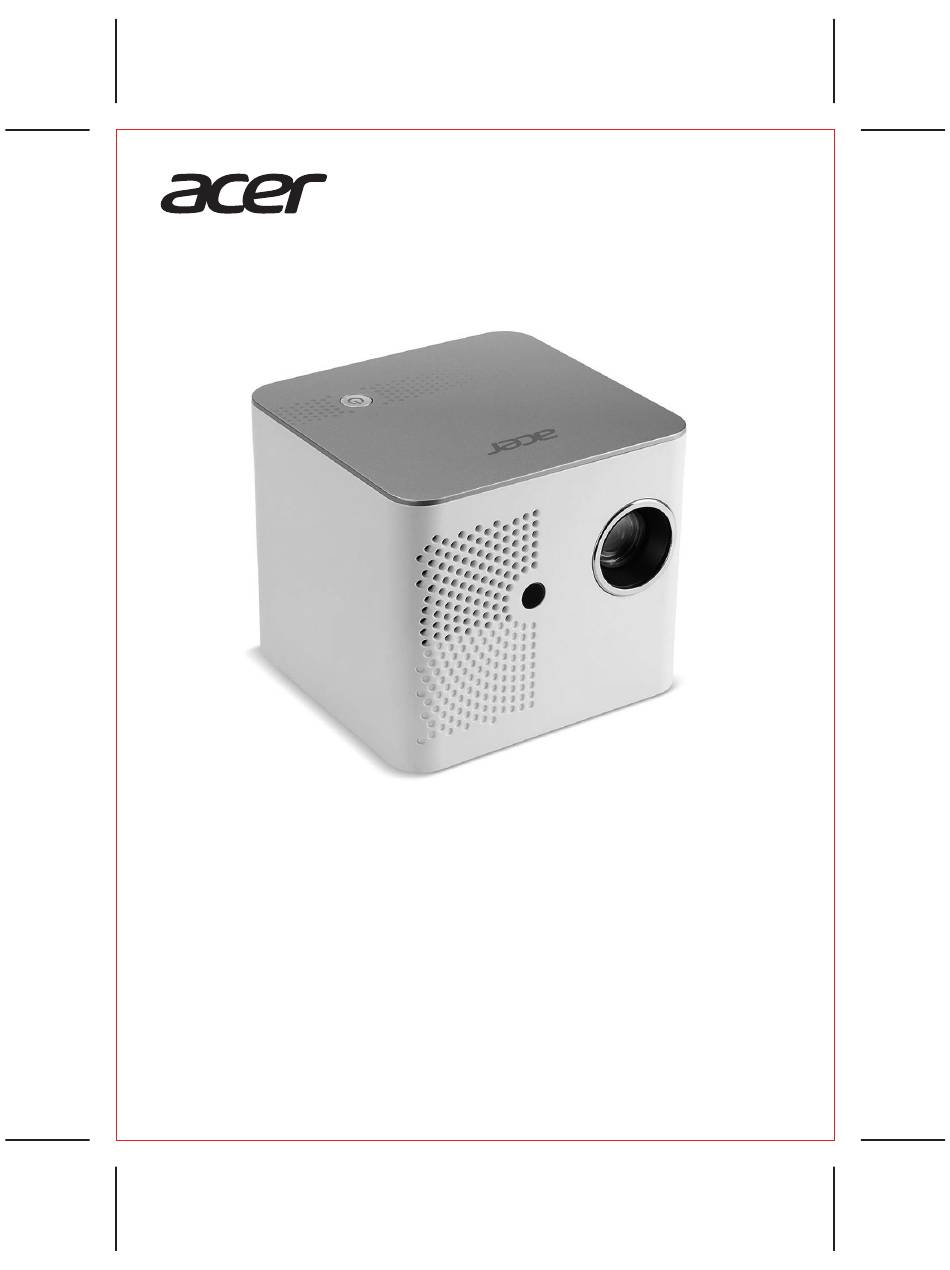

- Page 1 User’s Manual / Benutzerhandbuch Manuel d'utilisation / Manual de usuario Руководство пользователя Manual de utilizare / Korisnički priručnik Uporabniški priročnik / 使用手冊 B130i/ L220R/ LK-W11F/ KWX1801...
- Page 2 Serial number: _________________________________________ Date of purchase: _______________________________________ Place of purchase: ______________________________________ Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
- Page 3 Information for Your Safety and Comfort Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
- Page 4 Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service personnel when: •...
-
Page 5: Troubleshooting
• Contact your local dealer or Acer service center when you need to change the lamp. • The product will detect the life of the lamp itself. Please contact your local dealer or Acer service center for changing the lamp, when lamp warning message displays. -
Page 6: Product Overview Front
Product Overview Front Power On/Off (Mode Switch) Vents Focus Wheel IR Receiver Projection Lens Rear microSD Slot HDMI Power On/Off (Mode Switch) Audio Out LED Indicator DC IN Reset Hole Speakers EN-5... -
Page 7: Remote Control
Remote Control Mute Direction Key Menu Back Home Volume Down Volume Up Turn off projector Back to fi le list Mute Back to main screen Change the selection Back to previous level Confi rm the selection Volume control Package content •... -
Page 8: Charging The Product
Charging the product The projector is built with an embedded battery for mobile use. Please charge the projector for 5 hours prior to its first use. The battery will be charged only when the projector is not in use (Power off). Connect one end of the supplied power adapter to DC IN jack and the other end to a power outlet to start charging. - Page 9 iOS mode *Advance Setting on iOS mode Both Android phone and iPhone can set up projector to connect to Network on iOS mode. By entering the IP address http://192.168.49.1 in the browser address of mobile phone to set up the wireless environment can allow mobile phone browsing internet while wireless projection.
- Page 10 Projecting the files from PC/NB or other media devices Using HDMI cable(not included) to connect to projector from PC/NB or another media device. Play Medias Using remote control to switch to “USB/SD card” mode, projector can play music, photos and videos stored in USB disk and microSD card.
-
Page 11: Product Specifications
Product specifications Item Description Optical Technology Light Source RGB LED Resolution 1280x 800 Pixels Luminous Flux Up to 400 lumens Contrast Ratio 1,500:1 Throw Ratio 1.2 (Diagonal: Distance) Focus Manual Offset 100% Keystone Correction Auto Projection Image Size 19.2"~115" (49~292.1cm) Projection Distance 19.6"~118"...
