Summary of Contents for Sound Performance Lab 2376

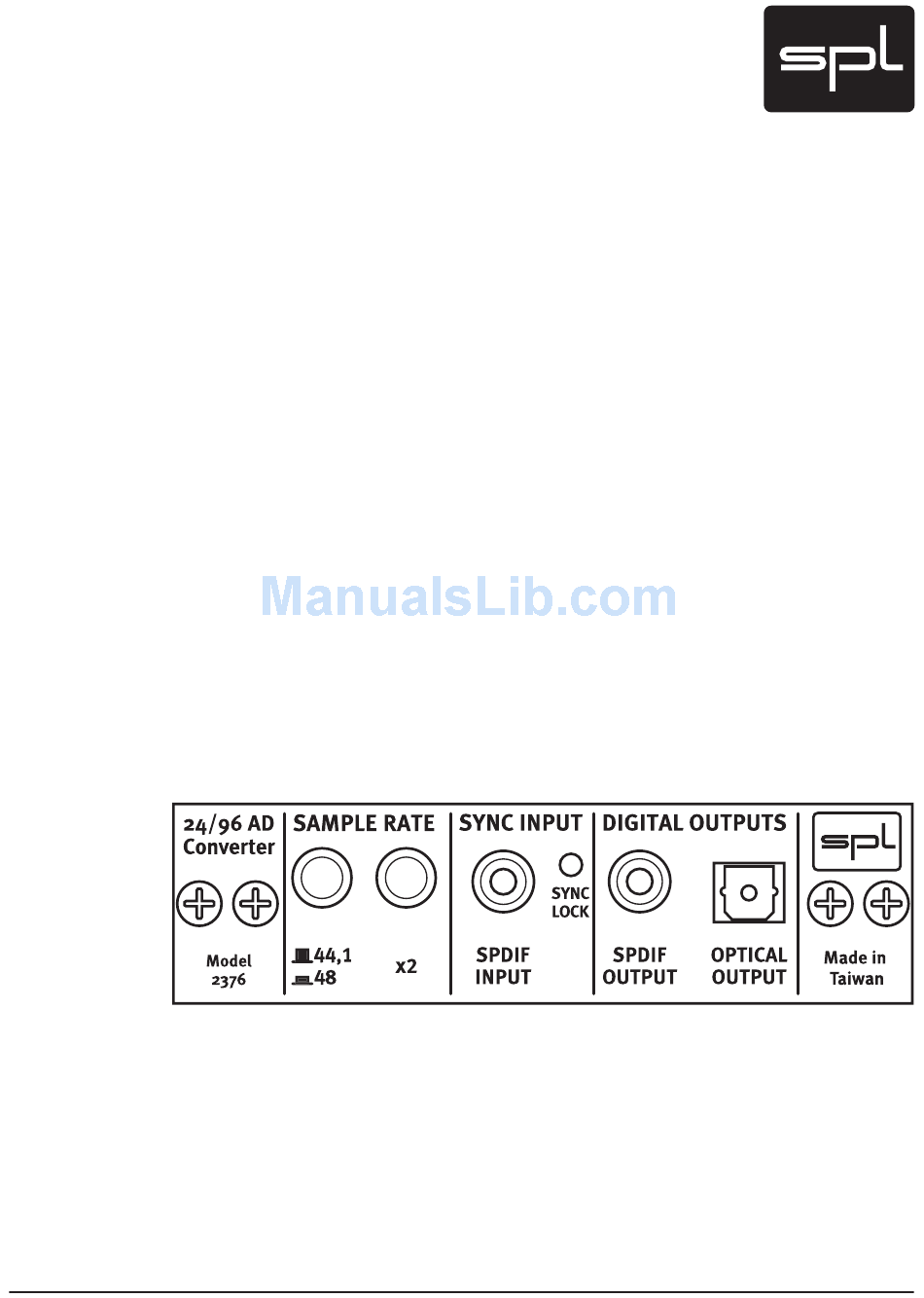

- Page 1 Owners Manual 24/96 AD Converter Model 2376 Internal stereo AD converter module...
- Page 2 Sound Performance Lab (SPL) continuously strives to improve its products and reserves the right to modify the product described in this manual at any time without prior notice.
-
Page 3: Table Of Contents
Safety instructions Product features Packing list Installation – general instructions/adapter plate Installation – step-by-step Connections - inputs and outputs Operation Technical specifications Warranty 24/96 AD Converter 2376 Contents... -
Page 4: Safety Instructions
* Currently Track One Model 2058, Channel One Model 9945, GainStation 1 Model 2272, Kultube Model 2049 24/96 AD Converter 2376... -
Page 5: Packing List
• Adapter plate • Manual General instructions/adapter plate The SPL AD Converter Module Model 2376 (falsch in deut- schem Text) is designed strictly as an option for compa- tible SPL devices. If you are not a technician or do not have... -
Page 6: Installation - Step-By-Step
Socket Step 2: Remove the strap holding the cable from the inside of the option slot cover. You may have to (carefully) cut through the drop of silicone. Socket Plug 24/96 AD Converter 2376... - Page 7 Step 4: Without turning it, insert the module into the device (circuit board up) and fasten it using the screws from the option slot cover. Congratulations! Your new converter module is now ready for operation. 24/96 AD Converter 2376...
-
Page 8: Connections - Inputs And Outputs
Connect an S/P-DIF output from your master source (e.g. sound card) to the SYNC input. The 2376 is not equipped to accept Word Clock for synchronization. The yellow SYNC LOCK LED illuminates when a valid sync signal is present at the SYNC input, and the converter is automatically synchronized to the external sample rate. -
Page 9: Operation
88.2 and 96 kHz. Using the 44.1/48 button, select one of the two basic sample rates (out: 44.1 kHz; in: 48 kHz). The x2 button doubles these sample rates to select 88.2 or 96 kHz respec- tively. 24/96 AD Converter 2376... -
Page 10: Technical Specifications
Power consumption +15 V: max. 94 mA Power consumption -15 V: max. 5 mA Dimensions (W x H x D): 100 x 27 x 76 mm (3.94 x 1.06 x 3 in.) Weight: 74 g (2.6 oz.) 24/96 AD Converter 2376... -
Page 11: Warranty
SPL warrantees the SPL 24/96 AD Converter Model 2376 to be free of defects in materials or workmanship for a period of 24 months after the date of purchase. - Page 12 < Owners Manual 24/96-AD Converter Model 2376 24/96 AD Converter 2376...
