Summary of Contents for Sound Performance Lab 2053

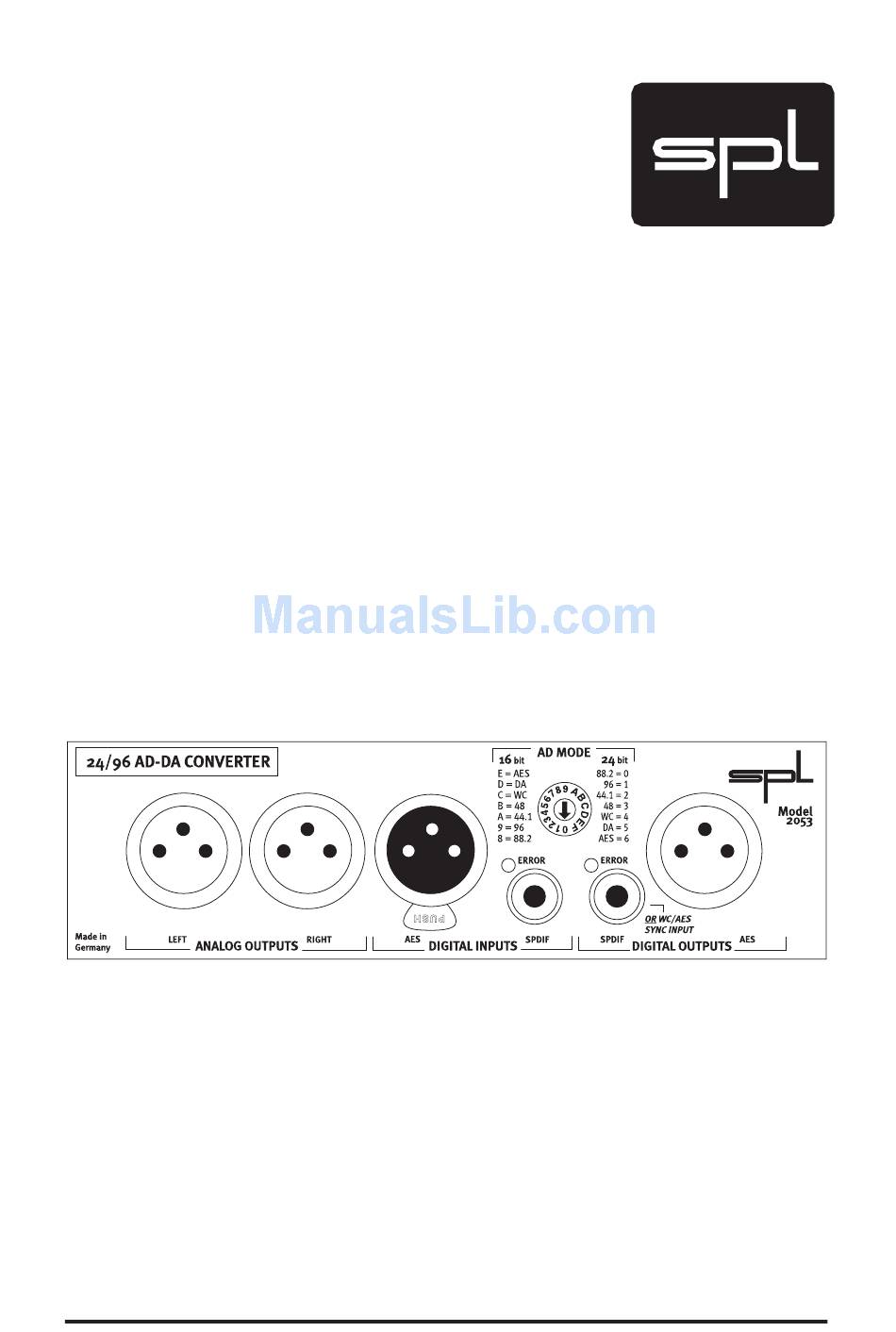

- Page 1 Manual 24/96 AD-DA Converter Model 2053...
- Page 2 P.O. Box 12 27 D- 41368 Niederkruechten, Germany Phone +49 - 21 63 / 98 34-0 Fax +49 - 21 63 / 98 34-20 eMail: info@soundperformancelab.com www.soundperformancelab.com © 2000 SPL electronics GmbH. All Rights Reserved. 24/96 AD-DA Converter 2053 24/96 AD-DA Converter 2053...
-
Page 3: Table Of Contents
Analog processing of a digital signal ... 13 Example 1: Processing a sampler’s signal ... 14 Example 2: Recording on a DAT Recorder ... 14 Specifications ... 15 Block Diagram ... 16 Measurements ... 17 Warranty ... 19 24/96 AD-DA Converter 2053 Contents... -
Page 4: Security Advices
5. In case of queries please contact an expert. Product Description The SPL converter module 2053 combines separately useable A/D and D/A converters, with a wordwidth up to 24 Bits, and a Sample-rate of up to 96 kHz. -
Page 5: Mounting
"Operation", from page 11. General Information The SPL converter module 2053 is exclusively offered as an option for certain SPL units. We especially advise electronically inexperienced users to contact an expert in case of queries. -
Page 6: Steps 1 And 2
Socket Step 2: Please remove the mounting of the wiring on the back of the cover (eventually cut off the silicon). Socket Connector 24/96 AD-DA Converter 2053... -
Page 7: Steps 3 And 4
Step 4: Put the converter, as illustrated, without lateral turning in the unit (circuit board above, connection sockets on the head) and connect it with the screws of the cover. The converter is now opera- tional. 24/96 AD-DA Converter 2053... -
Page 8: Connections
1 = GND, 2 = hot (+), 3 = cold (-) before Unbalanced converter outputs with other units. The illustration to the left demonstrates the correct wiring operation. 24/96 AD-DA Converter 2053 The unit operating the module has to switched connecting unbalanced... -
Page 9: Digital I/Os
(refer to "Applications, external synchroniza- tion" on page 11). Scope of Functions In contrast to usual concepts, the SPL converter 2053 comprises separate A/D and D/A converter stages. First of all the converter is determined for the optional equipping of the SPL CHANNEL ONE (mono channel strip). -
Page 10: Ad Mode Switch
Int. Synchronization to 48 kHz Int. Synchronization to 96 kHz Int. Synchronization to 96 kHz Int. Synchronization to 48 kHz Synchronization to D/A converter 24/96 AD-DA Converter 2053... -
Page 11: External Synchronization
In both cases the WC/AES SYNC INPUT is to be used. AES XLR Connector 1 = GND, 2 = Signal, 3 = Signal to GND (3 to 1) 24/96 AD-DA Converter 2053 Operation Cinch 1 = Sleeve 2 = Tip... -
Page 12: Applications
CHANNEL ONE. If this socket is not in use, the A/D- Converter routes the mono signal of the CHANNEL ONE to both channels. Example: During a voice recording with the CHANNEL ONE, a guitar signal can be converted at the same time. 24/96 AD-DA Converter 2053... -
Page 13: Ch. One: Using Both Channels Of The Converter 12 24Bit/96 Khz Monitoring
CHANNEL ONE. The LINE socket is a switch socket - a signal connected to the LINE socket takes priority, otherwise the converter signal will be connected through. 24/96 AD-DA Converter 2053... -
Page 14: Example 1: Processing A Sampler's Signal
B, A, 9 or 8, for 24 Bit 0, 1, 2, or 3. Unless a House-Clock controls all digital units: in this case please set the AD MODE switch to position C for 16 Bit or 4 for 24Bit (compare chapter "Operation, internal and external synchronization", page 11). 24/96 AD-DA Converter 2053... -
Page 15: Specifications
THD+N @-1 dBFs, 1 kHz ... <-101 dB Dynamic range (A) ... 110 dB D/A Converter Wordwidth ... 24Bit Sample rates ... 32-96 kHz THD+N (@-1 dBFs, 1 kHz) ... <-90 dB Dynamic range (A, Q 96 kHz) ... 105 dB 24/96 AD-DA Converter 2053... -
Page 16: Block Diagram
Block Diagram 24/96 AD-DA Converter 2053... -
Page 17: Measurements
Measurements D/A: THD&N above input level D/A: THD&N @ 1 kHz FFT 24/96 AD-DA Converter 2053... - Page 18 Measurements A/D: THD&N above input level A/D: THD&N @ 1 kHz FFT 24/96 AD-DA Converter 2053...
-
Page 19: Warranty
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state, country to country. SPL electronics GmbH, 41372 Niederkruechten, Germany 24/96 AD-DA Converter 2053 Warranty... - Page 20 Sound Performance Lab Sohlweg 55 D-41372 Niederkruechten Germany Tel. +49 • 2163 • 9834-0, Fax -20 info@soundperformancelab.com www.soundperformancelab.com 24/96 AD-DA Converter, Model 2053...
