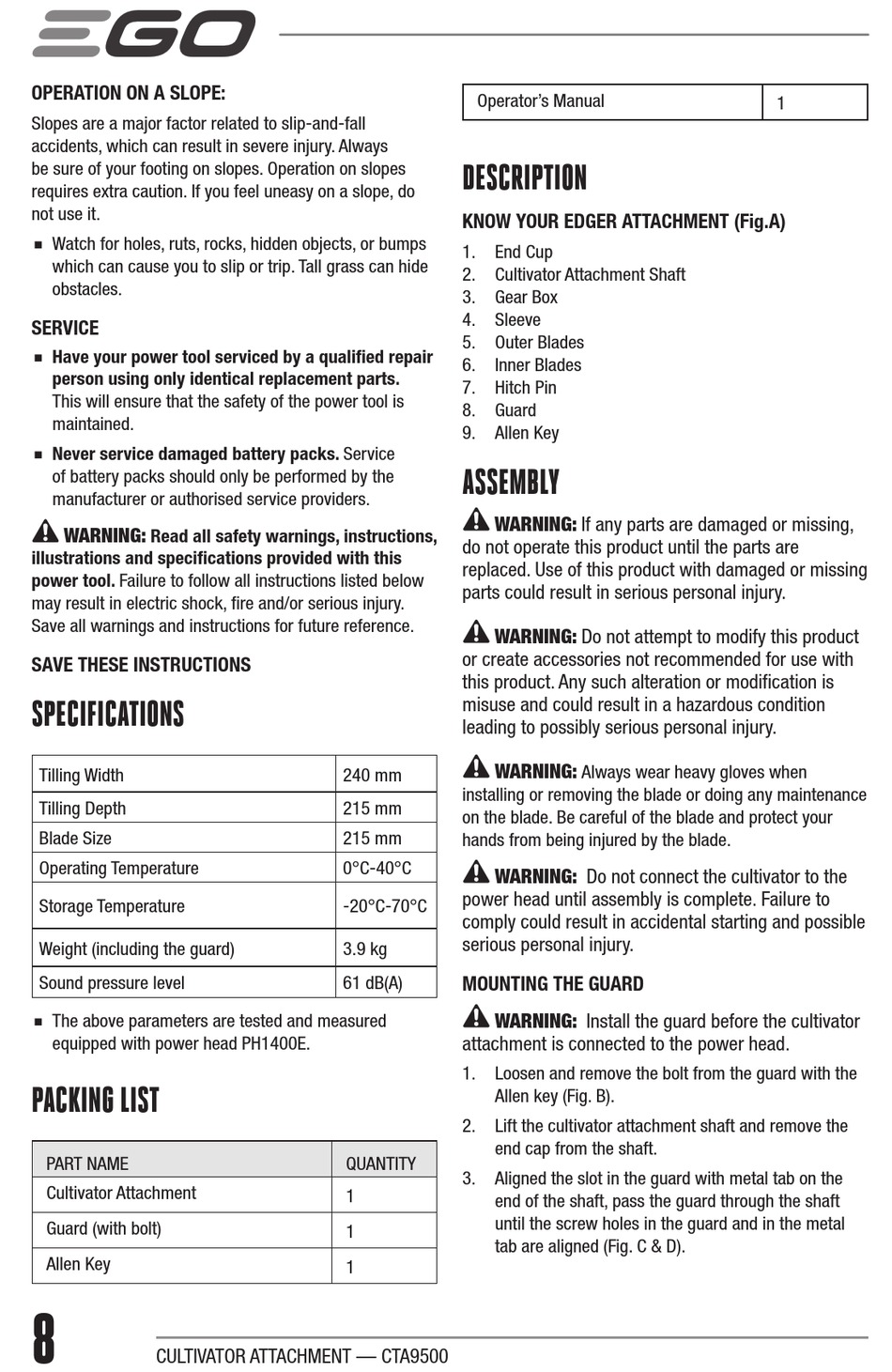

Specifications; Packing List - Ego Power+ CTA9500 Operator's Manual

OPERATION ON A SLOPE:
Slopes are a major factor related to slip-and-fall
accidents, which can result in severe injury. Always
be sure of your footing on slopes. Operation on slopes
requires extra caution. If you feel uneasy on a slope, do
not use it.
◾
Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
SERVICE
◾
Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
◾
Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorised service providers.
WARNING:
Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Tilling Width
Tilling Depth
Blade Size
Operating Temperature
Storage Temperature
Weight (including the guard)
Sound pressure level
◾
The above parameters are tested and measured
equipped with power head PH1400E.

PACKING LIST

PART NAME
Cultivator Attachment
Guard (with bolt)
Allen Key
8
CULTIVATOR ATTACHMENT — CTA9500
Operator's Manual
DESCRIPTION
KNOW YOUR EDGER ATTACHMENT (Fig.A)
1. End Cup
2. Cultivator Attachment Shaft
3. Gear Box
4. Sleeve
5. Outer Blades
6. Inner Blades
7. Hitch Pin
8. Guard
9. Allen Key
ASSEMBLY
WARNING: If any parts are damaged or missing,
do not operate this product until the parts are
replaced. Use of this product with damaged or missing
parts could result in serious personal injury.
WARNING: Do not attempt to modify this product
or create accessories not recommended for use with
this product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possibly serious personal injury.
WARNING:
240 mm
installing or removing the blade or doing any maintenance
215 mm
on the blade. Be careful of the blade and protect your
215 mm
hands from being injured by the blade.
0°C-40°C
WARNING: Do not connect the cultivator to the
power head until assembly is complete. Failure to
-20°C-70°C
comply could result in accidental starting and possible
serious personal injury.
3.9 kg
MOUNTING THE GUARD
61 dB(A)
WARNING: Install the guard before the cultivator
attachment is connected to the power head.
1. Loosen and remove the bolt from the guard with the
Allen key (Fig. B).
2. Lift the cultivator attachment shaft and remove the
end cap from the shaft.
QUANTITY
3. Aligned the slot in the guard with metal tab on the
1
end of the shaft, pass the guard through the shaft
until the screw holes in the guard and in the metal
1
tab are aligned (Fig. C & D).
1
Always wear heavy gloves when
1
