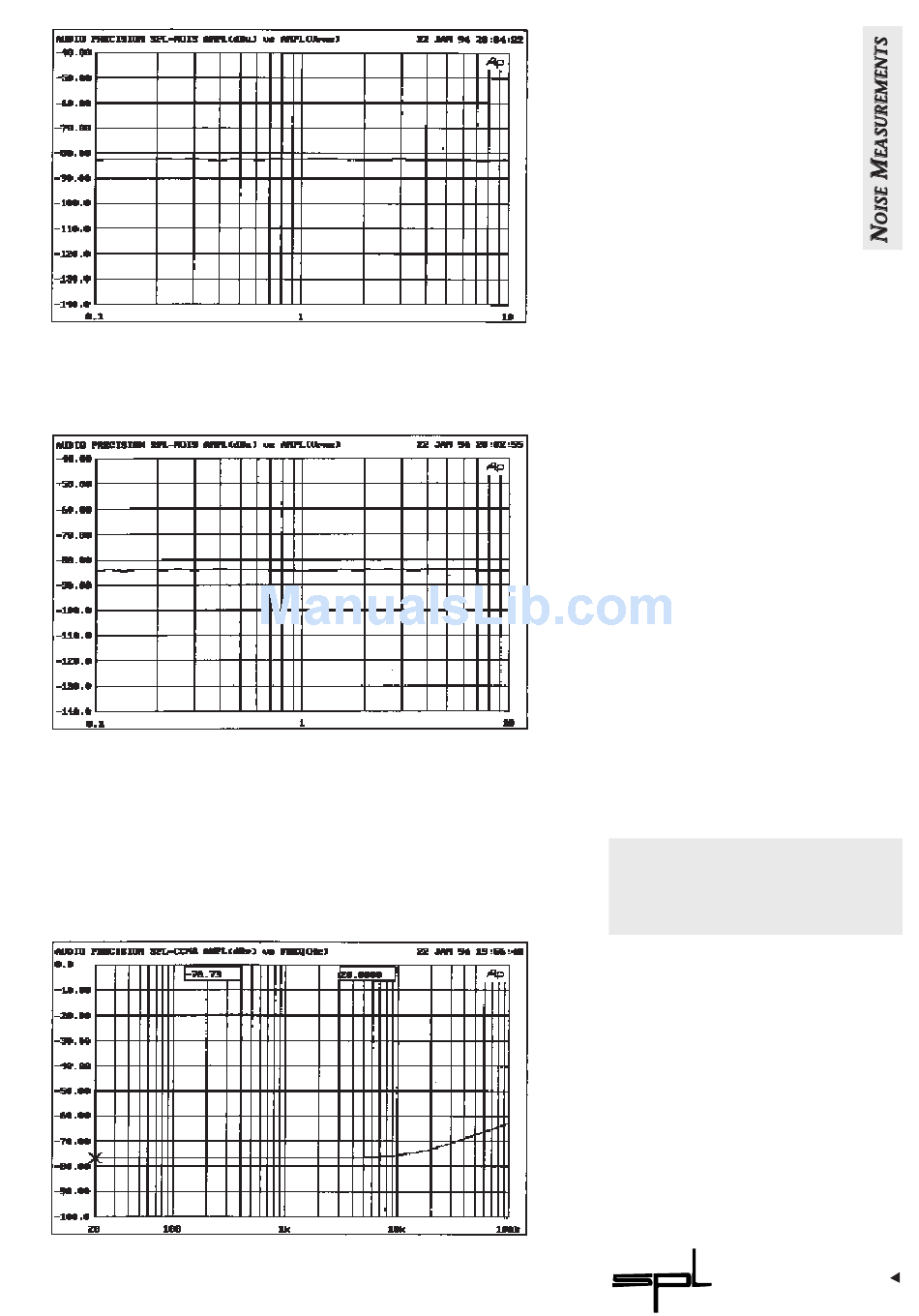

Fig. 22:
Noise Measurement
CCIR 468: -83dB
Boost/Cut = +12 dB;
Bandwidth Q = 1.5;
Frequency = 1kHz
Fig. 23:
Noise Measurement
CCIR 468: -84dB
Boost/Cut = 0 dB;
Bandwidth Q = 1.5;
Frequency = 1kHz
C C M M
O O M M M M O O N N O O D D E E
R R
E E J J E E C C T T I I O O N N
Fig. 24:
Common Mode Rejection of
differential XLR Inputs
Frequency range:
20Hz to 100kHz.
CCMR: -76,73dB
