KMC Controls TTE-1001 Installation Manual

Room temperature transmitter

Advertisement

Quick Links

Mounting
Standard:
The base unit's mounting slots are designed to
align with the holes in a standard 2" x 4" (51 x 102
mm) handy conduit box. Use such a box if using
conduit.
On solid walls, normal screw and anchor systems
may be used.
TTE-1001
Installation Guide
Hollow wall:
1. Cut a 3-3/4" x 1-3/4" rectangular opening in the
2. Make all necessary connections.
3. Insert an HMO-5001 Toggle Bolt Assembly
NOTE: Care should be taken not to bend or flex the
1
Room Temperature Transmitter
wall. (Check if unit is horizontal or vertical before
cutting.)
(ordered separately) through the wall and tighten.
base of the thermostat.

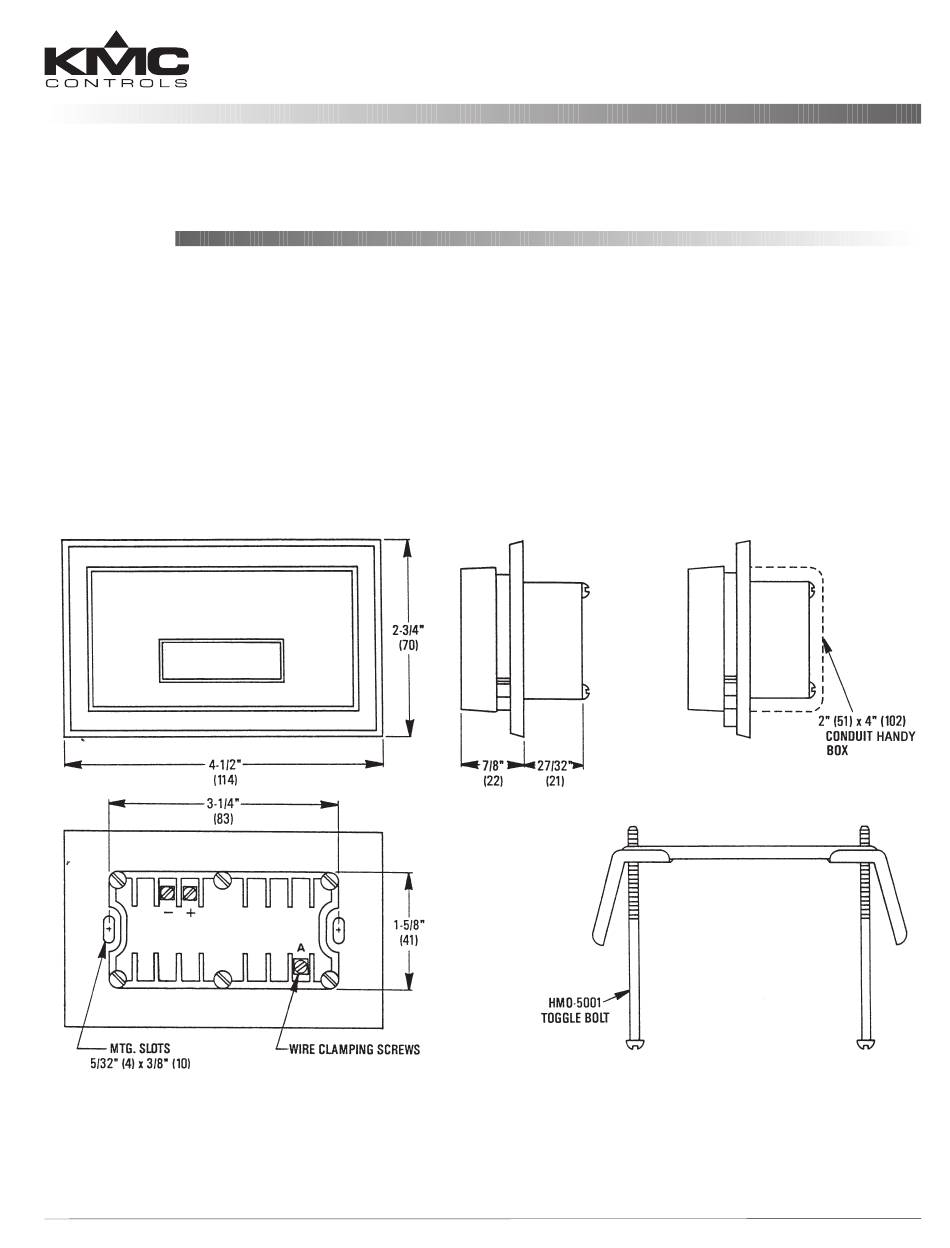

All dimensions are in inches (mm).
TTE-1001
Installation Guide
