KMC Controls STE-6012-10 Installation Manual

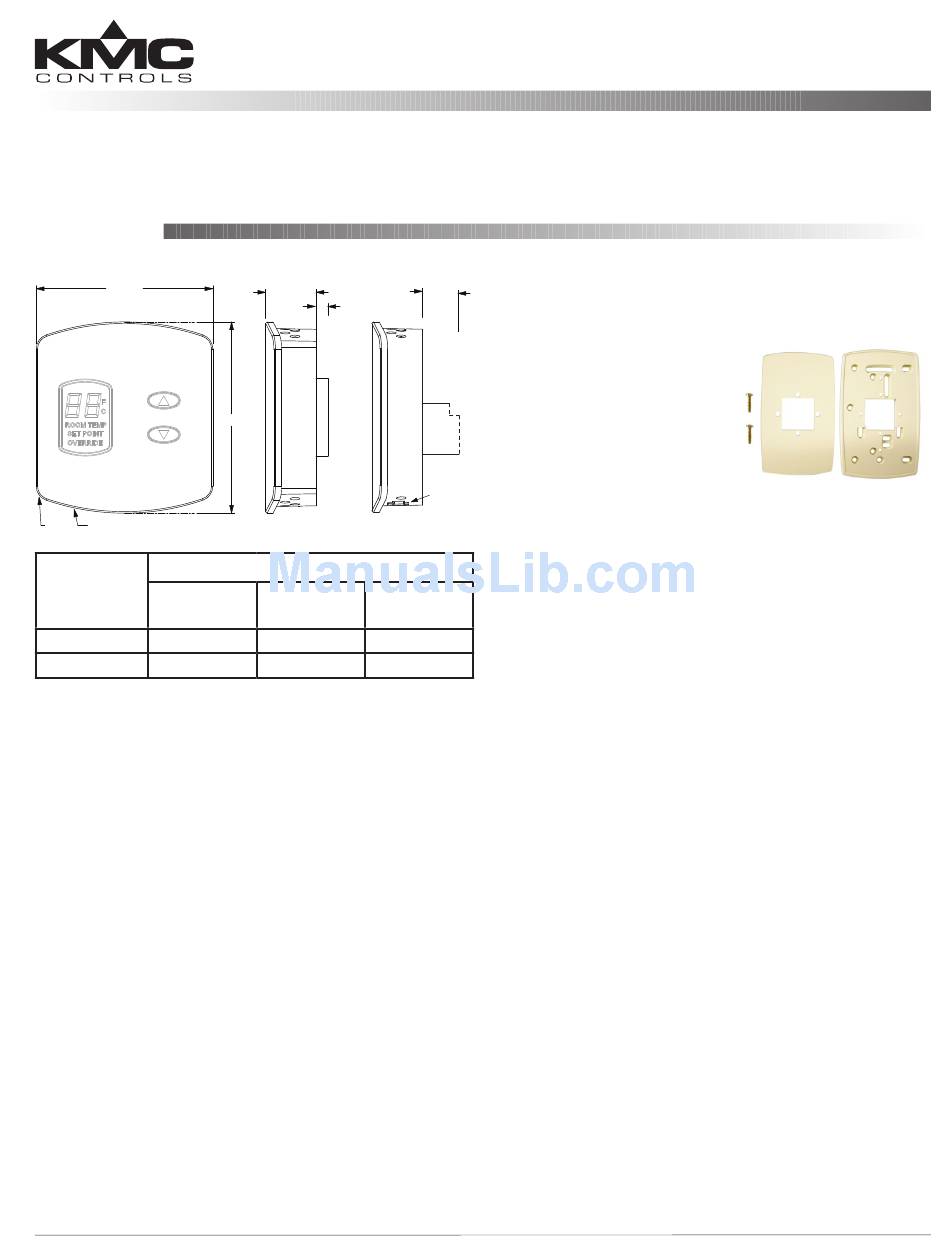

Mounting

All dimensions are in inches
2.250
R 0.187 R 3.094
Model
Screw Clamp
Number
Terminals
STE-6012-10 X
STE-6016-10
Location and Cover Removal
Install the sensor on an inside wall where it can sense
the average room temperature and be away from
direct sunlight, heat sources, windows, air vents, and
air circulation obstructions (curtains, furniture, etc.). It
can be mounted on a hollow wall or (with a universal
backplate HMO-6036/ HMO-6036W) to a 2 x 4 inch
handy box.
The cover is held to the black, back panel by three,
small, round pegs that fit in the holes of the cover.
The bottom peg is on a tab and snaps into the center
bottom hole.
1. With a small Phillips screwdriver or hex wrench,
press in and hold the tab button that snaps into
the center hole on the bottom cover.
2. Carefully pull or pry the back panel from the
front cover.
STE-6012/6016 Room Temperature Transmitters
Room Temperature Transmitters (with LCD Display)
Installation Guide
0.643
0.149
2.438
Clamp
(Screw-type)
Terminals
STE-6012 STE-6016

Connections

RJ-45 EIA-485 Data
Connector
X

Handy Box Installation (Recommended)

0.475
max.
1. Mount a universal
backplate HMO-6036 or
HMO-6036W to the handy
Modular
RJ-45
box using the two screws
Jack
provided.
2. Remove the cover from
the back panel.
Four-pin
EIA-485
PC Data 3. Attach the back panel to
Port
the backplate using the
two screws provided.
4. Attach the cable to the terminal block or jack
according to the appropriate wiring diagram on
Port
the next page.
5. Replace the cover.
X

Hollow Wall Installation

1. Remove the cover from the back panel.
2. Using the back panel as a template, drill two holes
for mounting screws (7/64 inches or 3 mm in di-
ameter and 1.4 inches, 1-13/32 inches, or 35.6 mm
apart) and cut a center hole (size needed is depen-
dent on model) for the terminal block or jack.
3. Attach the back panel to the wall using two
#6 self-threading screws. (Plastic anchors are
recommended, and the size of the holes will then
need adjusting.)
4. Attach the cable to the terminal block or jack
according to the appropriate wiring diagram on
the next page.
5. Replace the cover.
1
STE-6012/6016
Installation Guide
