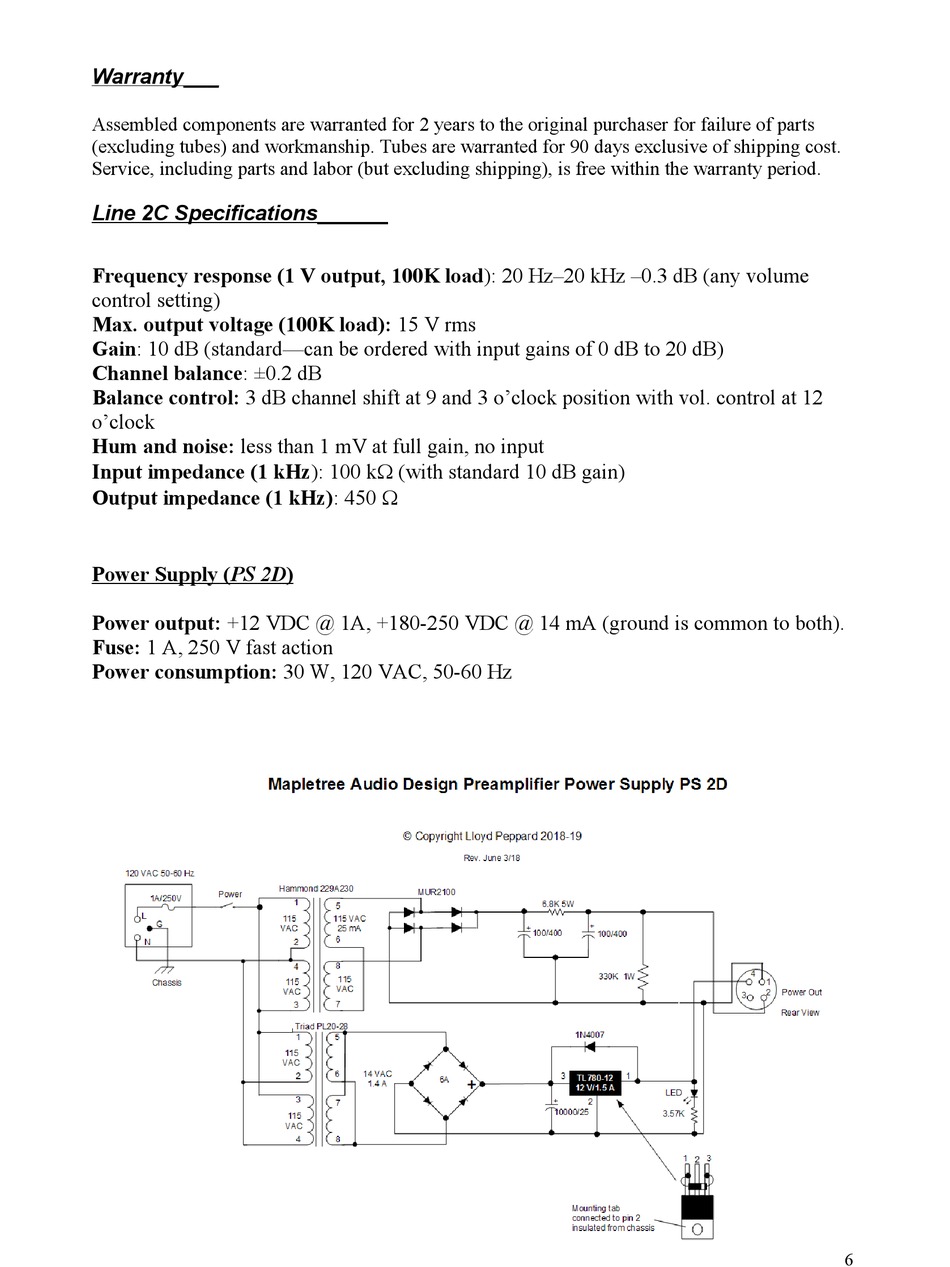

Warranty___
Assembled components are warranted for 2 years to the original purchaser for failure of parts
(excluding tubes) and workmanship. Tubes are warranted for 90 days exclusive of shipping cost.
Service, including parts and labor (but excluding shipping), is free within the warranty period.
Line 2C Specifications______
Frequency response (1 V output, 100K load): 20 Hz–20 kHz –0.3 dB (any volume
control setting)
Max. output voltage (100K load): 15 V rms
Gain: 10 dB (standard—can be ordered with input gains of 0 dB to 20 dB)
Channel balance: ±0.2 dB
Balance control: 3 dB channel shift at 9 and 3 o'clock position with vol. control at 12
o'clock
Hum and noise: less than 1 mV at full gain, no input
Input impedance (1 kHz): 100 k(with standard 10 dB gain)
Output impedance (1 kHz): 450
Power Supply ( PS 2D )
Power output: +12 VDC @ 1A, +180-250 VDC @ 14 mA (ground is common to both).
Fuse: 1 A, 250 V fast action
Power consumption: 30 W, 120 VAC, 50-60 Hz
6
