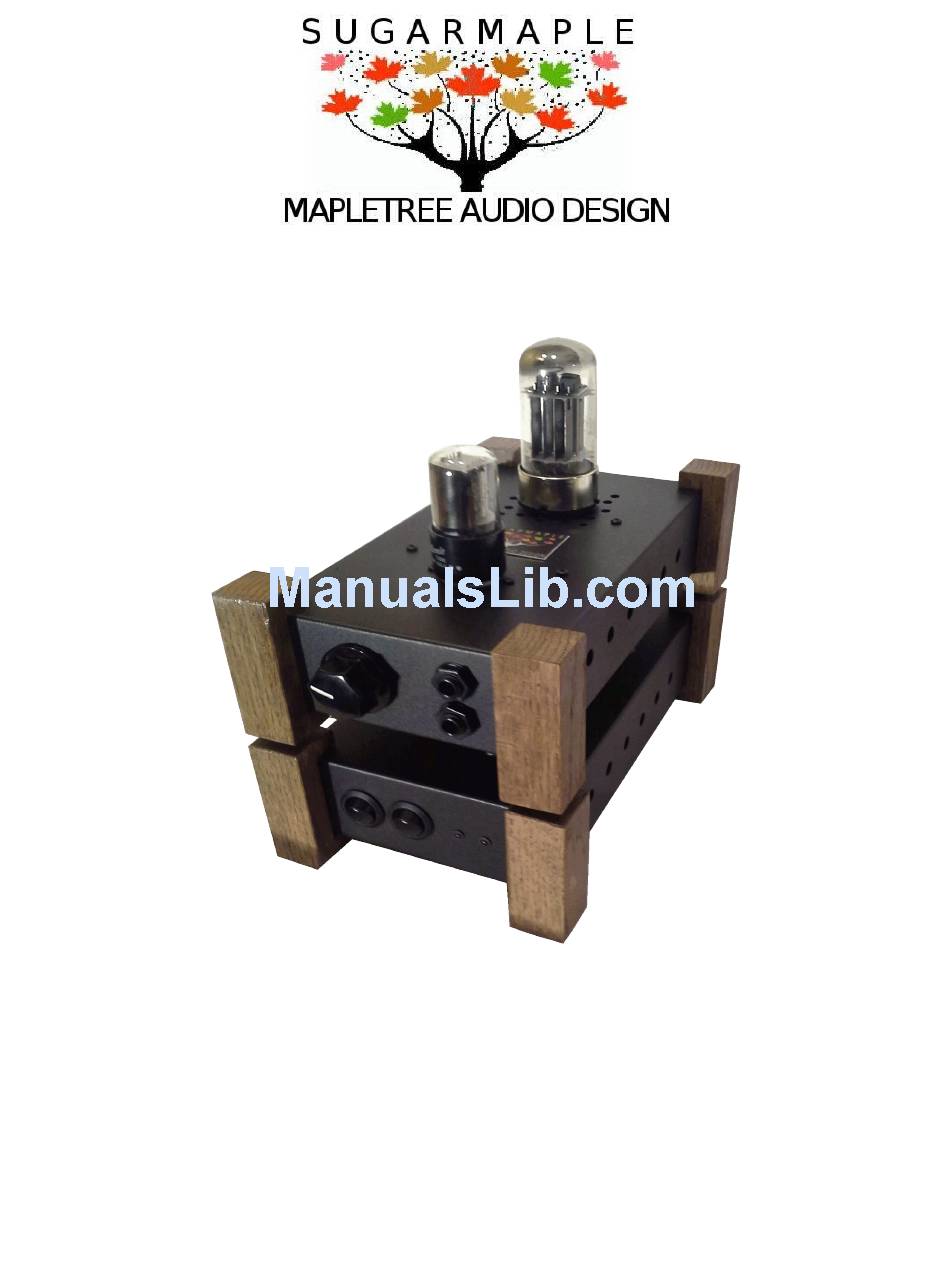

- Page 1 Octal Duo Stereo Headphone Amplifier Users' Manual Rev Oct. 12/14 Mapletree Audio Design Al Freundorfer R. R. 1, Seeley's Bay, Ontario, Canada, K0H 2N0 (613) 3873830 www.mapletreeaudio.com info@mapletreeaudio.com © Copyright Al Freundorfer 2014...

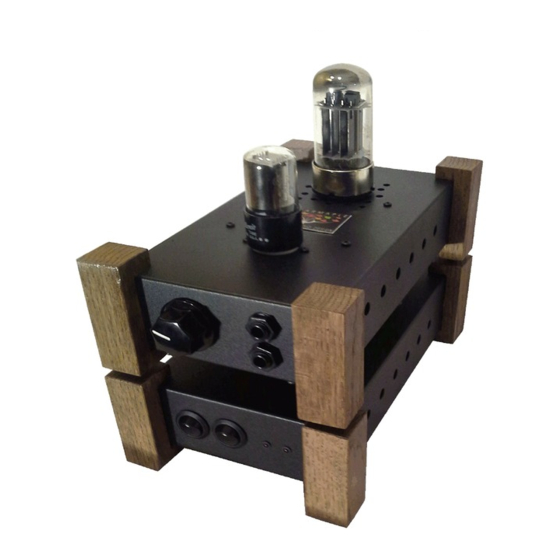

- Page 2 Introduction The Mapletree Audio Design Octal Duo (OD) 300 Stereo Headphone Amplifier represents a high performance development of an octalbased headphone amplifier. The use of a high capacity power supply provides increased power output and a lower driving impedance employing a widely available 6AS7G/6080 output tube and 6SL7/5691 driver. The separate power supply chassis allows flexibility in positioning each unit and reduces the heat seen by components in the main amplifier chassis. Premium components include Tantalum film resistors in the driver stage. Input/Output Connections The standard IEC line cord is attached to the receptacle on the rear panel of the OD300 power supply. It is compatible with a 120 VAC line with a frequency of 50–60 Hz. A 1A/250 V fuse provides primary protection for the power supply. It is located under the chassis and can be accessed by removing the bottom cover of the power supply with the unit unplugged and waiting 3 minutes after powering off. Under normal conditions, it should not be necessary to replace the fuse. If power fails to come on, you can check the fuse and replace with a spare if necessary. If the fuse blows a second time, you should not try to operate the unit. Contact Mapletree Audio Design for information regarding service. DC Power AC Power Output Input Fuse Tray The power supply is connected to the amplifier chassis with the supplied power interconnect cord. Never power on the power supply without making this connection. The two chassis may be stacked or separated as permitted by the power interconnect cord. The power switches are located on the front panel of the power supply. The heater switch needs to be turned on first. Allow the heater to warm up for about one minute before turning on the high voltage switch. This will increase the life of your vacuum tubes. The LED pilot light indicates the power on condition for the heater and high voltages. Both lights have to be on for the OD300 to be functional. Switch the high voltage off first and wait for about 10 seconds to allow the high voltage capacitors to discharge. Lastly, switch off the heater supply. The heater supply is not a standby switch. If one leaves the heater switch on, it will eventually burn out. The RCA jacks allow connection to a linelevel stereo source (e.g. CD player) while maintaining the connection to the regular amplification system. The input impedance is 50 k which is compatible with Ω...
- Page 3 LED Heater LED High Voltage Power Indicator Power Indicator High Voltage-On Switch Heater-On Switch (Switch on second. After both heater switch and high (Switch on first. Allow 50 seconds to voltage switch are on, the OD300 is operational. warm up the heater before switching on Switch off first.
- Page 4 The headphone output jacks are two standard " stereo phone jacks. The high impedance output (HiZ) gives the most power output before clipping occurs but has a higher output impedance. The low impedance output (LoZ) gives less power output before clipping occurs but has a lower output impedance. If your headphones are terminated in a 1/8" plug, an adapter is required (usually supplied with your headphones). Headphone impedance from 16 to 300 are suitable for use in both the HiZ Ω and LoZ outputs. 1/4” Headphone Jack HiZ Volume Control Min. Volume: 1/4” Headphone Full Counter-Clockwise Jack LoZ Max. Volume: Full Clockwise Controls The signal level in both channels is controlled simultaneously by the volume control on the front panel of the OD300 amplifier. Tubes A tube burnin period of several hours may be needed to achieve the best sonic performance. Tube life should be thousands of hours. Aging tubes may result in a reduced gain in one or both channels or an increase in noise levels. Infrequently, a heater may burn out which is indicated by total loss of sound. The OD300 is supplied with 1 – 6SL7 (driver) and 1 – 6080 (output) tube. Replacement tubes can be obtained from several suppliers in the U. S. and Canada. Both types are currently manufactured and are also available as new old stock (NOS). Some listeners enjoy trying different brands and variants of tubes. The greatest sonic variation will occur with different driver tubes. The 6SL7 should have matched sections so as to have a balanced right and left channels.
- Page 5 Warranty Factory assembled MAD components are warranted for 2 years to the original purchaser for failure of all parts (excluding tubes). Tubes are warranted for 90 days exclusive of shipping cost. Service, including parts and labor (but excluding shipping), is free within the warranty period. 6AS7G or 6080 6SL7 or 5691 Back Front Additional Notes This manual is an aid to the user for the operation of the OD300. Details of the amplifier and power supply circuits are subject to change without notice so as to achieve the best possible performance. The schematic is only representative of the actual amplifier and component manufactures, model and values may vary. ...
- Page 6 MAD OD300 Custom Measured Frequency response at 0.2 Vrms HiZ output into 32 Ohms headphone load: Right Left 1000 10000 100000 Frequency [Hz] Maximum undistorted HiZ output at 1 kHz: Po(max) Rload 1.4 W 16 Ω 1.0 W 21 Ω 0.7 W 32 Ω 0.1 W 300 Ω...
- Page 7 Overload characteristic (1 kHz, 21 Ohm load HiZ) =4.5 Vrms =5.0 Vrms Measured output impedance at 1 kHz: LoZ 1.1 and HiZ 2.1 Ω Ω Input impedance: 50 kΩ Hum and noise at output: less than 3 V rms (120 dB below max. output) Recommended load impedance: 16–600 Ω Phase: noninverting Power consumption: 90 W, 120 VAC ( 240 VAC Europe) 5060 Hz...
- Page 8 MAD OD300 Headphone Amplifier Version:5c © Copyright Al P Freundorfer 2014 Rev. October 2014...
