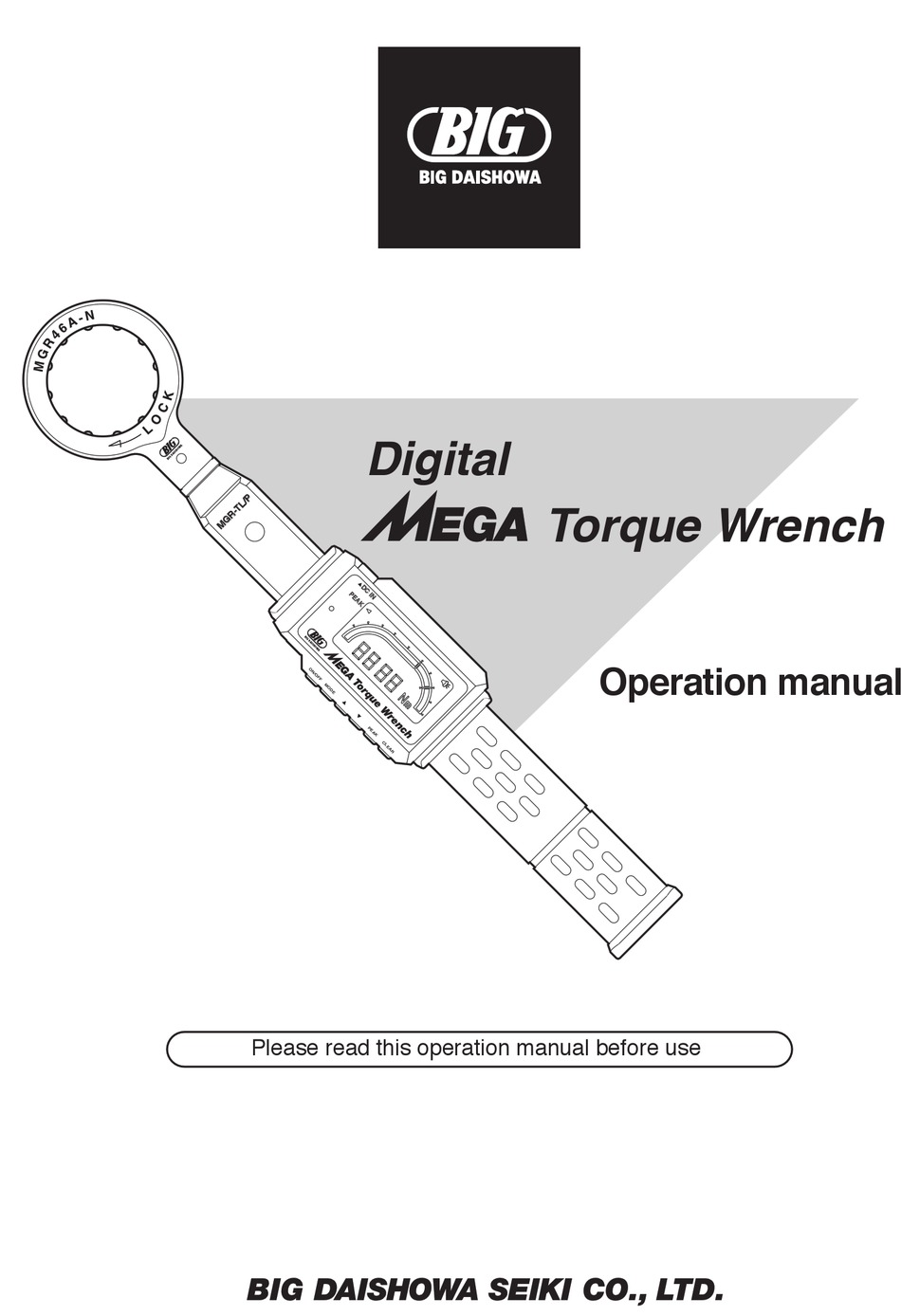

- Page 1 Digital Torque Wrench Operation manual Please read this operation manual before use...
-
Page 2: Table Of Contents
Digital MEGA Torque Wrench Operation Manual Thank you for your purchase of Digital MEGA Torque Wrench. Please be sure to read this manual before using the product and also keep it in a location where all the operators may consult it in case of necessity. - Page 3 SAFETY NOTES The following safety notes are arranged in order to use our product correctly and to protect the operator and other people from possible injuries and damages. In order to distinguish the severity of the injuries or damages, the safety notes are divided in two categories: “Caution”...
- Page 4 SAFETY NOTES Caution 1. Concerning the handling of product Store the product accurately when you Do not use or store the product in the following locations. do not use it. ・ Locations with high humidity and elevated Do not let enter metallic or inflammables ...
-
Page 5: Names
NAME OF THE PART LCD Display Recharging jack 1. Names MEGA Wrench Adapter Effective length line (Force point) Grip Operation panel MEGA Wrench Adapter Handling panel MEGA chuck series exclusive adapter. The adapter Each operation is executed using the panel’s buttons. is provided with one-way clutch. -
Page 6: Outline Of The Operation Modes
OUTLINE OF THE OPERATION MODES The Digital MEGA Torque Wrench is provided with two modes: the “Working mode” to perform the actual tightening operation and the “Setting mode” to select the recommended torque suitable for the collet chuck. The outline of each operation is explained in this section. 1. - Page 7 OPERATION PROCEDURES 1. Installation of the adapter Align Align the ball and the pin of the torque wrench’s tip to the respective holes of the MEGA Wrench Adapter and insert it until you hear a “click”. Select the MEGA Wrench Adapter compatible with the collet chuck used from the below table.
- Page 8 OPERATION PROCEDURES 3. Tightening operation ● For safety reasons, when tightening the nut, secure the holder to a tool clamping device (BIG Tooling Mate, etc.) and proceed with the operation. 1）Positioning the wrench Insert the wrench into the nut with the LCD facing up. ※ ...
- Page 9 4. Setting of the tightening torque In case of tightening a collet chuck with a different size, replace the adapter or modify the wrench’s settings. Caution Before tightening, always check the setting and be sure to execute the tightening operation with the correct setting.
-
Page 10: Recharging Procedures
OPERATION PROCEDURES 5. PEAK hold setting 1）Changing the settings Non-Active It is possible the PEAK hold function used by pushing the PEAK button on the operation panel. Active 2）Clearing the measured result When the PEAK hold function is Before executing a new work, The digits on the LCD are reset worked, the previously measured push the CLEAR button to clear... - Page 11 SPECIFICATIONS Effective length 268 Total length DC IN DC IN PEAK PEAK ON/OFF MODE PEAK CLEAR ON/OFF MODE PEAK CLEAR ON/OFF MODE PEAK CLEAR Torque Wrench body MGR-TL/P 10-50N m Torque setting range Minimum read (digit) 0.01N m 7 LCD segments 4 digits, numerical display Display 20 LCD segments...
- Page 12 EXPORT DEPARTMENT ( +81 ) -72-982-8277 E-mail export@big-net.ne.jp NO.0718...
