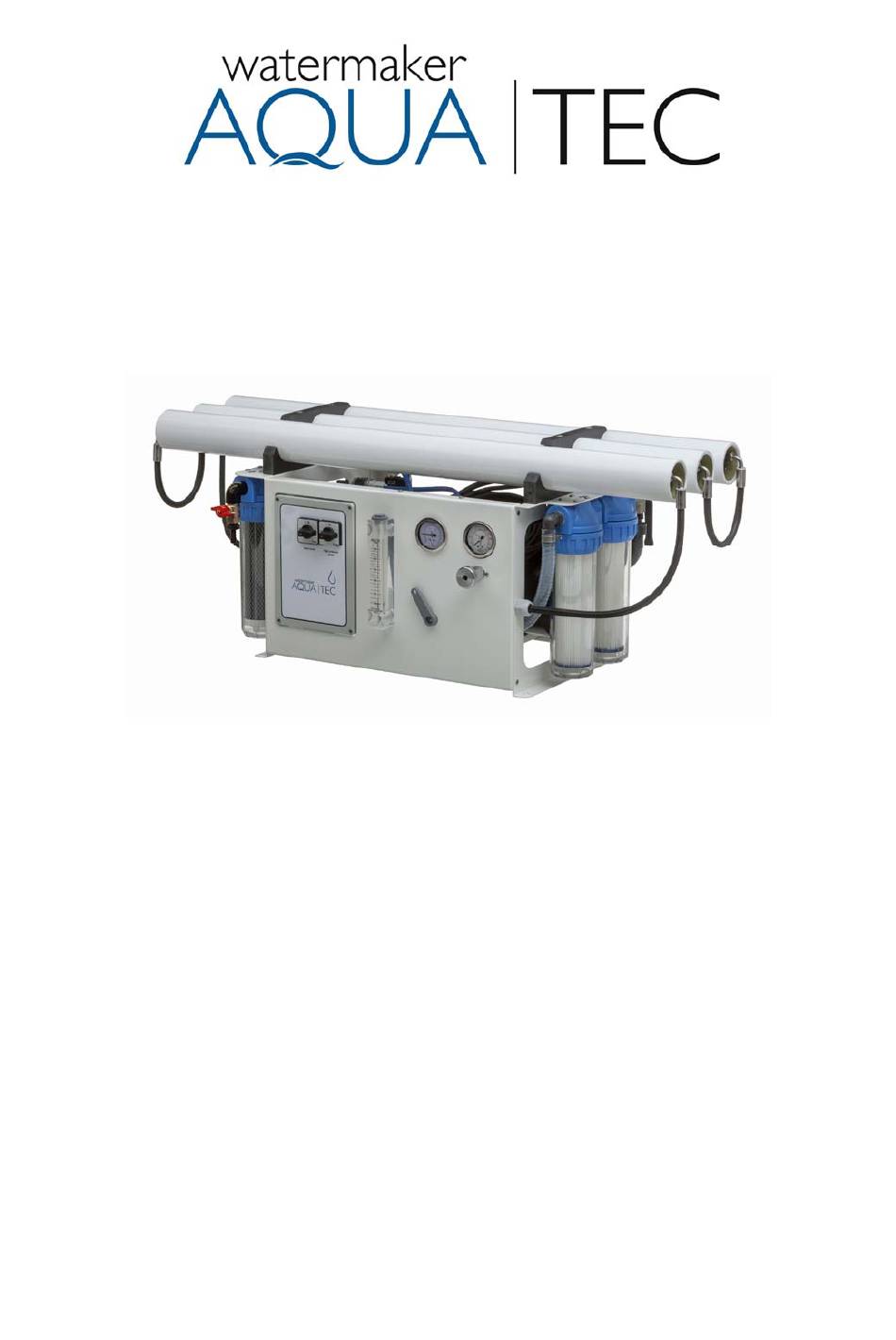

- Page 1 Manual Aquatec Watermaker KC 150/190/ 240 Compact 230 or 400 volt 50 Hz Version 25 -10.2019...
- Page 2 Thank you to choose an AQUATEC Watermaker for the provisioning of fresh water on your boat. AQUATEC equipment is made from high-quality components exclusively and has proven its reliability on long cruising-yachts. We are convinced that our product will serve you for many years without interferences.
-
Page 3: Table Of Contents
Table of contents Hints Introduction reverse osmosis Overview scope of delivery 6 - 7 Operating instructions 8 - 9 Switch off the system fresh water flush 10 - 11 Long term preservation (mothballing), antifreeze Membrane cleaning 13 - 15 Installation guide 16 - 17 Electrical connection Important: Maintance... - Page 4 Introduction The principle of reverse osmosis (RO) In natural sciences and technology, osmosis is perceived as the directed migration of molecules through a semi permeable membrane. The chemical and physical structure of the membrane determines which molecules are able to pass and which are not. For this reason, it is called semi- permeable, which means as much as halfway or partial permeability.
- Page 5 Gauge working pressure Scope of delivery Aquatec Watermaker compact plant (fully assembled), connection cable 1.5 meter, External feed pump (inc. 4 meter connection cable and waterproof plug), 1 pc. valve 3/4" (inc. tee), 5 meter pvc hose 3/4", 5 meter pvc hose 1/2" and hose clamps. 3 way valve, tank for conservation and cleaning.
-
Page 6: Operating Instructions
Open the seawater intake valve (no.10). 2) The pressure control valve (no.5) in the control panel has to be fully opened by turning counter clockwise. Attention: Never start your Aquatec with closed pressure control valve! Starting with a closed valve destroys the pressure reading and possibly essential parts of the equipment. - Page 7 Flowdiagram fresh water production, working pressure max. 55 bar Valve for circulation Onboard pressure water pump three-way valve product water Feed pump Valve fresh water flush Gauge feed pressure three-way valve Sea cock Pressure regulation valve Gauge working pressure Flow meter product water High pressure pump Note: The drinking water production changes according to the salinity, the temperature of the seawater and...
-
Page 8: Switch Off The System Fresh Water Flush
7-14 days. This process can be repeated as desired to avoid the use of chemicals. Caution: Prior to a longer period of shutdown (without flushing), the Aquatec has to be preserved with the chemical no. 3 (Biocide). For instructions, see “Long term preservation (mothballing) of the plant”. - Page 9 Flowdiagram fresh water flush. Working pressure 0 bar. Valve for circulation Onboard pressure water pump three-way valve product water Feed pump Valve fresh water flush Gauge feed pressure three-way valve Sea cock Pressure regulation valve Gauge working pressure Flow meter product water High pressure pump...
- Page 10 Attention: Working pressure 0 bar. Description: Prior to a longer period of shutdown, the Aquatec has to be preserved with chemical no. 3 (Biocide). After mothballing, the plant can be shut down for 6 months, depending on the environmental conditions.
- Page 11 Long term preservation (mothballing) of the plant (2) Hint: In order to avoid possible deposits in the pumps, it is advantageous after preserving the membranes to remove the high-pressure hose at the outlet of the HP pump and to wash out the system with fresh water again, this time without the connected membrane.
-
Page 12: Membrane Cleaning
9) If there is no change in freshwater output, repeat the procedure 1 to 7 with chemical no. 2 (Acid). Attention: Prior to a longer period of shutdown, the Aquatec has to be preserved with Biocide after cleaning and flushing. -
Page 13: Installation Guide
Installation guide page 1 Note: The already assembled membranes can be stored for approx. 5 months in the sealed pressure tube, preferably cool, but preferably not above 20 ° ambient temperature. However, we recommend installing and using the watermaker as soon as possible. Installation of the plant: Install the plant horizontally and safe on a flat and vibration-free underlay. - Page 14 Installation guide page 2 Connection concentrate (brine) Connect the access (A4) of the plant to a thru-hull fitting on-board with a hose 1/2“=13 mm inner diameter. Attention: This thru-hull fitting has to be located above the waterline and must not be closable. The material for the thru-hull fitting may not be made of acetal.
- Page 15 Installation guide page 3 Attention: If the inlet is installed below the tank waterline chlorinated water (that possibly entered the tank at the last shore water fill up) might flow back from the tanks into the membranes. As chlorine destroys the R.O.
-
Page 16: Electrical Connection
Supply line from the junction box to the feed pump: 3 G x 1 mm² (AWG 17) Fuse: 230 Volt 50 Hz, 16 Ampere 115 Volt 60 Hz, 32 Ampere 230 Volt Circuit diagram for Aquatec- Watermaker KC 150 / KC 190 / KC 240... - Page 17 Electrical connection 400 Volt Circuit diagram for Aquatec- Watermaker KC 150 / KC 190 / KC 240 3 phase 400 Volt motor star circuit connection AC motor connection diagrams. Single phase motor 230V 50 Hz. Run capacitor Single phase motor 230V 50 Hz Run capacitor (C) without start capacitor.
- Page 18 Maintenance Daily control if there are possible leakages or if the oil has a whitish discoloration is necessary. In operation, regularly check all hose connections and hp pump for leaks. Dipstick full Important: Check oil level and condition screwed into of the oil of the high-pressure pump crankcase daily.
- Page 19 (brine) Demounting the membrane: For demounting the membranes, screw off the M6x20 screws each at both ends at the AQUATEC pressure vessel. (Screw tightening torque for the holding clips 3 Nm). Then take off the stainless steel holding clamps. Thereafter, pull the end caps out of the pressure pipe with a slight pull at the stainless steel-fittings of the pressure hoses and slightly sidewise movements.
-
Page 20: Troubleshooting
Troubleshooting Noisy operation, vibrations, unsteady pressure. Air in system ** Bleed system ** Intake clogged Clean intake Prefilter dirty Clean or replace filter Feed pump defective Replace feed pump Valve defective or soiled *** Open valve caps and check valves, replace valves *** Pressure regulation valve dirty Clean valve Production falls... - Page 21 HP pump performance in liters per minute at 55 bar working pressure: KC 150- 240, 12-15 liter/minute Note: The drinking water production changes according to the salinity, the temperature of the seawater and the age of the R.O.
- Page 22 Clamping torques and spare part-numbers high-pressure pump Note: When ordering spare parts, please name the serial number of the pump head necessarily. Crankcase 14 15 Secure with Loctite 270 built up to 2018 No.13 right side for belt drive only Attention: To unscrew nut no.
- Page 23 Typ DC320-500-800, DD500, AC65-110 141472 Metal cover 141473 Oel eye plastic Seal holder ss 18 mm 141425 Typ AC75 - 135 - AC/KC 150 - 190 - 240 141494 O-Ring 55.56x3.53 NBR70 141495 141501 (Kit 110) O-Ring 56.82x2.62 NBR70 O-Ring 28.3 x 1.78 NBR 70...
-
Page 24: Specification / Hose Dimensions
Specification Aquatec Watermaker are designed for use in clear seawater only. Technical data – AQUATEC Watermaker KC 150 bis KC 240 Membrane type 2 up to 4 pc. Seawater SW 2540 Membrane Polyamide Thin-Film Composite Working Pressure 3-4% salinity, max. 55 bar... -
Page 25: Dimensions
Dimensions... -
Page 26: Connection Diagram Membranes
Connection diagram membranes Below high pressure connection diagram membranes. KC 150 KC 190 KC 240... - Page 28 Manufacturing and marketing by AQUATEC-Watermaker, Owner Joachim Matz, Buergerm.-Schinkel-Str. 10a , 25348 Glueckstadt, Germany. Tel: +49(0)151 50933262 Mail: sup@aquatec-watermaker.de web: www.aquatec-watermaker.de Copyright Joachim Matz...
