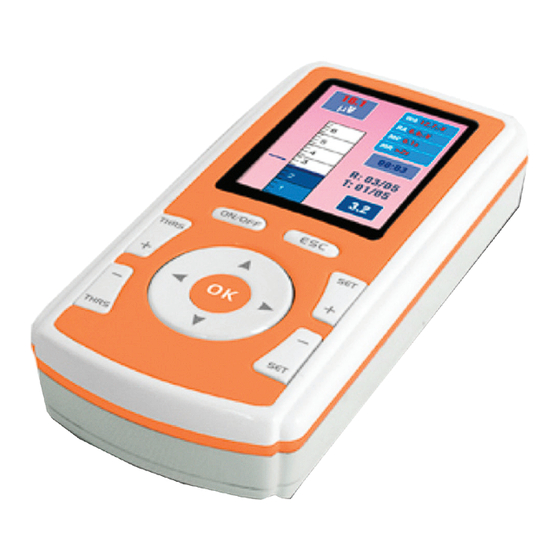

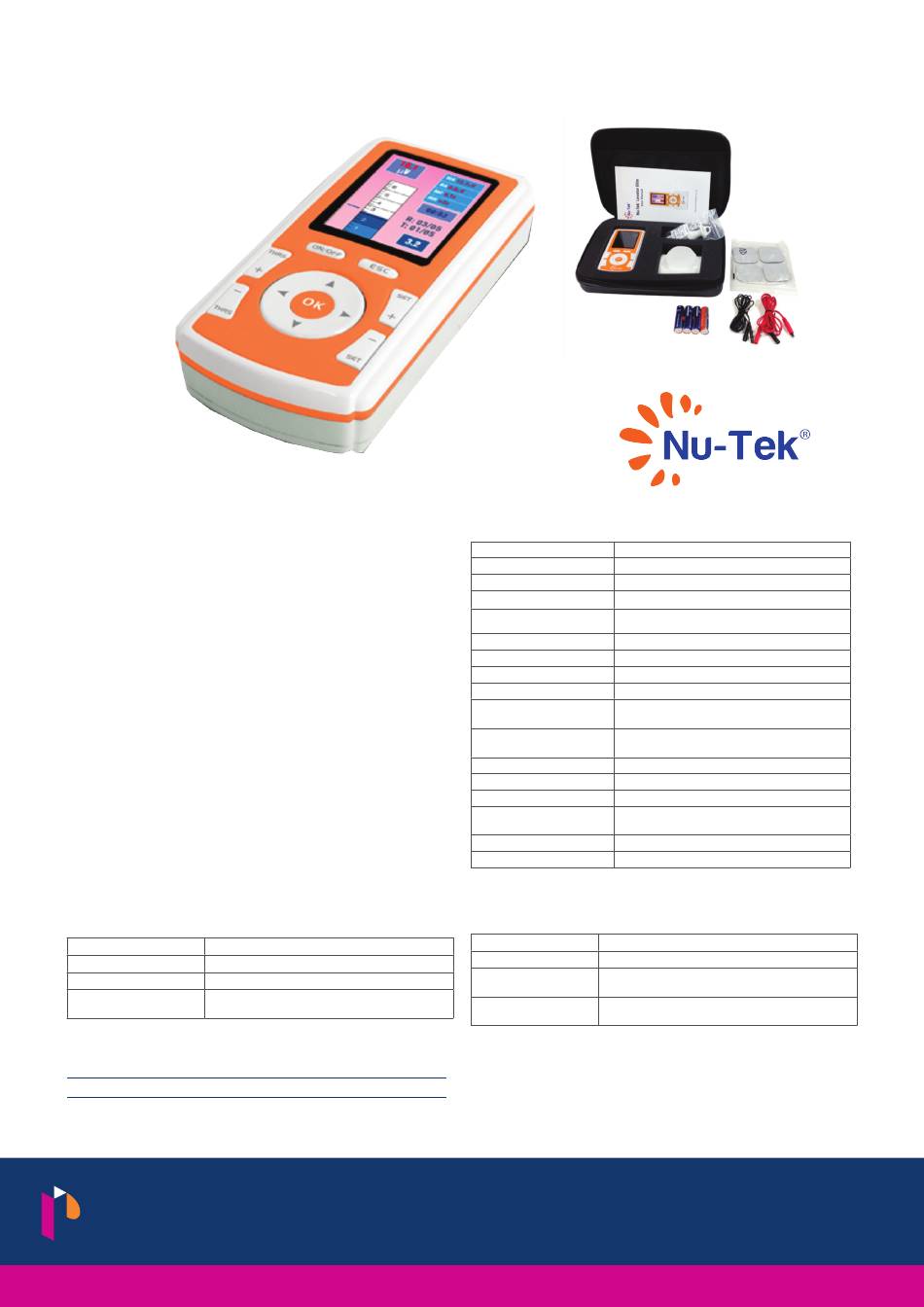

Nu-Tek® Levator Elite
Single Channel EMG, EMS & ETS
• EMG Triggered Stimulation (Passive +Active), Muscle
Stimulation and EMG Modes
• One channel EMG and One channel EMS stimulation
• One channel ETS with stimulation on one channel
• Nu-Tek scale scoring for Pelvic Floor Muscle and used as
an assessment tool
• Programs for Incontinence treatment, Pelvic floor muscle
development and neuromuscular Rehabilitation
• User programs for EMG/ETS (1 phase) and STIM (up to 5
stimulation phases) mode
Application:
• Promote continence
• Improve Pelvic floor Exercise
• Re-educate the Pelvic muscles
Standard Accessories:
NULEADPATRD
Nu-Tek Patient Lead- Red
NULEADEARTH
Nu-Tek Earth Lead - Black
ACPROBEV
Incontinence Probe - Vaginal
ACF35050
AllCare Electrodes - 5cm x 5cm - Square-
Self Adhesive
Code:
Description:
NULEVATOR
Nu-Tek® Levator Elite
physiosupplies.co.uk
The Warehouse Beck Bank West, Pinchbeck, Spalding, Lincolnshire, PE11 3QN
Levator Elite LE9011
Specifications:
Power Supply:
1.5V AA batteries, 6V
Low Voltage Warning:
≤4V±0.2V
Dimensions:
139mm×68mm×33mm (L*W*H)
Weight:
156g (without batteries)
EMG: One Channel:
EMG Range:
0.2 to 2000μV
Sensitivity:
0.1μV
Accuracy:
4% of μ V reading, +/- 0.3μV at 200 Hz
Work/Rest Periods:
2-99 seconds
STIM: One Channel:
Stimulation Intensity:
90V±10V (V max), Adjustable from 0 to
90mA (on 1000Ω)
Pulse Width:
50-450μS (2% accuracy)
Pulse Rate:
2-100Hz (2% accuracy)
Work/Rest periods:
1-99 seconds
Ramp Time (up and
0.1-9.9 seconds
down):
Treatment Time:
1-99 minutes
Programs
Pre-set: 11 Customs:3
Optional Accessories:
NUSOFTWARE
Nu-Tek Biofeedback Software
ACPROBEA
Incontinence Probe - Anal
ACF35090
AllCare Electrodes - 5cm x 9cm - Rectangle
- Self Adhesive
ACF350R
AllCare Electrodes - 5cm - Round
- Self Adhesive
REDEFINING
| PHYSIOTHERAPY | FITNESS | MEDICAL
Phone: 01775 640972 Email: sales@physiosupplies.co.uk
