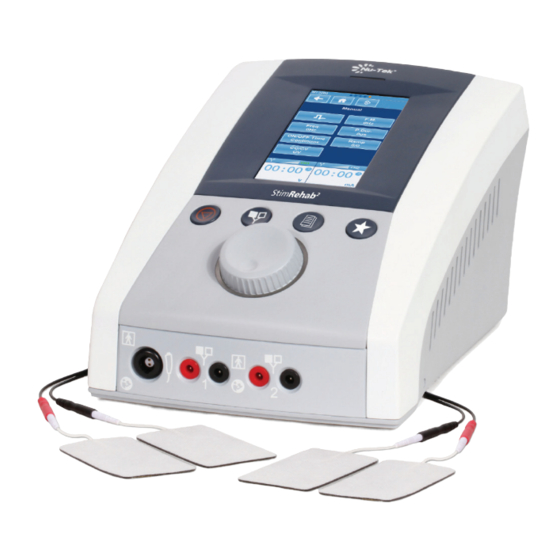

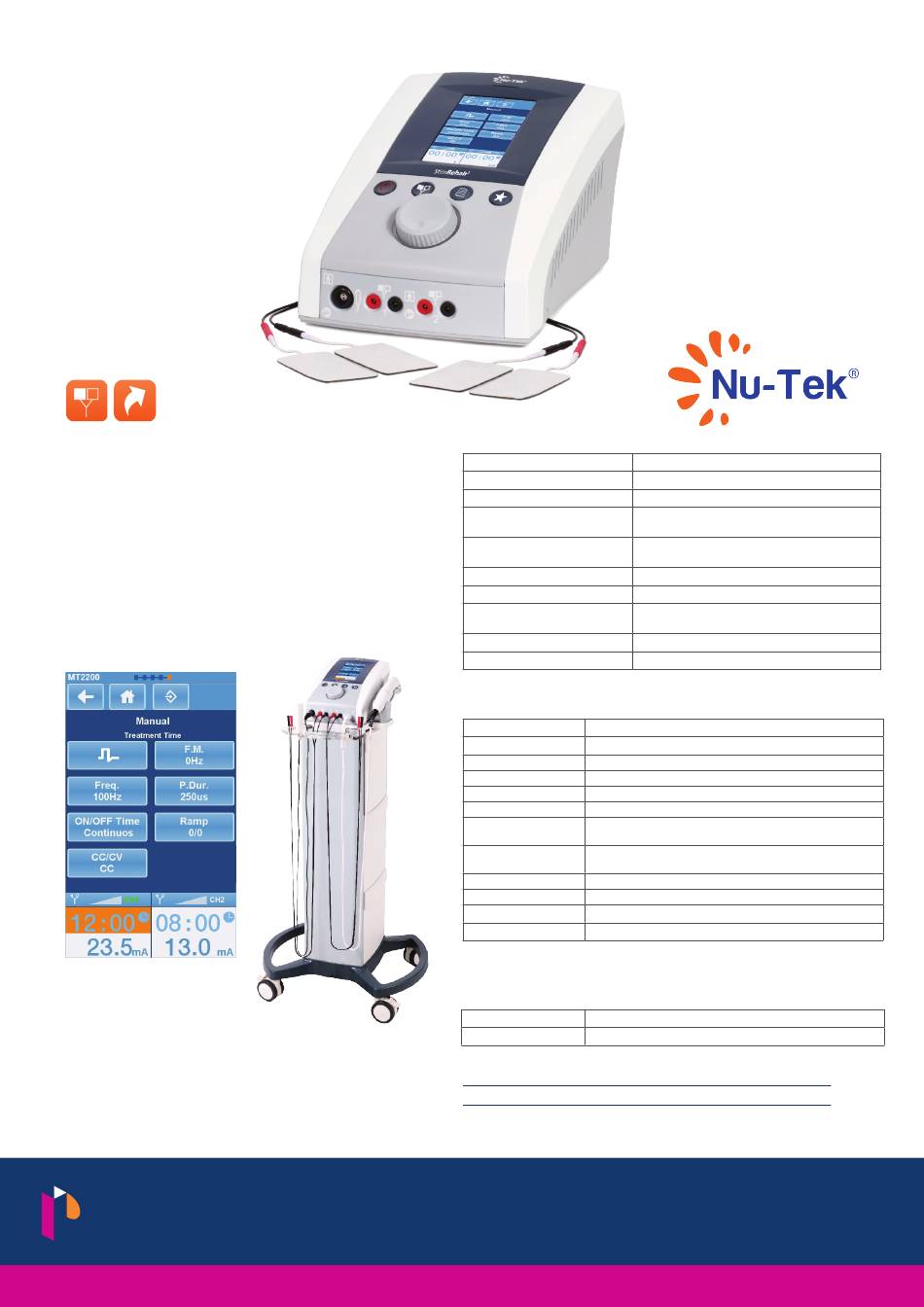

Nu-Tek® Stim Rehab2 − MT2200
Two Channel Electrotherapy
Features & Benefits:
• Provided with the most common currents: 4-pole IF, 2-pole
IF (Premode), NMS,Russian, Biphasic (TENS), Hi-Voltage
(HV), Microcurrent (MCR), DC: Galvanic, Faradic,
Diadynamic (DF, MF, CP, CP-ISO, LP, RS)
• Touch screen for easy operation
• 2-channel simultaneous monitoring
• 42 pre-set programs and 80 custom programs provided

Screen Shot:

physiosupplies.co.uk
The Warehouse Beck Bank West, Pinchbeck, Spalding, Lincolnshire, PE11 3QN
Power Supply:
Number of Channels:
IF Carrier Frequency:
Frequency:
Current Amplitude (peak):
Dimensions:
Weight:
Certification:
Safety Tests:
Electrical Safety Class:
NUPOWERCABLE
NUELECRUB6090
NUELECRUB70110 Rubber Electrodes - 70 x 110mm (Pair)
NUSPOENV70100
NUSPOENV80120
ACF35050
ACF35090
NUSTRAP751200
NUSTRAP75600
NULEADSTIMGY
NULEADSTIMBU

Optional Accessories:

Optional
Nu-Tek Trolley
NUTROLLEY
NUBATTERY
Code:
NUSTIM
Interferential Unit
AC100-240V 47/63 Hz
2 independently controllable
2 - 10 kHz
IF 1-200 Hz, Biphasic/NMS 1-250 Hz, HV
1-120 Hz, MCR 0.1-1000 Hz
IF Russian 100mA, Biphasic/NMS 200mA
HV 500 V, MCR 1000uA, DC 80mA
285mm (L) x 197mm (W) x 153mm (H)
2kg
FDA Clearance, EU MDD, CFDA, TGA, CMD-
CAS, Russian approved
IEC 60601-1, IEC 60601 2-5, IEC 60601-2-10
Class I, Type BF
Nu-Tek Power Cable
User Manual
Rubber Electrodes - 60 x 90mm (Pair)
Envelope Sponges - 70 x 100mm (Pair)
Envelope Sponges - 80 x 120mm (Pair)
AllCare Electrodes - 50 x 50mm Square (x4)
- Self Adhesive
AllCare Electrodes - 50 x 90mm Rectangle (x4)
- Self Adhesive
Nu-Tek Straps - 75 x 1200mm
Nu-Tek Straps - 75 x 600mm
Nu-Tek Stim Leads - Grey
Nu-Tek Stim Leads - Blue
Nu-Tek Trolley
Nu-Tek Battery Pack
Description:
Nu-Tek® Stim Rehab2 - MT2200
REDEFINING
| PHYSIOTHERAPY | FITNESS | MEDICAL
Phone: 01775 640972 Email: sales@physiosupplies.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rehab Series and is the answer not in the manual?

Questions and answers

Alyona
February 18, 2025

Hi. Do you have Russian instruction or Ukrainian version on PDF format or something like it?

0

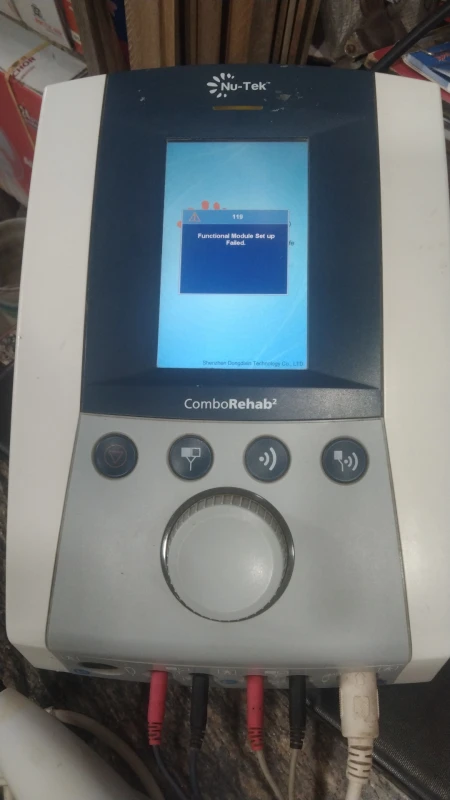

Dr prakash
