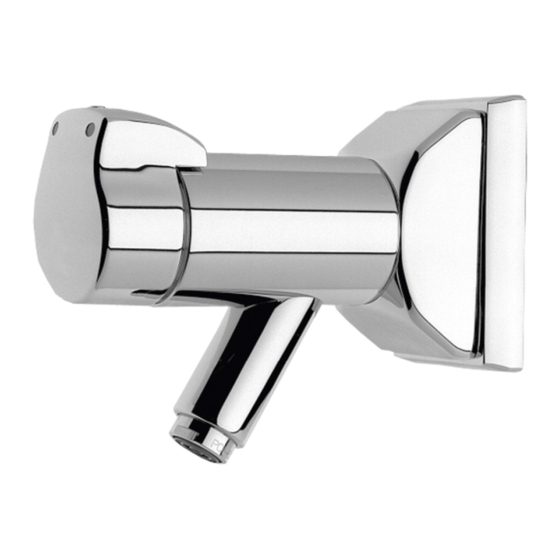

Self-closing single mixer

Advertisement

Quick Links

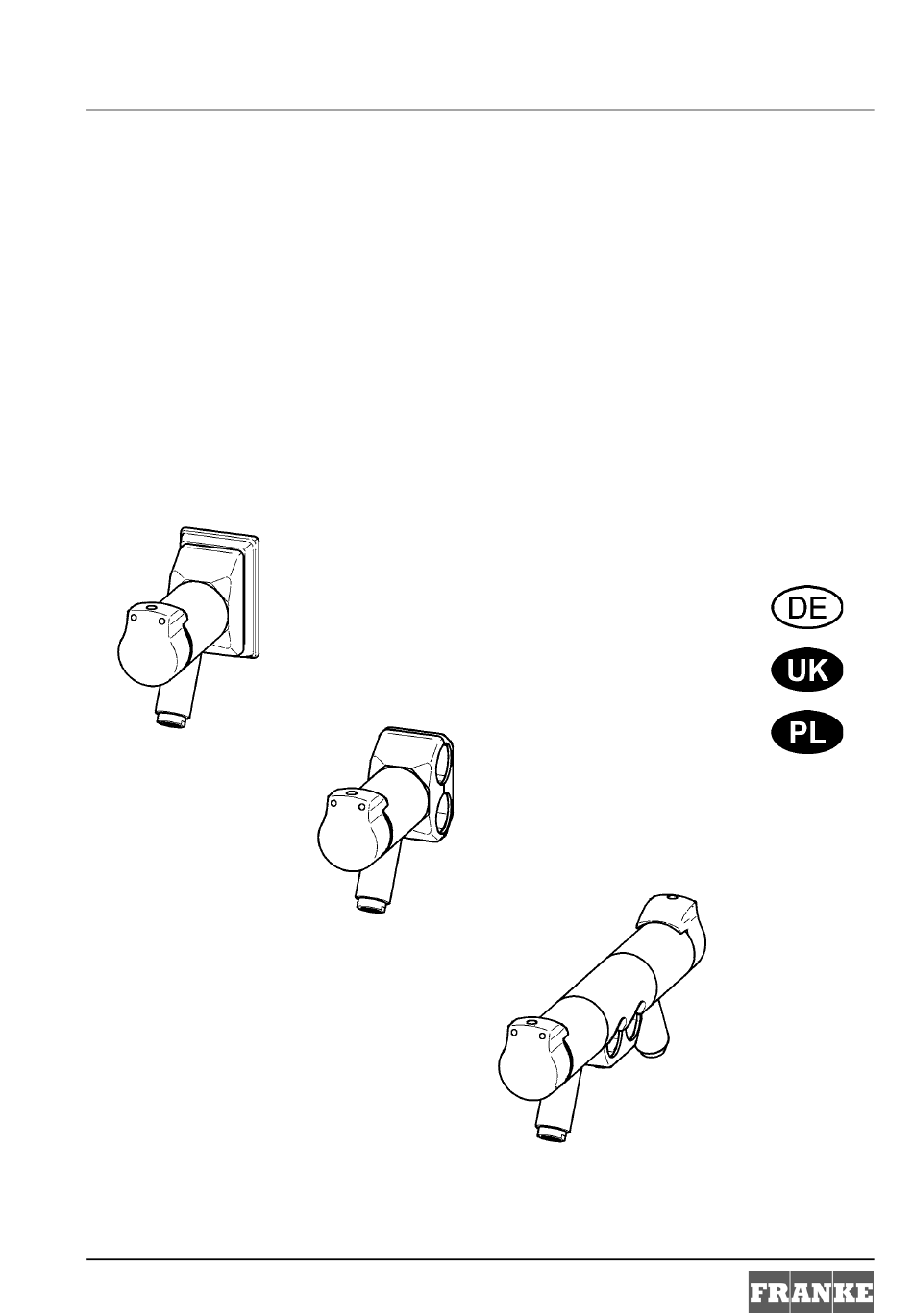

Installation and operating instructions
EA-Nr.:
7612982003028
FAR-Best.-Nr.: 2000100917
AQRM175
EA-Nr.:
7612982000515
FAR-Best.-Nr.: 2000100070
AQRM311
EA-Nr.:
7612982000522
FAR-Best.-Nr.: 2000100069
AQRM312
Franke Aquarotter GmbH, Germany
ZMI_001_2000100069-AQRM312_#SALL_#AQU_#V3.fm/24.02.12
Montaż i instrukcja obsługi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAMIX AQRM175 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Franke AQUAMIX AQRM175

  • Page 1 Installation and operating instructions Montaż i instrukcja obsługi EA-Nr.: 7612982003028 FAR-Best.-Nr.: 2000100917 AQRM175 EA-Nr.: 7612982000515 FAR-Best.-Nr.: 2000100070 AQRM311 EA-Nr.: 7612982000522 FAR-Best.-Nr.: 2000100069 AQRM312 Franke Aquarotter GmbH, Germany ZMI_001_2000100069-AQRM312_#SALL_#AQU_#V3.fm/24.02.12...
  • Page 2 ..............3 Please refer to the graphics in the German Installation and Operating Instructions..............11 Prosimy przyjąć grafikę z niemieckiej instrukcji montażu i obsługi.
  • Page 3: Table Of Contents

    0English AQUAMIX Self-closing Single Mixer 7612982003028 ..Vertical-mounted mixer tap 7612982000515 ..Single clamp-on tap 7612982000522 ..Dual clamp-on tap Please refer to the graphics in the German Installation and Operating Instructions. Table of Contents Abbreviations and Units ....... . 4 Key .
  • Page 4: Abbreviations And Units

    Abbreviations and Units Width A/F EA-Nr. European Article Number FAR-Best.-Nr. Franke Aquarotter Order Number Conversion 1 mm = 0.03937 inches 1 inch = 25.4 mm All length specifications in the graphics are in mm. Warning! Failure to observe can result in injury or even death.
  • Page 5: Technical Specifications

    Technical Specifications Minimum flow pressure: 1.0 bar Recommended flow pressure: 1-5 bar Maximum operating pressure: 10 bar Calculation flow rate: 0,07 l/s 0,07 l/s Volumetric flow: 0.10 l/s at a flow pressure of 3 bar Flow duration at 38 °C: 1-15 s adjustable Scope of Delivery Quantity...
  • Page 6: Installation (Far Order No. Aqrm311)

    10.7 Attach the fitting (k). 10.8 Secure the fitting with the grub screw (l). 10.9 Turn on the water supply. 10.10 Check the connections for leaks. 11. Installation (FAR Order No. AQRM311) Warning! Use the fitting only with the non-return valves and the grit filters specified. Failure to observe can result in an increased bacterial load in drinking water and cause a health risk or even risk of death.
  • Page 7: Function

    12.1 Drill 14 mm holes into the distribution pipes (b). 12.2 Place the clamper (a) and seals on the pipes, and then screw-fasten from below with the clamp cover (c). ☞ Apply grease to the O-rings on the guide bushing! 12.3 Insert the grit filters (d) and the guide bushings (e) into the clamper (a).
  • Page 8: Setting The Temperature Limiter

    15. Setting the Temperature Limiter Warning! If the hot-water supply temperature is more than 45 °C, set the temperature limiter. Failure to observe can cause bodily harm due to scalding. ☞ The temperature limiter is not a scald protector. 15.1 Remove the push-cap handle (siehe Kapitel 14.).
  • Page 9: Replacing An Aerator

    17. Replacing an Aerator 17.1 Unscrew the aerator (a). 17.2 Screw on the new aerator. 18. Replacing the Grit Filters 18.1 Remove the fitting (siehe Kapitel 16.). 18.2 Pull out the guide bushings (a). 18.3 Replace the grit filters (b). ☞...
  • Page 10: Fault Correction

    21. Fault Correction Fault Cause Remedy ➯ Open it Water does not flow – Stop valve is closed ➯ Replace it – Functional part faulty ➯ Replace it Water flows conti- – Functional part faulty nuously ➯ Clean it – Aerator calcified ➯...
