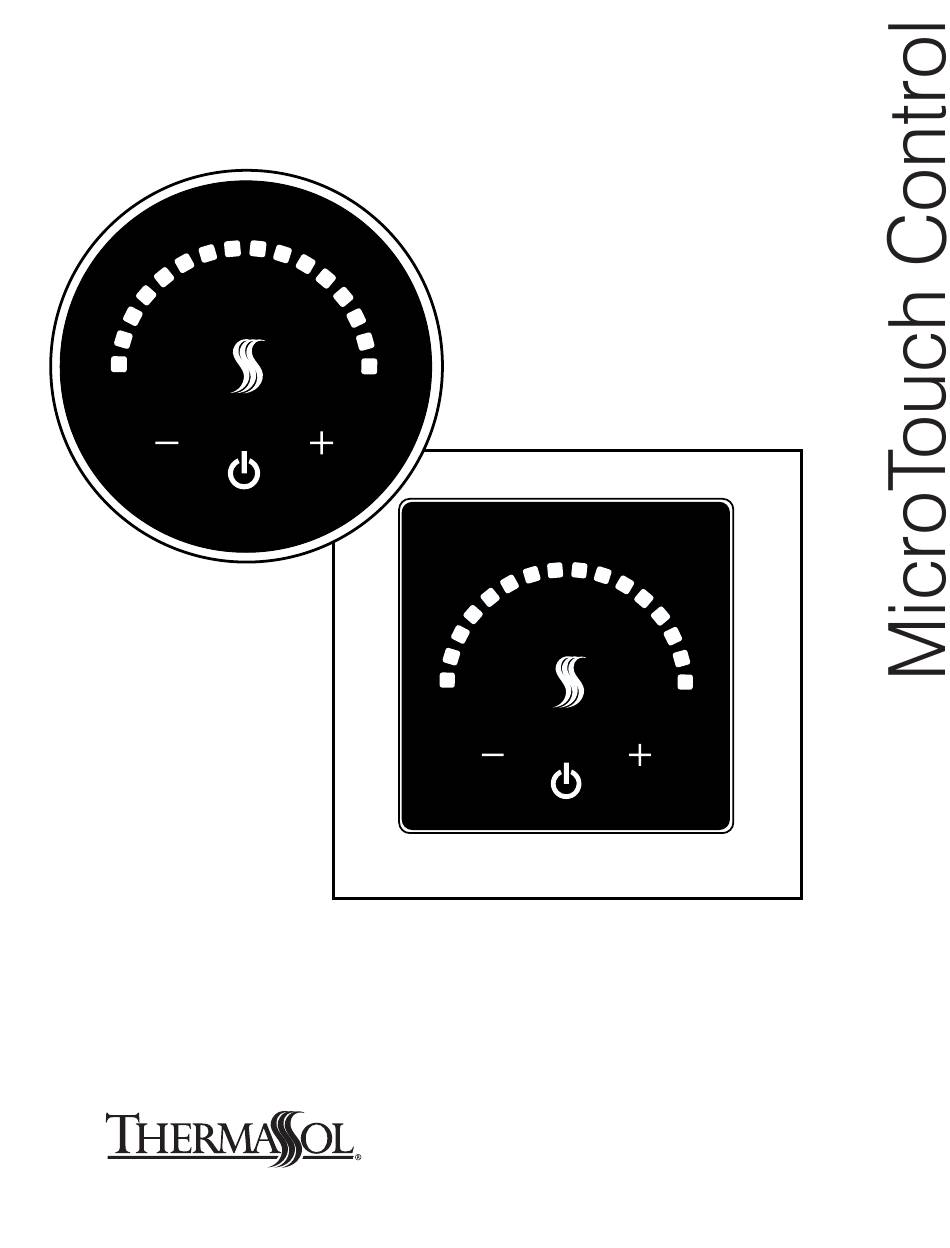

- Page 1 Installation Operation Manual thermasol.com/solutions OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 2 NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL OCCUR. DO NOT USE THERMASOL AROMATHERAPY OILS, SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
-
Page 3: Tools And Materials
MicroTouch Control and Steamhead Installation Instructions Tools and Materials Parts enclosed with the generator Controller Silicone 50-foot control data cable (included Installation instructions, warranty, (Round style shown here) with Pro or AF Series generator) static cling warning label Item 03-6152-050... - Page 4 MicroTouch Control and Steamhead Installation Instructions Control Installation and Data Cable Connection Back of Control Route the data cable (included with generator) through the finished wall to the back side of the control. (The other end of the cable runs to the steam generator location.)
- Page 5 MicroTouch Control and Steamhead Installation Instructions Sealing Control THESE STEPS MUST BE TAKEN FOR CORRECT INSTALLATION of the control. Coat the entire groove on the control back with supplied waterproof silicone to fully seal the control to the wall. Completely seal the control to the wall so moisture does not collect behind it.
-
Page 6: Steamhead Installation
MicroTouch Control and Steamhead Installation Instructions Steamhead Installation Steamhead Location DO NOT install the steamhead near the seating area or the user. DO NOT forget to install the steamhead rough-in fitting! important that the pipe is firmly secured to the wall, so I nstallthesteamhead24"fromthefloororbathtubrim... - Page 7 MicroTouch Control and Steamhead Installation Instructions Once the shower wall is complete and the housing Use supplied o-ring lubricant to assist in steam head is sealed to the wall, remove the protective cap and installation. A very small amount is all that is need directly insert the steamhead into housing.
-
Page 8: Operation
MicroTouch Control and Steamhead Installation Instructions Operation Taking a Steam Bath On your ThermaSol MicroTouch Control, touch and release the power icon twice to power on. To turn off Power Flush the steam unit touch and release the power icon once. - Page 9 MicroTouch Control and Steamhead Installation Instructions Read warnings on page 2. For illustrative purposes only. Consult with qualified professional for steam room construction details. THERMASOL.COM 800.776.0711...
- Page 10 1958 STEAM WAY ROUND ROCK, TX 78665 PHONE: 800.776.0711 | FAX: 800.556.5257 | WWW.THERMASOL.COM 81181 C...
