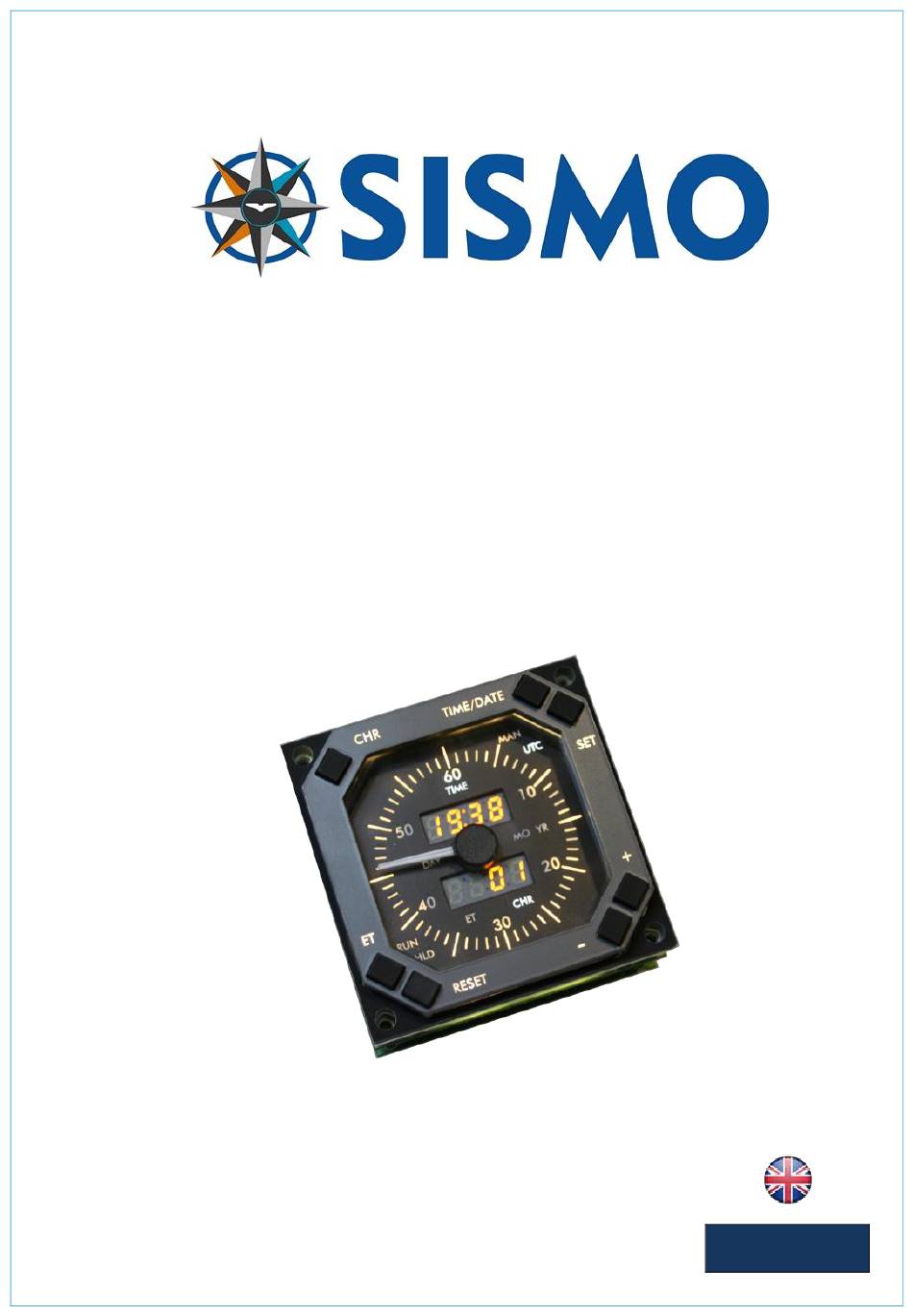

- Page 1 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 Rev. 2.2 ©2005-2018, Sismo Soluciones All rights reserved...
-
Page 2: Table Of Contents
TIME/DATA Configuration ......................... 7 Elapsed Time ........................... 10 Chronograph Function ........................11 Measurements ............................12 Available Products ........................... 13 Pictures ............................13 FAQ ................................14 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 2 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx... -
Page 3: Definitions And Acronyms
INTRODUCTION This 737NG Clock V3.5 from Sismo is a "stand alone" module and is fully operational without the need to be connected to any I/O card or PC. It uses a battery to keep time and it can be adjusted by the user. The clock operates like the real one and includes the modes: MAN/UTC, DAY/MO/YR, ET/CHR, RUN/HLD. -
Page 4: Installation
There are two options for supplying electricity to the clock: CAUTION! Keep hands out of the PCBs (backpanels) while the 737NG Clock is switched ON A) If the 737Clock is NOT going to be dimmed with an extra “dimming circuit” for backlight * Connect U8 jumper. -
Page 5: Maintenace
The type/brand of this battery has to be CR2032 3V. It’s a standard battery that you can buy in any hardware store of your city. FUNCTIONALITY The clock has got 3 fundamental functions: TIME/DATE ELAPSED TIME CHRONOMETER 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 5 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx... -
Page 6: Time/Date Function
The MAN date must be set according to the geographic zone where the clock is going to be used. Once the MAN date is set, it will not be necessary to re-establish it until the battery of lithium needs to be replaced. 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 6 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx... -
Page 7: Time/Data Configuration
6. Once this operation is finished, push SET again and the information of the UTC TIME will be stored in the system. UTC DATE: follow these steps to configure the UTC date 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 7 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx... - Page 8 5. Make the same operation of to adjust the digits with the +/- push-buttons. 6. Once this operation is finished, return to push again SET and the information of the MAN TIME will store in the system. 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 8 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx...
- Page 9 7. Make the same operation of to adjust the digits with the +/- push-buttons. 8. Once this operation is finished, return to push again SET and the information of the MAN DATE will store in the system. 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 9 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx...
-
Page 10: Elapsed Time
The ELAPSED TIME continues working in the background and when the chronometer is removed, the ELAPSED TIME function returns to show its information in the lower display. 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 10 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx... -
Page 11: Chronograph Function
But it is important to know that the information of the ELAPSED TIME is not lost, it only continues working on the second plane. Once the Chronometer is deactivated, the information of the ELAPSED TIME returns to be shown in the lower display 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 11 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx... -
Page 12: Measurements
Note: in the function CHRONO, the bravo Version has not got a needle to show the seconds, then CHR mode can only visualize the minutes and hours. MEASUREMENTS 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 12 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx... -
Page 13: Available Products
Flight Simulators Solutions www.sismo-soluciones.com AVAILABLE PRODUCTS 737NG Clock is available in two different lines: • Alpha Version, which is the full version with backlighting and pointer (engine). • Bravo Version, which does not include a pointer and engine. Prices and further info in: www.sismo-soluciones.com... -
Page 14: 10 Faq
The battery is also used to make the Chrono run, and this functionality will not work if the battery run out. This issue will be solved by changing the battery for a new one. END OF DOCUMENT 737NG CLOCK/CHRONO User Manual FS737NG-MAN-GAU-CT-E-18-0172 14 / 14 User Manual - 737NG Clock V3.5 - Rev2.2.docx...
