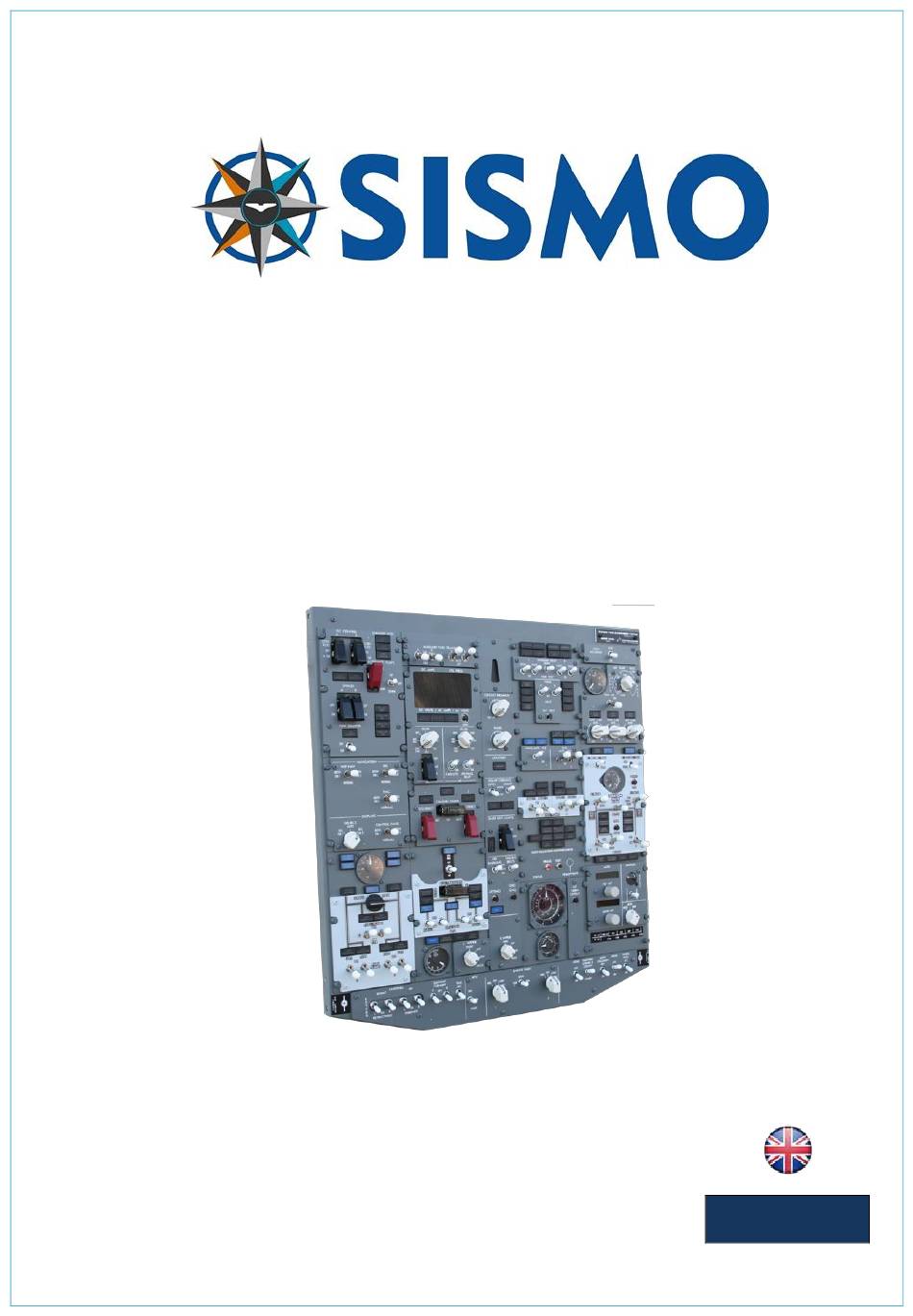

- Page 1 737NG FWD Overhead Ethernet User Manual S737-MAN-FOH-MD-E-19-0187 Rev. 5.0 ©2005-2019, Sismo Soluciones All rights reserved...
-
Page 2: Table Of Contents
Power Supplies ..........................7 Placing the FWD-OVH in the Shell ......................9 Configuration ............................. 9 FAQ ................................10 Related documentation ........................... 11 737NG FWD Overhead Ethernet User Manual S737-MAN-FOH-MD-E-19-0187 2 / 11 User Manual - FWD Overhead Ethernet - Rev5.0.docx... -
Page 3: Definitions And Acronyms
Ethernet devices to a single computer. SC Pascal A programming language and a high level editor/compiler. All script provided by Sismo are programmed in this language. There are manuals for learning this language on our website. Crossed Ethernet Cable A type of Ethernet cable used to connect a module directly to a computer. -
Page 4: Acronyms
Printed Circuit Board. SimCard. SC-MB SimCard Motherboard Ethernet. A control card used by Sismo Soluciones in its Plug&Fly Modules. SC-Daughter SimCard Ethernet Daughter. A daughter or slave, complementary to the SC-MB. These are used to increase the functionality of the SC-MB, daughter cards for Inputs, Outputs, Servos, Analog Inputs and Displays are available. -
Page 5: Introduction
This product has been designed according to the latest FWD Overhead Module mounted on the most recent version of the Boeing 737NG. It is a full-scale replica 1:1 and it has been designed with the client’s high standards in mind. -
Page 6: Compatibility
Sismo. Add-On fully compatible with Sismo Products. Add-On compatible with Sismo Products. The available functionality depends on the public offsets delivered by the Add-On Company No information available about the compatibility of this Add-On with Sismo Products 737NG FWD Overhead Ethernet... -
Page 7: Unpacking And First Steps
You will see one Ethernet socket on the back cover of the FWD Ethernet. This should be connected to the control computer directly or indirectly, as discussed above. POWER SUPPLIES There are two additional sockets for 12V DC power supplies, as is shown in the following image: 737NG FWD Overhead Ethernet User Manual S737-MAN-FOH-MD-E-19-0187 7 / 11... - Page 8 12V connectors, please get in touch if you require the earlier manual. If you have only got the FWD from Sismo Soluciones, these are the only steps you need to do for cabling, and you can proceed to step 7 to mount the Overhead in the simulator.
-
Page 9: Placing The Fwd-Ovh In The Shell
In this field, if the user has acquired an FWD Overhead Alpha Line, the user must activate the following daughter boards: SC-INPUTS1 SC-INPUTS2 SC-OUTS1 SC-SERVOS1 737NG FWD Overhead Ethernet User Manual S737-MAN-FOH-MD-E-19-0187 9 / 11 User Manual - FWD Overhead Ethernet - Rev5.0.docx... -
Page 10: Faq
In order for us to know whether the version of our scripts you are using is correct, we need to know the version of Sismo products you are using. The contact map has changed over time and if you can tell us the serial number of your SC-MB, we can send you the right script. -
Page 11: 10 Related Documentation
See the latest on our website Datasheet – SimCards Ethernet UDP Protocol See the latest on our website Technical Report – Using ProSim737 with Sismo Ethernet Modules See the latest on our website Starting with SC-Pascal Scripts See the latest on our website Programming SC-Pascal –...
