The BASS701 is a compact but powerful bass amp with a TON of overdrive on tap and massive
flexibility to shape your tone. The pre-amp features a 6 band overdrive section that allows you to
carefully tailor the gain. The power amp has 700 watts of power to deliver that tone.

Features

6 Band Overdrive: In the overdrive section the instrument signal is split into 6 frequency
bands and each band goes through it's own overdrive channel, with separate Drive and Level
controls. Then all the overdrive channels are summed back together to form a harmonically
rich tone that still maintains the integrity of all the notes you're playing. There is a wide range
of drive that can be applied to each frequency band as well as adjusting the individual channel
volume.
Effects Loop: The effects loop can be set to come before or after the entire overdrive
section or off completely, or on the clean channel independently.
Select Footswitch: Select between Overdrive and Clean with either the included footswitch
or the Select toggle switch on the front panel.
700 Watt Power Amp: The class D power amp section can deliver 700 watts of power into
a 4 ohm speaker load.
Balanced Line Outputs: A separate level control sets the output volume to the balanced
XLR and balanced/unbalanced 1/4" jacks to connect to mixing consoles or other amplifiers.
Headphone Output: Connect headphones to use the amp for practice with a line in option
for playing along to recorded tracks.
Universal Power: Can accept 100 to 240 Volts AC, 50 to 60 Hz.
Compact Size: 12" wide x 3" tall x 9" deep.

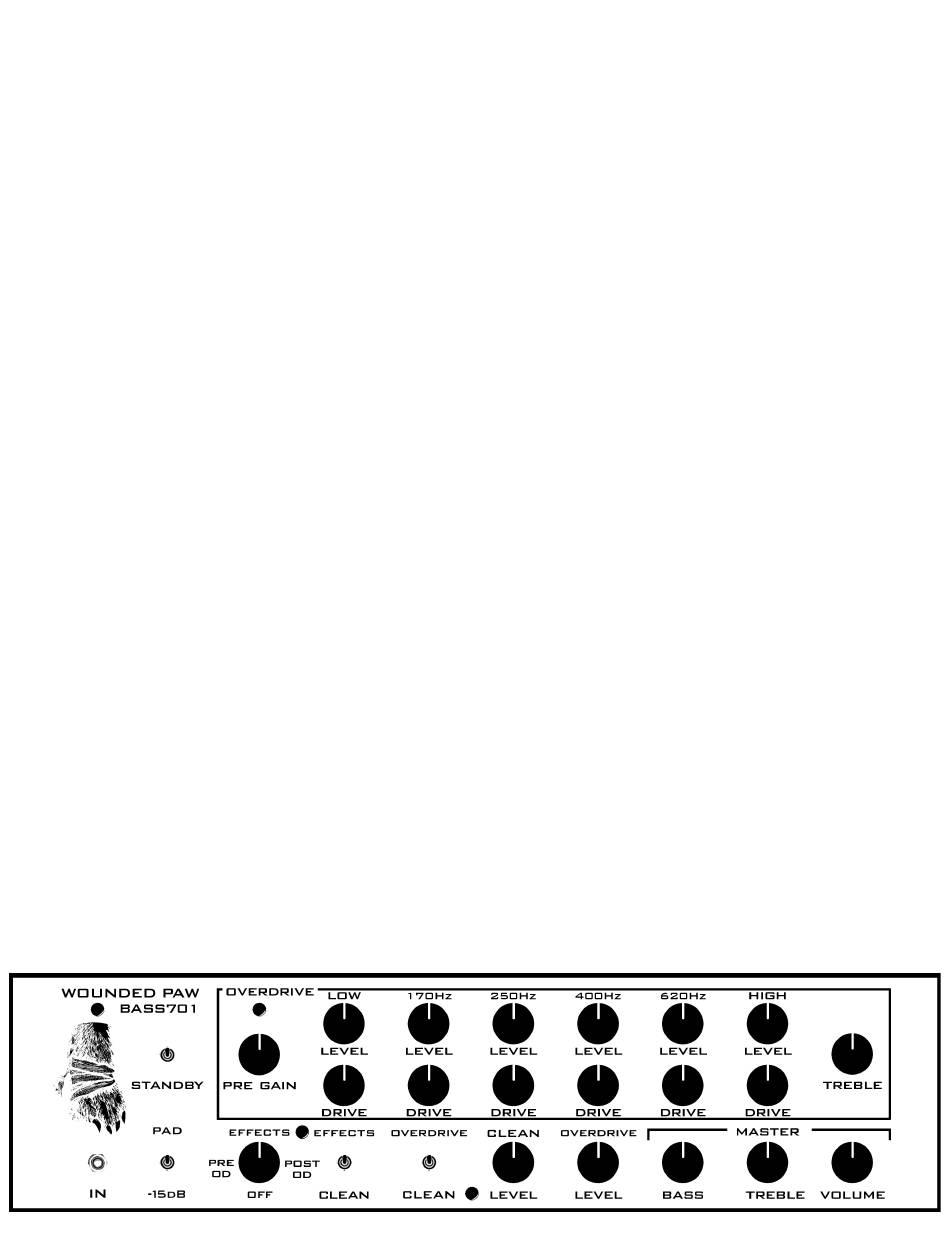

Front Panel

Wounded Paw
BASS701 Amplifier
Owner's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BASS701 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wounded Paw BASS701

  • Page 1 BASS701 Amplifier Owner's Guide The BASS701 is a compact but powerful bass amp with a TON of overdrive on tap and massive flexibility to shape your tone. The pre-amp features a 6 band overdrive section that allows you to carefully tailor the gain. The power amp has 700 watts of power to deliver that tone.
  • Page 2 In: 1/4” jack to connect to an instrument. Standby: In the down position the amp is in standby mode and there is no output. In the up position the red LED turns green and all the outputs are active. The tuner output is active in either position.
  • Page 3: Master Section

    Overdrive / Clean: Use this toggle switch to select the output signal sent to the Master section, either the Overdrive Section or the Clean channel. When the Select footswitch is plugged into the Footswitch jack on the back panel it overrides the functioning of the Select toggle. With the Clean Level all the way down this can also be used as a mute for tuning or just silence.
  • Page 4 0 and then bring one up by itself. It may take a while to find your tone but it will be well worth it. Contents The Bass701 amplifier ships with the Overdrive / Clean select footswitch, one 1/4” cable to connect the footswitch, and a power cord. Wounded Paw Audio 26C Brookfield St.
