The BASS701 is a compact but powerful bass amp with a TON of overdrive on tap and massive
flexibility to shape your tone. The pre-amp features a 6 band overdrive section that allows you to
carefully tailor the gain. The power amp has 700 watts of power to deliver that tone.
Features
6 Band Overdrive: In the overdrive section the instrument signal is split into 6 frequency
•
bands and each band goes through it's own overdrive channel, with separate Drive and Level
controls. Then all the overdrive channels are summed back together to form a harmonically
rich tone that still maintains the integrity of all the notes you're playing. There is a wide range
of drive that can be applied to each frequency band as well as adjusting the individual channel
volume.
Effects Loop: The effects loop can be set to come before or after the entire overdrive
•
section for more flexibility. The level of signal sent to the effects loop can also be adjusted.
Select Footswitch: Select between Overdrive and Clean with either the included footswitch
•
or the Select toggle switch on the front panel.
700 Watt Power Amp: The class D power amp section can deliver 700 watts of power into
•
a 4 ohm speaker load.
Balanced Line Outputs: A separate level control sets the output volume to the balanced
•
XLR and balanced/unbalanced 1/4" jacks to connect to mixing consoles or other amplifiers.
Universal Mains: Can accept 100 to 240 Volts AC, 50 to 60 Hz.
•
Compact Size: 12" wide x 3" tall x 9" deep.
•

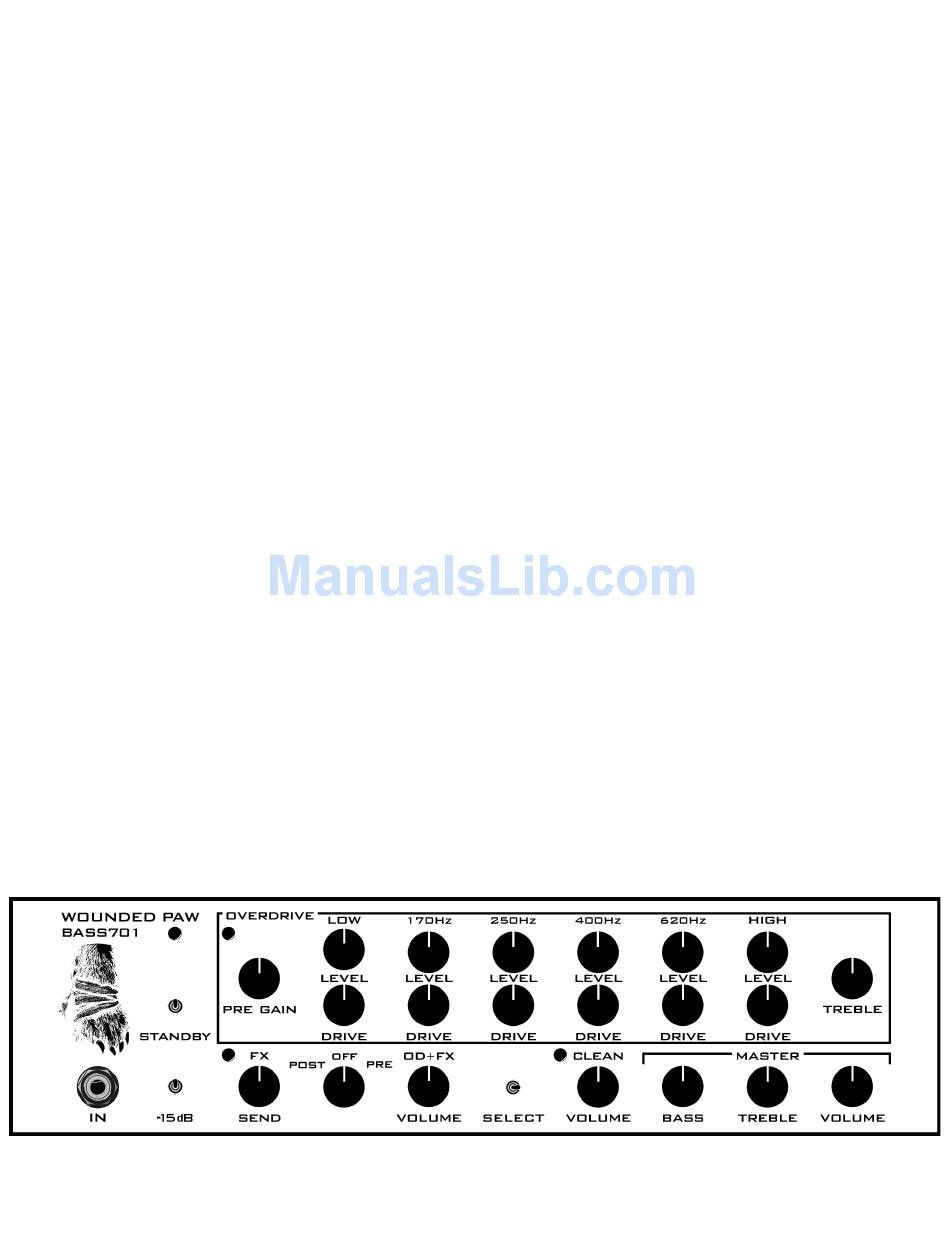

Front Panel
In: 1/4" jack to connect to an instrument.
Standby:
In the down position the amp is in standby mode and there is no output. In the up
Wounded Paw
BASS701 Bass Amplifier
Owner's Guide
Advertisement
Table of Contents
Related Manuals for Wounded Paw BASS701
Summary of Contents for Wounded Paw BASS701
- Page 1 BASS701 Bass Amplifier Owner's Guide The BASS701 is a compact but powerful bass amp with a TON of overdrive on tap and massive flexibility to shape your tone. The pre-amp features a 6 band overdrive section that allows you to carefully tailor the gain.
- Page 2 position the red LED turns green and all the outputs are active. -15dB: In the down position this toggle switch attenuates the input signal by 15dB, for use with active basses or instruments with very high output levels. Overdrive Section In the overdrive section the instrument signal input level is set by the Pre Gain control and then split into 6 frequency bands covering the entire audio spectrum.
-
Page 3: Master Section
Select: Use this toggle switch to select the output signal sent to the Master section, either the Overdrive Section plus Effects Loop or the Clean channel. When the Select footswitch is plugged into the Footswitch jack on the back panel it overrides the functioning of the Select toggle. With the Clean Volume all the way down this can also be used as a mute for tuning or just silence. - Page 4 0 and then bring one up by itself. It may take a while to find your tone but it will be worth it. Contents The Bass701 amplifier ships with the Overdrive / Clean select footswitch, one 1/4” cable to connect the footswitch, and a power cord. Wounded Paw 26C Brookfield St.
