Summary of Contents for Road Angel Halo Pro

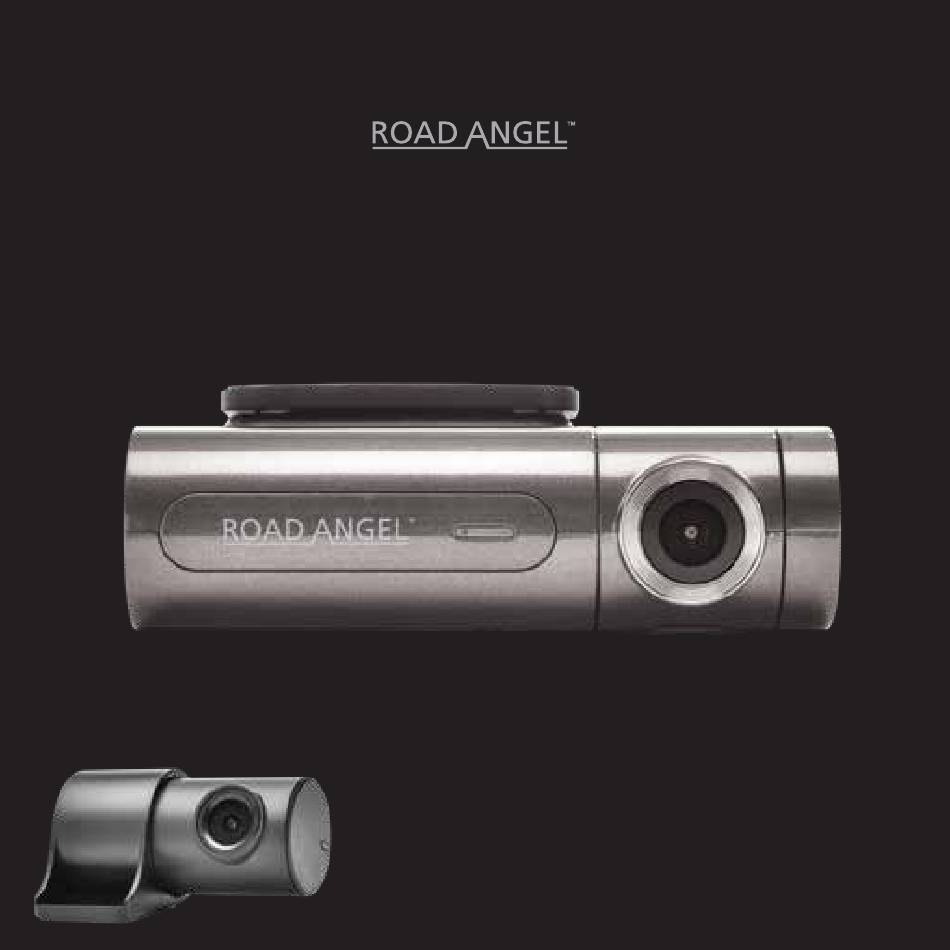

- Page 1 H A L O P R O H A L O P R O U S E R GUIDE...

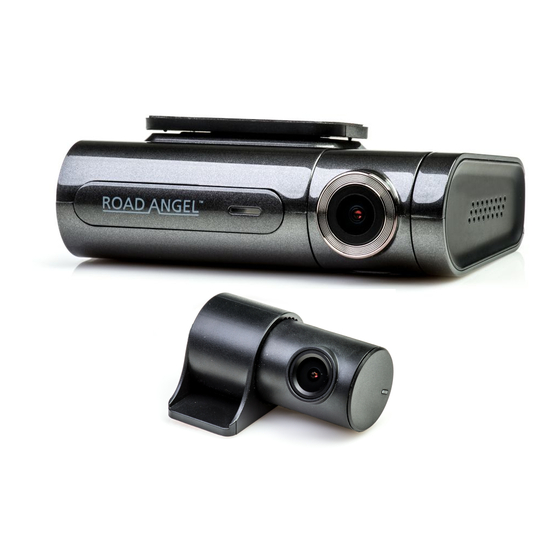

- Page 2 USE WITH OTHER DEVICES COULD CAUSE DAMAGE. Halo Pro Front Camera Halo Pro Power Cable Halo Pro Rear Camera Halo Pro Rear Camera Cable 3M Sticky Pads Instructions H A L O P R O H A L O P R O...
- Page 3 C ONF IGE R AT ION & BU T T ON IN S T R UC T ION Parking Monitor Indicator Light Speaker Operating Micro SD Card Indicator Light Microphone Reset Mute Button & Mute Indicator Light Holder Rear Camera Front &...
- Page 4 OP E R AT ION IN S T R UC T ION S INDICATOR LIGHT STATUS INSTRUCTIONS 1. Parking Monitoring Indicator Light Working: 1 Flash per second 2. Operating Indicator Light a) Working: 1 Flash per second b) TF Card Failure: Quick Flash c) Failure: Remains lit 3.
- Page 5 Do not remove SD Cards when the Camera is on. The SD Card will need formatting with the device before first use. Ensure the Halo Pro does not obstruct the view of the driver. H A L O P R O...
- Page 6 GE T T ING S TA R T E D 5. Plug the USB cable into the back of the power adapter and the micro USB into Halo Pro. 6. Follow the wire-running diagram on the next page to install the included rear camera link cable into your vehicle from the front camera to the position of the rear camera.
- Page 7 • Wiring diagram for the rear camera 8. Mount the Halo Pro rear camera to your rear window by peeling off the protective film from the 3M sticky pad and place in a location that will not obstruct your view.
- Page 8 A P P IN S TA L L AT ION Scan the QR Code to download the Road Angel App. Download the Road Angel App from the Google Playstore or Apple Appstore using the above QR code. Alternatively navigate to your preferred Appstore and search for Road Angel Halo.
- Page 9 W I-F I S E T UP Launch the App. Press the ‘+’ icon in the top right corner. Then follow the instructions that will be shown in the App on how to connect the device via Wi-Fi. Once connected successfully you may return to the Halo App.
- Page 10 L I V E P R E V IE W To preview the dash camera currently recording footage, select the ‘Camera’ tab at the bottom of the screen and press the play icon. This will display a real time view of the live dash camera footage.
- Page 11 L I V E P R E V IE W At the top of the screen you will see the current live preview of the dash camera. In the middle is the map of your current location. This will update as you drive. At the bottom you will see 3 icons that allow you to download, take a photo or enter full screen.
- Page 12 L I V E P R E V IE W This shows data such as; ‘Current speed’, ‘Average speed’, ‘Max speed’, ‘Current elevation’, Compass/ Direction and ‘Driving mileage’. Pressing the tab on the right of the map You can switch back to the live map display will open the live data display.
- Page 13 L I V E P R E V IE W Enter the albums tab to view images, downloaded videos and events. Events are moments stored when the camera detects an impact from its G-Axis Sensors. Select the image or video to view the file. Here you can save, delete or edit the file, saving the file saves it into your phone’s media gallery outside of the app.
- Page 14 P HO T O E DI T ING After you have selected the photo from the Album page you have several options. Top right button saves photos to the phone’s photo album. Bottom left magic wand opens the photo editing mode. Middle trash can deletes the photo and bottom right allows you to share the photo.
- Page 15 P HO T O E DI T ING The photo editing screen allows you to add text captions, video frames, contrast settings and choose from 17 photo filters. When you are finished simply save your file. H A L O P R O H A L O P R O...
- Page 16 V IDE O P L AY B A CK To playback footage, slide the scroll bar which will show you a thumbnail of the moment about to be viewed along with the date and time. H A L O P R O H A L O P R O...
- Page 17 V IDE O P L AY B A CK You can rotate your phone to the side to enhance the experience. This also works for Live Preview, Photo Viewing, Video Viewing and Downloading Footage. H A L O P R O H A L O P R O...
- Page 18 DO W NL O A D F OO TA GE When in the video playback mode, select the download icon on the right of the screen which will take you to the download screen. To create a clip of what has been recorded, slide the viewing bar to the right to scroll backwards in time and...
- Page 19 DO W NL O A D F OO TA GE When you are happy with the length of the clip, press ‘Complete download’. This will show you a thumbnail of the created clip, giving you the option to ‘share’ or ‘delete’ the clip.
- Page 20 V IDE O E DI T ING After you have selected a video from the Album page you have several options. The bottom controls change playback options. The top right buttons allow you to share the video and open the side menu. From the side menu you can delete the video, ‘Save’...
- Page 21 V IDE O E DI T ING The video editing screen lets you crop the length of the selected video and choose video quality. Once done press the ‘Next’ button at the bottom to continue. From the next video editing screen you can change the sound options for the video.
- Page 22 GP S T E L E M AT IC S To access the GPS/Telematics data press the Setting icon (’Me’) in the bottom right to access the general settings of the dash camera. At the top of the first settings page you will see most recent GPS/Telematics data from your last route.
- Page 23 GP S T E L E M AT IC S After pressing the tab/panel for more information you will be presented with this page. This page stores and shows more than just your most recent route with much more added information. Clicking on different tabs will expand the details and show that route in map form.
- Page 24 GP S T E L E M AT IC S After pressing the map information on the last page you will be presented with detailed information regarding the GPS/Telematics of that particular route. Pressing the Play icon in the bottom right of the map will playback the route in map form with live data replay.
- Page 25 GP S T E L E M AT IC S Swiping left on the data panels will cycle through the information that has been recorded. The data types that are recorded represent information about driving score, speed (in graph form) over the entire route, elevation (in graph form), acceleration and brake performance (shown in speed/time format) and distance.
- Page 26 C A ME R A S E T T ING S When connected to the camera, press the Settings icon (’Me’) in the bottom right to access the general settings of the dash cam. H A L O P R O H A L O P R O...
- Page 27 PA R K ING MODE The Halo Pro’s parking mode records video footage even when your vehicle is parked. The parking mode feature has several settings that can be changed. these will be different depending on the vehicles ignition state.
- Page 28 FA Q S H A L O P R O H A L O P R O...
- Page 29 (3) Connect the equipment into an outlet on a circuit different from that which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help. Road Angel Group, DB House, Rani Drive, Nottingham NG5 1RF roadangelgroup.co.uk Copyright©...
- Page 30 SMART DRIVERS HAVE A The Pure is a high quality, compact, well designed bit of kit with reliable data and powerful features. It’s an excellent all-in-one driver aid for the speed-conscious. For more info visit: RoadAngelGroup.com...
Need help?
Do you have a question about the Halo Pro and is the answer not in the manual?
Questions and answers
can I turn off GPS
You cannot completely turn off GPS on the Road Angel Halo Pro, but you can disable GPS time syncing by going into the app settings, selecting the Time/Date function, and toggling GPS time off. This allows the device to use manual or phone time instead.
This answer is automatically generated
How to turn off the voice announcements when switching on
To turn off voice announcements on the Road Angel Halo Pro, press the mute button twice.
This answer is automatically generated
Do I need to take out a subscription to use the dash cam
No, a subscription is not required to use the Road Angel Halo Pro dash cam. However, installation and subscription services are exempt from discount codes, which suggests that a subscription may be available for additional features.
This answer is automatically generated
after having my pro fitted om 1.3.25 I have no routes on my phone after 4 days of driving?
The Road Angel Halo Pro uses built-in GPS to track and display routes. If no routes are showing after 4 days of driving, possible reasons include:
1. GPS Not Enabled – Ensure the app has location permissions set to "Always Allow."
2. Connection Issues – Verify the dash cam is properly connected to the app via Wi-Fi.
3. Storage Full – Check if the memory card (up to 128GB, sold separately) is full and format if necessary.
4. Incorrect App Settings – Confirm that live GPS data and route tracking features are enabled in the app.
5. Device Malfunction – Restart the dash cam and reinstall the app if needed.
If the issue persists, try resetting the device and reconnecting.
This answer is automatically generated
I have forgotten my password. How do I resolve this?
The provided context does not contain information on resetting the password for the Road Angel Halo Pro. However, you may try connecting using the default password 1234567890 and check if the device prompts you to change it. For further assistance, you can contact Road Angel support at 0330 320 3030.
This answer is automatically generated
what is the wifi name
Hi followed Mr Anderson’s advice on how to turn of voice when switching Road Angel on . Pressed mute button twice voice still on.
