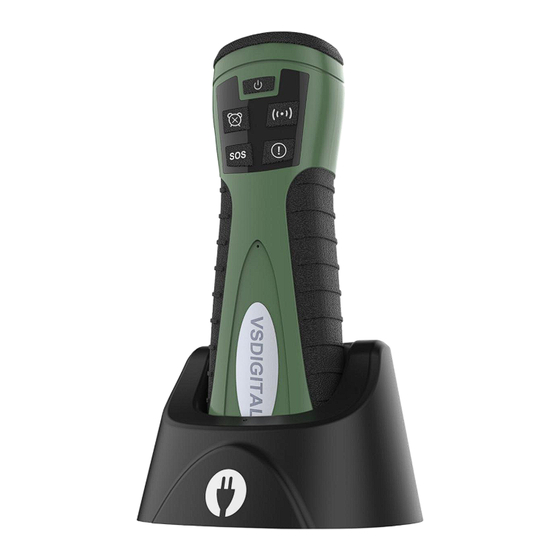

- Page 1 V9 User Manual KingGuard V9 Realtime Guard Tour System (No GPS) Operation Manual Version: V1.20 www.onlineguardpatrol.com www.vsdigital.com - 1 -...
-
Page 2: Table Of Contents
V9 User Manual Content 1. Apperance ................3 2. Main Functions................. 6 3. Parameter Setting..............7 4. SMS Configuration Format...........17 5. OGP Software Realtime Version Introduction....18 6. SIM Card Installation............. 30 7. Charging.................. 30 www.onlineguardpatrol.com www.vsdigital.com - 2 -... -
Page 3: Apperance
（Press the button for 2 seconds to open or close the device.） 2) Charging indication light ( Reader indicates red led light when reader is in charge, light off when power is full.） 3) Patrol alert button （Press button, patrol alert will finish.） www.onlineguardpatrol.com www.vsdigital.com - 3 -... - Page 4 （Press button, it will upload a customized event.） 1.2 Other parts 8) Buzzer sound hole 9) Read-out field （Read-out RFID card field） 10) Lanyard hole 11) Battery lid （Open battery lid when install SIM card） 12) Communication, charging connector www.onlineguardpatrol.com www.vsdigital.com - 4 -...
- Page 5 5 buttons 3D Accelerometer Internal, detect people fall down Shock detect Low power alert Operation temperature -20℃--+85℃ Time zone set Set timezone, Support daylight time adjust automatically Protection rate IP 67 Weight 200g Dimensions 150*50*30(mm) www.onlineguardpatrol.com www.vsdigital.com - 5 -...
-
Page 6: Main Functions
*** Remarks: V9 will upload a record to server every ten minutes“No one replies the patrol alert” if no one stops the patrol alert. Stop patrol alert: press patrol alert button. *** Remarks: V9 will upload a record after patrol alert is stopped: patrol alert has been processed. www.onlineguardpatrol.com www.vsdigital.com - 6 -... -
Page 7: Parameter Setting
V9 User Manual 3. Parameter Setting 3.1 About V9 Click“ Read V9 information”to read all parameter of V9 ***Remarks: Module exists: No (if V9 has no GPS module). www.onlineguardpatrol.com www.vsdigital.com - 7 -... - Page 8 3.2 Modify V9 Parameter 3.2.1 View all Parameter Check the original data of the device. 3.2.2 Power on/off button Choose “Forbid power off” will not allow power off any more, power off button not work. www.onlineguardpatrol.com www.vsdigital.com - 8 -...
- Page 9 Sever Port: IP port for receive v9 data, if you use our online software, the default port is :50002 SMS Server phone number: choose SMS function must wirte it for SMS will be sent to it. Company name: company name on the server. Length is 48 characters bytes. www.onlineguardpatrol.com www.vsdigital.com - 9 -...
- Page 10 ***Remarks: plz choose it according to the v9 mode and SIM card frequcny. 3.2.5 WIFI Network This is only available for V9 has WIFI function, which can set max 5 groups of wifi name and password. www.onlineguardpatrol.com www.vsdigital.com - 10 -...
- Page 11 You need to consult your SIM card supplier or visit their website to find it. 3.2.7 Prompt mode 1. beep 2. No beep 3.2.8 Timezone Choose the timezone according to your country time zone, also support the DST. www.onlineguardpatrol.com www.vsdigital.com - 11 -...
- Page 12 How long time the device will send the man- down data to server since man-down and can not move Pre-alarm time : within this time ,the device will not send the data to server *** Remarks: pre-alarm time can not longer than generating alarm time.unit is second www.onlineguardpatrol.com www.vsdigital.com - 12 -...
- Page 13 Hour alarm : from 00:00 to 23:00 ,every hour can set one alarm Clear : cancel the selected alarms. 3.3 Save V9 Parameter Can save the current setting as .cfg.click “save parameter file” save v9 setting file. This can batch setting V9 www.onlineguardpatrol.com www.vsdigital.com - 13 -...
- Page 14 V9 User Manual 3.4 Download Paramters to v9 Every Change of the setting, you need to download the setting data to the v9, or the setting will be meaningless. 3.5 Test V9 3.5.1 Communication Command www.onlineguardpatrol.com www.vsdigital.com - 14 -...
- Page 15 9. Read record: read V9’s record. 10. Update firmware: use this function to update firmware after received V9’s newest update firmware news. 3.5.2 Memory unit You can operate the v9 Flash and E PROM via the following commands. www.onlineguardpatrol.com www.vsdigital.com - 15 -...
- Page 16 V9 User Manual 3.5.3 Adjust When the Kingguard v9 device has any problem, you can insert the v9 into the charge downloader and connect it with PC,make this page on “Open” staus, Then click “save”then send it to our IT engineer they can help you to identify the problem of the device.
-
Page 17: Sms Configuration Format
Description: The IP or the domain name of the data receiving server. 2. PORT=50002 Description: data receiving server port, valid value 0~65535. 3. APN=apn 4. UN=apn_user_name 5. PW=apn_user_password Description: APN、UN、PW is available at your GSM Provider. 6. SMS=13901234567 Description:Defines telephone number for sending SMS messages. www.onlineguardpatrol.com www.vsdigital.com - 17 -... -
Page 18: Ogp Software Realtime Version Introduction
5. OGP Software Realtime Version Introduction 5.1. Home page Type website in your browser : www.onlineguardpatrol.com, enter into home page. Log in software: Username: XXXX Password: XXXX Salesman will indiacte you the username and password. www.onlineguardpatrol.com www.vsdigital.com - 18 -... - Page 19 Coordinate function: every place can be set as checkpoint coordinate address. Map indication: many reports are shown by map indication. 5.2.2 Set up Add Site Log in software --- Data entry --- Site “1”add site “2”add site information “3”update www.onlineguardpatrol.com www.vsdigital.com - 19 -...
- Page 20 Click “ Add checkpoint from unregistered points” “1” Choose tags which you want to add, “2” then add these tags into the site Modify checkpoint tag name Click this icon （1）--- modify the name（2） ---- Update（3） www.onlineguardpatrol.com www.vsdigital.com - 20 -...
- Page 21 V9 User Manual Modify checkpoint coordinate Click “ setting”, it will show the map, choose the site which install this tag on the map. Add Schedule （1）Set up the ordinary schedule www.onlineguardpatrol.com www.vsdigital.com - 21 -...
- Page 22 ***This methods only suitable for this situation, you have no requirement for the start patrol time for each time, but has the requirement for the patrol times, for example, you hope the guards finish how many times patrol during a period of time. www.onlineguardpatrol.com www.vsdigital.com - 22 -...
- Page 23 (1) upload patrol data Real time tag reader, patrol data will be sent to server once scan a tag in real time (2) check patrol reports Calendar report Flow reports Real time reports www.onlineguardpatrol.com www.vsdigital.com - 23 -...
- Page 24 “4” click the date to check the patrol details . There is a map to show each patrol report in map format for every patrolling There is a move icon to how the patrolman walked line (show as follow) www.onlineguardpatrol.com www.vsdigital.com - 24 -...
- Page 25 “1”Select query condition (adjust the timeline with mouse) “2”Show the scanned checkpoints during this period chronologically “3”Unregistered checkpoint will not display on the map. ***Unregistered checkpoint means: checkpoint which is new, unset, no name, no position in the software www.onlineguardpatrol.com www.vsdigital.com - 25 -...
- Page 26 When you install the APP, during the patrol process or after the patrol, server could push instant message to your APP. These records could help to know the situation during the patrolling process on time. www.onlineguardpatrol.com www.vsdigital.com - 26 -...
- Page 27 Daily Summary: could show how many missed checkpoints yesterday, whether staff do the patrol schedule as required. Missed checkpoint report means the patrol job is finished, but there is missed checkpoint during the patrol route. Following is the introduction of APP operation: www.onlineguardpatrol.com www.vsdigital.com - 27 -...
- Page 28 V9 User Manual www.onlineguardpatrol.com www.vsdigital.com - 28 -...
- Page 29 V9 User Manual www.onlineguardpatrol.com www.vsdigital.com - 29 -...
-
Page 30: Sim Card Installation
,it will be off when it is fully charged 1. It needs 3-4 hours to be fully charged if VT9 connect to power 2. It needs 5-6 hours to be fully charged if VT9 connect to computer www.onlineguardpatrol.com www.vsdigital.com - 30 -...
