Charging the batteries in ROSbot

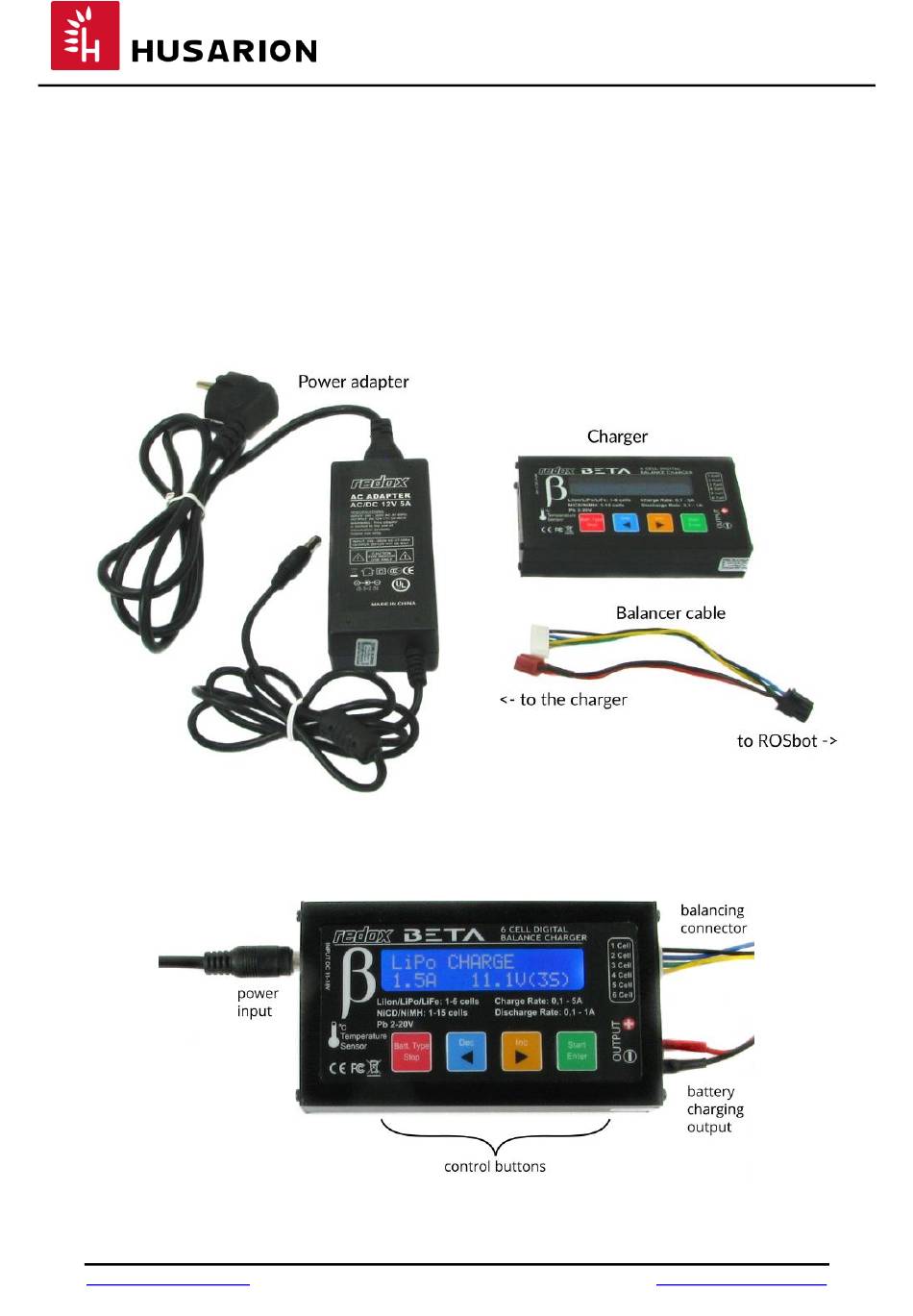

The ROSbot 2.0 kit contains the Redox Beta charger. It is an universal charger, suitable for
charging NiCd, NiMH, Li-Po, Li-Fe, Li-Ion and Pb (AGM, VRLA) batteries.
Charger kit includes:
- Redox Beta charger
- AC/DC power adapter 100...240V to 12V 5A with 5.5/2.5mm plug on the 12V side
- cable to connect charger with ROSbot charging port
Due to the fact that ROSbot is powered from only one type of batteries (Li-Ion), this short
manual will contain only the information needed to charge Li-Ion batteries.
