Installation, Operation & Maintenance Manual
CKE Series Kitchen Exhaust fans
General Information
This service manual covers the
installation
Operation
maintenance of the CKE Direct
drive Kitchen Exhaust Fans. Please
read the Manual thoroughly before
Installation

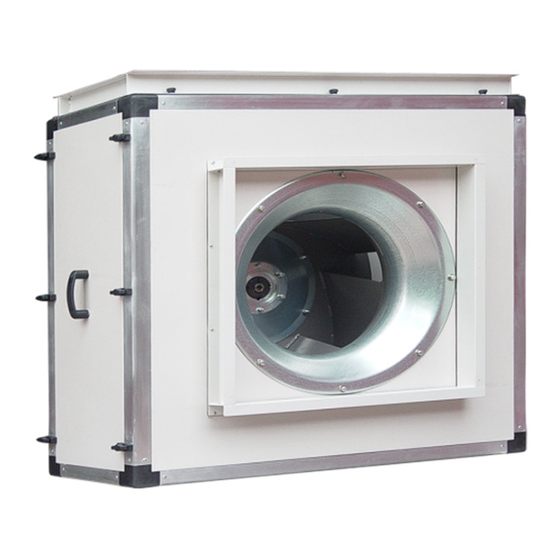

Basic Unit:
Caryaire make CKE direct drive
Kitchen Exhaust Fans Consists of a
Aluminium profile casing with Pre
painted double skin PUF insulated
panels and
three phase 415 AC
Volt motor and blower assembly.
Unit Casing:
Caryaire Equipments India Pvt. Ltd.
www.caryaire.com
All Stated specifications are subject to change without notice Rev 08/April /2019
and
Direct Drive Kitchen Exhaust Fans.
Models
CKE-355
CKE-400
CKE-450
CKE-500
CKE-560
CKE-630
Advertisement
Table of Contents
Related Manuals for Caryaire CKE Series
Summary of Contents for Caryaire CKE Series
- Page 1 Installation, Operation & Maintenance Manual CKE Series Kitchen Exhaust fans General Information This service manual covers the installation Operation maintenance of the CKE Direct drive Kitchen Exhaust Fans. Please read the Manual thoroughly before Installation Direct Drive Kitchen Exhaust Fans.
- Page 2 Phase/Voltage Max, KW/HP Amp. CKE-355 0.55/0.75 3/415 CKE-400 0.55/0.75 3/415 CKE-450 0.75/1.0 3/415 CKE-500 1.1/1.5 3/415 CKE-560 2.2/3.0 3/415 CKE-630 3.7/5.0 3/415 Caryaire Equipments India Pvt. Ltd. www.caryaire.com All Stated specifications are subject to change without notice Rev 08/April /2019...
- Page 3 Fan Model CKE-355,400,450,500,560,630 Caryaire Equipments India Pvt. Ltd. www.caryaire.com All Stated specifications are subject to change without notice Rev 08/April /2019...
-
Page 4: Technical Data
Technical Data PARAMETER DATA CARYAIRE EQUIPMENTS (I) PVT. LTD. Manufacturer CKE-355 CKE-400 CKE-450 CKE-500 CKE-560 CKE-630 Model No. Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Exhaust Exhaust Exhaust Exhaust FAN Exhaust FAN Exhaust Type of Unit Overall dimension mm. 635X245X563 700X275X586... - Page 5 Electrical Connections 1) For wiring refer to the wiring diagram 2) Grounding point must be properly connected to the building grounding system. Caryaire Equipments India Pvt. Ltd. www.caryaire.com All Stated specifications are subject to change without notice Rev 08/April /2019...
- Page 6 3) Rotate the fan wheel manually to ensure that no obstructions are blocking the fan movement. 4) Tighten all electric connections. 5) Check unit mounting fasteners must be properly tight. Caryaire Equipments India Pvt. Ltd. www.caryaire.com All Stated specifications are subject to change without notice Rev 08/April /2019...
