Envirotec ET4000 Owner's Manual

Reverse osmosis systems
Hide thumbs Also See for ET4000:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

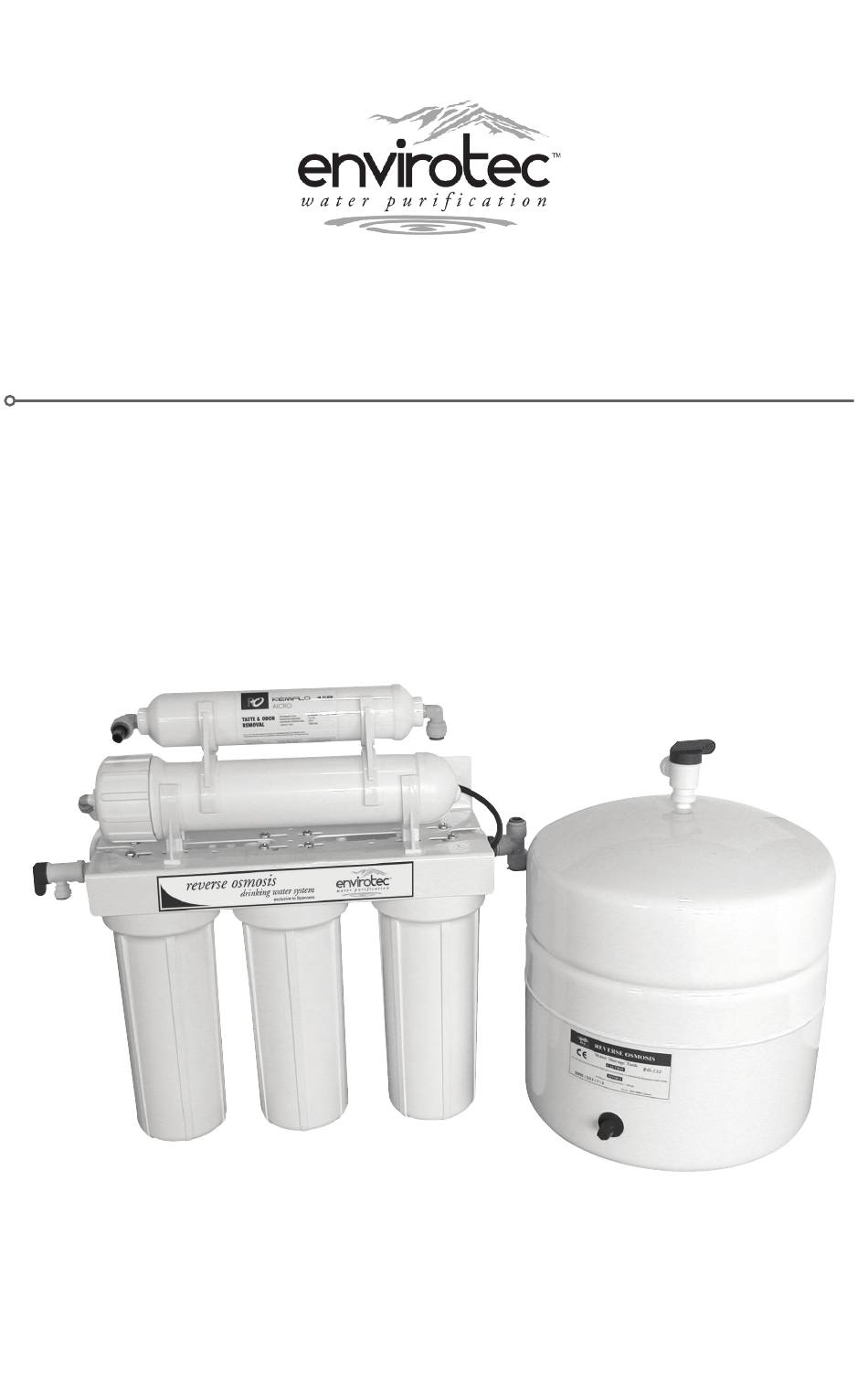

Owners Manual
For Reverse Osmosis Systems
MODEL ET4000 — ET5000
P/N 1-1310-10 — 1-1320-10
Includes: Installation and Service Procedures, Specifications and Operation Guidelines
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Envirotec ET4000

Summary of Contents for Envirotec ET4000

  • Page 1 Owners Manual For Reverse Osmosis Systems MODEL ET4000 — ET5000 P/N 1-1310-10 — 1-1320-10 Includes: Installation and Service Procedures, Specifications and Operation Guidelines...

  • Page 2: Table Of Contents

    Filter Change Instructions....................... 10 Recommended Sanitizing Instructions..................10 Service and Maintenance Recommendations................10 Envirotec™ RO Schematic........................11 Replacement Parts List........................12 Troubleshooting Guide......................... 12 Performance Data Sheet........................14 Manufacturers Warranty........................15 Warranty Registration Card......................... 16 1 | Envirotec RO Manual | 12/18...

  • Page 3: Introduction

    INTRODUCTION Congratulations, you have purchased one of the highest quality Reverse Osmosis, “RO” systems available today. This unit combines a series of different filtration processes into one single module that makes bottle-quality water right in your own home or office. This system has been engineered with only the finest quality components and materials.

  • Page 4: Warnings

    Also, install faucet so air- build-up. gap faucet hole will drain into the sink if PHOTOS OF RO AND CONTENTS LIST ET4000 SYSTEM 3 | Envirotec RO Manual | 12/18...

  • Page 5: Installation Procedures

    ET5000 SYSTEM A. Faucet and tubing G. Storage tank with ball valve B. Drain clamp H. FilterPac Unit (image may vary from model C. Easy Tap Adapter in box) D. Screws I. Water quality monitor (ET5000) E. Union Coupling F. R/O tubing INSTALLATION PROCEDURES STEP 1 SYSTEM POSITION The RO system needs both a water supply and...
  • Page 6 Attach the plastic 3/8” faucet adapter until it seats. fitting to the base of the faucet stem (do NOT over-tighten). See A in Figure 1 on the right. 5 | Envirotec RO Manual | 12/18...

  • Page 7: Easy Tap Adapter Installation

    STEP 3 EASY TAP ADAPTER INSTALLATION Shut off water supply at brass/chrome sup- Connect the riser to the Angle Stop Adapter ply valve. Valve. Disconnect riser from brass/chrome supply Fully insert tubing into the Speedfit side of valve. the valve. Ensure that the sealing gasket is fully Open valves and check installation for seated into the Angle Stop Valve female...

  • Page 8: Storage Tank Preparation

    Connect the supply (white) tube used, connect to valve using brass nut, tubing firmly into the push-in port on the side of the support, and ferrule, (not included). easy tap adapter installed on the cold water 7 | Envirotec RO Manual | 12/18...

  • Page 9: System Start-Up Procedures

    B. ¼” red Drain Tube on FilterPac RO Module loops, low spots, or kinks. Air-Gap faucet system Use the coupler from the parts bag to connect the ¼” red drain D. Post Filter Connection to Faucet tube from the faucet to the red tube from Depending on the model, connect the 3/8”...

  • Page 10: Recommended Filter Service Life

    1 year 1 year RO MODEL PRE-CARBON PRE-SEDIMENT MEMBRANE MAP CARBON POST CARBON CB05 ET4000 TF24 CB-A #135-1210-1 1-1310-10 #138-124-1 #135-1210-2 #135-1210-2 CB05 ET5000 P1 #136-1110-1 TF24 CB-A 10C4 #135-1210-1 1-1320-10 #138-124-1 #135-1210-2 #135-3110-1 9 | Envirotec RO Manual | 12/18...

  • Page 11: Filter Change Instructions

    STEP 10 FILTER CHANGE INSTRUCTIONS A. Sediment and Carbon Turn Filter Pac/RO of membrane housing. Have a towel and a module ball valve to off position. Turn tank bucket handy because some water will pour ball valve off. Turn on RO faucet to help de- out.

  • Page 12: Envirotec™ Ro Schematic

    RO WATER BL6= 3/8” Blue FAUCET RD= Red CARBON FILTER RO MEMBRANE HOUSING WATER CONSERVATION SHUT-OFF TO DRAIN EASY TAP SEDIMENT CARBON A.A.C.T. FILTER FILTER RO WATER STORAGE TANK COLD WATER INLET VALVE 11 | Envirotec RO Manual | 12/18...

  • Page 13: Replacement Parts List

    REPLACEMENT PARTS LIST FOR ET4000 - ET5000 Quantity Part No. Description 103-0504 Easy Tap Adapter 419-1404-1 ¼” JG 90 Ball Valve 804-11-04 ¼” Hex Nipple 419-1406 3/8” JG 90 Ball Valve, Storage Tank 2 (3)* 805-40-02 Fitting ¼” mpt × ¼” JG Elbow...
  • Page 14 3-gallon storage tank should be full in 4-12 hours. Low city water pressure. Increase to 40 psi with a booster pump. Kinked tubing Find kink and repair. Filters plugged. Replace filters. Bad membrane. Replace membrane. 13 | Envirotec RO Manual | 12/18...

  • Page 15: Performance Data Sheet

    PERFORMANCE DATA SHEET NSF/ANSI 58 REVERSE OSMOSIS SYSTEM MODEL NUMBERS 1-1310-10, 1-1320-10 REPLACEMENT TREATMENT COMPONENTS SEE STEP 9, PAGE 8 GENERAL INSTALLATION — OPERATION — MAINTENANCE REQUIREMENTS - Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before of after the system.

  • Page 16: Manufacturers Warranty

    We have any parts you need for this unit. We are happy to give you advice and instruction relating to the operation of this unit. Contact us at AZH2O.COM...
