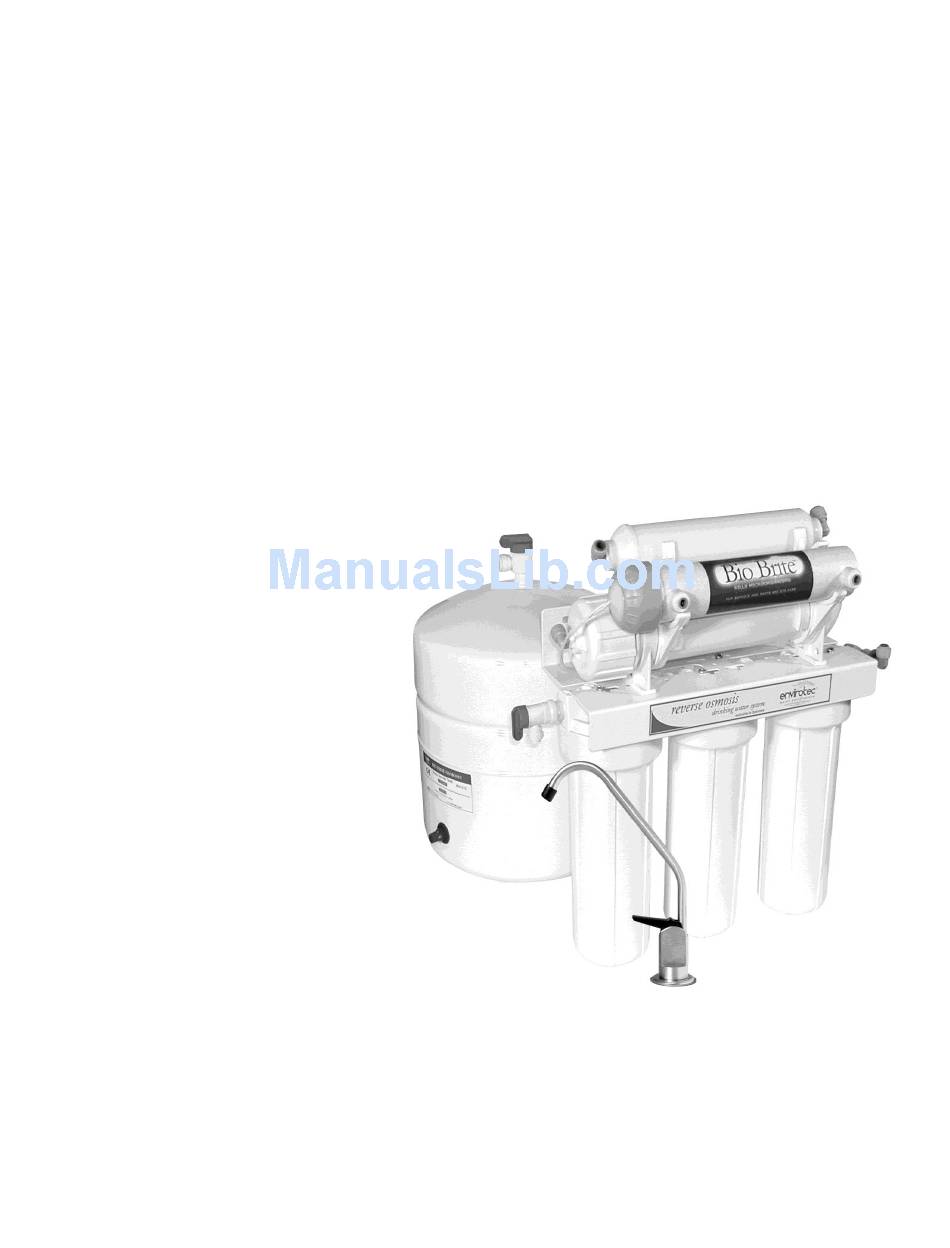

- Page 1 Owners Manual For Reverse Osmosis Systems Model: ET4000 P/N: 1-1310-10 Models: ET5000/ ET6000 P/N: 1-1320-10 Includes: Installation and Service Procedures, Specifications and Operation Guidelines Form ETRO 1/06 Page 1 of 16...
- Page 2 TABLE OF CONTENTS Introduction, Uses and Benefits page 3. Specifications, Limitations and Warnings page 4. Photo of RO and Contents List page 5. RO Installation Procedures page 6. Faucet Installation page 6. Easy Tap Adapter Installation page 7. Drain Saddle Clamp Installation page 7.
- Page 3 INTRODUCTION Congratulations, you have purchased one of the highest quality Reverse Osmosis, “RO” systems available today. This unit combines a series of different filtration processes into one single module that makes bottle-quality water right in your own home or office. This system has been engineered with only the finest quality components and materials.
- Page 4 Adjustable Wrench (2) Filter Pac/RO module Phillips Screw Driver Storage Tank 3/8” drill motor with a 3/8” drill bit Owner’s Manual Teflon Tape Warranty Registration Card Safety Glasses Standard air-gap faucet or optional colored Optional-Faucet Installation (Step 2) faucet 1-1/4” hole saw appropriate for sink Parts Bag: material to be drilled Easy Tap Adapter w/washer (plastic)
- Page 5 (See page 2 for variety of uses) 13) We recommend having all porcelain/ enamel-coated sinks professionally drilled. 14) Sanitizing most RO systems on a yearly basis is important for reducing bacteria build-up. PHOTO OF RO AND PARTS ET4000 Form ETRO 1/06 Page 5 of 16...
- Page 6 ET5000/ ET6000 A. Faucet and tubing G. Storage tank with ball valve B. Drain clamp H. Filterpac Unit (image may vary from model in box) C. Easy Tap Adapter Biobrite UV module attached to top of filterpac on ET6000 D. Screws model only Union Coupling Water quality monitor (ET5000 &...
- Page 7 Drilling a Stainless Steel Sink. Drill a 1 ¼” hole with a hole-saw or hole punch for an air-gap faucet. Smooth out rough edges with a file if necessary. A Porcelain/Enamel-Coated Stainless or Cast Iron Sink. The manufacturer recommends having this type of sink professionally drilled because of possibility of chipping or cracking.
- Page 8 Examine existing cone shaped washer on water supply tube, adjust or replace if damaged or worn (not included). If self-piercing valve is used instead of easy tap, attach to hard copper tubing only. Do not over tighten screws (see instructions on piercing valve package, not included). Fittings Note: “Push-In Quick-Connect”...
- Page 9 Tank pressure can be increased to improve water flow to the faucet or refrigerator. Air pressure can only be tested when tank is completely empty of water. Air pressure of 5-PSI minimum, 12-PSI maximum is recommended. The higher the air pressure the smaller the volume of water the tank will hold. Pressure of 10-12 PSI may be necessary to feed a line to the refrigerator.
- Page 10 IMPORTANT: Check carefully for small leaks every few hours for the first few days to assure there are no leaks. It is wise on any RO system to inspect for leaks since the system sits unseen underneath your sink and a small leak may not be detected without close inspection.
- Page 11 Replacement filters – Part Numbers – Replacement Frequency 2 – 5 YEARS 6 MO. - 1 YEAR 1 YEAR 1 YEAR 1 YEAR RO MODEL PRE-SEDIMENT PRE-CARBON MEMBRANE ECT CARBON POST CARBON ET4000 1-1310-10 CB05 #135-1210-1 TF24 #138-124-1 CB-A #135-1210-2 #135-1210-2 ET5000 1-1320-10 #136-1110-1...
- Page 12 Failure to follow proper maintenance instructions, use of filters or parts other than those recommended by the manufacturer, or use of an unauthorized service agent may void your warranty. ET4000 Form ETRO 1/06 Page 12 of 16...
- Page 13 ET5000 ET4000-5000-6000 REPLACEMENT PARTS LIST Quantity Part Number Description Quantity Part Number Description Fitting 1/4” mpt x 3/8” JG Elbow *(ET6000) 103-0504 Easy Tap Adapter 1 (1)* 805-40-06 1/4” JG 90 Ball Valve 419-1404-1 125-124 RO Faucet, Specify Color 1/4” Hex Nipple Faucet Adapter 3/8”...
-
Page 14: Trouble Shooting Guide
Fitting 3/8” stem x 1/4” JG Elbow 805-40-042 114-10 Water Quality Monitor Fitting Union 3/8” JG Tee 805-70-06 150-060 U.V. Cartridge With Transformer Fitting 1/4” mpt x 3/8” stem 805-S10-06 TROUBLE SHOOTING GUIDE PROBLEM CAUSE SOLUTION Cloudy ice cubes or milky colored - Bad membrane. - Page 15 Performance Data Sheet NSF/ANSI 58 Reverse Osmosis System Model Numbers: 1-1310-10, 1-1320-10 | Replacement treatment components: see step 9, page 10. General Installation/Operation/Maintenance Requirements Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before of after the system.
- Page 16 Factory labor to repair or replace defective component(s) covered by warranty for: Model ET3000 1-year from date of purchase Model ET4000 1-year from date of purchase Model ET5000/ ET6000 1-year from date of purchase The membrane is warranted to be free from material defects and provide a minimum of 75% TDS...
- Page 17 WARRANTY REGISTRATION AmeriFlow™ Manufacturing and Distribution, Mail form and a copy of original sales receipt to: 525 W. 21st St., Tempe, AZ 85283 U.S.A., 602-275-4188. Or Fax form and a copy of original sales receipt to: 602-244-2505. AmeriFlow™ Manufacturing and Distribution considers the safety of your personal information very important. AmeriFlow™ collects personal information when you register your product with us.
