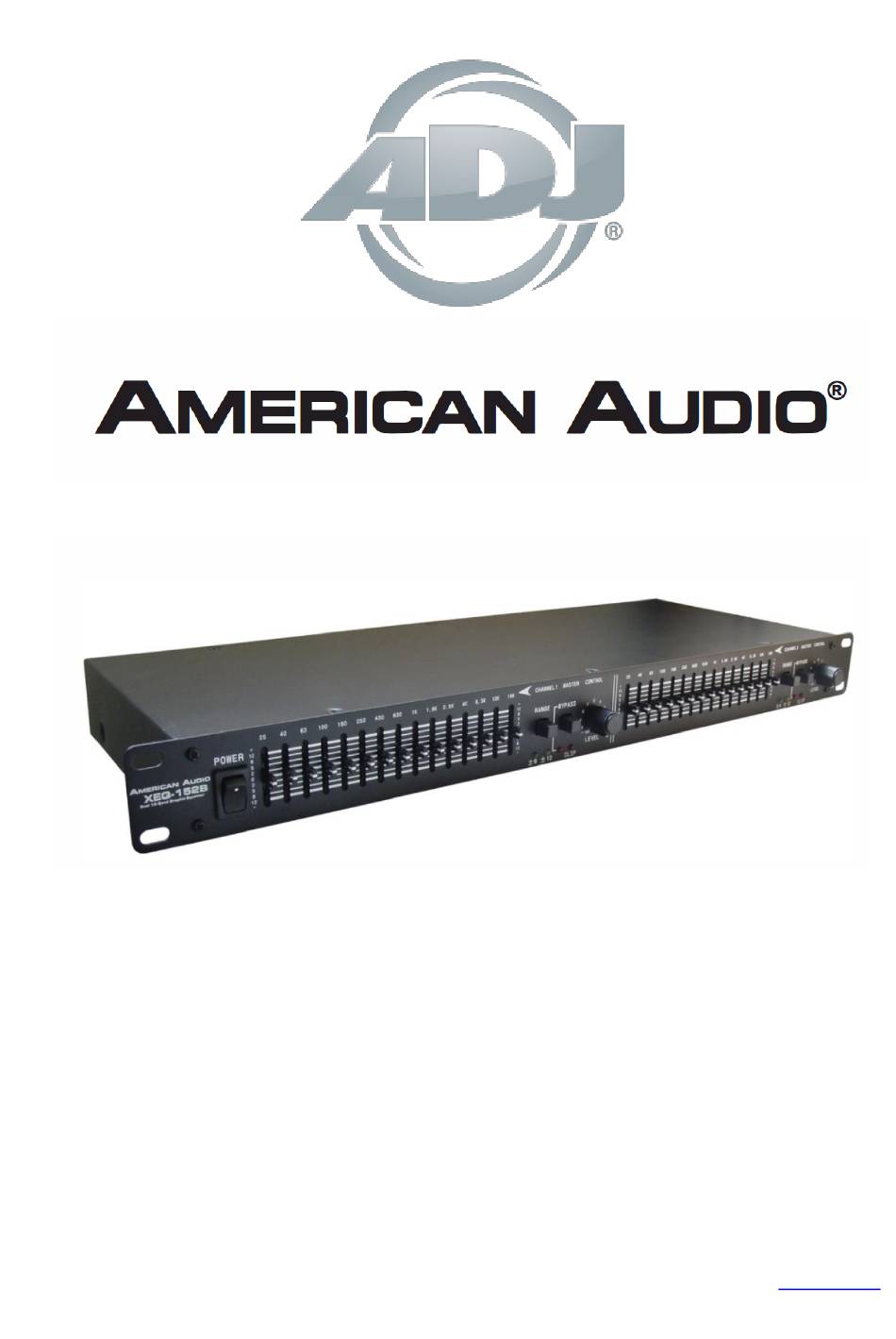

- Page 1 Dual 15 Band Graphic Equalizer Instruction Manual A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.adj.eu...

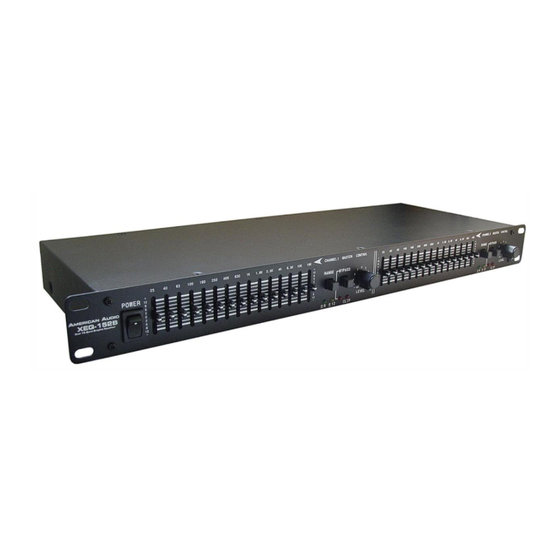

- Page 2 General Two channel 15 2/3 octave band graphic equalizer with frequency control of 25Hz to 16KHz. Is a incorporates constant Q circuitry with a 3% center frequency accuracy. Special features include selectable range 6dB or 12dB, active balanced and unbalanced input/output connectors, RFI filters, variable level control, passive bypass switch, overload threshold LED, ground lift switch and selectable line voltage switch.
- Page 3 Operating Instructions Before starting to equalize your sound system there is some information you should know and procedures you should follow. The XEQ-152B is equipped with a bypass switch with a LED indicator. The bypass switch, when activated, the LED is on and cancels all equalization settings, signal flows through at unity gain.
- Page 4 Front Panel Controls DUAL 15 BAND GRAPHIC EQUALIZER 1.Power Switch To turn the equalizer ON or OFF, press the upper or lower portion of this button. CAUTION: Always turn on your equalizer BEFORE your power amplifiers are turned on, and always turn off your equalizer AFTER your power amplifiers have been turned off.
- Page 5 Rear Panel Connectors & Controls DUAL 15 BAND GRAPHIC EQUALIZER 9.IEC Socket This cord is used connect the AC power source your equalizer. CAUTION: Equipment for USA consumption includes a captive power cord with a three-pin polarized plug. DO NOT REMOVE THE CENTER GROUNDING PIN.
- Page 6 FOR BALANCED CONNECTION FOR UNBALANCED CONNECTION Wire the connector's as follows: Use 1/4 inch tip-ring-sleeve or mono phone plug connectors or RCA phone jack connectors Phone Jack Connection wired as follows. high Phone Jack Connection ring high sleeve ground ring no connection sleeve ground...
- Page 7 Specifications Equalizer: Bands 2x15, 2/3 Octave ISO Spacing From 25Hz to 16KHz. Type Constant Q Accuracy 3% Center Frequency Travel for 2x15 60mm (Positive Center Detent) Range +/-6dB or +/-12dB (Selectable) Inputs: Type Active Balanced/Unbalanced Connectors 3-Pin, 1/4" TRS-(Bal.). RCA. (Unbal.) Impedance 20K.
- Page 8 ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.americanaudio.us E-mail: info@americanaudio.us Follow us on: A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands facebook.com/americandj Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 twitter.com/americandj...
