ASENWARE AW-D316 User Manual

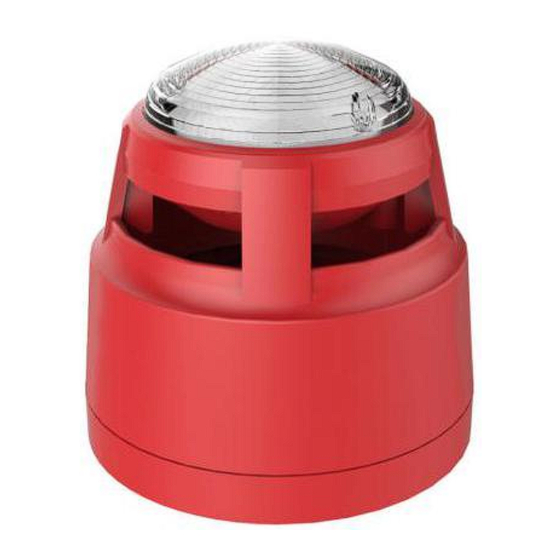

AW-D316 Conventional Sounder Beacon

User Manual

I. Overview
AW-D316 Conventional Sounder Beacon can give audible
and visual alarms after being connected to a DC24V
power supply. It can be used with a bus-type fire alarm
control panel through an output module. After receiving a
start command given by the fire alarm control panel
following an accident, the output module will start the
Sounder Beacon. After that, the Sounder Beacon will give
a dazzling visual alarm signal and a harsh audible alarm
signal to remind the persons on the scene of the accident
of the fact that a fire has occurred on the site quickly and
the necessity to take related evacuation measures, thus
preventing the fire accident from becoming a major one.
The Sounder Beacon may be used to give audible alarms
and visual alarms at the scenes of accidents.It is
applicable to places like high-rise residential buildings,
public places, hotels, amusement buildings,factories,
shopping centers, hospitals, schools, office buildings and
stock exchanges, and particularly to the places with a low
visibility or the possibility of generation of smoke.
II. Product features
✓
Meet both EN54-3 and EN54-23
✓
Designed with an upper cover and a lower cover
and installed on an independent base, it can be
installed, debugged
conveniently.
✓
Suitable for wall and ceiling mount application
✓
Providing 16 tones.
✓
Highly efficient LED technology and specially
designed lens
✓
Light output synchronization.
III.Technical Specification
1. Executive Standard: EN54-3/EN54-23 Type A indoor
2. Operating voltage:DC24V(20V~28V)
3. Operating Current:≤100mA@DC24V
4. Sound output:≥75dB(A) @ 1m(Tone 1).
5. Number of tones:16
6. EN54-23 coverage:C-3-8/W-2.4-6
7. Flash rate: 0.5Hz
8. Flash color: white
9. Light output synchronization:meets EN54-23
10. Protection class: IP21C
11. Operating temperature: -10℃～+55℃ Relative
Humanity:≤95% (non-condensing)
12. Material Lens/Body: Flame retardant PC/ABS
and maintained
1

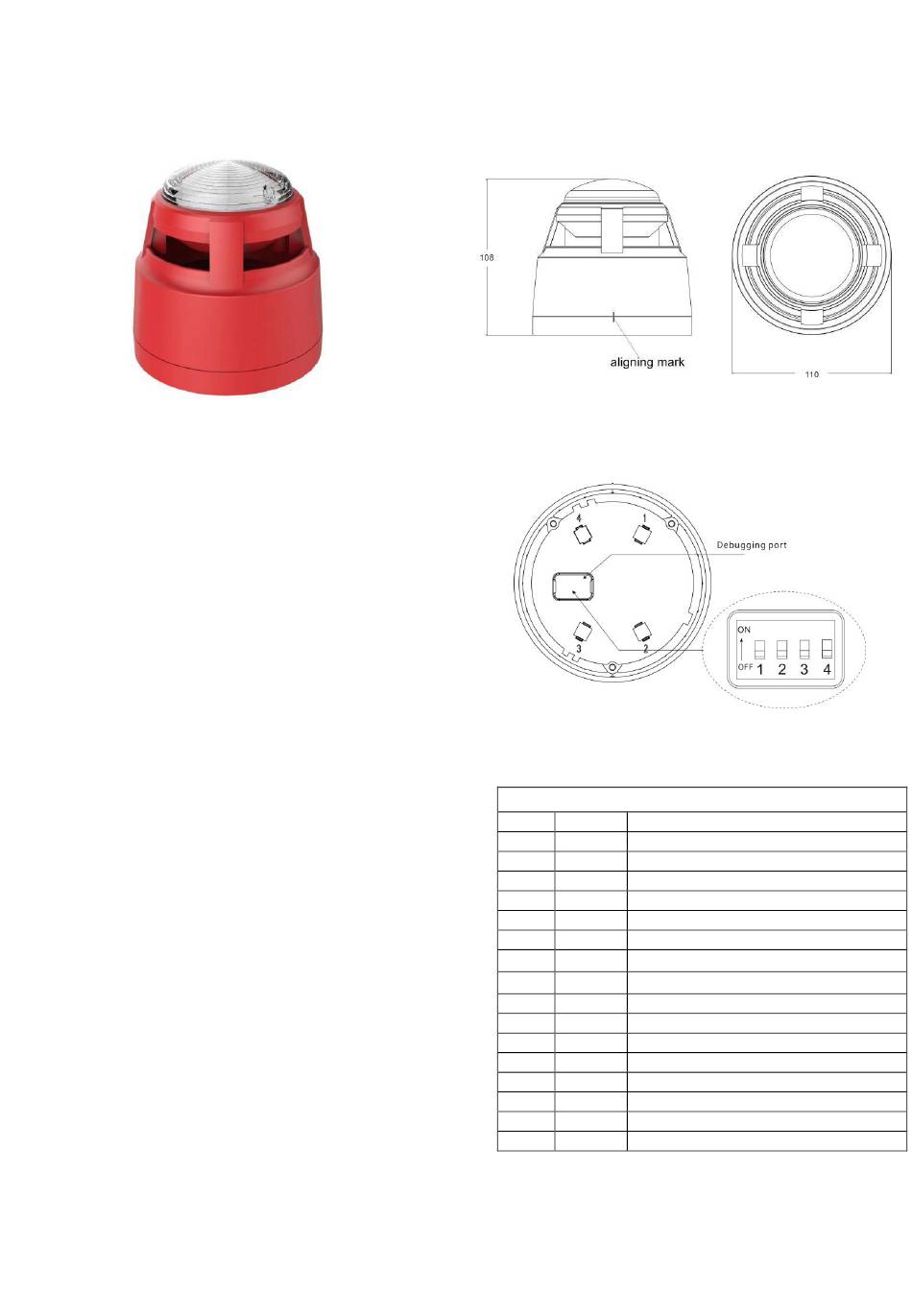

13. Dimension:φ110mm×108mm (with base) ,See
Fig1.
14. Weight:about 266g
V. Tone Setting
The tone of the sounder beacon can be set by the 4-way
DIP switch,which is at the back of the main body(see
Fig. 2). For more detail, please refer to the Tone Table.
Tone Switch
1 0,0,0,0
2 1,0,0,0
3 0,1,0,0
4 1,1,0,0
5 0,0,1,0
6 1,0,1,0
7 0,1,1,0
500Hz-1200Hz×3,3.5s on /0.5s off
8 1,1,1,0
2840Hz,0.5s on/0.5s off×3 /1.5s off
9 0,0,0,1
10 1,0,0,1
11 0,1,0,1
12 1,1,0,1
13 0,0,1,1
14 1,0,1,1
15 0,1,1,1
16 1,1,1,1 500Hz-1200Hz,3.75s on/0.25s off
Note:e.g."1,0,0,0"means "Switch 1 is ON, Switch 2~4 are
OFF".
Version: V1.0 Apr 28th,2018
Fig.1
Fig.2
Tone Table
Decription
667Hz-2000Hz@0.22Hz
970Hz
800Hz/970Hz@2Hz
800Hz-970Hz@1Hz
970Hz 1s off/ 1s on
970Hz 0.5s/ 630Hz,0.5s
2840Hz,0.4s on,0.3s off
550Hz,0.7s/1000Hz,0.33s
1500Hz-2700Hz@3Hz
2400Hz
500Hz~1200Hz@0.33Hz
2400Hz-2900Hz@9Hz
2400Hz-2900Hz@3Hz
