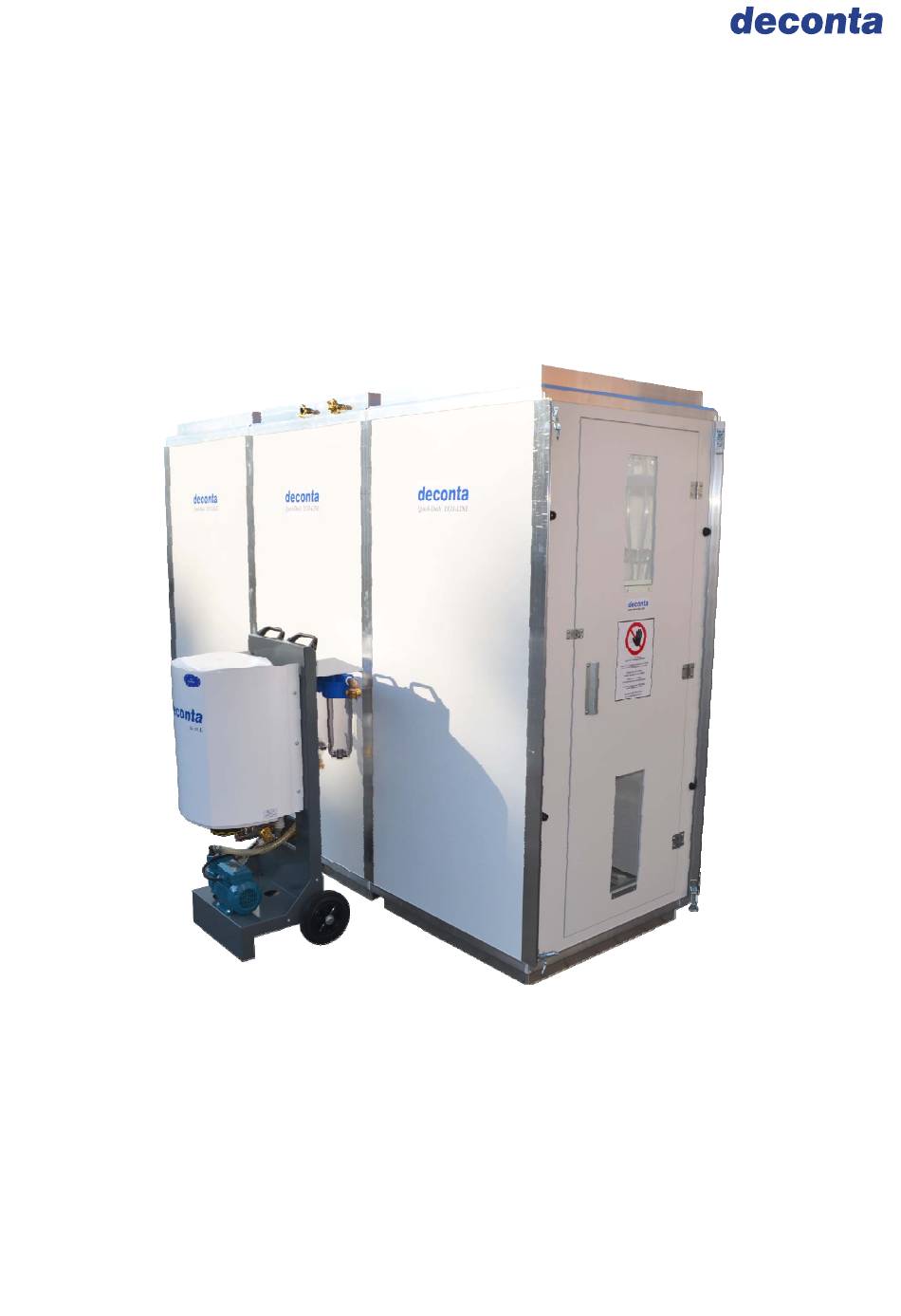

- Page 1 Instruction manual Personnel lock system Quick-Dush ECO-LINE Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg Description / Type-No.: Personnel lock system Quick-Dush ECO-LINE...
-
Page 2: Table Of Contents
Instruction manual Personnel lock system Quick-Dush ECO-LINE Table of contents on page Introduction Basic safety advice Intended use Operation Transport Delivery Transport Storage Scope of delivery Technical description Description of unit Description of personnel lock system Technical data Initial operation Maintenance and care Possible disturbances and their repair Declaration of conformity... -
Page 3: Introduction
Mechanics with „kick“ Pleasing design The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others. -
Page 4: Basic Safety Advice
2.1 Intended use As an operator, you are obliged by deconta to follow the instruction manual and to use this engineered technology equipment only in accordance with the regulations and not in an inappropriate way! In the event of non-observance, deconta assumes no liability. -
Page 5: Transport
3.1 Delivery Unless agreed otherwise, the lock system is packed completely and securely for transport by deconta. Transport damages have to be documented at once during the handing over of the carrier or another supplier. Please note the possible damages additionally on the way bill. -
Page 6: Technical Description
Instruction manual Personnel lock system Quick-Dush ECO-LINE 5 Technical description 5.1 Description of unit During asbestos sanitation works within closed rooms, it must be avoided that asbestos fibres leave the sanitation area and pose a threat to human health or the environment. Therefore, the sanitation area (also called dirty area) has to be separated from the clean area and be kept in dynamic negative pressure by Negative Pressure Units. -
Page 7: Technical Data
Instruction manual Personnel lock system Quick-Dush ECO-LINE 6 Technical data Dimensions per chamber, inside: Model 750 Model 900 Dimensions per chamber: interior (LxWxH): 730 x 730 x 1965 880 x 880 x 1965 exterior (LxWxH): 750 x 750 x 2000 900 x 900 x 2000 Weight: 3-chamber lock system... -
Page 8: Initial Operation
Instruction manual Personnel lock system Quick-Dush ECO-LINE 7 Initial operation Preparation: Previous to the assembly of the personnel lock: Determine the exact position and the ground plan The ground has to be flat and clean Assembly: Put the bottom elements straight ahead from each other and place the grates. In case of unevenness of the space, at least 2 squared timbers of a minimal cross section of 10 cm x 10 cm should be placed underneath the total length and aligned. - Page 9 Instruction manual Personnel lock system Quick-Dush ECO-LINE Insert one wall element in the mounting bracket of the bottom element and the corner profile The following pictures show the further assembly: Important: To prevent the shower water from overflowing, it must be observed to mount the door elements toward the shower in the fixing section of the shower bottom! Seite 9...
- Page 10 Instruction manual Personnel lock system Quick-Dush ECO-LINE Seite 10...
- Page 11 Instruction manual Personnel lock system Quick-Dush ECO-LINE Seite 11...
-
Page 12: Maintenance And Care
Instruction manual Personnel lock system Quick-Dush ECO-LINE 8 Maintenance and care Daily maintenance Check on free flow of the hoses Clean the chambers daily Clean the chambers carefully with a moist wiping cloth after each termination of a shift ... -
Page 13: Declaration Of Conformity
Instruction manual Personnel lock system Quick-Dush ECO-LINE 10 Declaration of conformity In accordance with the European directives Machines/Installations (98/37/EG) Electromagnetic Compatibility (89/336/EWG) Low Voltage Electrical Equipment (2006/95/EG) The type of the machine/installation: Product/ Marking type: Personnel lock system Quick-Dush ECO-LINE is developed, constructed and manufactured in accordance with the above described directive(s) and comply with the following applied harmonised standards DIN EN 292, Safety of machines, devices and installations...
