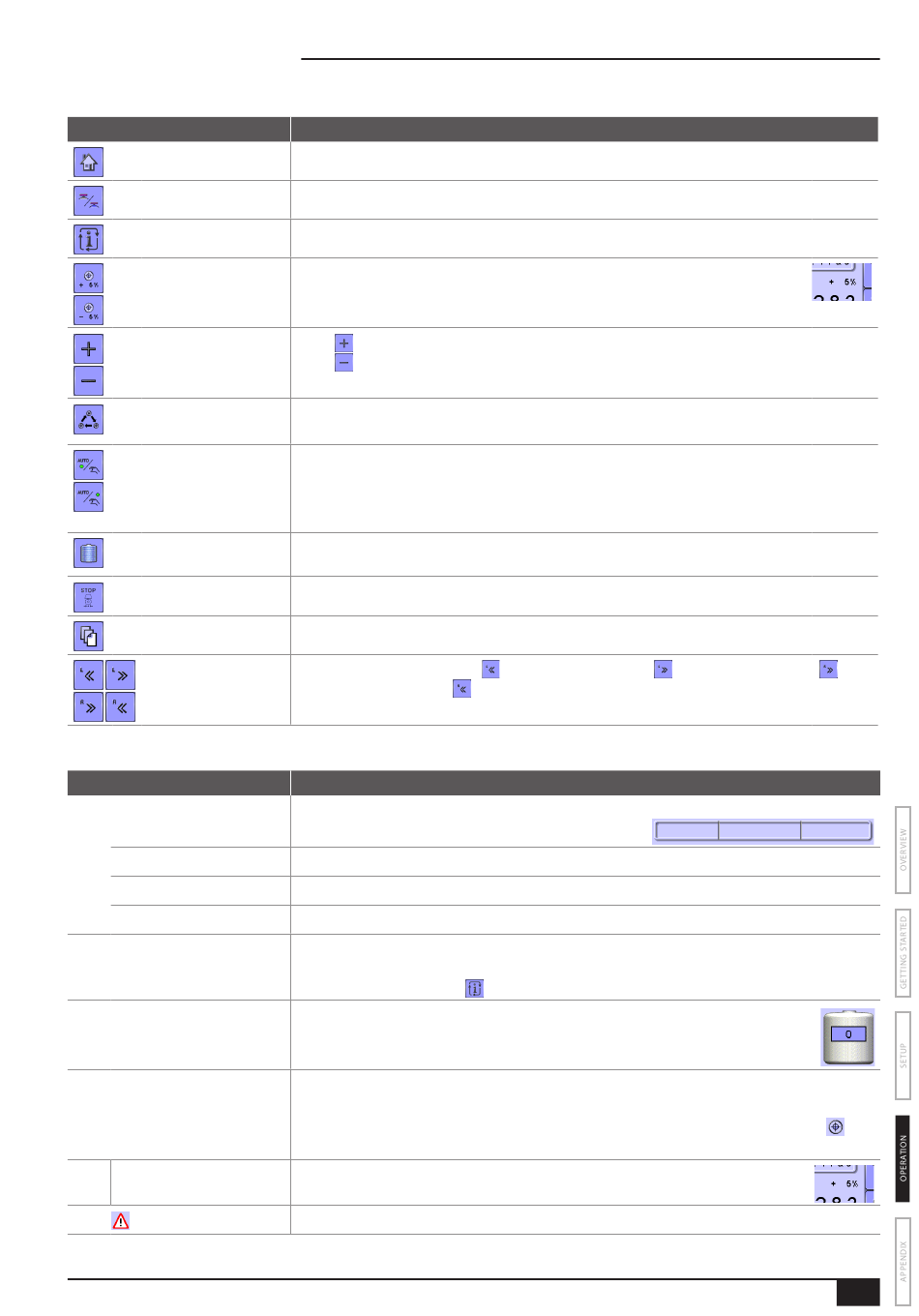

Keys Descriptions

Icon
Home Key
Start/Stop Key
Information Key
Boost/Step Percentage
Increase/Decrease Keys
Manual Mode Regulation
Valve Open Keys
Toggle Preset Target Rates
Key
Auto/Manual Key
Tank Filling Shortcut Key
Master Stop Key
Next Page Key
Boom Sections On/Off
Keys

Section and Icon Descriptions

Section or Icon
Job Information
Count Number
Applied Volume
Applied Area
Speed/Application Information
Remaining Tank Contents
Application Rate
Target Rate Percentage
Increase/Decrease
Alarm
Description
Press to return to the Home Screen
Press to start or stop application
Press to toggle between display modes
Press to establish the required boost percentage step, i.e. the step size, at which the
application rate is to increase/decrease with the boost function
Press to open the regulation valve
Press to close the regulation valve
Press to toggle between established target application rates
Press to toggle between automatic and manual application modes.
Automatic regulation mode will automatically adjust the application rate based on the current
speed in reference to the target rate.
Manual regulation mode will retain an established regulation valve setting regardless of speed.
Press for one-press access to the Tank Filling setup screen
Press to stop all application, close all regulation valves and change to manual regulation mode
Press to toggle between soft key options
Press to turn on sections to left
turn off sections from right
Description
This information bar displays the active count number,
applied volume and applied area
Displays the current active trip or job number
Displays volume applied for the selected count number
Displays applied area for the selected count number
Displays vehicle speed or volume applied per minute or projected area per hour to be covered or
projected total area remaining to be covered depending upon which view is active.
The Information Key toggles
Displays the remaining tank content
NOTE: If no tank sensor is fitted or the contents are not entered in the Tank Filling
Menu prior to spraying, Tank Contents may not display the correct amount.
Displays the actual application rate per hectare/acre
NOTE: When the Master is "On" the actual application rate per hectare/acre will be displayed.
When the Master is "Off" the target rate is displayed and the TARGET RATE ICON
appears
Displays boost percentage step, i.e. the step size, at which the application rate is to
increase/decrease with the boost function
Displayed if an alarm condition is active
ISOBUS Job Computer : IC18 Sprayer
, turn off sections from left
between display modes.
, turn on sections to right
