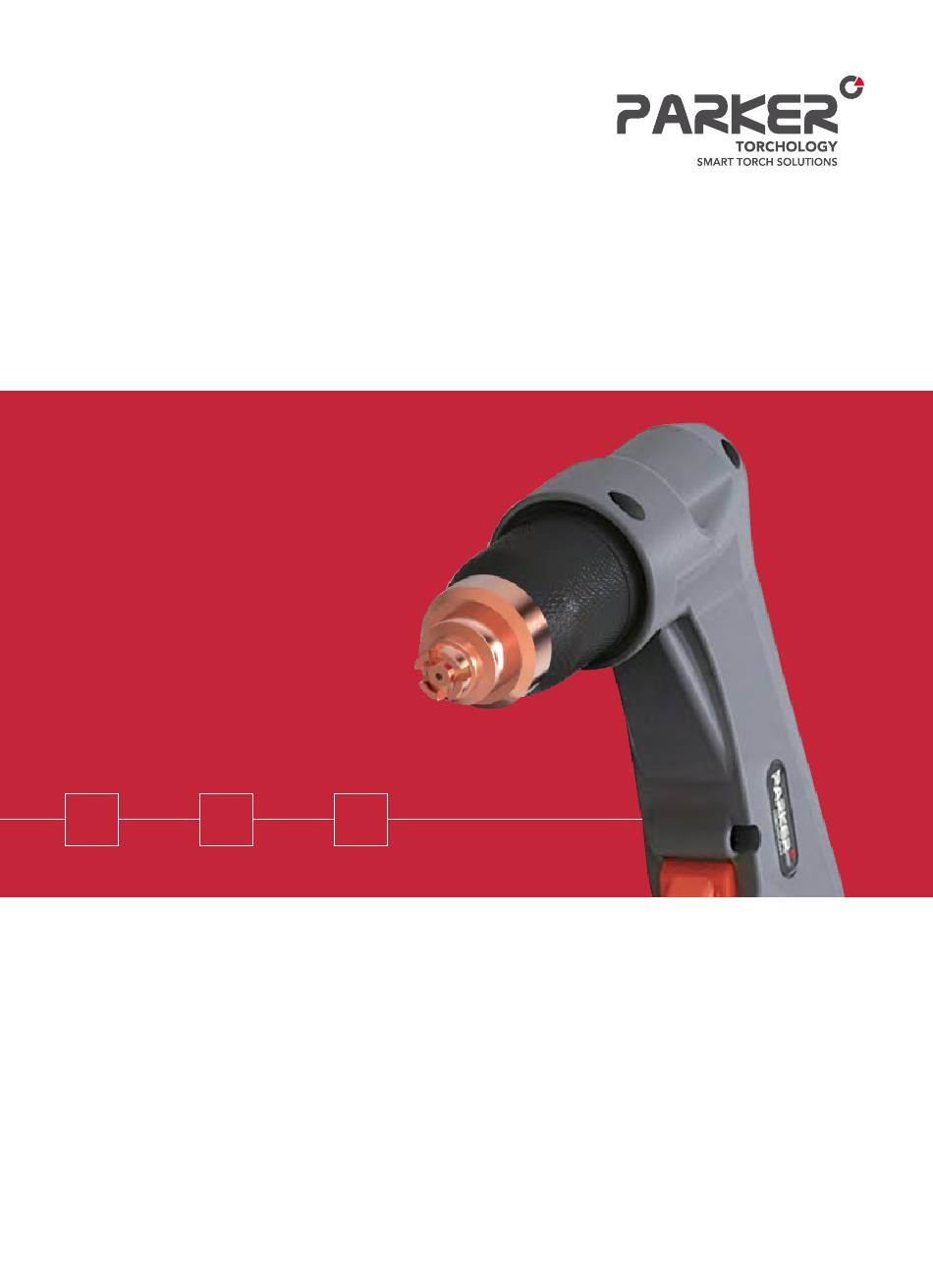

- Page 1 Plasma Cutting Series OWNER’S HANDBOOK...
- Page 2 Plasma Cutting Torch Operating Manual Serial number and product warranty code Contents of this box Product supplied by Your plasma cutting torch Simple to follow instructions, user tips A spares listing A maintenance spanner Basic product data and conformity information Basic product data To EN60974-7 : 2005 Process, this is a plasma cutting torch Conformity information...
-
Page 3: Maintenance
Maintenance. What is covered Defective materials used in the manufacture of the product. Used correctly, you can expect a long service life from a Parker Faulty workmanship in the manufacture of the product. plasma cutting torch. There are a few common sense precautions you should... -
Page 4: Important Safety Instructions
Important Safety Instructions Read all instructions before using this product. Plasma torches are safe products to use but like all modern tools they can be dangerous in untrained hands; therefore we have assumed that you know how to use these products and appreciate the dangers of miss-use. These Plasma torches have the ability to inflict serious injuries if used by untrained personnel. -
Page 5: Connecting The Torch
Connecting the Torch Remember to turn off all power before connecting the torch. Depending on your order your torch will come with either direct to machine connections or a euro connector. If you have ordered direct to machine connections you will need to open the machine connection panels and wire the torch to your power source instructions. - Page 6 Attach the work clamp securely to the workpiece. Remove rust, paint or other coatings to ensure good electical contact. Attach the work clamp as close as possible to the area being cut, to reduce exposure to electromagnetic fields (EMF). Do not attach the work clamp to the portion that will fall away!! Copyright, all rights reserved...
-
Page 7: Operation And Start Up
Operation and Start Up Some tips and advice to help you get going Tips • It is easier to pull the torch through the cut than to push it. • To cut thin material, reduce the amps until you get the best quality cut. •... - Page 8 Piercing Fire the torch at an angle to the workpiece, When sparks are exiting from the bottom When the pierce is complete, proceed with then slowly rotate it to an upright position. of the workpiece, the arc has pierced the cut. through the materal.
- Page 10 Jinan Export Processing Zone The East End Of Jing Shi Dong Road Jinan 250102 P.R. China Tel: +86 531 88239823 Fax: +86 531 88239398 Website: www.parkertorchology.com Email: info@parkertorchology.com MPP010 / V.2019.06...
